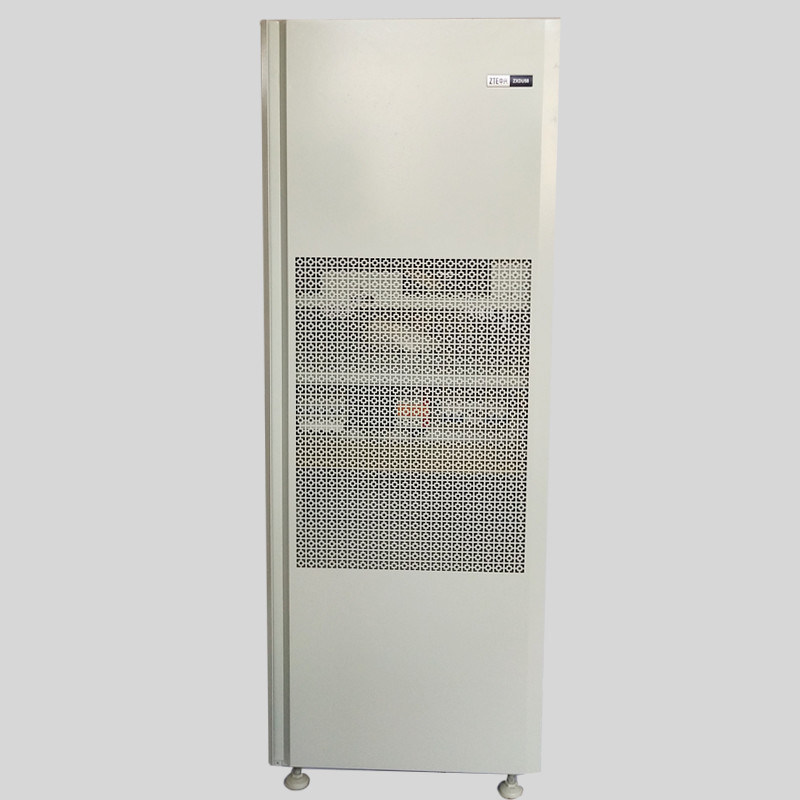

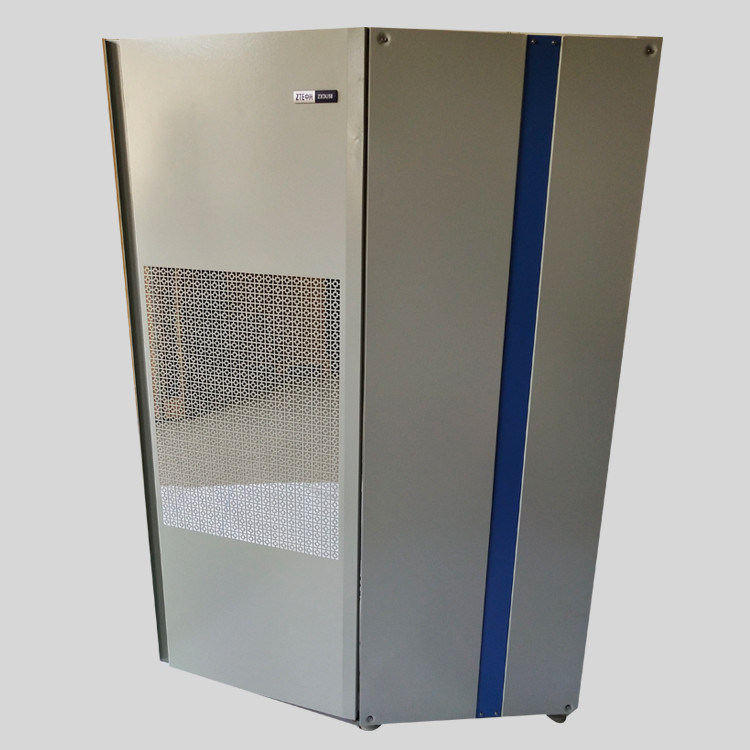

ZTE ZXDU58 T301 Telecom Battery Cabinet & ZXD1500 Rectifier Systema
High Capacity Combination: Equipped with ZXD1500 30A rectifier modules, maximum 10 modules for 300A total current and 18kW power, meeting medium-to-high load power demands.
Wide Grid Adaptation: Supports 80~300V AC working range based on 210-240V rated input, stable operation under fluctuating mains power.
Excellent Electrical Performance: Rectifier efficiency up to 94%, total harmonic distortion (THD) less than 2.8%, high power factor to reduce grid pollution and energy loss.
Modular Hot-Swap: ZXD1500 rectifiers and monitoring units support hot plugging; maintenance and replacement without system shutdown.
Integrated Cabinet Design: Combines power system and battery cabinet, compact structure with 400mm depth, saving up to 50% deployment space.

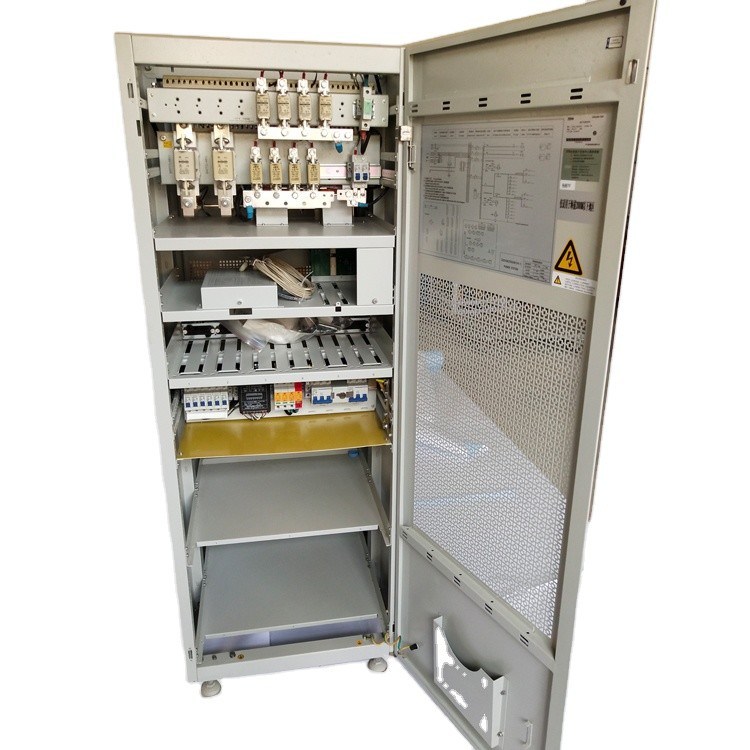

Front Access Maintenance: All circuit breakers, modules and interfaces are accessible from the front, greatly simplifying daily inspection and repair.
Reliable Heat Dissipation: Built-in forced convection fan, stable heat dissipation for long-term 24-hour continuous operation.
Wide Temperature Resistance: Works stably from -40℃ to +70℃, no extra temperature control equipment required, cutting operational expenses.
Complete Protection: Integrated overvoltage, overcurrent, short-circuit, over-temperature and lightning protection to safeguard power system and batteries.
Intelligent Battery Management: Supports float charging and equalizing charging modes, with temperature compensation to extend battery service life.
4G/5G mobile communication base stations and outdoor cabinet sites
Indoor central machine rooms and transmission equipment rooms
FTTX large-scale fiber broadband access networks
Enterprise private networks and industrial communication systems
Medium-sized data center DC power and backup power projects
| Category | Item | Parameter |
|---|---|---|
| Basic Info | Product Type | Integrated Telecom Battery Cabinet with Rectifier |
| Main Model | ZXDU58 T301 | |
| Matching Rectifier | ZXD1500 (30A per module) | |
| Max Module Quantity | 10 Units | |
| Max Total Current | 300A | |
| Total Output Power | 18kW | |
| AC Input | Rated Voltage | 210 ~ 240 VAC |
| Operating Range | 80 ~ 300 VAC | |
| Input Frequency | 50/60Hz | |
| THD | ＜ 2.8% | |
| DC Output | Nominal Voltage | 48V DC (Adjustable: -42 ~ -58V DC) |
| Rectifier Efficiency | Up to 94% | |
| Output Type | Multiple Circuits | |
| Physical Parameter | Dimension (HWD) | 1600 × 600 × 600 mm |
| Net Weight | 95kg | |
| Cooling Mode | Built-in Fan, Forced Convection | |
| Environment | Operating Temperature | -40℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +70℃ | |
| Max Working Altitude | ＜ 3000m | |
| Protection | Overvoltage, Overcurrent, Short-circuit, Overtemperature, Lightning Protection | |
| Certification | ISO, CE |
All-in-One Design: Integrates power system and battery cabinet, simplifying site layout and installation.
Large Load Capacity: 300A & 18kW output fits medium and large telecom equipment clusters.
High Energy Efficiency: 94% efficiency and low THD reduce long-term electricity costs and grid interference.
Space Saving: Compact cabinet structure saves 50% space compared with separate devices.
Easy O&M: Front access + hot-swap modules lower maintenance difficulty and downtime.
Strong Adaptability: Ultra-wide voltage and temperature range suit various complex deployment environments.
Dual Function: Power supply + battery backup dual functions ensure uninterrupted service during power cuts.
