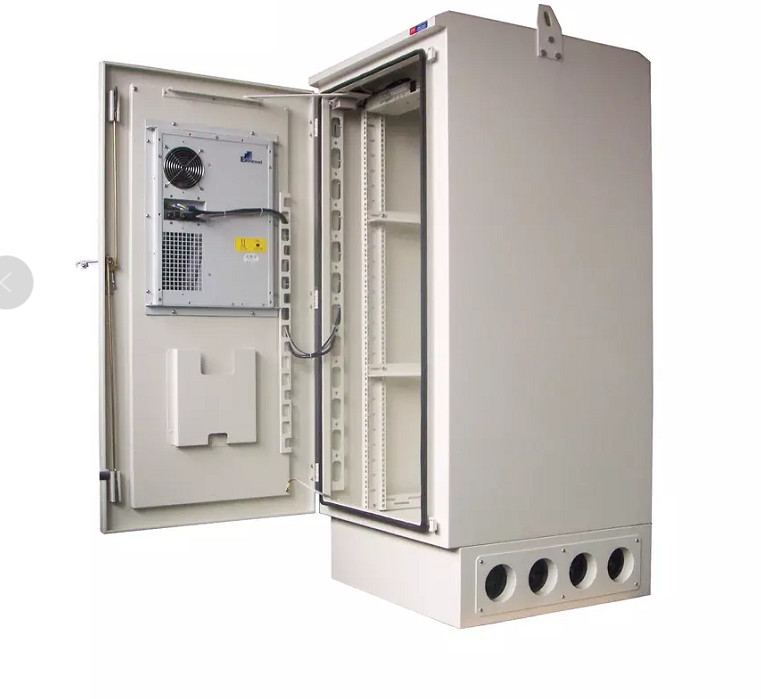

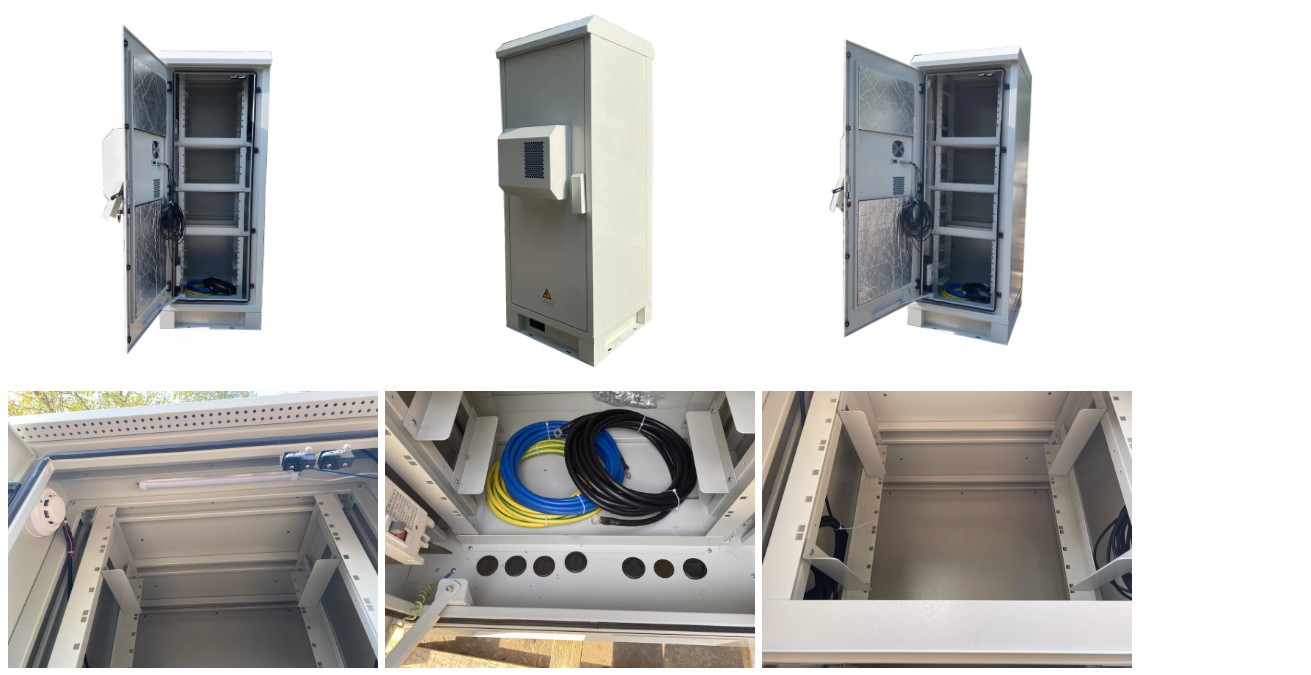

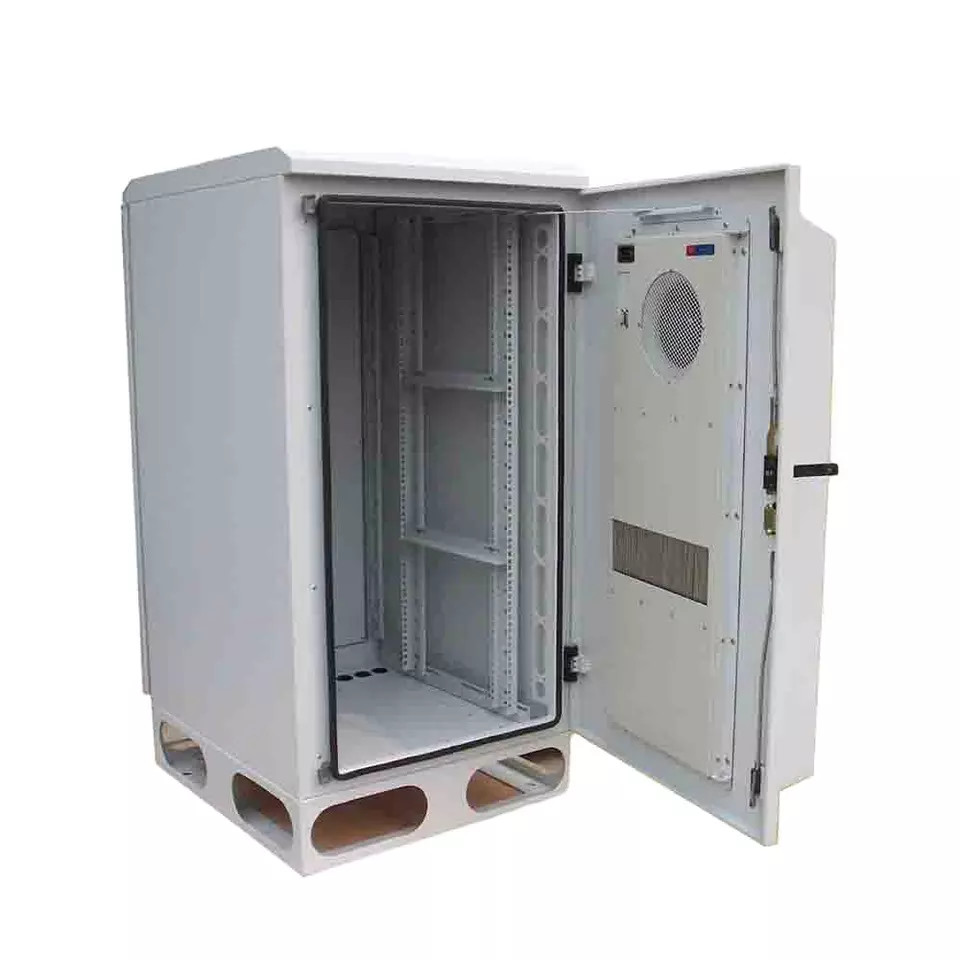

PCTELCO IP55/IP65 Waterproof Outdoor Telecom Cabinet (18U/22U/32U)
Dual Protection Ratings: Optional IP55 and IP65 ingress protection, fully waterproof, dustproof and weatherproof for complex outdoor environments.
Double Wall Insulation Structure: Side walls, doors and top all adopt double-layer design with heat insulation and filter layers, reducing heat transfer and avoiding condensation.
Durable Material Configuration: 1.5mm galvanized steel for cabinet body and 2mm thickened steel for base, solid structure and strong load-bearing capacity.
Energy-Saving Cooling: Standard 100W/K heat exchanger, low noise and low power consumption, reliable heat dissipation without high operational costs.
Professional Surface Treatment: Outdoor epoxy powder coating with light grey RAL7035 color, scratch-resistant, anti-rust and anti-aging.
Flexible OEM Customization: Supports customized cabinet height, color, cable entry mode and internal layout to meet personalized project demands.
Complete Expandable Accessories: Optional PDU and integrated control system to realize multi-dimensional environmental monitoring.
Reasonable Internal Layout: Reserved front and rear free space for equipment, convenient for heat dissipation, wiring and daily maintenance.
Wide Application Range: Perfectly compatible with various wireless communication network equipment and outdoor power distribution devices.
| Item | Parameter |
|---|---|
| External Dimension (W×D×H) | 750 × 940 × 1358 mm |
| Outer Size of Wooden Package | 840 × 1000 × 1500 mm |
| Net Weight | 123 KGS |
| Gross Weight | 170 KGS |
| Internal Standard Capacity | 24U (18U/22U/32U optional) |
| Internal Space Design | 100mm free space on front, 200mm free space on rear |
| Item | Parameter |
|---|---|
| Cabinet Body Material | 1.5mm galvanized steel plate |
| Base Material | 2mm galvanized steel plate |
| Overall Structure | Double wall, equipped with heat insulation & filter layer |
| Surface Treatment | Outdoor epoxy powder coating |
| Standard Color | RAL7035 (Light Grey, customizable) |
| Protection Grade | IP55 / IP65 (Optional) |
| Item | Parameter |
|---|---|
| Standard Cooling Device | 100W/K Heat Exchanger |
| Operating Noise | 60 - 65dB |
| Item | Parameter |
|---|---|
| Cable Entry Mode | Bottom cable glands (customizable) |
| Installation Type | Floor standing |
| Item | Description |
|---|---|
| Power Distribution Unit (PDU) | Standard rack-mounted power distribution accessory |
| Integrated Control System | Real-time monitoring & alarm for smoke, water immersion, temperature and humidity, access status |
Excellent Weather Resistance: IP55/IP65 protection plus double-wall insulation structure, adapts to sun, rain, wind and dust all year round.
Robust & Durable Body: Thickened galvanized steel and professional outdoor coating extend the service life of the cabinet.
Energy-Saving Heat Dissipation: Adopts high-efficiency heat exchanger, low power consumption and stable cooling effect.
Strong Customization Capability: Comprehensive OEM services for size, color and accessories to match diverse project requirements.
Humanized Layout: Reserved internal free space facilitates equipment installation, heat dissipation and later maintenance.
Expandable Functions: Optional monitoring system realizes unattended remote management for outdoor sites.
Standard Packaging & Delivery: Solid wooden carton packaging prevents damage during transportation, stable supply capacity.
Cost-Effective: Integrated design combines protection, heat dissipation and distribution, reducing overall engineering investment.
Q: What protection grades does this cabinet support?
A: It provides IP55 and IP65 two optional protection grades to adapt to different outdoor environments.
What are the optional U heights?
A: The standard models include 18U, 22U and 32U, and other sizes can be customized.
Q: What is the standard cooling configuration?
A: It is equipped with a 100W/K heat exchanger for heat dissipation.
Q: Does it support OEM customization?
A: Yes, we support customized size, color, cable entry mode and internal functional accessories.
Q: What material is the cabinet made of?
A: The cabinet body uses 1.5mm galvanized steel plate, and the base is thickened to 2mm for enhanced stability.
Q: What are the gross weight and net weight of the product?
A: The net weight is 123KGS and the gross weight is 170KGS.
Q: How long is the delivery cycle?
A: The conventional delivery time is 8 to 10 weeks after order confirmation.
