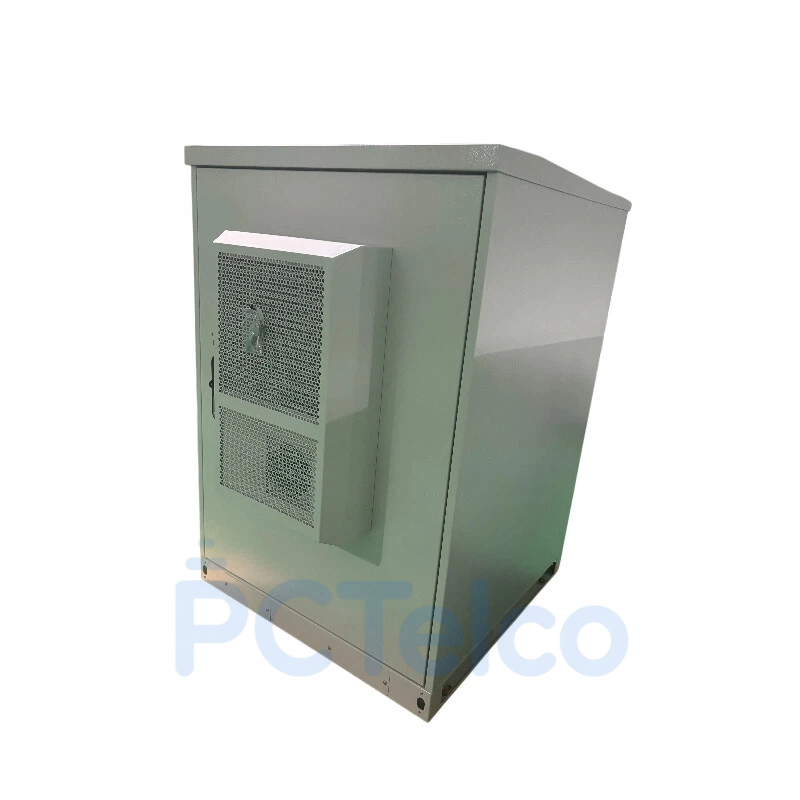

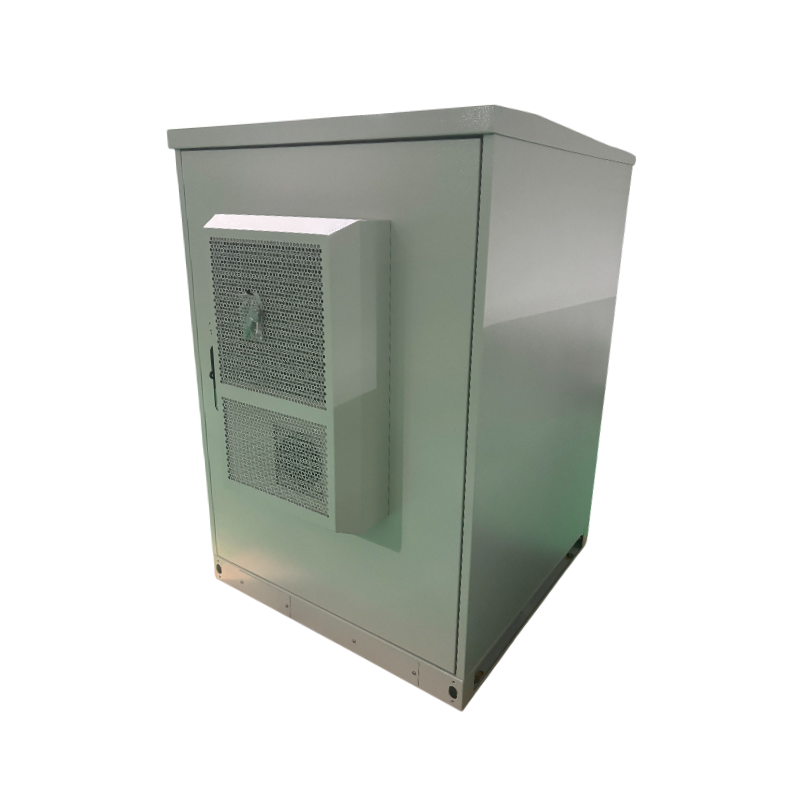

22U Outdoor Telecom Cabinet for Telecom Base Station and Outdoor Equipment Protection
The 22U outdoor telecom cabinet is designed for protecting sensitive telecom and electronic equipment in harsh outdoor environments. It provides a secure, weatherproof, and thermally insulated enclosure for base station power systems, communication equipment, and network devices.
Built with galvanized steel and high-performance insulation materials, this cabinet ensures stable operation under extreme temperature, humidity, and dust conditions. It is widely used in telecom base stations, wireless networks, and remote communication sites.
This outdoor telecom enclosure is composed of:
Cabinet body
Front door and rear access door
Mounting rack (19 inch standard)
Base frame
Top cover with slope design
Modular structure allows easy installation and maintenance of telecom equipment.
3. Specifications
(1) Technical Parameters
| Item | Specification |
|---|---|
| Cabinet Type | Outdoor Telecom Cabinet |
| Rack Size | 19 inch standard |
| Capacity | 22U |
| External Size | 1145 × 800 × 800 mm |
| Internal Size | 985 × 740 × 740 mm |
| Material | 1.5mm galvanized steel + insulation board |
| Insulation | 30mm PEF thermal insulation |
| Thermal Conductivity | <0.038 W/(m·K) |
| Protection Level | IP65 waterproof & dustproof |
| Operating Temperature | -40°C ~ +50°C |
| Cable Entry | Down-in / Down-out |
| Installation Type | Ground or overhead installation |
| Color | RAL7035 / Pantone 428C |
| Cooling System | Air conditioner / heat exchanger / fan cooling |
| Security | 3-point anti-theft locking system |
| Accessories | LED light, smoke sensor |
(2) Accessories List
| No. | Item | Quantity | Unit | Specs |

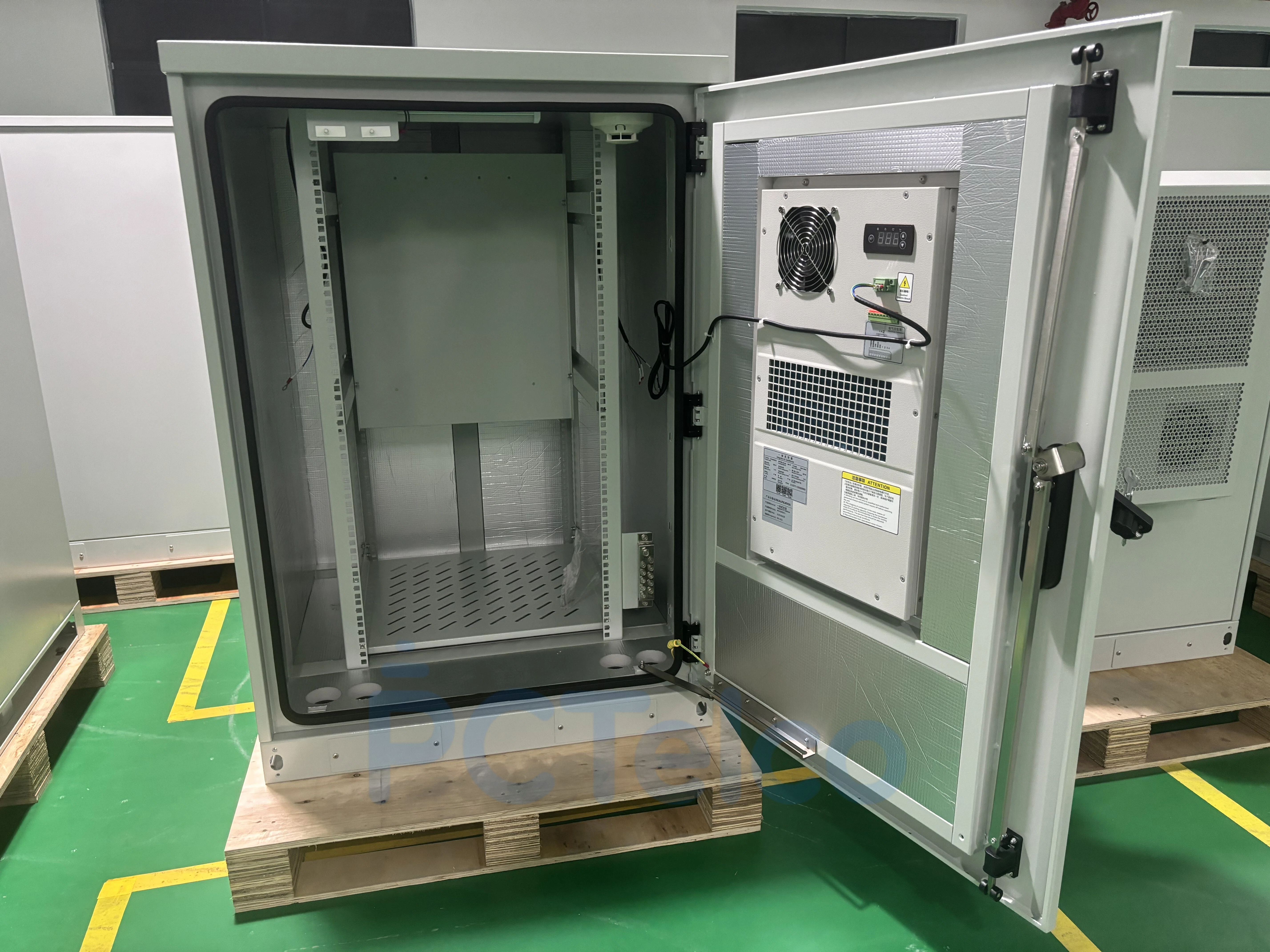

| 1 | Outdoor Telecom Cabinet | 1 | Set | (1) External Dimension H×W×D 1300×600×800mm; Internal Dimension H×W×D 1090×594×700mm. (19”, 22U) (2) One compartment,including 32U 19” equipment rack. (3) With one front door, and special anti-theft three point lock for outdoor cabinet (support padlock) (4) Sandwich structure panel, galvanized steel, double wall, there is heat insulation between two walls. |
| 2 | Air Conditioner | 1 | Set | Power supply: AC220V, 50HZ Cooling capacity: 1500W |
| 3 | Fan | 1 | Set | Two AC220V fans + one temperature controller |
| 4 | Environment Monitoring System | 1 | Set | 1× Smoke sensor, 1× Water sensor, 1× Temperature&humidity sensor, 1× Door sensor, 1× Shock sensor. 1×Environment monitoring unit(FSU) |
| 5 | Power Distribution Unit | Grade B Lightning Proof AC Input: 63A/2P ×2; AC Output: 16A/1P×2; DC Output: 16A/1P×3. Height: 4U | ||
| 6 | LED Lamp Switch | 1 | PC | Used for controlling LED lamp on/off |
| 7 | LED Lamp | 1 | PC | AC220V |
| 8 | Package | 1 | Set | Wooden Case |

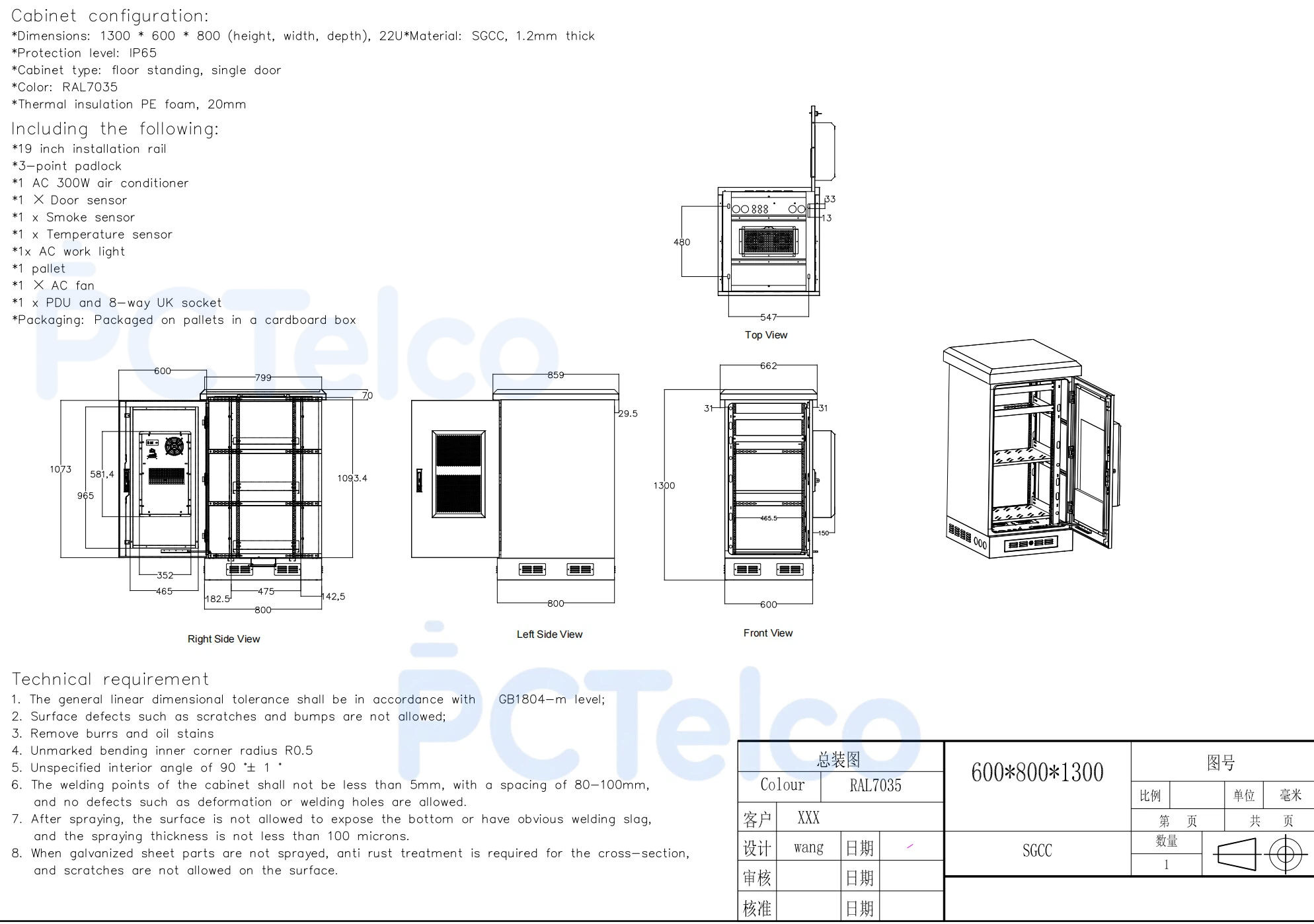

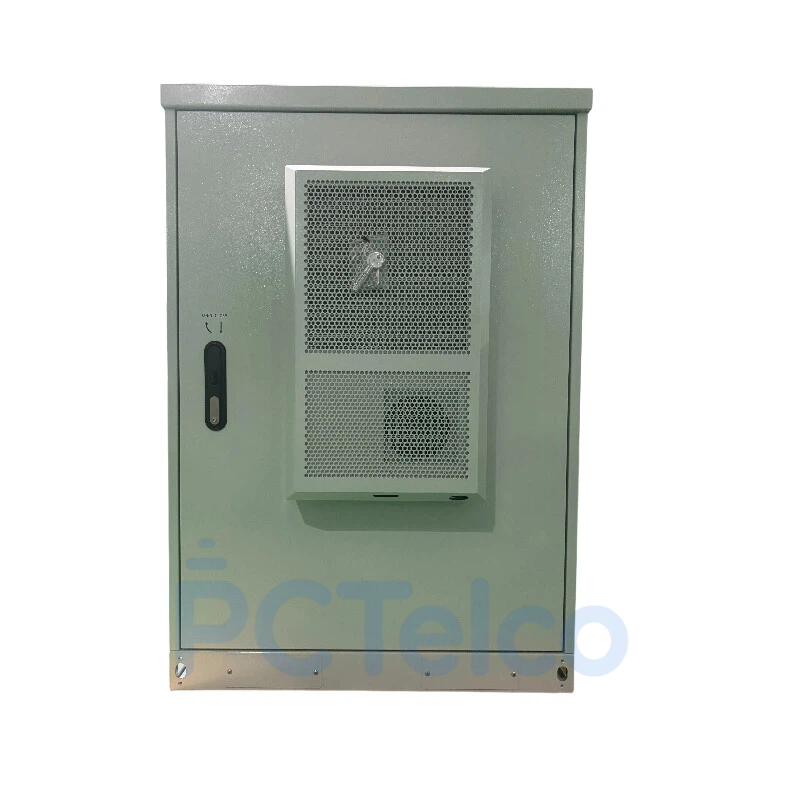

Cabinet Drawing:
External Dimension H×W×D 1300×600×800mm
IP65 waterproof and dustproof protection
19 inch standard rack compatibility
High thermal insulation for extreme environments
Anti-theft mechanical structure design
Flexible cooling system options
Suitable for 24/7 telecom operation
Easy installation and maintenance
This 22U outdoor telecom cabinet is widely used in:
Telecom base stations
4G / 5G wireless network sites
Fiber optic communication systems
Remote communication stations
Outdoor power distribution systems
Edge computing and IoT infrastructure
The cabinet can integrate the following telecom power components:
Rectifier /Power System (48V / 24V systems)
DC power distribution units (PDU)
Battery backup systems
Monitoring controllers (Smartpack / FPS)
It is suitable for complete outdoor telecom power system solutions.
Depending on site environment, the cabinet supports:
Natural ventilation system
300W air conditioner
Heat exchanger cooling system
3-point anti-theft locking system
Reinforced steel structure
Waterproof sealing design
Smoke detection sensor support
Overheat protection design
Standard export wooden pallet packing
Shockproof protection
OEM / ODM customization available
For pricing, configuration options, and OEM customization, please contact us for detailed technical support and quotation.
