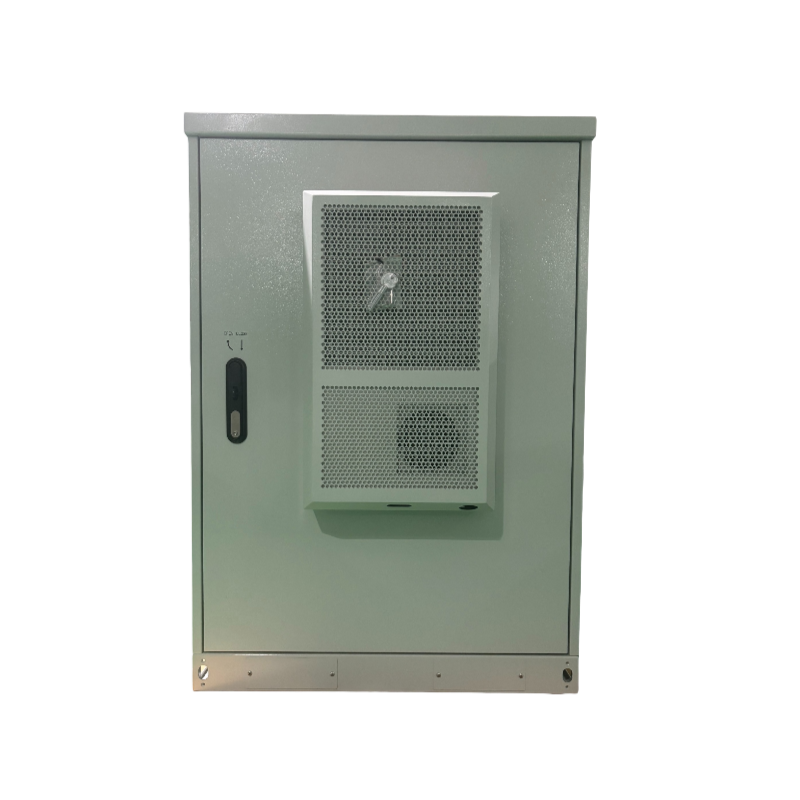

IP55 Sandwich Stucture Panel 22U 19 Inch Outdoor Telecom Cabinet Air Conditioner Cooling
1. Specifications
(1) Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension H×W×D 1300×600×800mm; Internal Dimension H×W×D 1090×594×700mm. (19”, 22U) |
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rack | |
| Door | With one front door, and special anti-theft three point lock for outdoor cabinet (support padlock) | |
| Material | Sandwich structure panel, galvanized steel, double wall, there is heat insulation between two walls. | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | AC220V air conditioner or AC220V fans |
| Lighting | LED lamp | AC220V LED lamps |
| Temperature | Temperature | Working Temperature: -40°C ~ +75°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
(2) Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set | (1) External Dimension H×W×D 1300×600×800mm; Internal Dimension H×W×D 1090×594×700mm. (19”, 22U) (2) One compartment,including 32U 19” equipment rack. (3) With one front door, and special anti-theft three point lock for outdoor cabinet (support padlock) (4) Sandwich structure panel, galvanized steel, double wall, there is heat insulation between two walls. |
| 2 | Air Conditioner | 1 | Set | Power supply: AC220V, 50HZ Cooling capacity: 1500W |
| 3 | Fan | 1 | Set | Two AC220V fans + one temperature controller |
| 4 | Environment Monitoring System | 1 | Set | 1× Smoke sensor, 1× Water sensor, 1× Temperature&humidity sensor, 1× Door sensor, 1× Shock sensor. 1×Environment monitoring unit(FSU) |
| 5 | Power Distribution Unit | Grade B Lightning Proof AC Input: 63A/2P ×2; AC Output: 16A/1P×2; DC Output: 16A/1P×3. Height: 4U | ||
| 6 | LED Lamp Switch | 1 | PC | Used for controlling LED lamp on/off |
| 7 | LED Lamp | 1 | PC | AC220V |
| 8 | Package | 1 | Set | Wooden Case |
Cabinet Drawing:
External Dimension H×W×D 1300×600×800mm
Company introduction
Founded in 2008, Shenzhen Pengcheng Electric Technology Co., Ltd. focuses on R&D and sales of telecommunication and data center supporting products. Headquartered in Bao'an, Shenzhen, we have partners across the country.
We supply network energy equipment including telecom power systems, precision distribution cabinets and integrated cabinets (customization available) from ELTEK, Huawei, Vertiv (formerly Emerson), ZTE and CE+T. Our product range also covers UPS, precision air conditioners, batteries and other data room accessories from well-known brands.
All products are strictly tested before delivery. We offer reliable after-sales service and instant spare parts support within warranty to cut your time and costs. Custom OEM/ODM services are also available.
We support OEM services and can customize power solutions tailored to your requirements. Please send your detailed requirements to my our for further discussion.
