Flatpack2 Telecom Hybrid System Eltek Rectifier Cabinet With MPPT With Dual Cooling (Customized Model)
Product Overview
Made of SGCC galvanized steel with IP55 dustproof & waterproof sealing, it is matched with Smartpack2 MCU full-system monitoring and Smart PDU intelligent power distribution, widely used in 5G base stations, off-grid solar signal towers and tropical remote monitoring sites.
Specifications
| Item | Parameter |
|---|---|
| DC Rated Output | 48VDC (Adjustable 42~57.6V) |
| Rectifier Capacity | 24kW Flatpack2 high-efficiency modules |
| Solar PV Input | 25kW built-in MPPT solar charger |
| Hybrid Inverter | 6kVA off-grid auxiliary AC power |
| Cooling System | Dual cooling: passive heat exchanger + integrated 300W air conditioner |
| Cabinet Protection Grade | IP55 dustproof & splash water resistant |
| Cabinet Material | SGCC hot-dip galvanized steel sheet |
| Main Monitoring Unit | Eltek Smartpack2 MCU controller |
| Applicable Ambient Temp | -40℃ ~ +60℃ (suitable for high-temperature regions) |
| Certifications | CE, ISO9001, support SABER export documents |
| Export Packaging | Solid wooden pallet + full anti-scratch PE film wrapping |
Key Product Features

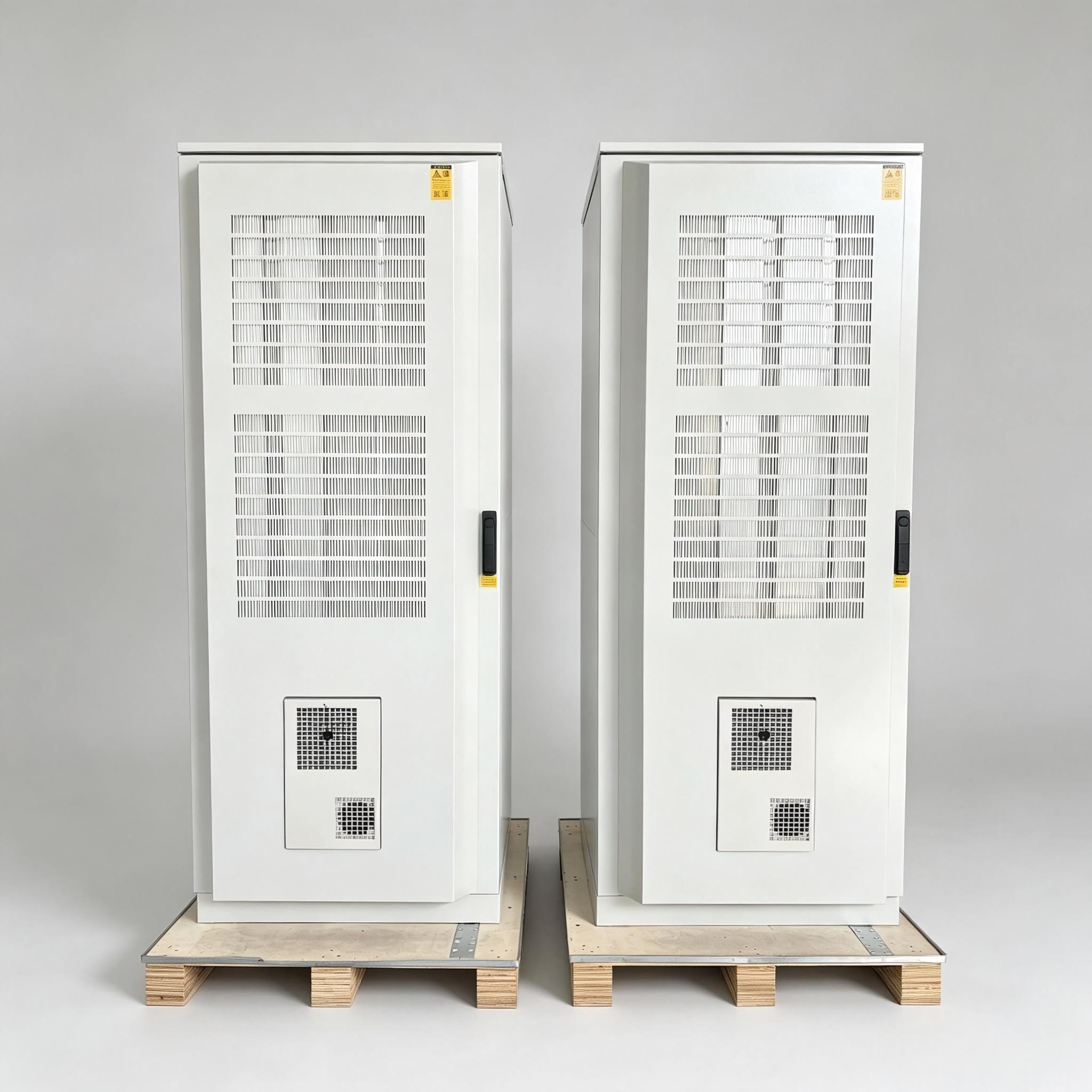

Updated cabinet body structure with enlarged ventilation grilles for better air circulation. The whole shell uses SGCC hot-dip galvanized steel with excellent anti-rust, anti-salt-spray and anti-UV performance. High-density EPDM sealing strips around the door achieve IP55 rating, blocking dust, sand and rainwater, supporting stable long-term outdoor deployment.
This cabinet adopts a two-stage combined cooling solution exclusive for high-temperature areas
Pre-installed Smart PDU inside the Eltek Type3 cabinet, support real-time voltage/current monitoring, remote switch control, overload short-circuit protection and SNMP data upload. Each power branch can be independently monitored and managed, improving the safety and intelligence level of the whole hybrid solar power system.

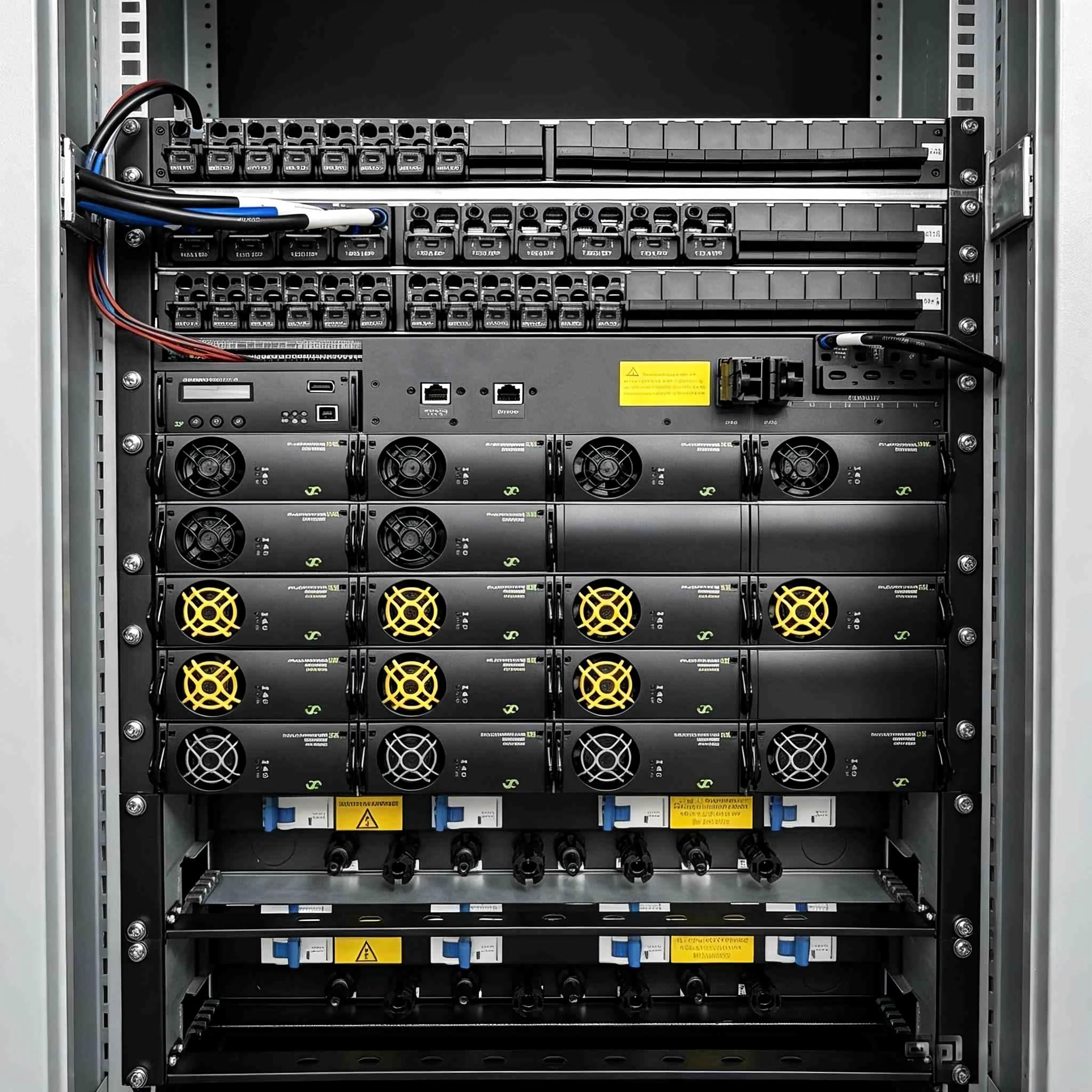

The cabinet integrates a hybrid solar power supply framework, supporting dual energy input: solar photovoltaic power + municipal AC power. Automatically switch power supply mode according to sunlight condition, store excess solar energy in battery packs, cut grid power consumption and realize energy-saving off-grid operation for remote communication sites. Compatible with all Eltek Flatpack2 rectifier modules and Smartpack series monitoring MCU.

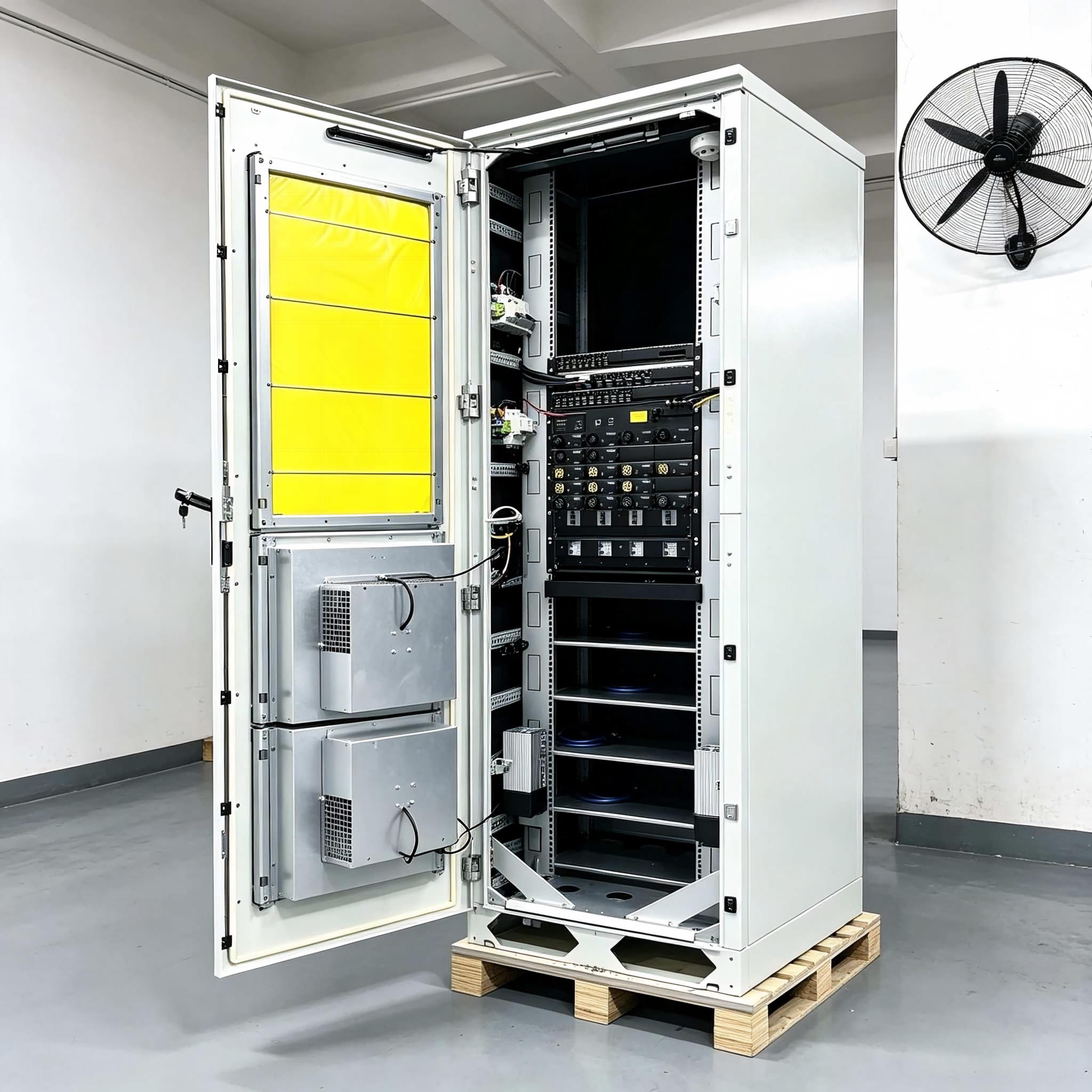

Reserved mounting slots for Smartpack2 main controller and FlexiMonitor environmental expansion modules, which can monitor rectifier, solar charger, inverter, battery parameters, cabinet temperature & humidity, door tamper alarm and cooling equipment operating status in full. All data supports remote viewing and fault alert via SNMP cloud platform.
The standard built-in Smart PDU supports real-time monitoring of each branch voltage/current, remote switch control, overload & short-circuit automatic protection, and data linkage with Smartpack2 MCU for unified system management.
Wide Application Scenarios
Tropical high-temperature area 4G/5G macro & micro base stations
Off-grid solar telecom signal towers in desert, southern hot regions
Microwave relay stations, FTTx optical fiber communication distribution nodes
Roadside traffic monitoring, off-grid CCTV surveillance power cabinets
Wind farm, oil pipeline and railway SCADA industrial remote monitoring equipment
Packaging & Customization

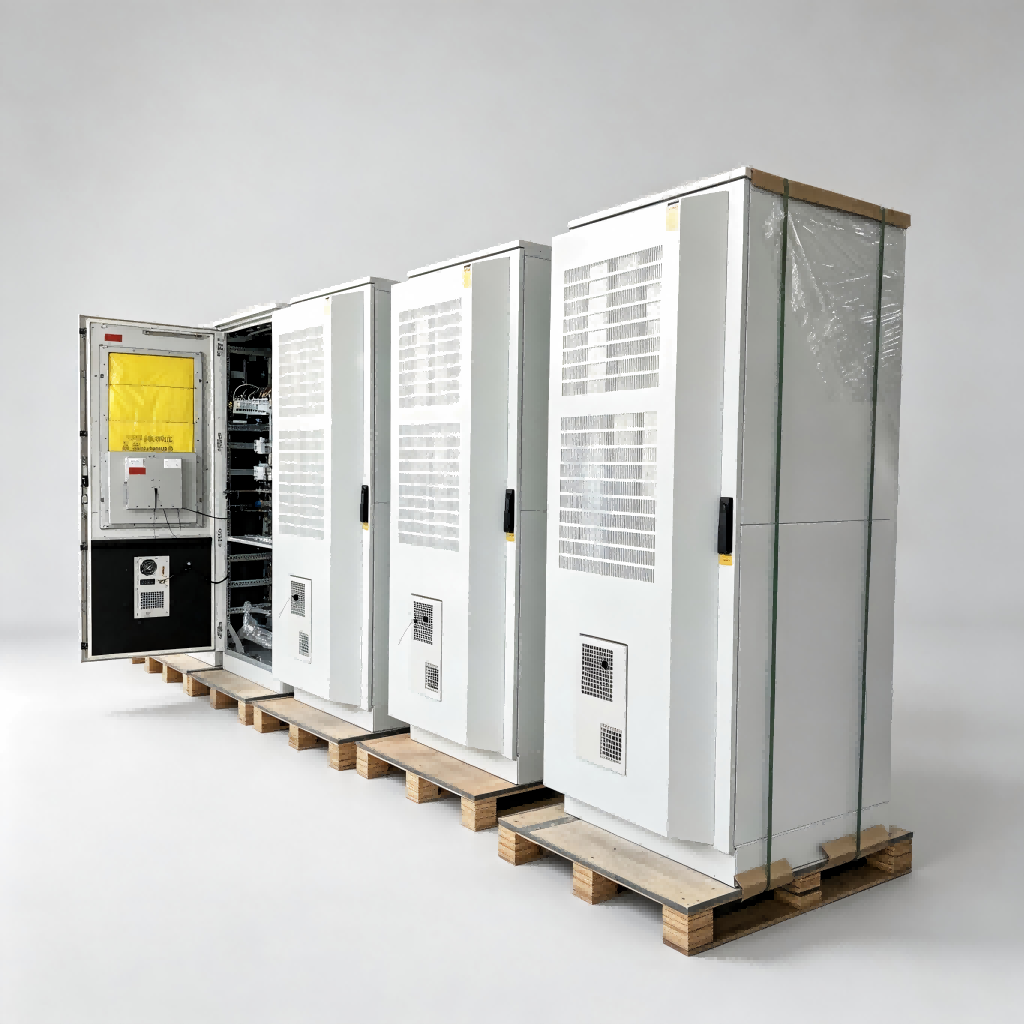

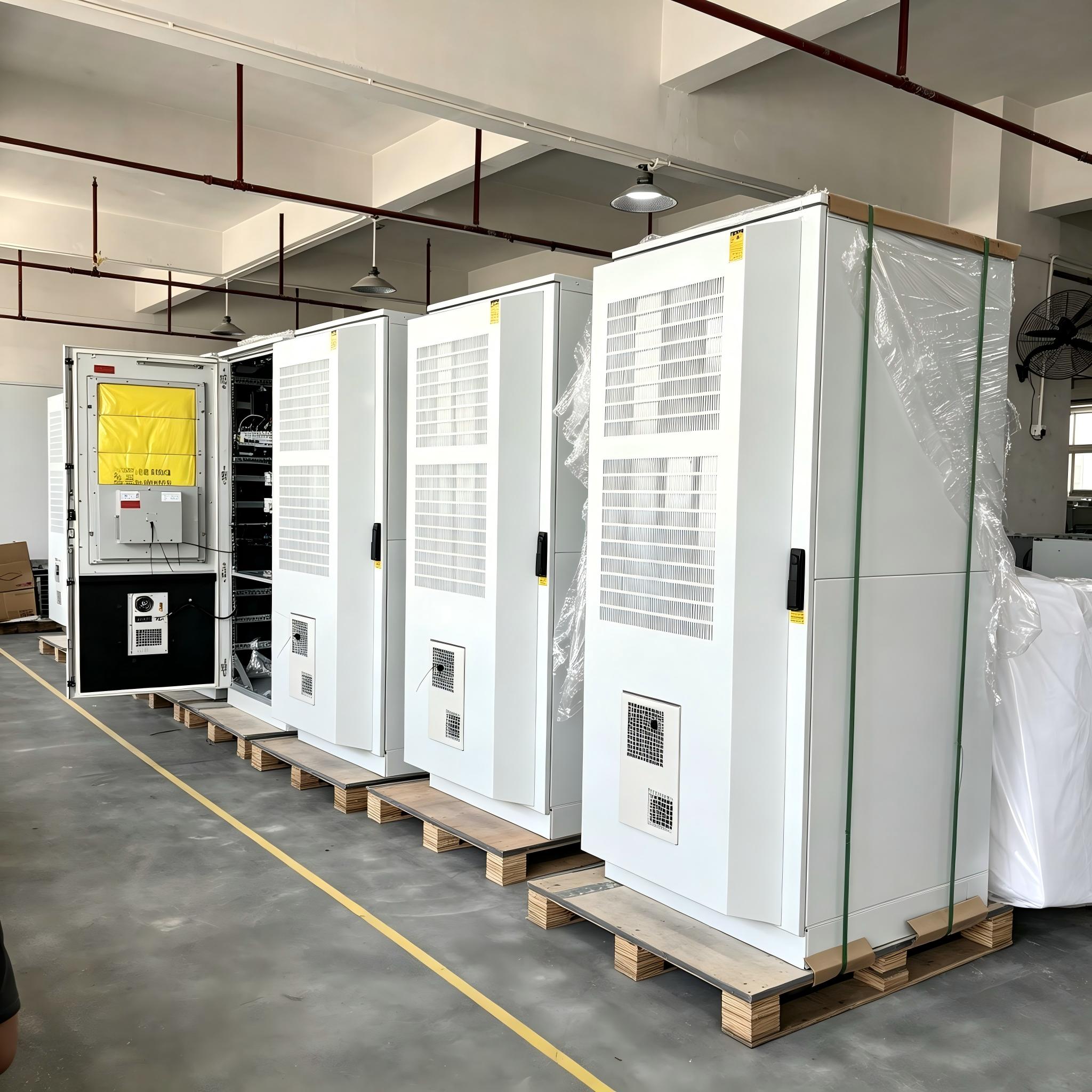

Each Eltek Type3 44U hybrid solar power cabinet is wrapped with anti-scratch PE film and fixed firmly on export wooden pallets to avoid collision deformation during sea/land transportation. Real photos of exterior, internal layout and finished packaging will be sent for your confirmation before shipment.
Adjust heat exchanger cooling capacity according to local ambient temperature
Custom Smart PDU port quantity and rated current
Match Eltek rectifier power, battery compartment size for different solar capacity
Custom cabinet surface color, silk-screen brand logo and cable inlet position
Complete SABER certification support for Saudi Arabia market export
