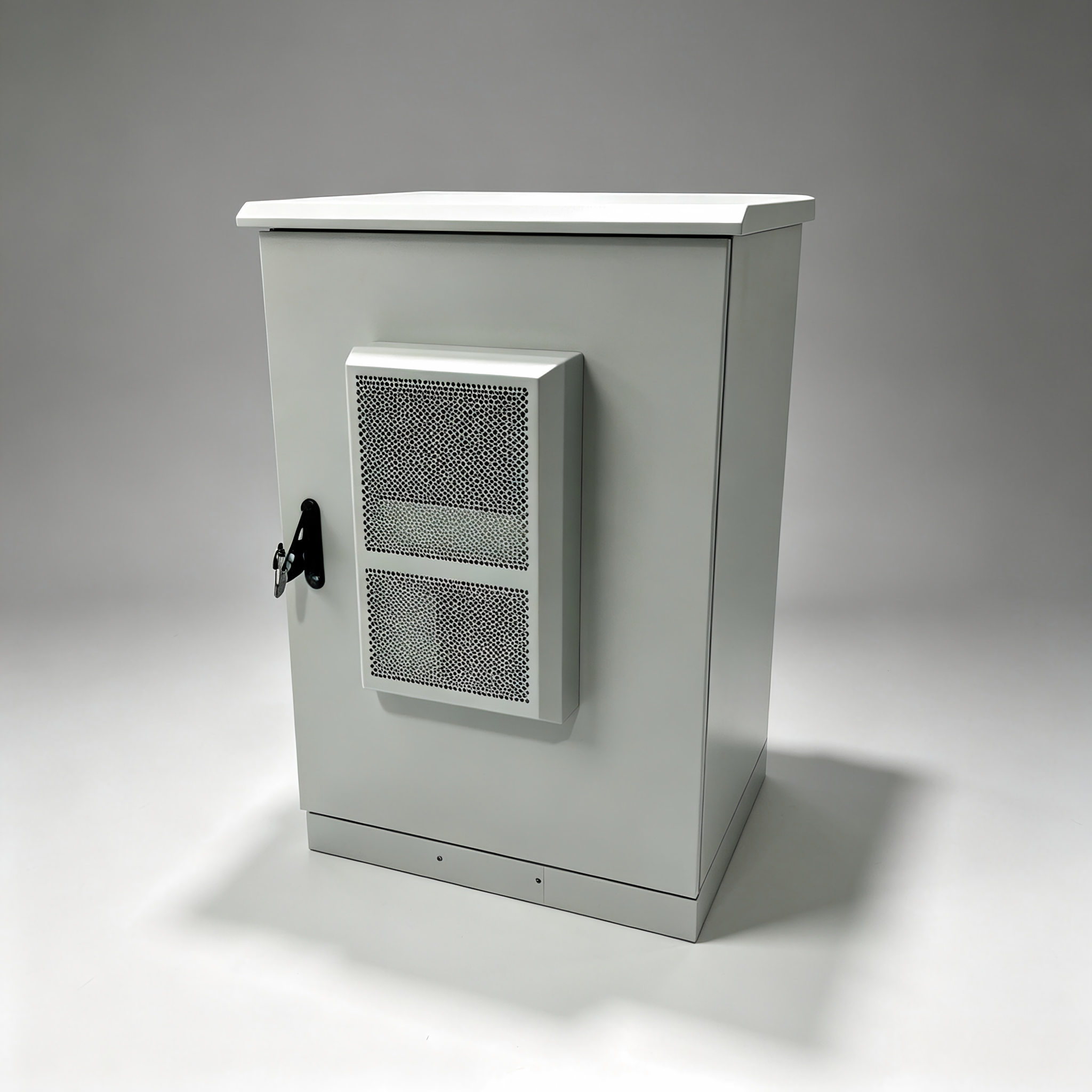

PCTELCO ODC24A-01 1200×800×350mm IP55 Empty Outdoor Telecom Cabinet 300W AC Air Condition Front View

Outdoor telecom Cabinet 1200×800×350mm | IP55 Equipment Enclosure

Product Details:
Place of Origin: China
Brand Name:PCTELCO
Certification: ISO9001, CE, RoHs
Model Number: ODC24A-01

Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case/Carton
Delivery Time: 3-4 weeks
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 pcs/month


Availability:



Inquire

Model:
268

Product Description

Outdoor Telecom Equipment Cabinet

Model Size: 1200 × 800 × 350mm | IP55 Protection | Outdoor Equipment Enclosure

Product Description

Our IP55 rated outdoor telecommunication cabinet is a blank heavy-duty enclosure engineered to house custom communication equipment, power rectifiers, monitoring hardware, battery packs and distribution units for all outdoor unattended projects.Measuring 1200 × 800 × 350 mm, this fully sealed steel cabinet delivers reliable all-weather protection without pre-fitted internal devices. Clients can freely match and install their own communication systems to fit base stations, traffic monitoring, industrial remote control and off-grid power distribution applications.

Built with thick cold-rolled steel and outdoor anti-UV powder coating, the cabinet withstands rain, dust, temperature fluctuation and coastal corrosion. The integrated door-mounted cooling air conditioner stabilizes internal temperature to extend the service life of your installed electronics.

Specifications

Parameter	Detailed Data
Product Name	Empty Outdoor Communication Equipment Cabinet
External Dimension	1200(H) × 800(W) × 350(D) mm
IP Rating	IP55 (Dustproof & Anti-splash Water)
Cabinet Material	Thickened cold rolled steel sheet
Surface Finish	Pickling phosphating + anti-rust primer + outdoor polyester powder coating
Cooling System	Door integrated industrial air conditioner
Internal Layout	Blank empty cavity, pre-drilled adjustable mounting holes
Door Configuration	Single swing door with security key lock
Operating Ambient Temp	-40℃ ~ +55℃
Installation Type	Floor standing
Compatible Devices	Communication transceivers, rectifiers, monitoring controllers, storage batteries, power distribution boxes

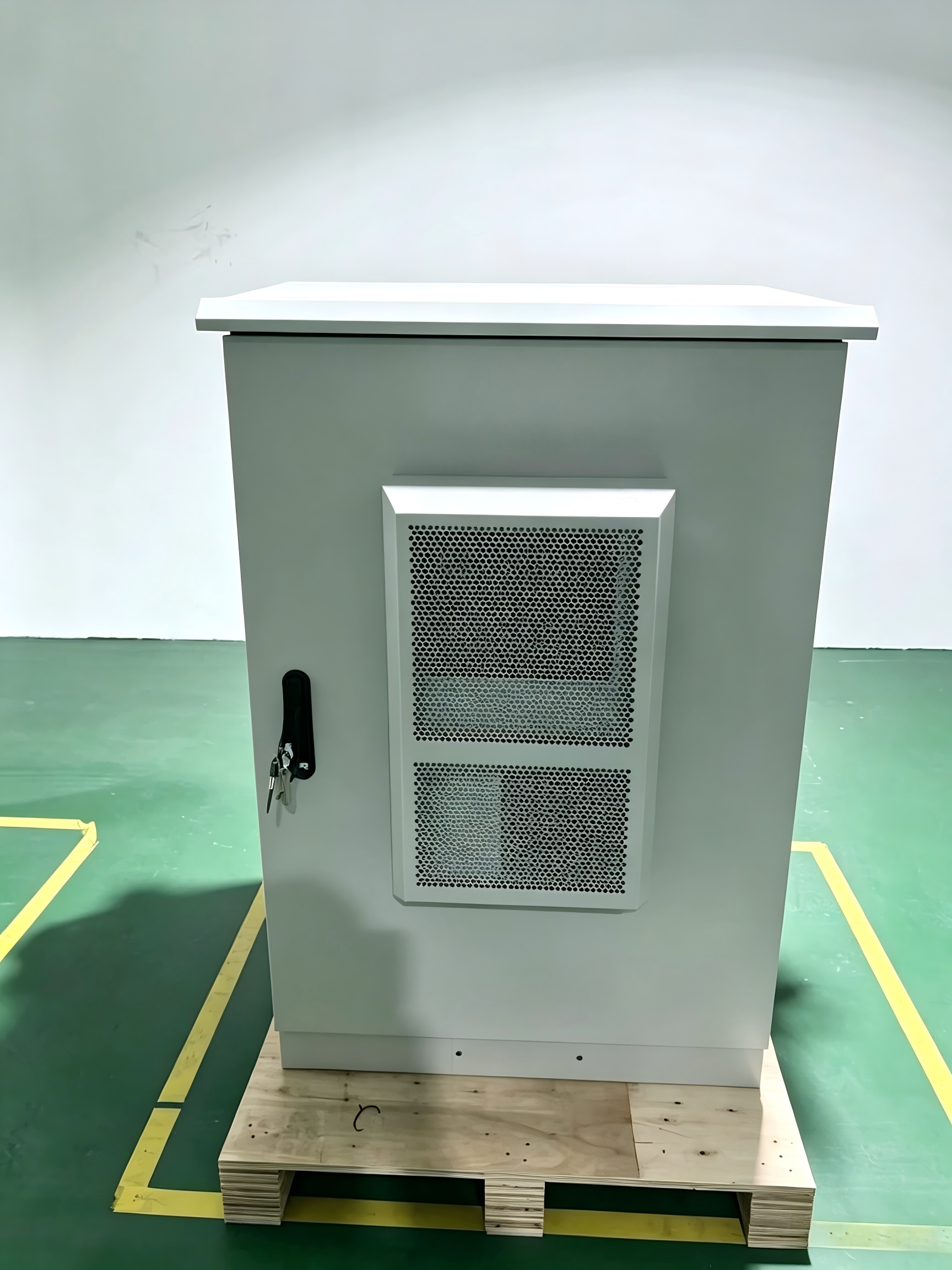

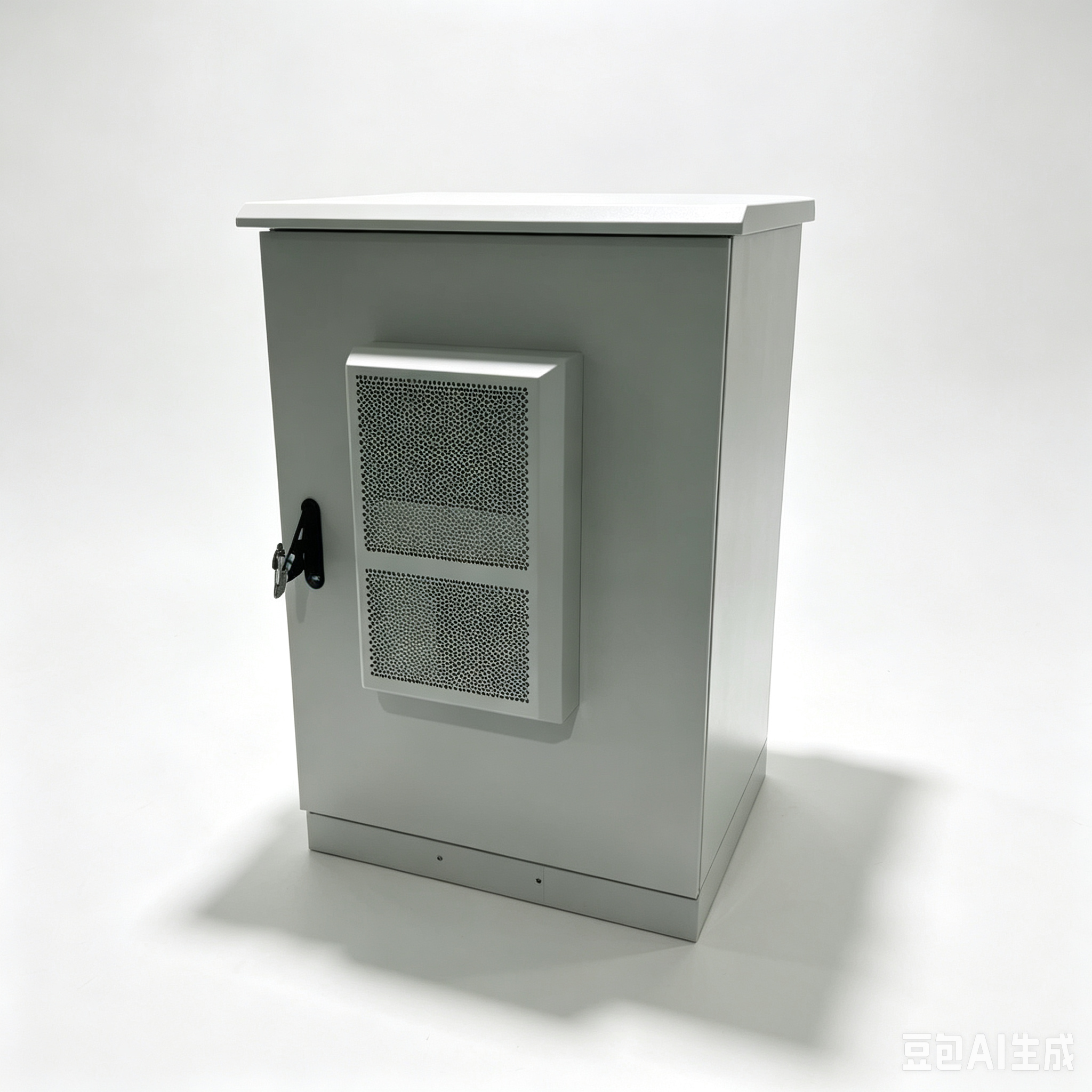

PCTELCO ODC24A-01 1200×800×350mm IP55 Empty Outdoor Telecom Cabinet 300W AC Air Condition Front View

Key Product Advantages

1. IP55 All-Weather Outdoor Sealing Protection

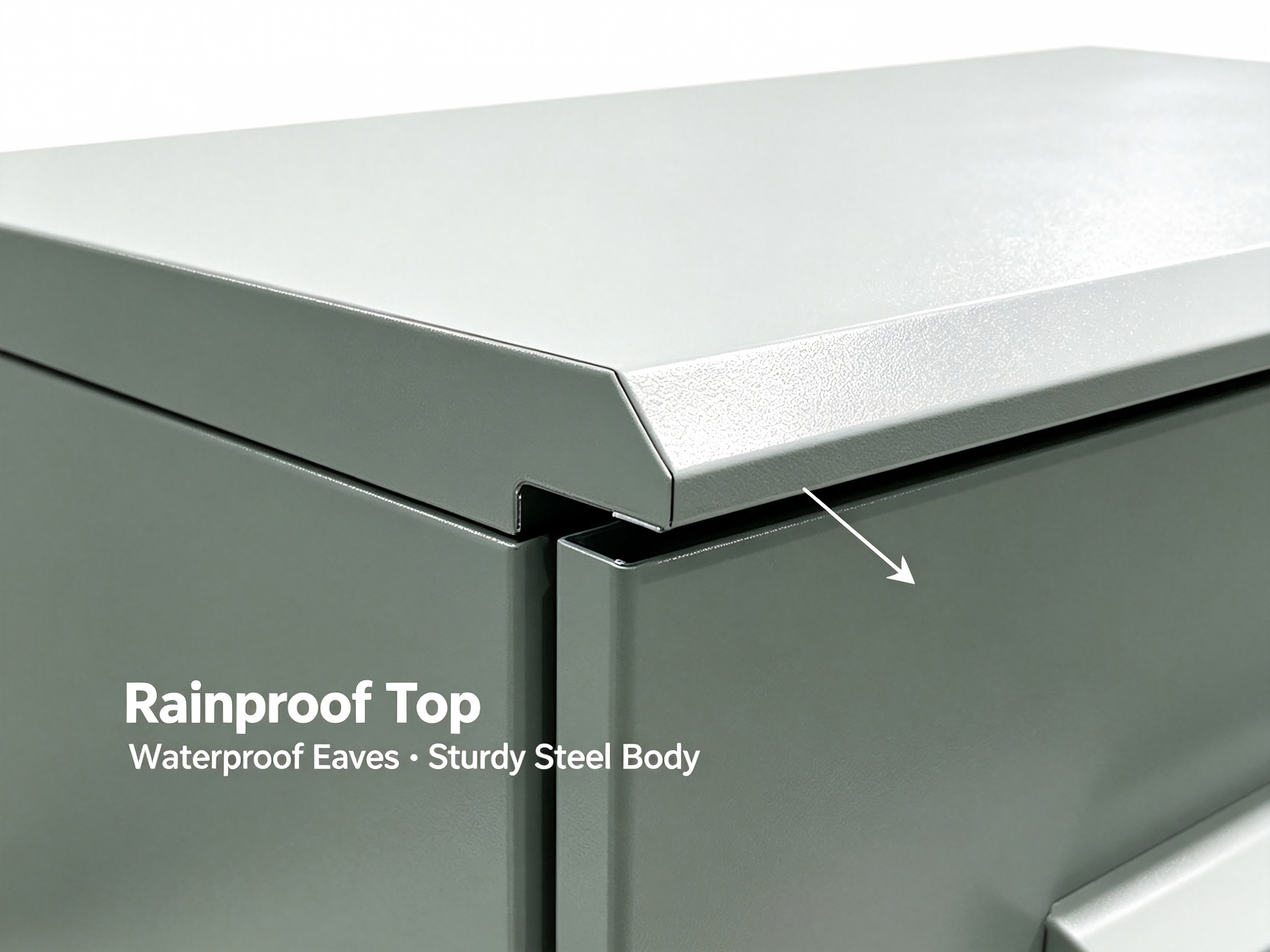

Full-circle EPDM rubber gaskets line the cabinet door, paired with sloped rainproof top eaves to block dust, sand and splashing water from all directions. The tight sealing structure eliminates short-circuit risks caused by moisture ingress for year-round outdoor operation.

2. Blank Empty Enclosure for Fully Customized Equipment Layout

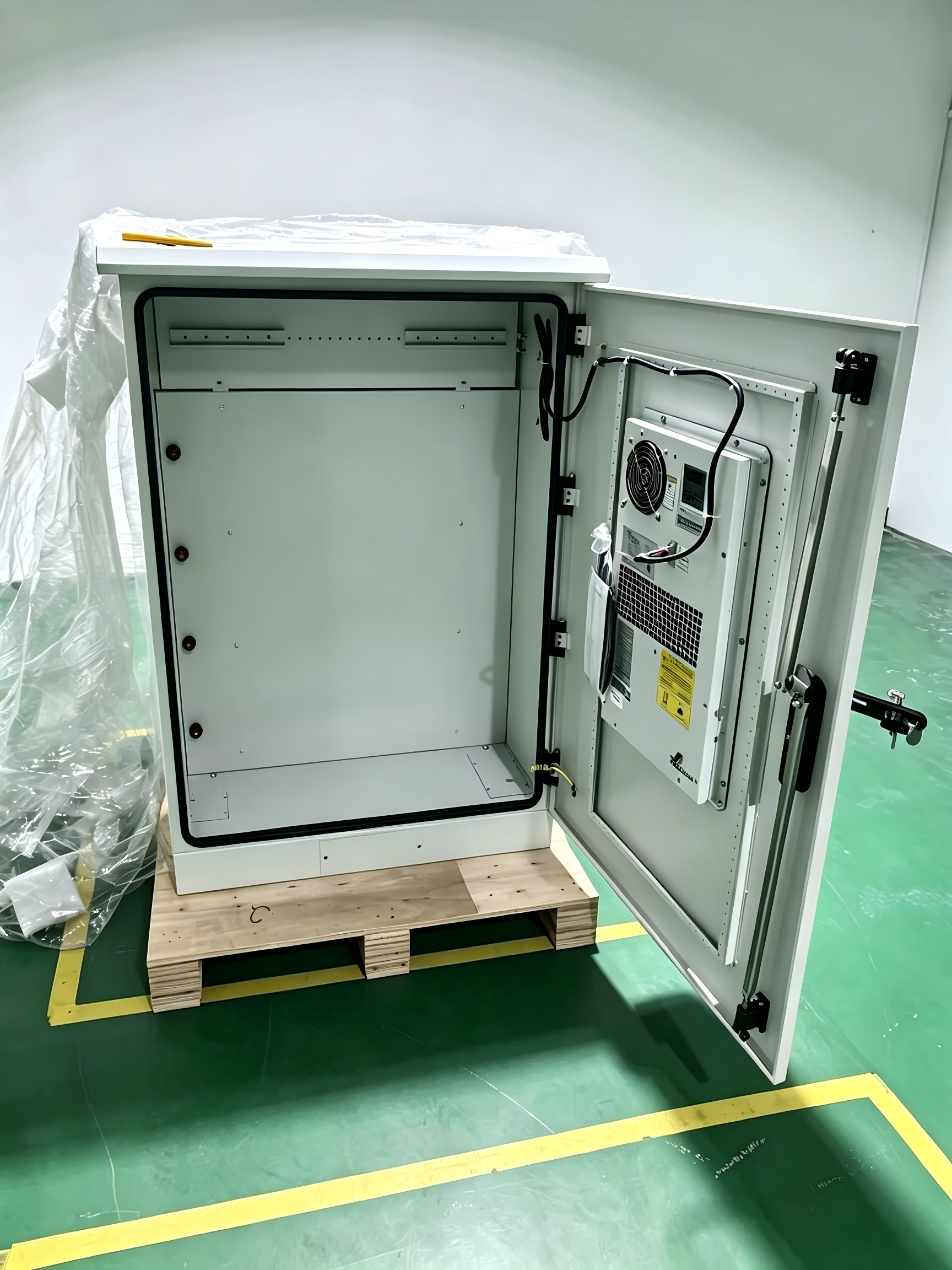

Unlike pre-assembled power cabinets, this shell comes completely empty inside. You can arrange communication gear, batteries and wiring layouts based on your project demands. Pre-punched universal mounting holes simplify hardware installation and cable routing.

3. Built-in Cabinet Air Conditioner for Stable Internal Temperature

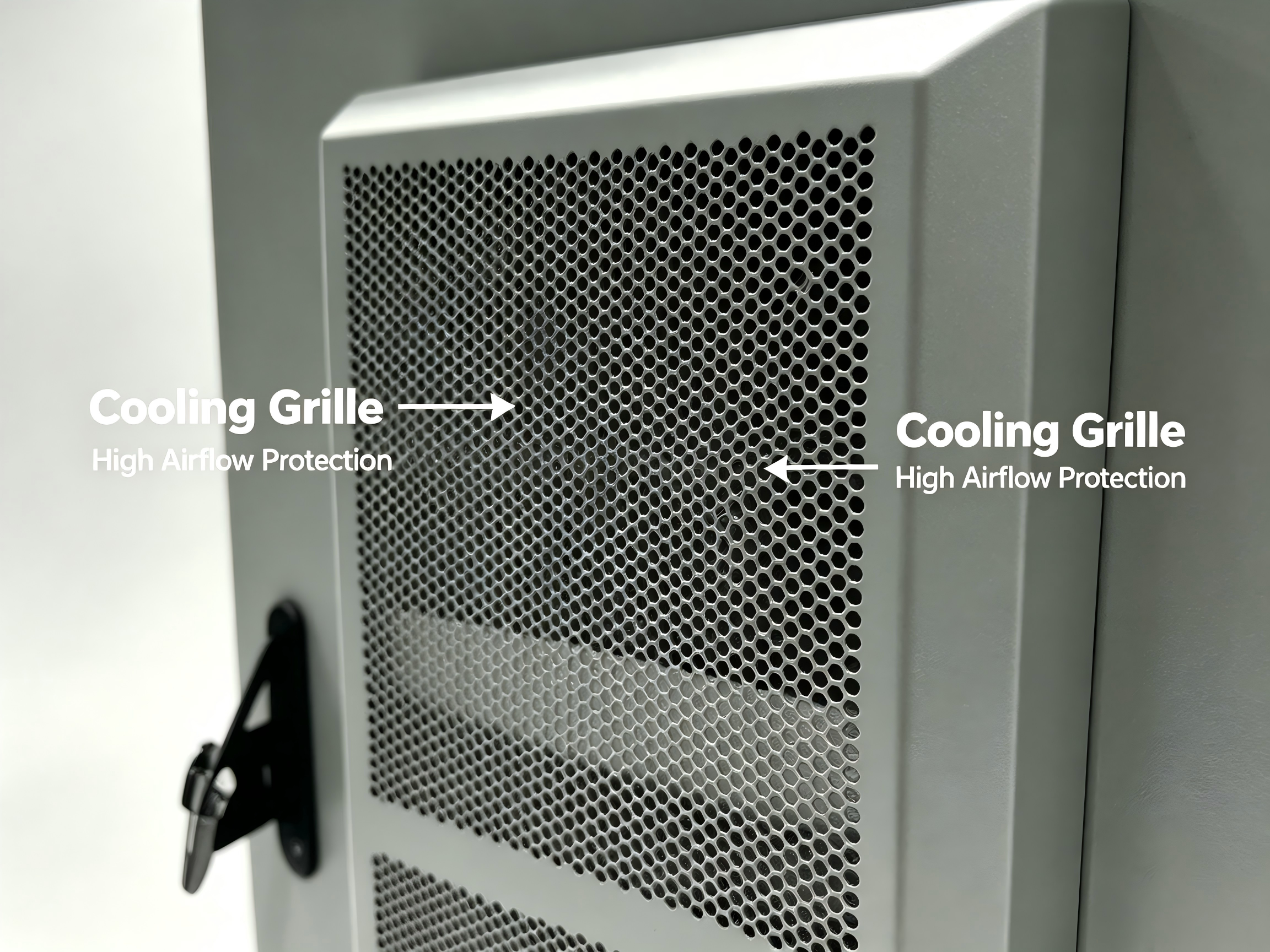

A dedicated cooling unit is pre-mounted on the cabinet door with honeycomb heat dissipation mesh. It automatically regulates internal temperature, preventing overheating shutdowns of sensitive communication and power equipment in hot summer environments.

4. Spacious Internal Installation Cavity

The 1200mm tall inner space provides ample room for stacking multi-layer communication equipment and battery banks. Reserved cable entry ports support neat wire management for post-installation maintenance and inspection.

5. Robust Anti-Theft Lock & Reinforced Steel Frame

Equipped with an exclusive key security lock to avoid unauthorized equipment tampering. Reinforced hinges and integrated bent-welded cabinet body bear heavy loads of internal hardware without deformation during long-term use or transportation.

6. Long-Lasting Anti-Corrosion Outdoor Finish

Multi-layer surface anti-rust treatment delivers strong UV and salt-spray resistance. The coating resists fading, peeling and rust even under direct sunlight, heavy rain or coastal humid conditions.

Wide Application Scenarios

Outdoor macro & micro communication base stations
Road traffic monitoring & intelligent roadside equipment
Remote industrial unattended control systems
Off-grid outdoor power distribution units
Pipeline, railway & wind farm communication cabinets
New energy storage supporting equipment housings
Rural remote monitoring & signal transmission projects

应用2

Packaging & Shipment

Each empty communication cabinet is wrapped with anti-scratch PE film and fixed firmly on export wooden pallets to avoid collision damage during sea or land transit. We provide full real photos of cabinet appearance, empty interior and finished packaging for your confirmation before delivery.

Customization Service

We offer flexible custom solutions to match your project specifications:

Custom cabinet external dimensions & depth
Adjustable air conditioner cooling power
Custom cable inlet positions & internal mounting rails
Custom cabinet color & silk-screen brand logo
Custom accessories including cable glands, mounting brackets and cable trays
Send your technical requirements to our sales team for a tailored quotation.

FAQ

Q1: Can this cabinet be used for telecommunications systems?
Yes, it is designed for telecom.

Q2: What cooling system is included?
It includes a 300W AC air conditioner.

Q3: Is it suitable for outdoor use?
Yes, it has IP55 protection for outdoor environments.

We support OEM services and can customize power solutions tailored to your requirements. Please send your detailed requirements to my our for further discussion.
