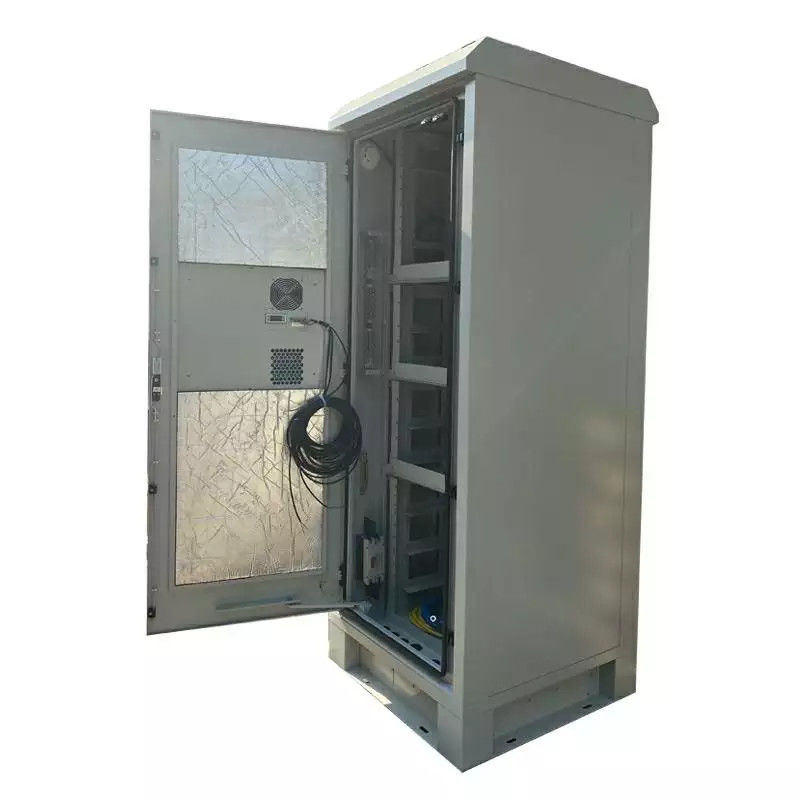

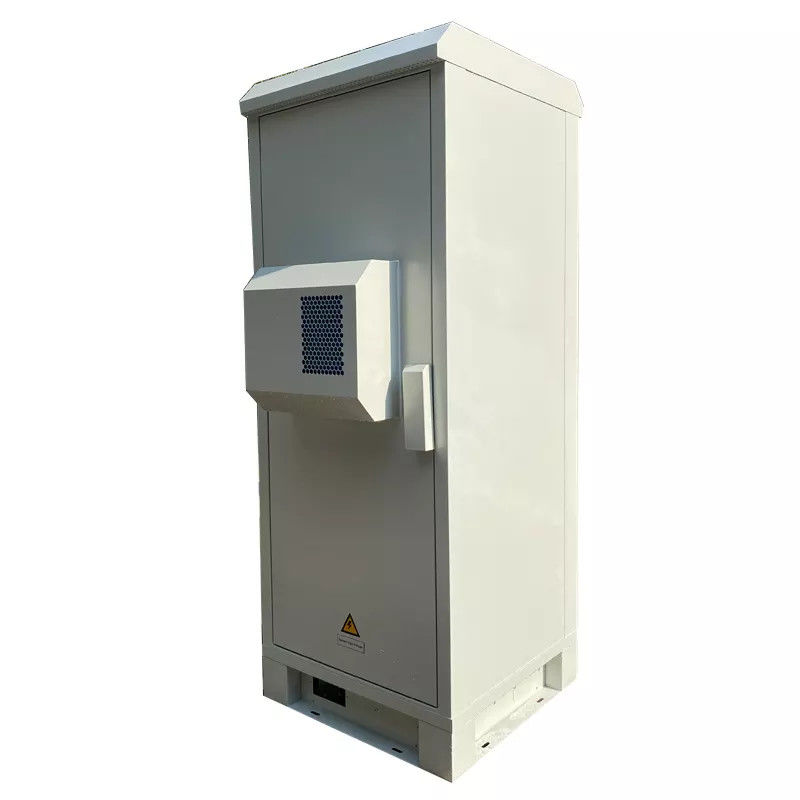

PCTELCO-4202 2.1M 42U Double Wall DC48V Floor Standing Outdoor Telecom Cabinet
Double Wall Insulation Structure: 45mm thick insulation layer matches double steel plates, low thermal conductivity, effectively block heat transfer and avoid condensation.
Dual Protection Options: IP55 and IP65 grades are optional to meet the protection demands of different outdoor sites.
High Safety Configuration: Four-point anti-theft lock with reinforced keyhole protection, supporting external padlock; 8-grade anti-seismic performance for stable operation in earthquake-prone areas.
Combined Cooling System: Standard 600W DC48V air conditioner plus DC48V fans, efficient heat dissipation for long-term high-load operation.
Humanized Details: Built-in door stopper to fix the door in open state; DC48V LED lamp automatically turns on/off with door opening and closing.
Diversified Customization: Multiple U heights, cabinet materials and colors can be customized to match personalized project requirements.

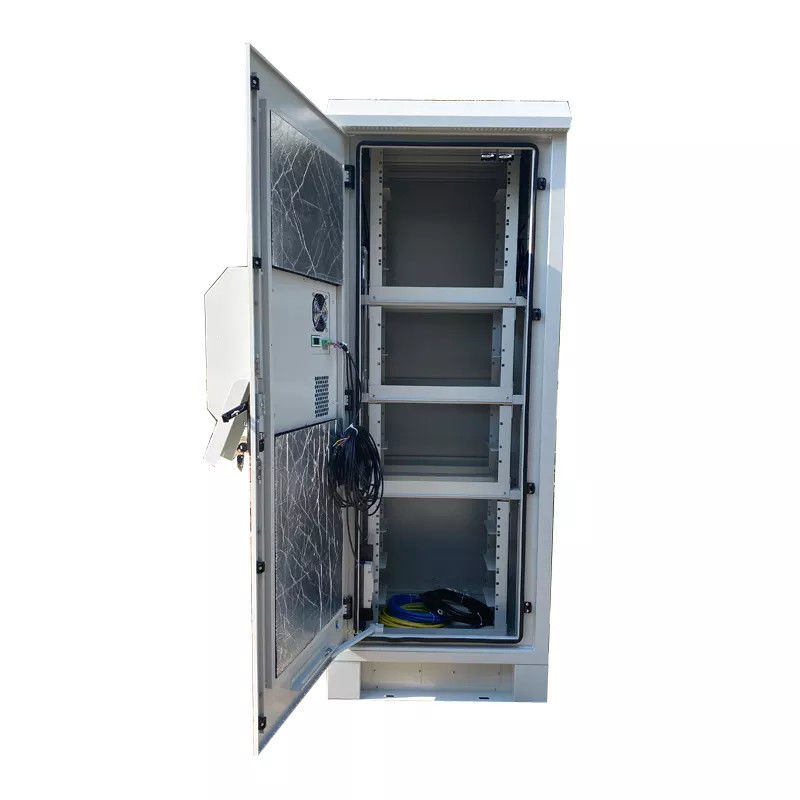

Standard Internal Layout: Independent battery compartment and 19-inch standard rack, reasonable partition for equipment installation.
Complete Expandable Accessories: Rich sensors, power distribution units and communication modules support intelligent remote monitoring.
Durable Surface Treatment: Outdoor professional powder coating, anti-rust, anti-aging and scratch-resistant.
Standard Wiring Design: Bottom φ50 cable holes, neat wiring and good sealing performance.
| Item | Parameter |
|---|---|
| External Dimension (H×W×D) | 2100 × 900 × 900 mm |
| Internal Dimension (H×W×D) | Standard 40U × 800 × 800 mm |
| Optional Internal Capacity | 18U/22U/24U/27U/30U/32U/35U/37U/40U/42U |
| Internal Layout | Independent battery compartment + 19-inch standard rack |
| Structure Type | Assembled type |
| Item | Parameter |
|---|---|
| Main Material | Galvanized steel (Aluminum, stainless steel, cold steel optional) |
| Insulation Thickness | 45mm |
| Standard Color | RAL7035 / Pantone428C (Customizable) |
| Surface Craft | Outdoor anti-corrosion powder coating |
| Item | Parameter |
|---|---|
| Protection Grade | IP55 / IP65 (Optional) |
| Anti-Seismic Grade | Grade 8 |
| Door Configuration | Double door, embedded hidden hinge |
| Lock Type | Four-point anti-theft lock, padlock supported |
| Item | Parameter |
|---|---|
| Standard Cooling | 600W DC48V air conditioner + DC48V fan |
| Fan Working Condition | Automatically starts at 35°C |
| Lighting | DC48V LED lamp (Auto on/off with door status) |
| Operating Noise | 60 - 65dB |
| Item | Parameter |
|---|---|
| Cable Entry | Bottom φ50 × 5 cable ports (Customizable) |
| Installation Type | Floor standing |
| Cooling Type | Specifications |
|---|---|
| Air Conditioner | AC220V/DC48V/AC380V, 300W ~ 5000W multiple cooling capacities |
| Heat Exchanger | AC220V/DC48V, 80W/K ~ 200W heat transfer efficiency |
| Thermoelectric Cooler (TEC) | DC48V, 200W / 300W |
| Cooling Fan | DC48V / AC220V / AC110V |
All-Weather Adaptability: Double wall insulation plus IP55/IP65 protection, resists sun, rain, dust and low temperature all year round.
High Safety Factor: 8-grade anti-seismic and four-point anti-theft design effectively protect expensive internal equipment.
Reliable Heat Dissipation: Combined DC48V cooling system meets heat dissipation demands of high-power devices.
Flexible Customization: Support size, material, color and accessory customization to fit diverse project plans.
Reasonable Internal Partition: Independent battery compartment separates different devices for safer layout.
Easy Operation & Maintenance: Door stopper and automatic LED lamp simplify on-site inspection and repair work.
Intelligent Management: Complete sensor groups and monitoring units realize remote unattended management.
Strict Quality Control: CE certified, stable performance and long service life for long-term outdoor use.
Founded in 2008, Shenzhen Pengcheng Electric Technology Co., Ltd. focuses on R&D and sales of telecommunication and data center supporting products. Headquartered in Bao'an, Shenzhen, we have partners across the country.
We supply network energy equipment including telecom power systems, precision distribution cabinets and integrated cabinets (customization available) from ELTEK, Huawei, Vertiv (formerly Emerson), ZTE and CE+T. Our product range also covers UPS, precision air conditioners, batteries and other data room accessories from well-known brands.
All products are strictly tested before delivery. We offer reliable after-sales service and instant spare parts support within warranty to cut your time and costs. Custom OEM/ODM services are also available.
Q: What protection levels are available for this cabinet?
A: You can choose IP55 or IP65 protection grade according to the actual application environment.
Q: What is the standard cooling configuration?
A: It is equipped with 600W DC48V air conditioner and DC48V cooling fans.
Q: Does this cabinet have anti-seismic and anti-theft functions?
A: Yes, it reaches Grade 8 anti-seismic standard and is equipped with four-point anti-theft lock.
Q: Can I customize the cabinet size and material?
A: Yes, multiple U heights, materials and colors are available for customization.
Q: What optional accessories does it have?
A: It is equipped with PDU, various monitoring sensors, ground bar and other supporting accessories.
Q: What is the delivery cycle after order confirmation?
A: The conventional delivery time is 8 to 10 weeks.
Q: What is the internal rack specification?
A: It adopts standard 19-inch mounting rails with an independent battery compartment.
