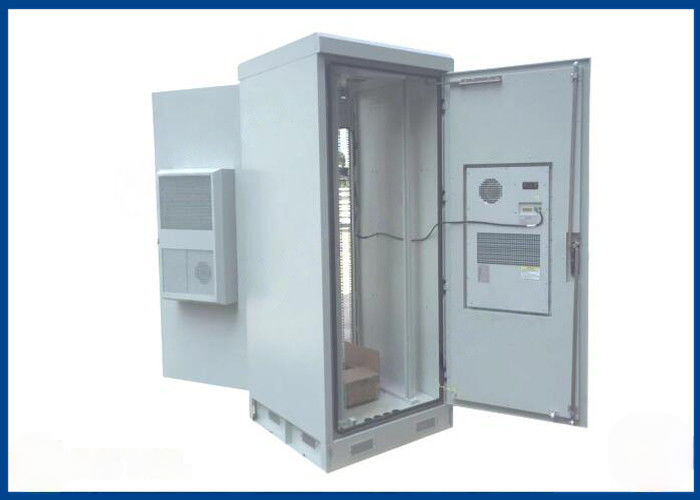

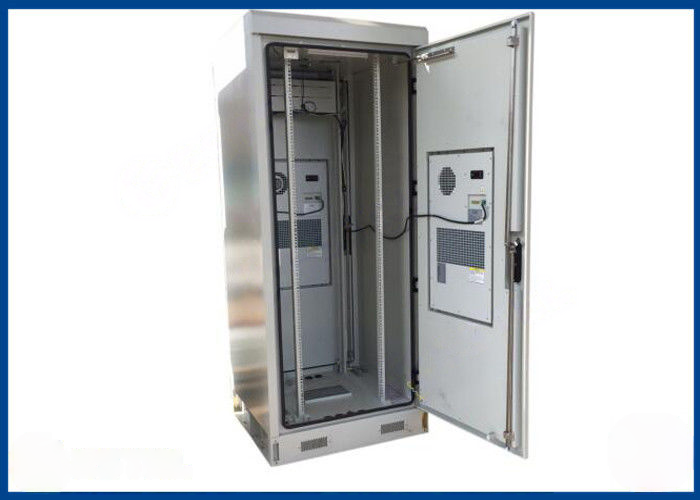

PCTELCO-4001 40U IP55/IP65 Outdoor Telecom Cabinet
Dual Protection Options: Supports IP55 and IP65 grades to meet different environmental protection requirements for outdoor sites.
Durable Structure: Galvanized steel double-wall frame plus outdoor anti-corrosion powder coating, long service life in harsh outdoor conditions.
Dual-Door Anti-Theft Design: Front and rear doors adopt three-point lock and hidden hinge structure, compatible with padlocks to prevent unauthorized access.
Flexible Cooling System: Optional air conditioner and cooling fan, with multiple input voltages (220VAC/48VDC/110VAC) for global grid adaptation.
Standard Rack Layout: Built-in 19-inch 40U standard mounting rails, highly compatible with mainstream rack-mounted equipment.
Complete Accessories: Equipped with LED lighting, DIN rail power distribution unit, maintenance socket and generator socket for one-stop deployment.
Reasonable Wiring: Bottom cable entry ports ensure neat wiring and good sealing performance.
Stable Operation: Adapt to wide temperature and humidity ranges, suitable for all-weather outdoor operation.
Customizable Configuration: Support personalized adjustment of internal structure, cooling mode and accessories according to project demands.
| Category | Item | Parameter |
|---|---|---|
| Basic Info | Model Number | ET9090210-EQ-2 |
| Internal Rack | 40U, 19-inch standard rack | |

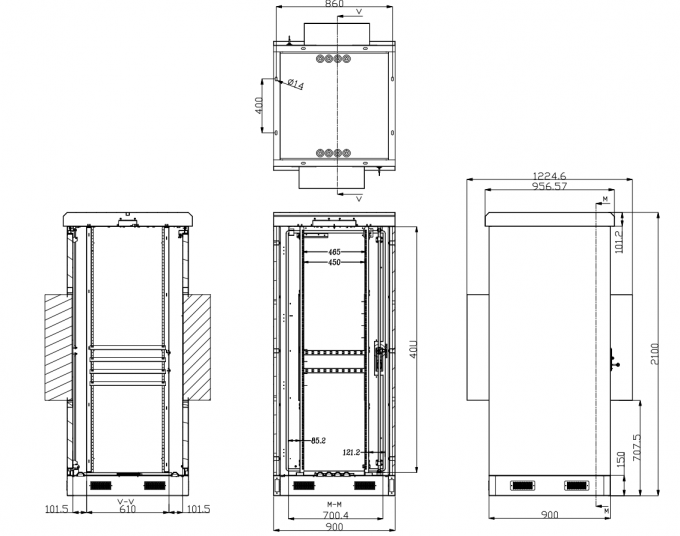

| Overall Dimension (W×D×H) | 900 × 900 × 2100 mm | |
| Overall Weight (Basic Configuration) | 340KG | |
| Main Material | Corrosion-resistant galvanized steel, double wall structure | |
| Surface Treatment | Light gray polyester outdoor powder coating | |
| Color | RAL7035 | |
| Protection Performance | Protection Grade | Optional IP55 / IP65 |
| Working Temperature | -40℃ ~ +55℃ | |
| Storage Temperature | -50℃ ~ +70℃ | |
| Relative Humidity | 5% ~ 100% | |
| Door Configuration | Door Type | 1 front door + 1 rear door |
| Lock Mode | Three-point lock, padlock available | |
| Hinge | Hidden hinges | |
| Cooling System | Cooling Options | Air Conditioner / Cooling Fan |
| Optional Voltage | 220VAC, 48VDC, 110VAC | |
| Internal Accessories | Lighting | Built-in LED lamp |
| Power Distribution | DIN rail with circuit breakers (customizable) | |
| Auxiliary Sockets | Maintenance socket, generator socket | |
| Wiring & Installation | Cable Entry | Bottom cable ports |
| Mounting Method | Floor mounting | |
| Certification | Quality Standard | ISO9001 |
| Trade Terms | MOQ | 1 Set |
| Delivery Cycle | 20 days | |
| Monthly Output | 1500 sets |
Strong Environmental Adaptability: Optional IP55/IP65 protection, matched with anti-corrosion materials, adapts to rain, dust and high humidity environments all year round.
Excellent Anti-Theft Performance: Double doors with three-point locks and hidden hinges effectively avoid equipment loss and artificial damage.
Diversified Temperature Control: Multiple cooling modes and voltage options, suitable for projects in different regions and different heat dissipation demands.
Large Installation Space: 40U large-capacity rack meets the installation requirements of multiple devices and batteries.
Complete Supporting Facilities: Integrated lighting, power distribution and various sockets simplify on-site construction.
Reliable Quality: Manufactured in strict accordance with ISO9001 standards, stable performance after long-term field verification.
Flexible Customization: Support configuration adjustment to meet personalized project needs.
Convenient Logistics & Delivery: Standard wooden case packaging, sufficient stock and short delivery cycle.
Founded in 2008, Shenzhen Pengcheng Electric Technology Co., Ltd. focuses on R&D and sales of telecommunication and data center supporting products. Headquartered in Bao'an, Shenzhen, we have partners across the country.
We supply network energy equipment including telecom power systems, precision distribution cabinets and integrated cabinets (customization available) from ELTEK, Huawei, Vertiv (formerly Emerson), ZTE and CE+T. Our product range also covers UPS, precision air conditioners, batteries and other data room accessories from well-known brands.
All products are strictly tested before delivery. We offer reliable after-sales service and instant spare parts support within warranty to cut your time and costs. Custom OEM/ODM services are also available.
Q: What protection grades does this cabinet have?
A: It provides two optional grades: IP55 and IP65, which can be selected according to the on-site environment.
Q: What cooling methods are supported?
A: Optional air conditioner and cooling fan, and the cooling equipment supports 220VAC, 48VDC, 110VAC multiple voltages.
Q: How many doors does the cabinet have? What about the lock configuration?
A: It is designed with one front door and one rear door, equipped with three-point locks and hidden hinges, and padlocks are also supported.
Q: What is the overall size and weight?
A: External dimension: 900×900×2100mm; the weight of the basic configuration is 340KG.
Q: What payment methods do you accept?
A: We support L/C, T/T, Western Union, Paypal and other payment methods.
Q: Can I customize the internal configuration?
A: Yes, we can customize cooling modes, power distribution units and other accessories as required.
Q: How long is the delivery time after placing an order?
A: The delivery time is 20 days normally.
