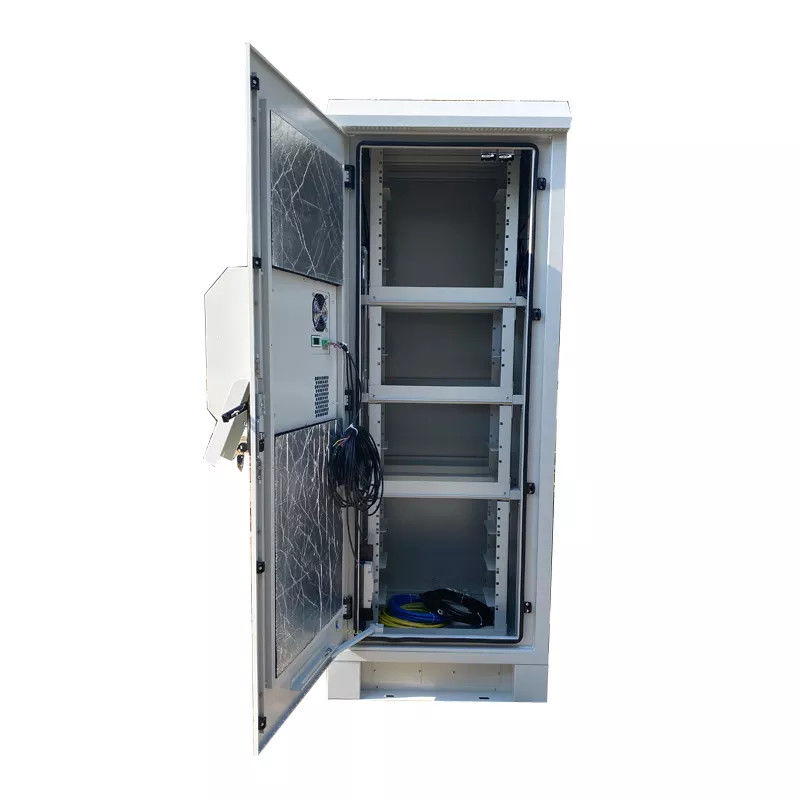

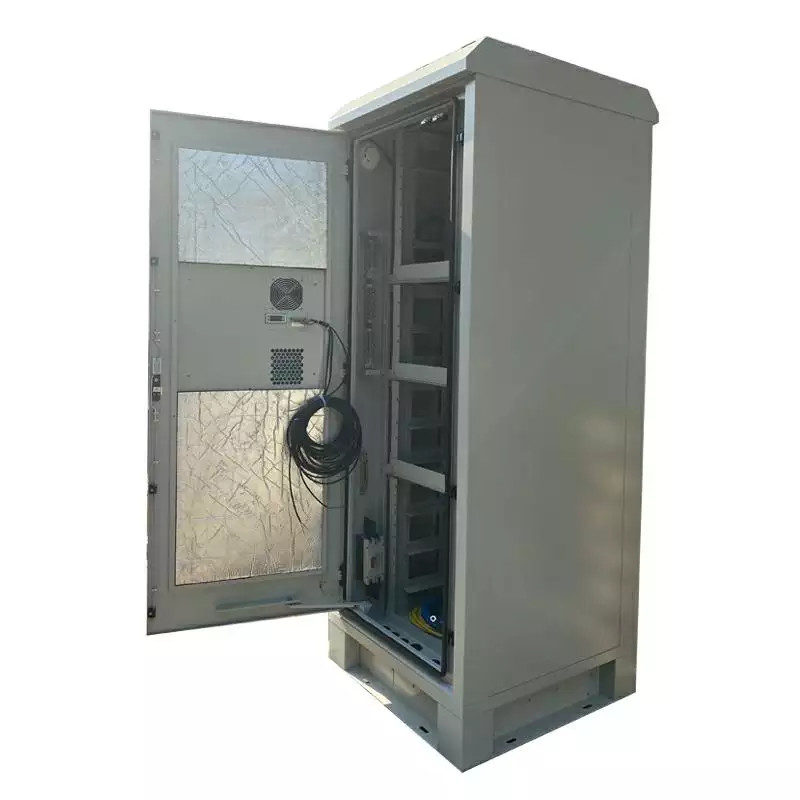

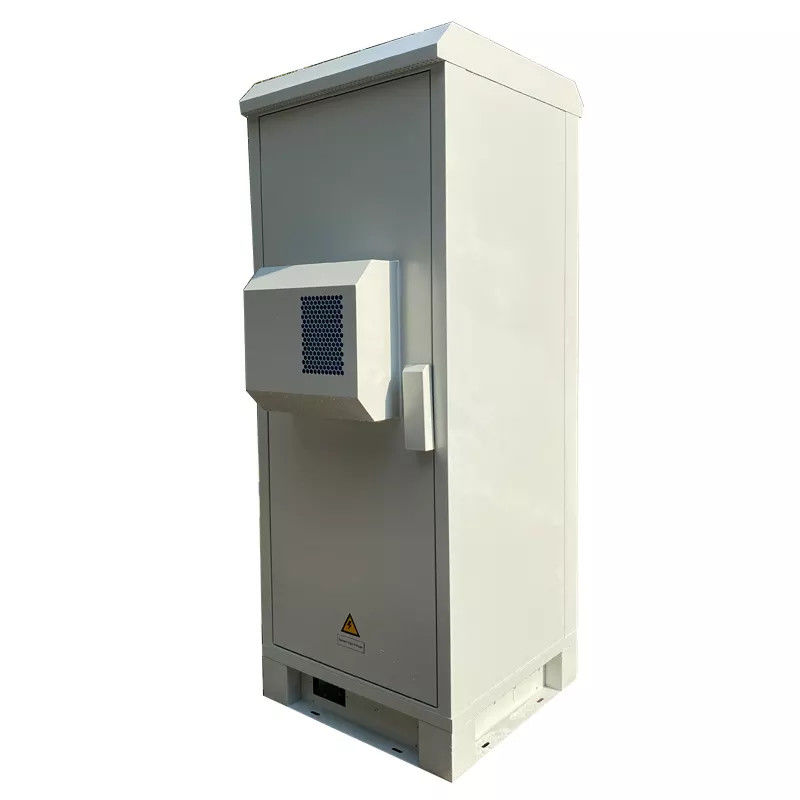

PCTELCO-4201 2.1M 42U Double Wall DC48V Outdoor Telecom Cabinet
Double Wall Insulation Structure: 45mm thick insulation layer cooperates with double steel plates to reduce heat transfer and avoid internal condensation.
Dual Protection Options: IP55 and IP65 grades are optional to adapt to different outdoor environmental conditions.
High Anti-Theft Design: Four-point outdoor anti-theft lock with reinforced keyhole protection, supporting external padlock for double security.
Grade 8 Anti-Seismic: Strictly tested for earthquake resistance, stable and reliable in earthquake-prone areas.
Diversified DC48V Cooling: Standard 600W DC48V air conditioner + automatic fan; multiple cooling equipment and power specifications optional.
Rich Optional Accessories: Complete sensors, PDU, grounding bar and other accessories to realize all-round monitoring and power distribution.
Flexible Size Customization: Internal capacity supports 18U to 42U multiple specifications to meet different equipment layout demands.
Convenient Structure Design: Built-in door stopper to fix the door in open state, facilitating daily maintenance.
Standard Wiring Design: Bottom φ50 cable holes, neat wiring and good sealing performance.
High-Quality Surface Treatment: Outdoor professional powder coating, anti-rust, anti-aging and scratch-resistant.
| Item | Parameter |
|---|---|
| External Dimension (H×W×D) | 2100 × 900 × 900 mm |
| Internal Dimension (H×W×D) | Standard 40U × 800 × 800 mm |
| Optional Internal Capacity | 18U/22U/24U/27U/30U/32U/35U/37U/40U/42U |
| Main Structure | Assembled type, double wall with 45mm insulation |
| Main Material | Galvanized steel (Aluminum, stainless steel optional) |
| Surface Color | RAL7035 / Pantone428C (Customizable) |
| Noise Level | 60-65dB |
| Item | Parameter |
|---|---|
| Door Type | Double door |
| Lock Mode | Four-point anti-theft lock, padlock supported |
| Hinge | Embedded hidden hinge |
| Anti-Seismic Grade | Grade 8 |
| Auxiliary Design | Built-in door stopper |
| Cooling Type | Specifications |
|---|---|
| DC48V Fan | Starts automatically at 35°C |
| DC48V Air Conditioner | 300W ~ 4000W multiple cooling capacities |
| AC220V Air Conditioner | 300W ~ 4000W multiple cooling capacities |
| AC380V Air Conditioner | 5000W cooling capacity |
| Heat Exchanger | 80W/K ~ 200W/K heat transfer efficiency |
| Thermoelectric Cooler (TEC) | DC48V, 200W / 300W |
| Item | Parameter |
|---|---|
| Mounting Rail | 19-inch standard rack |
| Independent Area | Reserved battery compartment |
| Lighting | DC48V LED lamp (Auto on/off with door opening/closing) |
| Cable Entry | Bottom φ50 × 5 cable ports (Customizable) |
| Serial No. | Accessory | Specification |
|---|---|---|
| 1 | Power Distribution Unit (PDU) | Class B lightning proof; AC:63A/2P×1, 16A/1P×4; DC:16A/1P×4 |
| 2 | Environment Monitoring Unit | 48VDC power supply; RS485, TCP/IP, SNMP communication port |
| 3 | Door Sensor | Real-time door status monitoring & alarm |
| 4 | Water Sensor | Real-time water leakage monitoring & alarm |
| 5 | Tilt & Shock Sensor | Vibration and tilt monitoring & alarm |
| 6 | Temperature & Humidity Sensor | Internal temperature and humidity monitoring & alarm |
| 7 | Smoke Sensor | Smoke detection & linkage alarm |

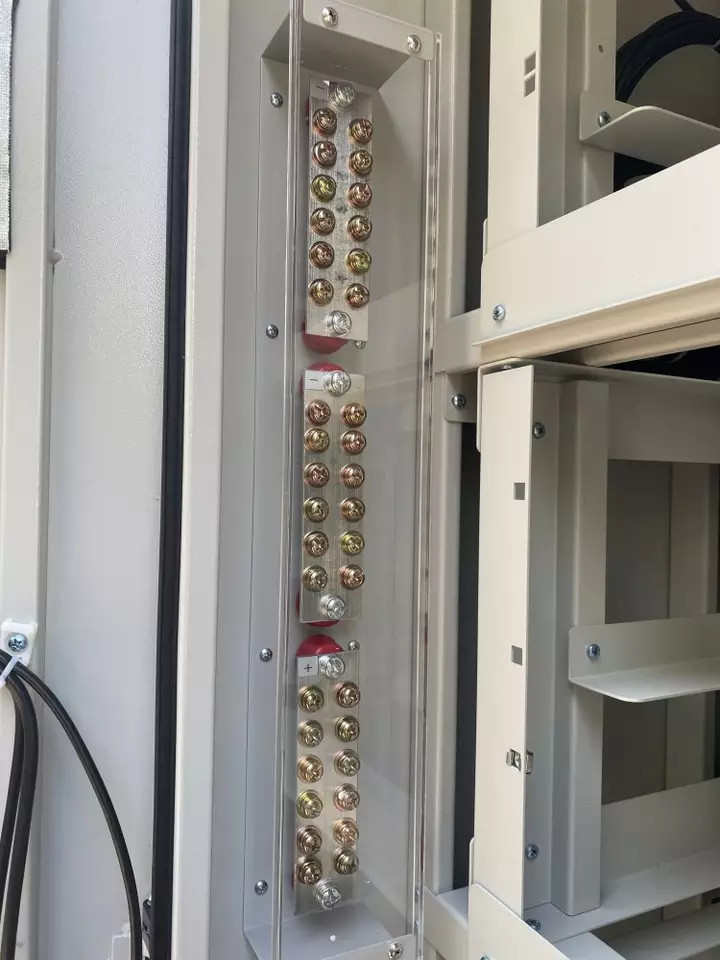

| 8 | Ground Bar | Ground resistance: 0.021Ω |
| 9 | Built-in Power Supply | 150A / 200A / 300A |
Superior Environmental Resistance: Double wall + thick insulation matches IP55/IP65 protection, adapting to wind, rain, high temperature and other harsh outdoor environments.
High Safety Performance: Four-point lock, hidden hinge and Grade 8 anti-seismic design fully protect internal valuable equipment.
Diversified Cooling Solutions: Multiple DC/AC cooling devices and power options meet heat dissipation demands of different power equipment.
Intelligent Monitoring Support: Complete sensor group and monitoring unit realize remote unattended management.
Strong Customization: Multiple U sizes, materials, colors and accessories can be customized according to project requirements.
Reasonable Layout: Independent battery compartment + standard rack, classified installation for neat internal layout.
Easy Maintenance: Door stopper and automatic LED light greatly improve on-site operation convenience.
Reliable Quality: CE certified, strict production process and long service life for outdoor long-term operation.
Q: What protection grades are available for this cabinet?
A: It supports two optional grades: IP55 and IP65, which can be selected according to the actual use environment.
Q: What cooling methods does it support?
A: Standard DC48V air conditioner and cooling fan; heat exchanger and thermoelectric cooler are also optional, and AC220V/380V cooling equipment can be matched.
Q: Is the cabinet anti-seismic? What is the anti-seismic grade?
A: Yes, it has passed the Grade 8 anti-seismic performance test, which can be used safely in earthquake-prone areas.
Q: What optional accessories are equipped?
A: It is equipped with PDU, various monitoring sensors, ground bar, built-in power supply and other optional accessories.
Q: Can the cabinet size and material be customized?
A: Yes, the internal U capacity, cabinet material, color and cable holes can all be customized.
Q: What is the delivery cycle after placing an order?
A: The conventional delivery time is 8-10 weeks.
Q: What is the main power supply of the internal cooling system?
A: The standard cooling system adopts DC48V power supply, and AC power cooling equipment is optional.
