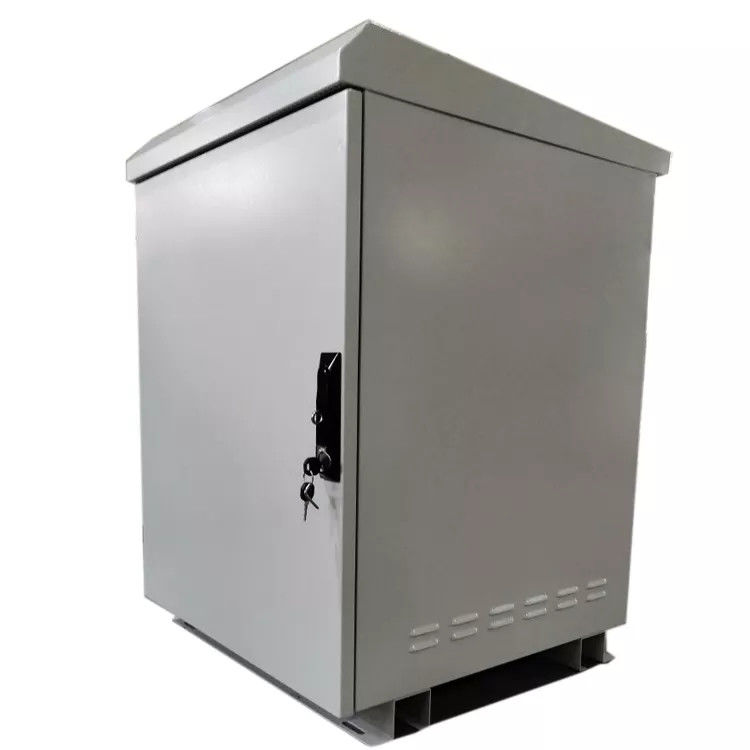

PCTELCO 6U/9U/12U Galvanized Steel Wall Mount Outdoor Telecom Cabinet
Dual Protection Options: Selectable IP55 or IP65 ingress protection, fully dustproof and waterproof to adapt to diverse outdoor working conditions.
Durable Galvanized Steel: Premium galvanized steel body plus outdoor epoxy powder coating, anti-rust, anti-corrosion and long service life.

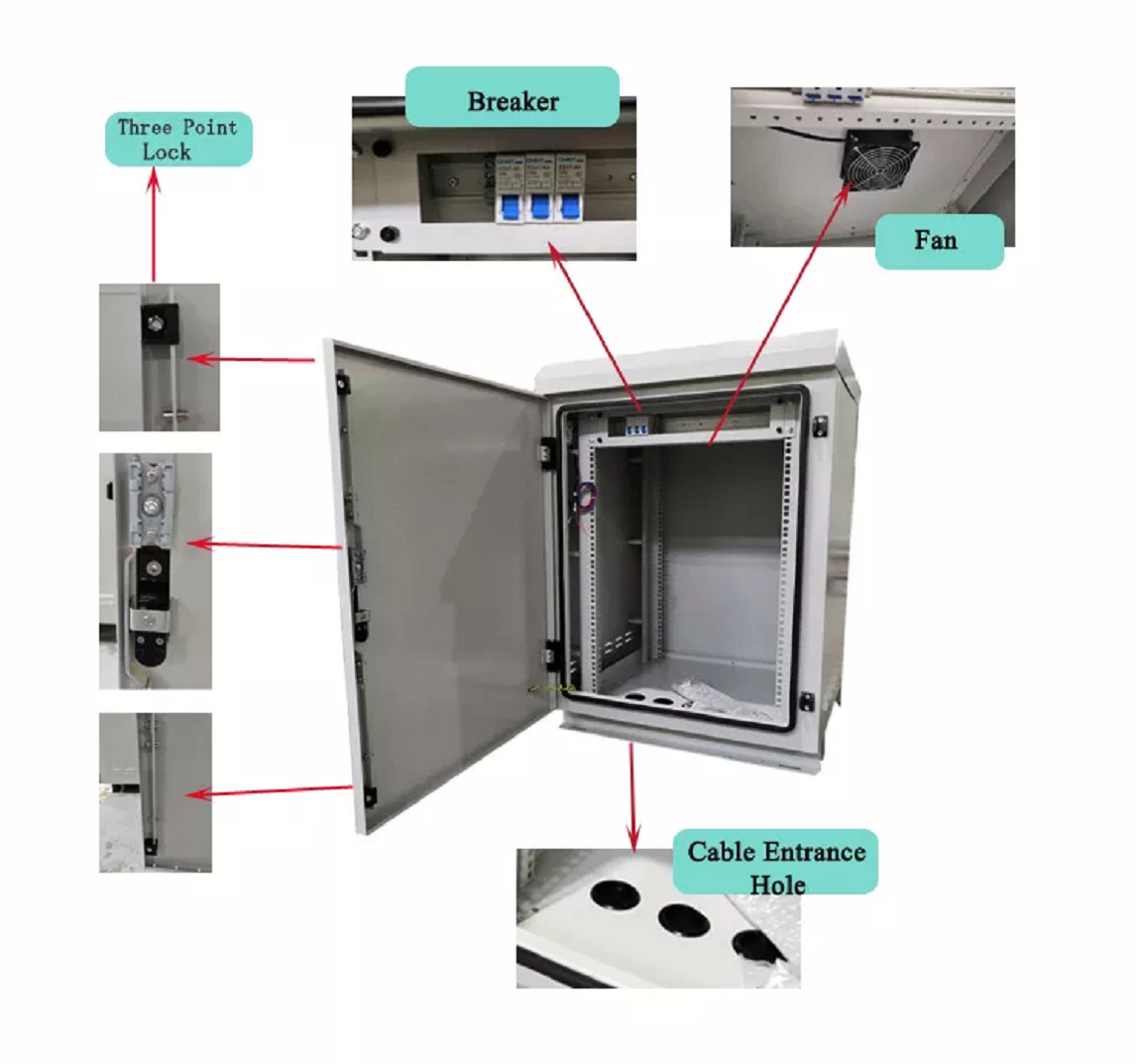

Anti-Seismic & Anti-Theft: Passes Grade 8 anti-seismic test; fitted with three-point anti-theft lock and embedded hinges, padlock supported for double protection.
Efficient Heat Dissipation: Standard DC48V cooling fans that automatically turn on at 35°C to maintain proper internal temperature.
Thermal Insulation Design: Optional double-wall structure with 45mm EPS insulation layer, low thermal conductivity to avoid internal condensation.
Humanized Details: Built-in door stopper to hold the door open; DC48V LED lamp automatically switches on/off with door movement.
Flexible Size Customization: Multiple standard U heights including 6U/9U/12U, and customized dimensions are available.

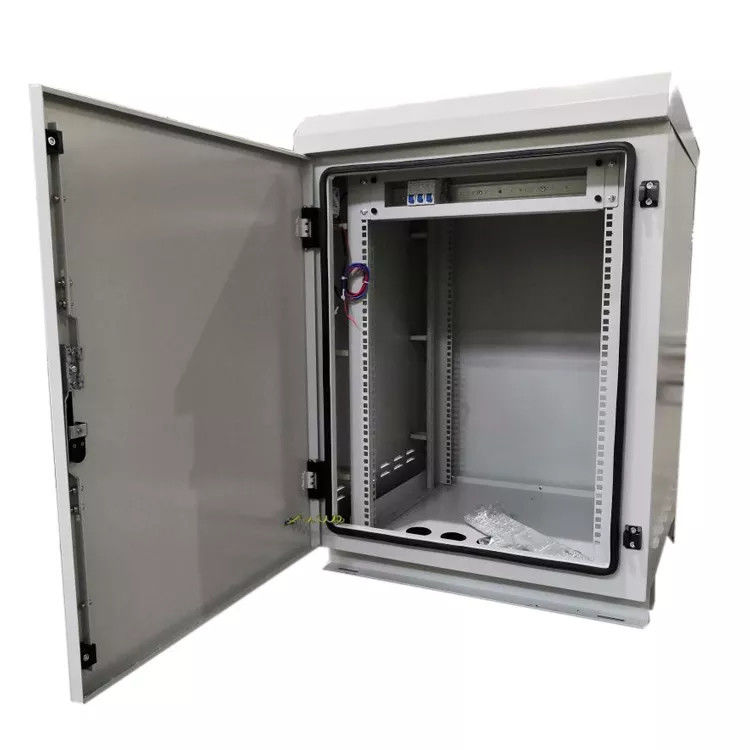

Standard Layout: 19-inch mounting rails and bottom cable glands, neat wiring and easy equipment installation.
Expandable Accessories: Optional PDU, environment monitoring sensors and communication modules for intelligent management.
| Item | Parameter |
|---|---|
| External Dimension (H×W×D) | 800 × 650 × 650 mm |
| Internal Rack Specification | 19-inch standard rack |
| Standard U Height | 6U / 9U / 12U / 16U (10U/15U/17U/22U customizable) |
| Main Structure | Single wall welded / Double wall assembly (optional) |
| Insulation Material | EPS, insulation thickness 45mm, thermal conductivity ＜0.472W/(m²·k) |
| Main Material | Galvanized steel; Side/back: color steel plate |
| Base Material | Thickened galvanized steel plate |
| Surface Treatment | Outdoor anti-corrosion powder coating |
| Standard Color | RAL7035 Light Grey (customizable) |
| Protection Grade | IP55 / IP65 (optional) |
| Anti-Seismic Grade | Grade 8 |
| Operating Noise | 60 - 65dB |
| Item | Parameter |
|---|---|
| Door Type | Single front door |
| Lock Type | Three-point anti-theft lock, padlock supported |
| Hinge | Embedded hidden hinge |
| Auxiliary Part | Built-in door stopper |
| Item | Parameter |
|---|---|
| Cooling Device | DC48V cooling fan, starts working at 35°C |
| Lighting | DC48V LED lamp (auto on/off with door opening/closing) |
| Item | Parameter |
|---|---|
| Cable Entry | Bottom cable glands (customizable) |
| Communication Interface | RS485 (optional) |
| No. | Accessory | Detailed Specification |
|---|---|---|
| 1 | Power Distribution Unit (PDU) | Class B lightning protection; AC:63A/2P×1, 16A/1P×4; DC:16A/1P×4 |
| 2 | Environment Monitoring Unit | 48VDC power supply, RS485/TCP/IP/SNMP ports optional |
| 3 | Door Sensor | Real-time door status monitoring and alarm |
| 4 | Water Sensor | Water leakage detection and alarm |
| 5 | Tilt & Shock Sensor | Vibration and tilt monitoring and alarm |
| 6 | Temperature & Humidity Sensor | Internal temperature and humidity monitoring |
| 7 | Smoke Sensor | Smoke detection and linkage alarm |
| 8 | Ground Bar | Ground resistance: 0.021Ω |
| 9 | Built-in Power Supply | 150A / 200A / 300A optional |
| Cooling Type | Power & Parameter |
|---|---|
| Air Conditioner | AC220V/DC48V/AC380V, 300W ~ 5000W multiple capacities |
| Heat Exchanger | AC220V/DC48V, 80W/K ~ 200W/K heat transfer |
| Thermoelectric Cooler (TEC) | DC48V, 100W / 200W / 300W |
| Cooling Fan | DC48V / AC220V / AC110V optional |
Space-Saving Wall Mount Design: Wall-mounted installation saves floor space, perfectly for telecom towers and narrow roadside sites.
Reliable Environmental Resistance: IP55/IP65 protection plus insulation structure adapts to sun, rain, dust and other harsh outdoor conditions.
High Safety Performance: 8-grade anti-seismic capacity and multi-point anti-theft lock fully protect internal valuable equipment.
Rich Configuration Options: Diversified sizes, structures and cooling modes to meet different project demands.
Convenient Operation: Door stopper and automatic LED lamp greatly improve daily maintenance efficiency.
Strong Expandability: Complete sensors and monitoring modules support remote unattended management.
Strict Quality Standards: Manufactured in accordance with CE, ISO9001 and ISO14001 systems for stable quality.
Comprehensive Customization: Supports size, color, material and accessory personalized OEM services.
Q: What protection grades does this cabinet have?
A: It supports IP55 and IP65 two protection grades for selection according to the on-site environment.
Q: What standard sizes are available?
A: Standard sizes include 6U, 9U, 12U and 16U, and other special sizes can be customized.
Q: What is the main cooling configuration?
A: The standard is DC48V cooling fan which starts automatically at 35°C; air conditioners and heat exchangers are optional.
Q: Does the cabinet have anti-seismic and anti-theft functions?
A: Yes, it reaches Grade 8 anti-seismic standard, and is equipped with three-point anti-theft lock, which can be used with padlock.
Q: What certifications does the product hold?
A: It has passed CE, ISO9001 and ISO14001 certifications.
Q: What materials can be customized?
A: Optional materials include galvanized iron, aluminum, stainless steel and cold-rolled steel.
Q: How long is the delivery period?
A: The conventional delivery time is 8 to 10 weeks after order confirmation.
