Telecom Power System 48VDC 40U Outdoor Cabinet With Cooling MPPT Solar Rectifier Inverter (Customized Model)
Product Overview
Dual cooling (heat exchanger + 300W air conditioner) adapts to high-temperature tropical and desert environments.
The SGCC galvanized steel cabinet features IP55 dustproof & waterproof sealing. Equipped with Smartpack2 MCU monitoring and Smart PDU power distribution, it enables fully unattended power management for 4G/5G base stations and remote solar telecom towers.
Specifications
| Parameter | Spec |
|---|---|
| DC Output Voltage | 48VDC standard telecom power |
| Total Rectifier Power | 24kW, 8pcs × 3kW Flatpack2 modules in parallel |
| Single Rectifier Output | 3kW, max 62.5A @48VDC |
| Max System DC Current | 500A @48VDC |
| Solar Charging Capacity | 25kW MPPT solar charger |
| Auxiliary AC Inverter | 6kVA hybrid off-grid inverter |
| Cabinet Rack Size | 40U 19-inch standard rack |
| Cooling System | Dual cooling: heat exchanger + 300W air conditioner |
| Protection Grade | IP55 dustproof & splash-proof |
| Cabinet Material | SGCC hot-dip galvanized steel |
| Monitoring Unit | Smartpack2 MCU remote monitoring controller |
| Working Temperature | -40℃ ~ +60℃ |
| Certifications | CE, ISO9001, SABER document support |
Key Product Features

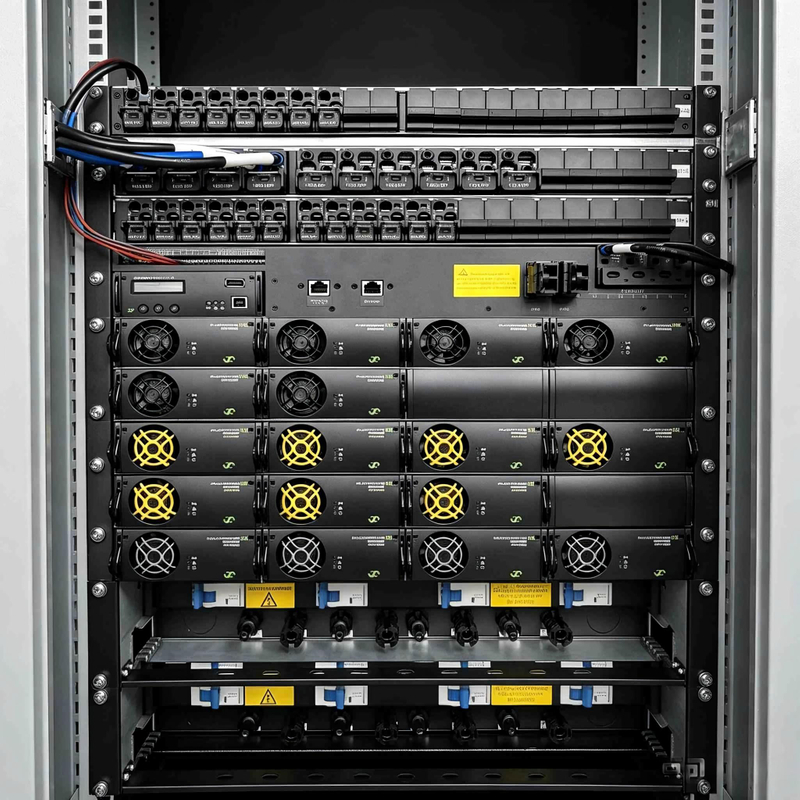

8 parallel 3kW Flatpack2 rectifier modules deliver max 500A 48VDC output. Matched with 25kW MPPT solar charger and 6kVA hybrid inverter. Smartpack2 MCU auto switches mains, solar and battery power for unattended operation.
Energy-saving passive heat exchanger for daily heat dissipation; built-in 300W air conditioner automatically activates under extreme high temperature to prevent module overheating.
SGCC galvanized steel body resists rust, salt mist and UV rays. EPDM sealing strips reach IP55 rating, blocking dust and rainwater. The 40U rack reserves flexible installation space for all power modules and batteries.
Smartpack2 MCU monitors all power equipment, battery data and cabinet environment, supporting remote data viewing and fault alarms via SNMP cloud platform. Built-in Smart PDU realizes real-time branch power monitoring, remote switch control and overload/short-circuit protection.
Wide Application Scenarios
Tropical high-temperature area 4G/5G macro & micro base stations
Off-grid solar telecom signal towers in desert, southern hot regions
Microwave relay stations, FTTx optical fiber communication distribution nodes
Roadside traffic monitoring, off-grid CCTV surveillance power cabinets
Wind farm, oil pipeline and railway SCADA industrial remote monitoring equipment
Packaging & Customization
Each cabinet is wrapped with anti-scratch PE film and fixed on export wooden pallets to avoid transit damage. We provide real photos of appearance, internal layout and finished packaging for pre-shipment confirmation.
Adjust heat exchanger cooling capacity according to local ambient temperature
Custom Smart PDU port quantity and rated current
Match Eltek rectifier power, battery compartment size for different solar capacity
Custom cabinet surface color, silk-screen brand logo and cable inlet position
Complete SABER certification support for Saudi Arabia market export
