Product Overview

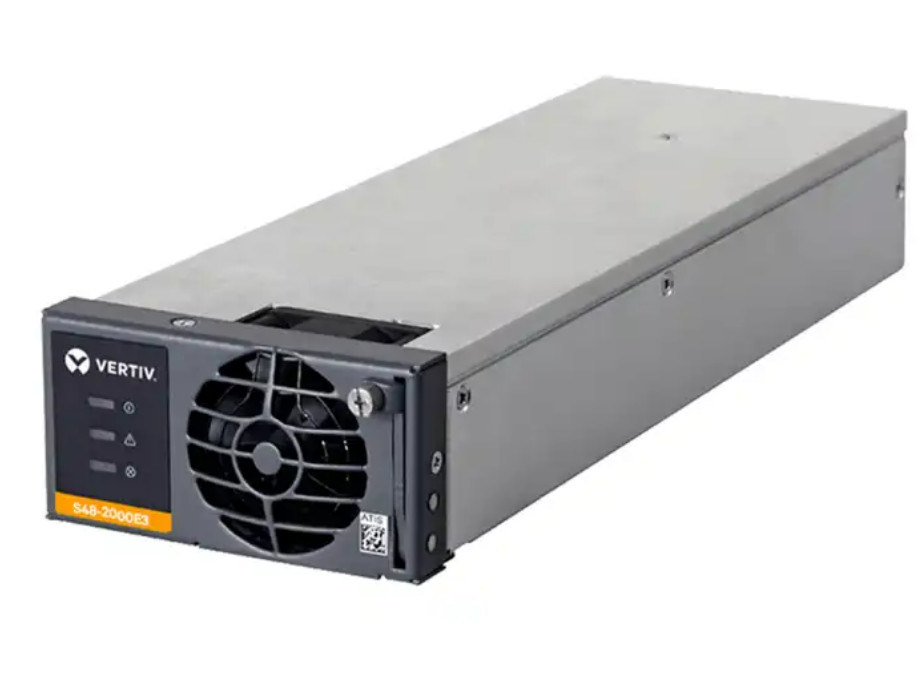

The Vertiv eSure S48-2000e3 is professional DSP-controlled MPPT solar converter module developed by former Emerson Vertiv, specially designed for telecom hybrid solar off-grid base station and retrofitting existing NetSure series 48V communication power cabinets. It converts variable high-voltage PV input (140~400VDC) into stable adjustable -42~-58VDC communication standard DC power, rated maximum 2000W/42A@48V, with industry-leading MPPT tracking efficiency over 99.5% and peak conversion efficiency up to 96.8%. Adopt standard hot-swap plug-in structure perfectly matching Vertiv NetSure series rack, multiple modules parallel expand capacity freely, realize priority solar power supply to reduce grid electricity consumption, widely used in remote unmanned 4G/5G sites, FTTx outdoor cabinet and rural off-grid communication projects.
Key Features
Wide PV DC input range:140~400VDC(extreme 120~420VDC), compatible multiple series solar panel combinations
Nominal DC output:-42~-58VDC(default53.5VDC), max 2000W/42A continuous output@48V, constant power design
Ultra-high MPPT tracking efficiency＞99.5% above 350W load, maximize solar energy utilization
Peak conversion efficiency up to 96.8%, intelligent fan speed control for energy saving and low noise
Standard plug-and-play hot-swap design, directly installed into original NetSure cabinet without rack modification
Built-in CAN bus communication, real-time data sync with cabinet master monitor for remote PV yield statistics & fault alert
Full multi-protection: OVP/OCP/SCP/OTP + PV side anti-lightning surge protection for harsh outdoor environment
Intelligent energy management: preferentially consume solar power, auto switch to mains when insufficient PV generation
Wide working temperature:-40℃~+65℃, stable full-load operation for high-temperature outdoor pole cabinets
Technical Specifications
| Item | Details |
| Model | S48-2000e3 (eSure Series) |
| Brand | Vertiv / Former Emerson |
| PV DC Input | 140~400VDC (Max 420VDC), Max 12A |
| Nominal DC Output | Adjustable -42~-58VDC (Default53.5VDC) |
| Rated Output | 2000W / 42A @-48VDC |
| MPPT Efficiency | ≥99.5% (≥350W Working Load) |
| Peak Conversion Efficiency | 96.8% |
| Communication | CAN Bus for System Monitoring |
| Dimension | 41×84.5×252.5mm |
| Net Weight | 1.13kg |
| Mount | Hot swap for NetSure standard 19” rack |
| Working Temp | -40℃ ~ +65℃ |
| Certifications | CE |
| MOQ | 5 PCS |
| Unit Price | $599~$999/pc |
| Delivery Time | 1~2 Weeks |
| Monthly Supply | 1000pcs |
| Packing | Export Carton |
| Warranty | 12 Months |
Applications
Remote 4G/5G Off-Grid Macro & Micro Base Station Hybrid Solar Power
FTTx Pole-mounted Outdoor OLT Cabinet PV Supplementary Power Supply
Rural Unmanned Communication Site Grid-Saving Solar Retrofit Project
Railway & Border Monitoring Equipment Solar-Battery Backup System
Small Industrial Off-Grid DC Load PV Charging System
Old Telecom Station Energy-Saving Solar Transformation Upgrade
