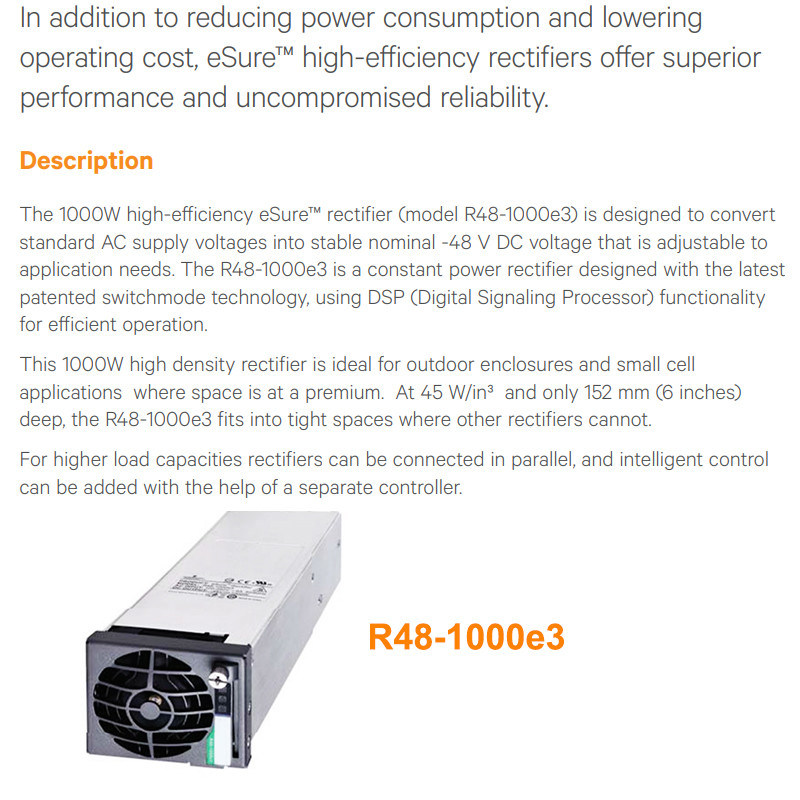

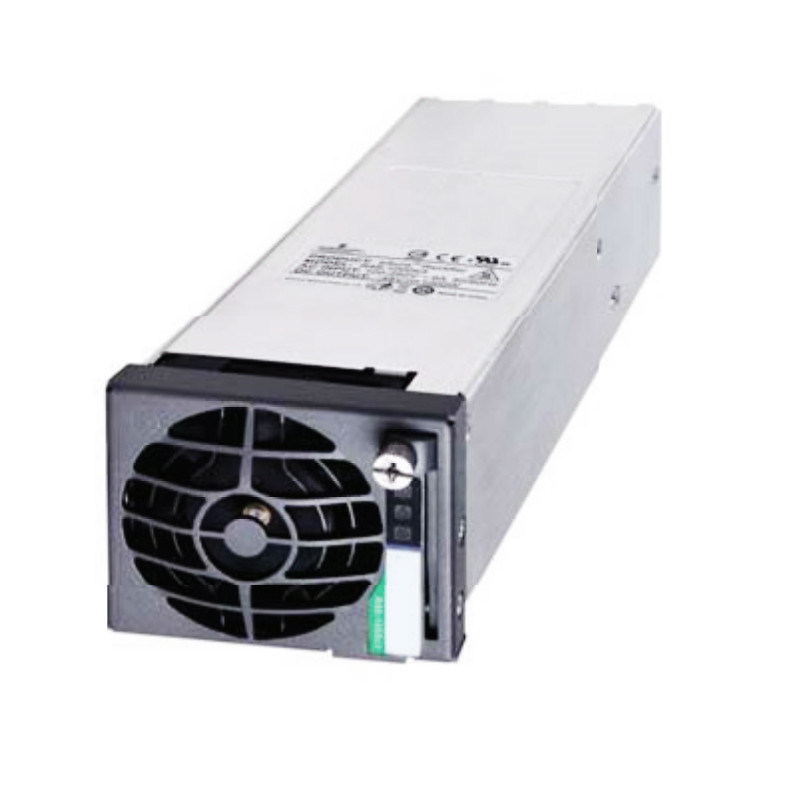

Product Overview
The Vertiv R48-1000E and R48-1000E3 belong to the classic eSure series high-density rectifiers developed by former Emerson. Designed for Vertiv NetSure 2100 and other embedded telecom power systems, this 1000W constant power module adopts patented switching technology and advanced DSP digital processing chip for stable operation. It supports 120V & 200~250VAC mainstream AC input, and converts AC power into adjustable -42VDC ~ -58VDC standard telecom voltage. With high power density up to 45 W/in³ and only 152mm depth, it perfectly fits short-depth racks and compact outdoor enclosures where regular modules cannot be installed. The peak efficiency reaches over 95% to cut daily power consumption. Equipped with hot-swap function and CAN bus communication interface, it supports online replacement and multi-module parallel operation for capacity expansion. It is widely used in 5G small cells, outdoor unmanned cabinets, mini data centers and low-power telecom station renovation projects.
Key Features
Flexible AC input: Compatible with 120V and 200~250VAC grids, frequency range 45~65Hz, adapts to various global power environments
Adjustable DC output: Output voltage ranges from -42VDC to -58VDC, constant power design for stable battery floating and charging

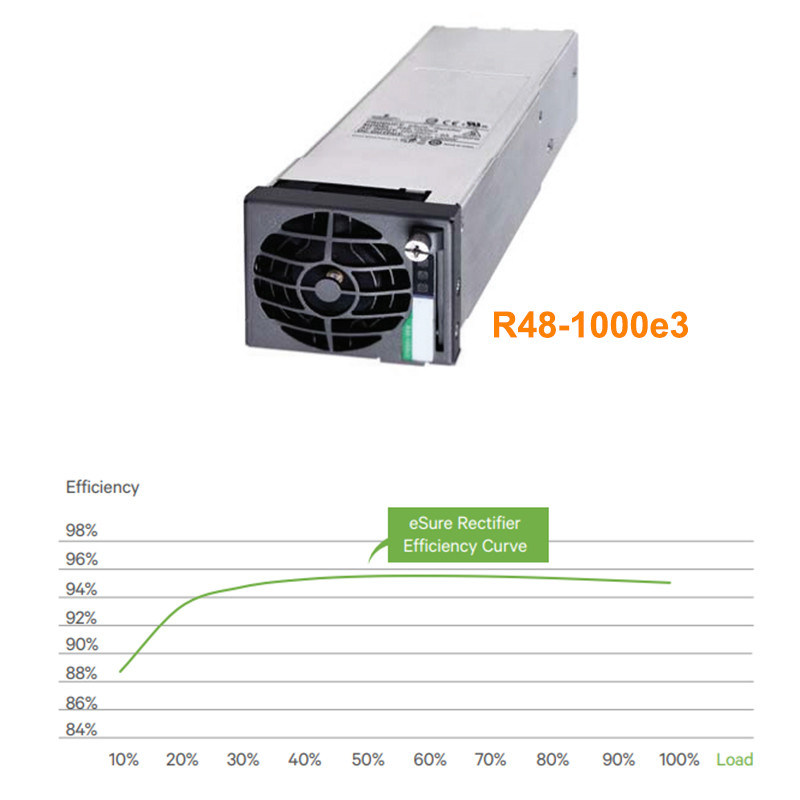

Outstanding energy saving: Peak efficiency above 95%, excellent performance under different load rates, effectively reduce long-term operating costs
Ultra-high power density: Compact size of 41×52×152mm, lightweight 0.6kg, specially designed for narrow and short-depth cabinets
Hot-swap support: Plug-and-play structure enables maintenance and system expansion without power interruption
Wide temperature resistance: Full power output up to +45℃, continuous normal operation up to +75℃, suitable for harsh outdoor environments
Intelligent control: Built-in DSP chip and CAN bus, realizes real-time monitoring, remote control and automatic current sharing for parallel modules
Complete protection: Integrated over-voltage, under-voltage, over-current, short-circuit and over-temperature protection for safe operation
Environment adaption: Full power output within 2000m altitude, 0~90% non-condensing humidity tolerance

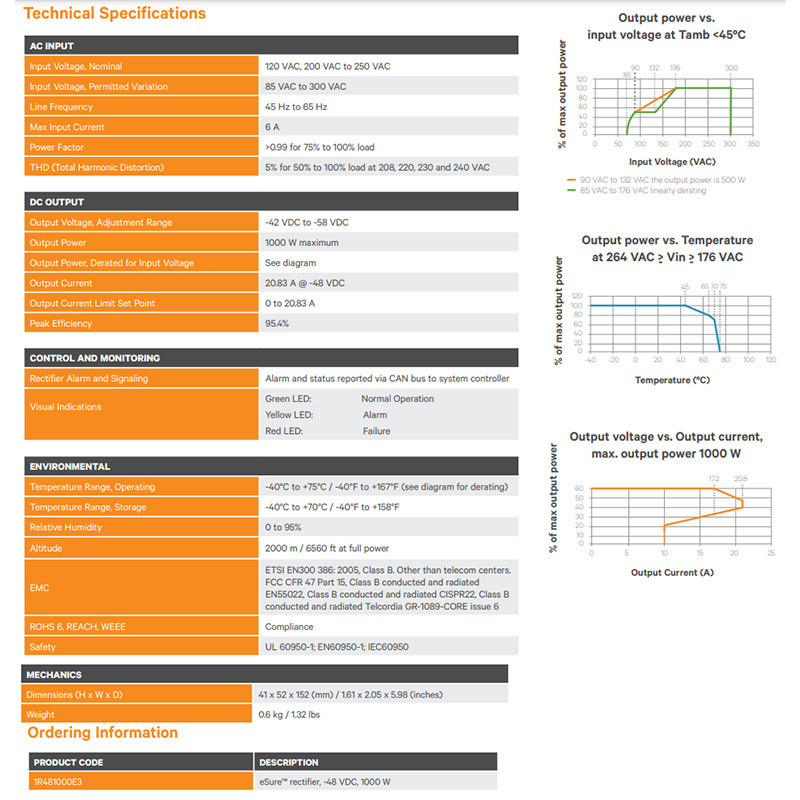

Technical Specifications
| Item | Details |
| Model | R48-1000E / R48-1000E3 |
| Brand | Vertiv / Former Emerson |
| AC Input | 120V / 200~250VAC, 45~65Hz, Max 6A |
| DC Output | Adjustable -42VDC ~ -58VDC, Rated 1000W |
| Peak Efficiency | ≥95% |
| Power Density | 45 W/in³ |
| Dimension | 41×52×152mm (1.61×2.05×5.98in) |
| Net Weight | 0.6kg (1.32lbs) |
| Cooling | Intelligent Air Cooling |
| Communication | CAN Bus + DSP Digital Control |
| Working Temp | -40℃ ~ +75℃ (Full power below +45℃) |
| Storage Temp | -40℃ ~ +80℃ |
| Max Full-power Altitude | ≤2000m |
| Relative Humidity | 0% ~ 90% (Non-condensing) |
| MOQ | 1 PCS |
| Unit Price | $279/PCS(1~9pcs) |
| Monthly Supply | 1000PCS |
| Packing | Carton / Wooden Frame |
| Warranty | 12 Months |
Applications
NetSure 2100 Series Embedded Power System Matching Rectifier Module
4G/5G Mini Small Cell & Micro Base Station DC Backup Power
Compact Outdoor Telecom Enclosure & Pole-mounted Cabinet Power Supply
Short-depth Rack and Limited-space Communication Equipment
Mini Data Center Low-power DC Auxiliary Power Unit
Old Low-capacity Telecom Cabinet Capacity Expansion & Replacement
