Product Overview

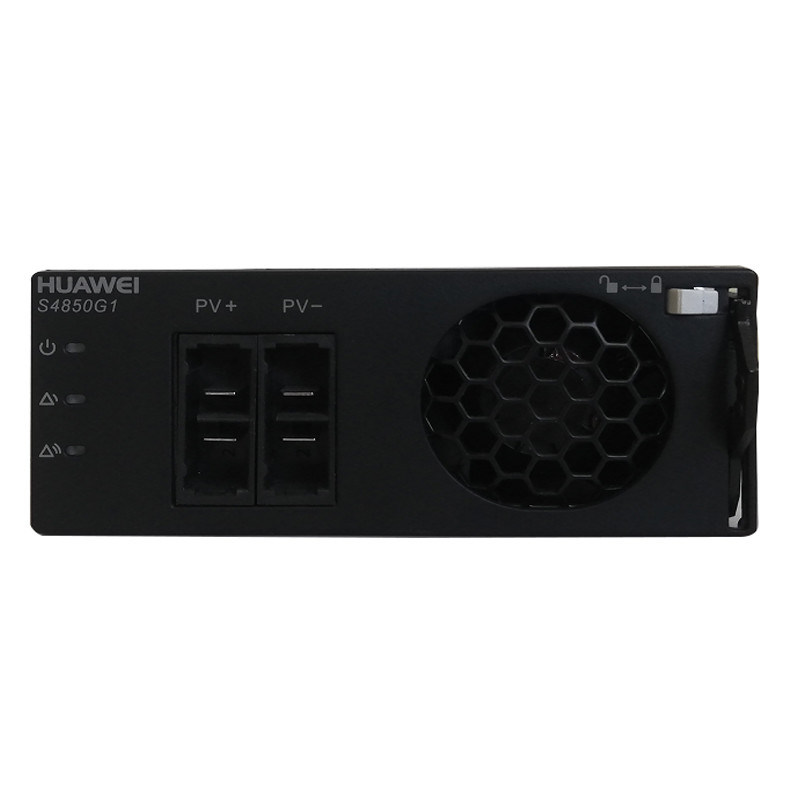

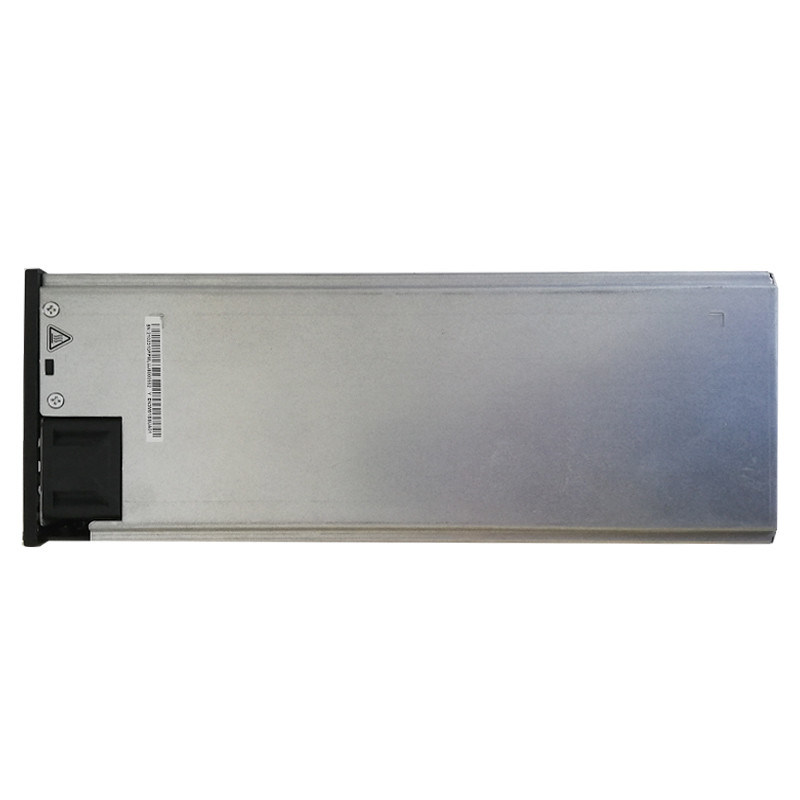

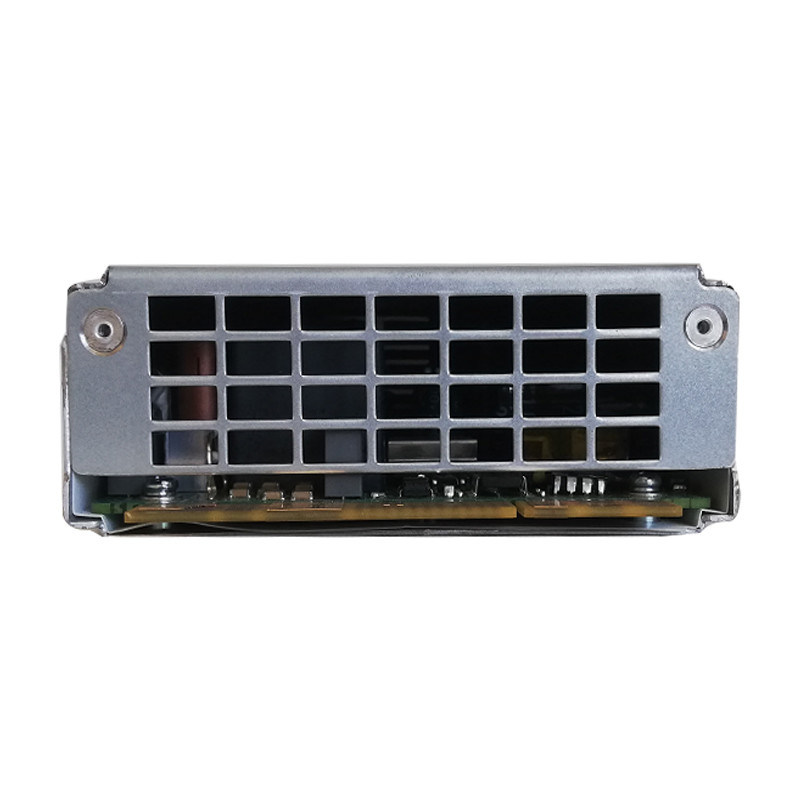

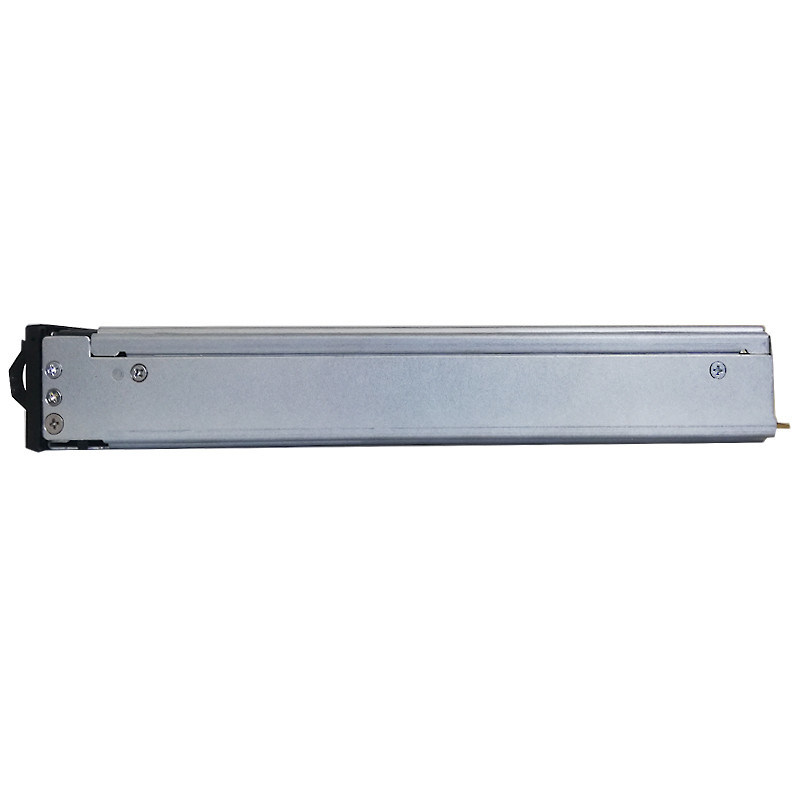

The Huawei S4850G1 is professional built-in MPPT DC-DC solar converter exclusively customized for Huawei EN3M61SSUA01 outdoor integrated telecom cabinet and ETP48400 series power systems. Designed to convert variable solar PV DC voltage (58~150VDC) into stable adjustable 43.2~58VDC standard telecom voltage(default53.5VDC), rated max output 3000W/52A(50A nominal). Featured industry-leading ≥99.8% MPPT tracking efficiency above 100W load and peak conversion efficiency up to98.2%, it automatically locks PV maximum power point to maximize solar harvesting and reduce diesel & grid power consumption for remote unmanned communication sites. Standard drawer hot-swap structure enables direct plug-and-play installation inside EN3M61SSUA01 cabinet without structural modification, widely deployed in rural off-grid 4G/5G pole base station and FTTx outdoor OLT cabinet solar transformation projects。
Key Features
Wide PV input range:58~150VDC, compatible multiple series-parallel solar panel combinations, max 3100W PV input power
Adjustable DC output:43.2~58VDC(default53.5V), rated50A/max52A, linear power derating below70VDC PV input
Ultra-high MPPT efficiency ≥99.8%(load＞100W), dynamic tracking efficiency ≥92%, fully utilize solar resource
Peak conversion efficiency up to98.2%, cut long-term site operating electricity expenditure
Hot-swap pluggable layout, online replacement without cabinet power interruption, convenient field maintenance
Intelligent thermostatic variable speed fan, auto speed regulation based internal temperature, low noise & extended service life
Full protection functions:PV reverse connection prevention, OVP/UVP/OCP/SCP/OTP + PV side lightning surge protection
Built-in digital communication, realize real-time PV yield data upload & remote parameter setting via cabinet master controller
Wide working range:-40℃ startup, -20~+75℃ full power, stable operation up to4000m altitude
CE,UL,TUV,FCC,RoHS certified, perfectly compatible EN3M61SSUA01 outdoor integrated cabinet
Technical Specifications
| Item | Details |
| Model | S4850G1 |
| Brand | Huawei |
| PV DC Input | 58~150VDC,Max45A/3100W |
| DC Output | 43.2~58VDC(Nom53.5V),Nom50A/Max52A/3000W |
| MPPT Tracking Efficiency | ≥99.8%(P＞100W) |
| Peak Conversion Efficiency | 98.2% |
| Dimension | 40.8×105×269mm |
| Net Weight | ≤1.85kg |
| Cooling | Intelligent Variable Speed Forced Air Cooling |
| Working Temp | -40℃ Startup,-20~+75℃ Full Power |
| Max Full-power Altitude | ≤4000m |
| Certifications | CE,UL,TUV,FCC,RoHS |
| MOQ | 1 PCS |
| Unit Price | $480/PCS(1~9pcs) |
| Monthly Supply | 1000PCS |
| Packing | PE+Foam+Export Standard Carton |
| Warranty | 12 Months |
Applications
EN3M61SSUA01 Outdoor Cabinet Exclusive Off-Grid PV Supplementary Power
Pole-mounted 4G/5G Micro Base Station Hybrid Solar-Battery Power System
Rural FTTx OLT Outdoor Cabinet Solar Energy-saving Retrofit Project
Remote Unmanned Monitoring Station PV Backup Power Supply
Old Huawei ETP Series Cabinet Solar Capacity Expansion Upgrade
Border & Off-grid Industrial DC Load Solar Charging Equipment
