Product Overview

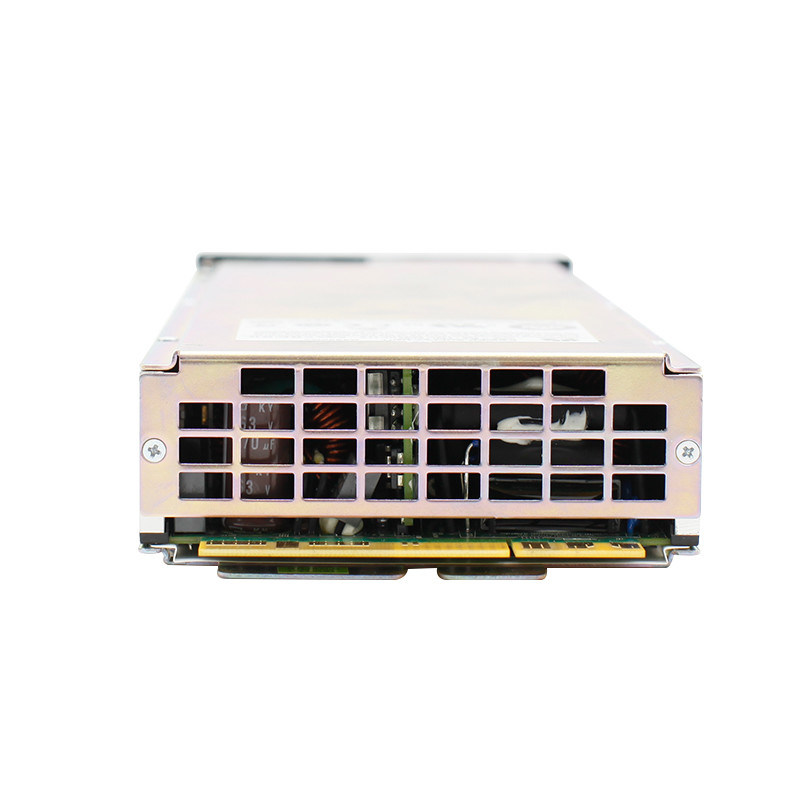

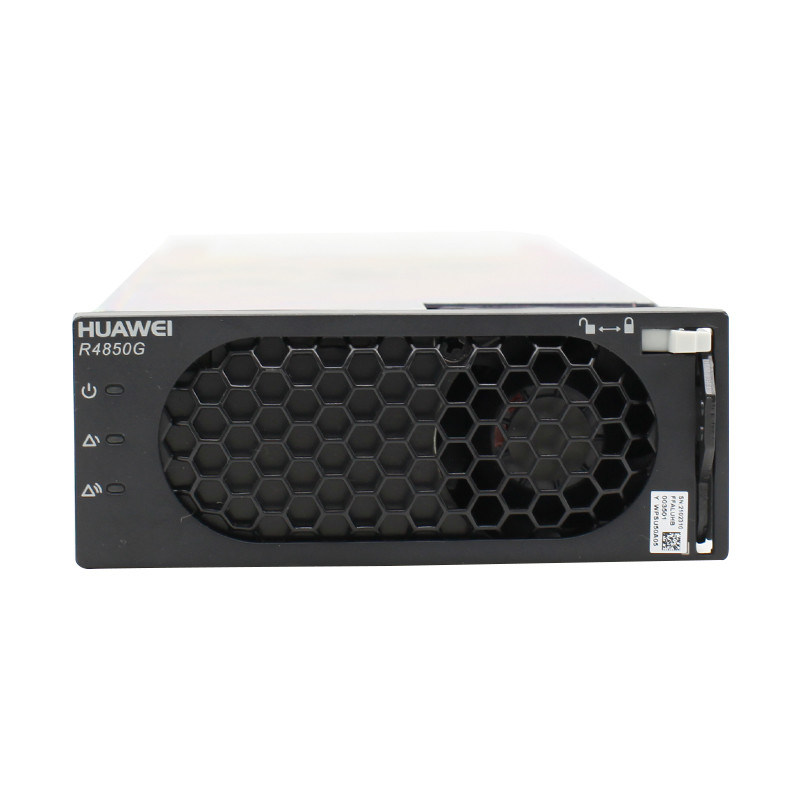

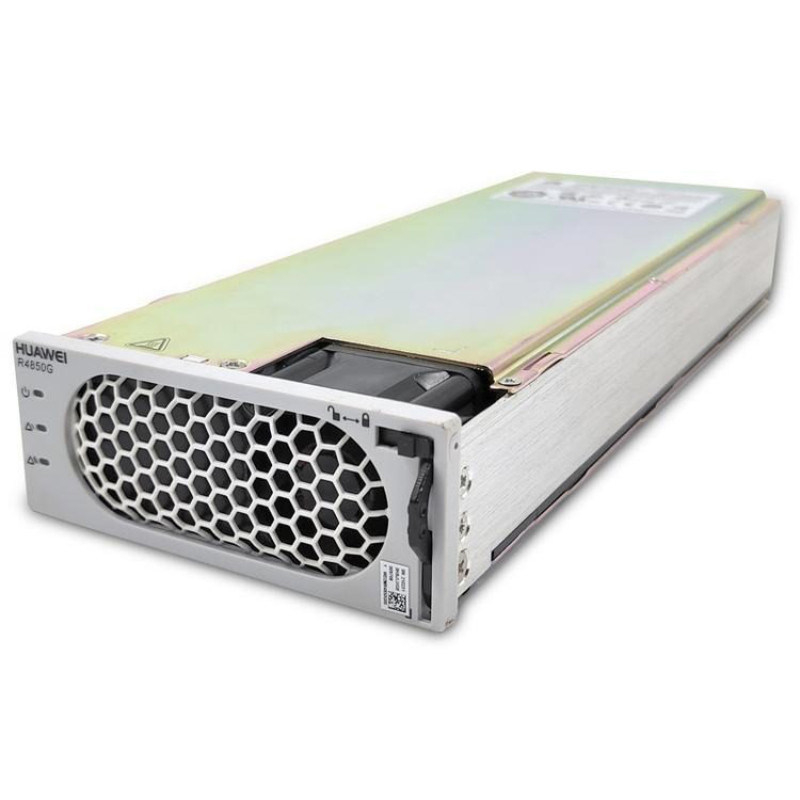

The Huawei R4850G2 & R4850G6 are original digital high-frequency hot-swap rectifier modules specially engineered for Huawei ETP48100-B1 19-inch embedded telecom power system, supporting single/dual module configuration(max 100A full system output). Rated 3000W/56.1A@default53.5VDC, the modules convert wide-range 85~300VAC single-phase mains into adjustable 42~58VDC standard telecom voltage. Adopts mature soft-switch + full digital PFC control technology, full-load PF≥0.99 and peak conversion efficiency above 96%. Standard drawer hot-plug design enables live module replacement without shutting down the whole ETP48100-B1 cabinet; built-in CAN bus realizes real-time data interaction with cabinet monitoring unit for remote parameter setup and fault alert, widely used in FTTx OLT cabinet, indoor 4G/5G micro base station and old ETP48100-B1 power cabinet renovation & spare replacement projects。
Key Features
Ultra-wide AC input:85~300VAC(45~65Hz, dual 110/220V nominal specification), fit unstable civil grid and diesel generator power supply
Adjustable DC output:42~58VDC(default53.5VDC), max56.1A constant power, automatic power derating below 176VAC input
Active full-range PFC design, full-load PF≥0.99, input THD≤5%, effectively reduce grid harmonic loss and long-term operating cost
Complete front pull-out hot-swap construction, plug & play without system power-off for rapid field maintenance
Intelligent thermostatic variable speed fan, auto adjust rotating speed by internal temperature to cut running noise and extend service life
Full multi-layer safety protection:OVP/UVP/OCP/SCP/OTP + AC input lightning surge protection for sealed indoor/outdoor cabinet
CAN bus communication interface, seamless linkage with ETP48100-B1 monitor for remote voltage/current setting & fault upload

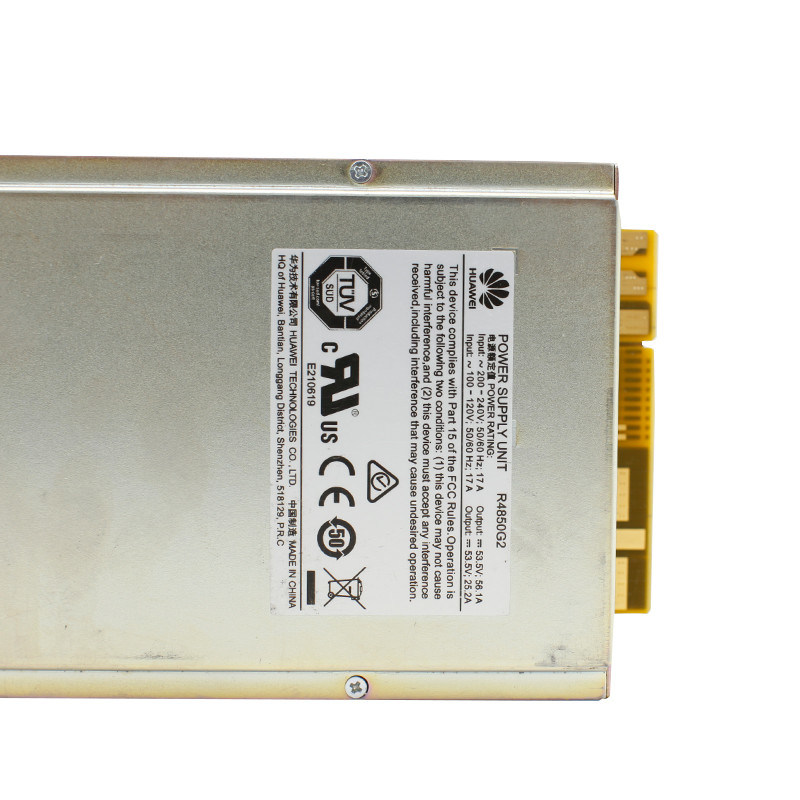

Pass CE, TUV, UL, FCC, RoHS certifications, stable -40℃~+75℃ operation, full-power output up to 4000m altitude
Technical Specifications
| Item | Details |
| Model | R4850G2 / R4850G6 |
| Brand | Huawei |
| AC Input | 85~300VAC,45~65Hz,Nominal110/220VAC,Max17A |
| DC Output | Adjustable42~58VDC(Nom53.5V),Max56.1A/3000W |
| Peak Efficiency | ≥96% |
| Full Load PF | ≥0.99 |
| THD | ≤5% |
| Dimension | 40.8×105×281mm |
| Net Weight | ≤2kg |
| Cooling | Intelligent Variable Speed Forced Air Cooling |
| Communication | CAN Bus |
| Working Temp | -40℃ ~ +75℃ |
| Max Full-power Altitude | ≤4000m |
| Certifications | CE,TUV,UL,FCC,RoHS |
| MOQ | 1 PCS |
| Unit Price | $105/PCS(1~9pcs) |
| Monthly Supply | ≥1000PCS |
| Packing | PE Foam + Export Standard Carton |
| Warranty | 12 Months |
Applications
Huawei ETP48100-B1 Cabinet Matching FTTx OLT Embedded DC Power
Indoor 4G/5G Micro Small Cell Base Station Backup Power Supply
DSLAM Fiber Access Network Cabinet Old Rectifier Replacement
Compact Indoor Unmanned Communication Cabinet Power Upgrade
ETP48100-B1 Power Cabinet Capacity Expansion Project
Mini Edge Data Room Auxiliary Uninterrupted DC Power
Why Choose Us
We are a professional manufacturer and one‑stop solution provider for communication DC power systems, boasting mature R&D strength, large‑scale production capacity and flexible service modes. We fully support OEM and OBM cooperation, helping global partners create differentiated power products.
-
Powerful R&D & Customization Ability
We have a professional technical team with years of experience in the power industry. We can provide personalized customized services covering power configuration, external interfaces, functional parameters, appearance design and logo printing, to satisfy diverse demands from telecom operators, system integrators and equipment manufacturers.
-
Comprehensive OEM & OBM Services
We offer full‑cycle cooperation support from product design, prototype testing, certification to mass production. With efficient development process and strict quality management, we help you quickly launch products and build exclusive brand advantages.
-
Large Production Capacity & On-time Delivery
We own standardized production workshops and complete production lines. Relying on a stable supply chain and mature production technology, we maintain sufficient inventory and strong production capacity, ensuring on-time delivery even for bulk orders and long-term cooperative supply.
-
Strict Multi-level Quality Inspection
All products will pass full-load operation test, high-low temperature aging test, safety performance test and simulated on-site operation test before delivery. We adopt high-quality original components and implement strict quality control standards to guarantee long-term stable operation of products in various harsh environments.
-
Full Lifecycle Technical & After-sales Support
We establish a complete service system including pre-sales consultation, in-sales technical guidance and after-sales maintenance. Our technical team responds quickly to provide remote debugging, on-site technical guidance and spare parts supply, protecting the stable operation of your power system all the time.
-
Rich Global Project Experience
Our products have been exported to many countries and regions, widely applied in communication, data center, industrial control, new energy and fields. With rich project experience, we can provide targeted power solutions for different regional standards and application scenarios.
We sincerely look forward to establishing long‑term stable cooperative partnership with you.
