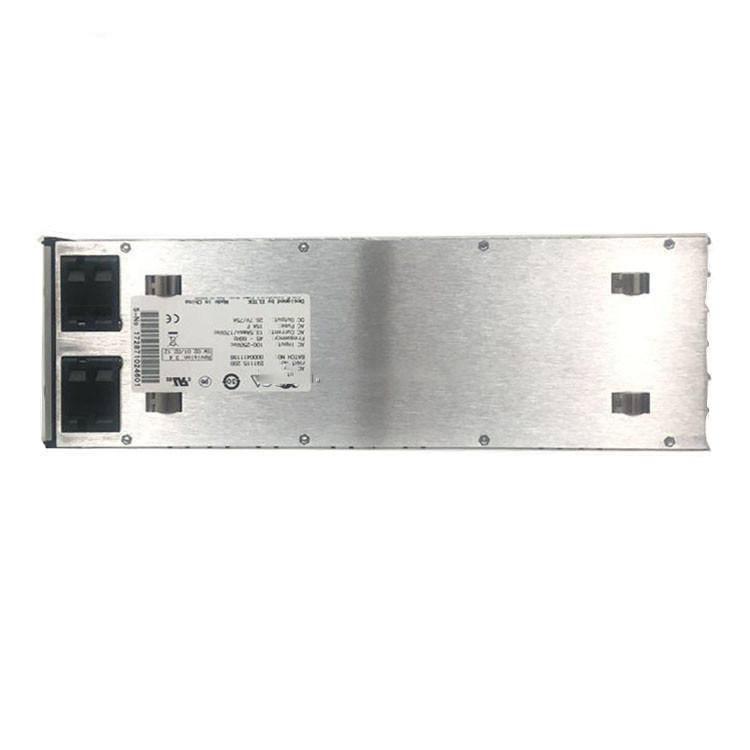

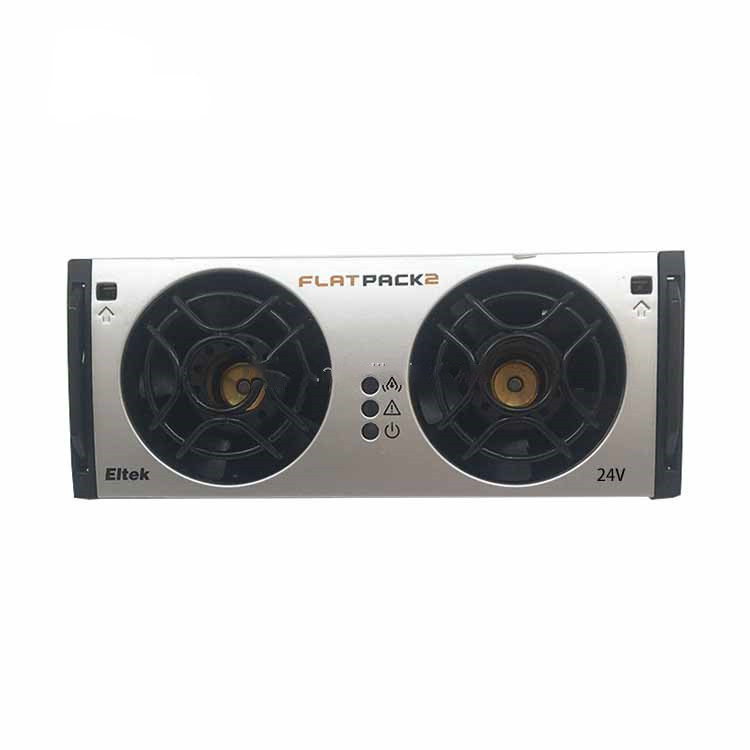

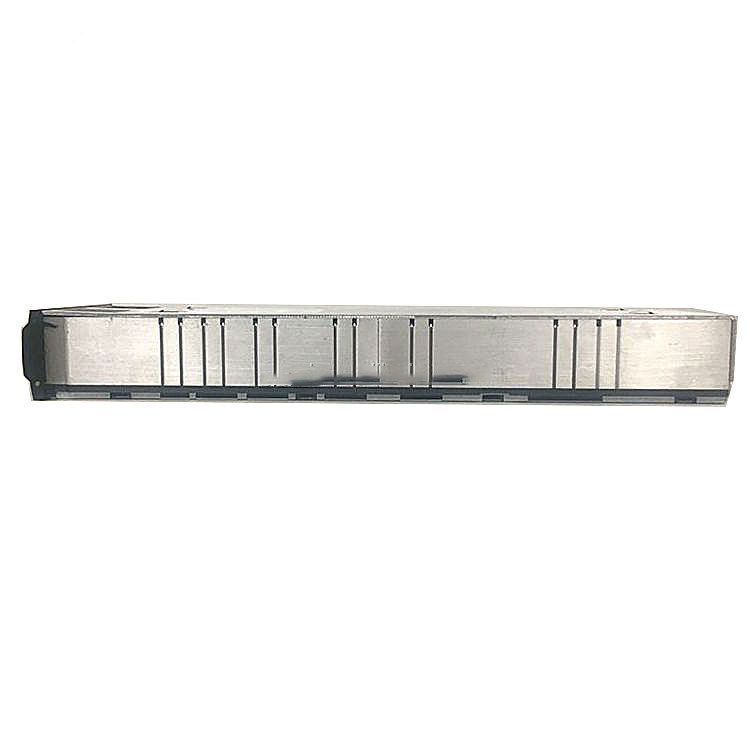

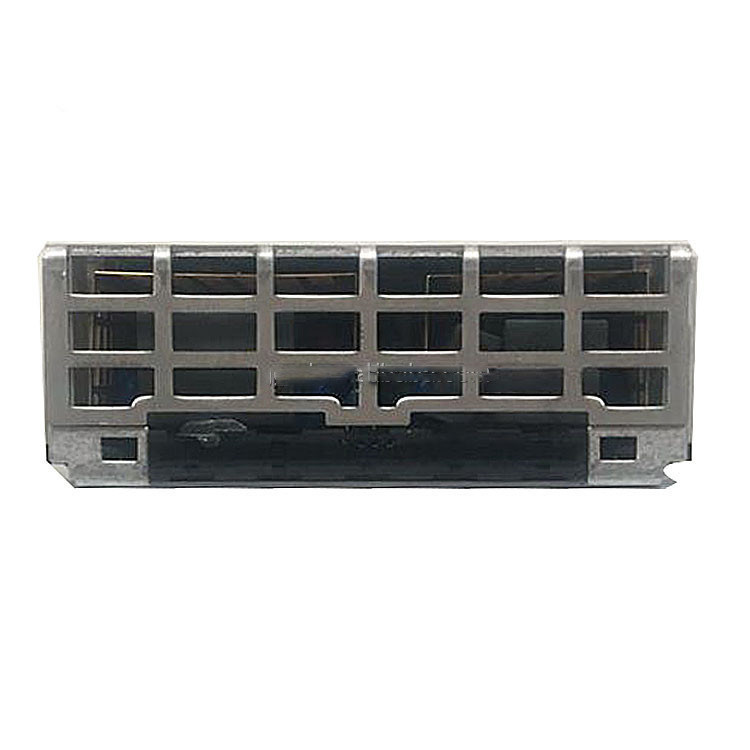

Eltek Flatpack2 24/2000 Rectifier Module (241115.200)
Wide Grid Adaptation: 100-250VAC full input range and 45-65Hz universal frequency, stably coping with voltage fluctuations in complex power environments.
Adjustable Output Voltage: 24V to 26.7V adjustable DC output, compatible with various 24V lead-acid batteries and loads.
Dual Output Design: Dual output terminals expand power supply channels, meeting the power demands of multiple devices at the same time.
High Load Capacity: 2000W rated power and 75A maximum current, capable of driving medium and high-power equipment steadily.
Complete Protection Configuration: Built-in 15A AC fuse and varistor transient protection, effectively preventing overcurrent and surge damage.
Compact & Portable: Small overall size and light weight, easy for cabinet installation and equipment replacement.
Parallel & Hot-Swap Support: Multiple modules can work in parallel for capacity expansion; hot-swap design enables maintenance without system shutdown.
Strict Quality Standards: Passes CE and RoHS certifications, compliant with international electrical and environmental requirements.
Long-Term Stability: Mature circuit design and rigorous testing ensure low failure rate for 24-hour uninterrupted operation.
| Category | Item | Parameter |
|---|---|---|
| Basic Info | Product Type | AC-DC Rectifier Module |
| Model | Flatpack2 24/2000 | |

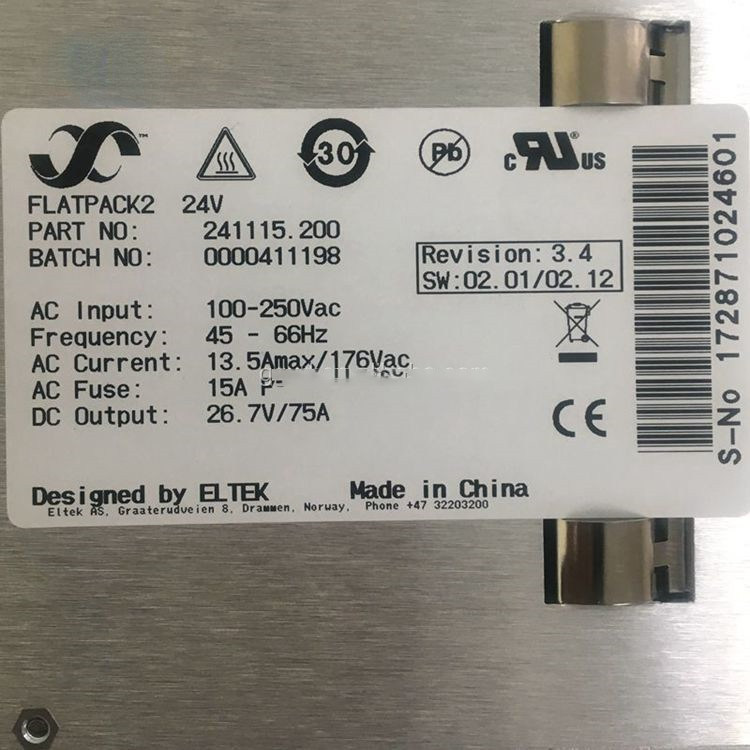

| Part Number | 241115.200 | |
| Batch Number | 0000411198 | |
| Version | Revision 3.4 / SW:02.01/02.12 | |
| AC Input | Input Voltage Range | 100 ~ 250 VAC |
| Input Frequency | 45 ~ 65 Hz | |
| Max Input Current | 13.5A | |
| AC Fuse | 15A | |
| DC Output | Adjustable Voltage | 24 ~ 26.7 VDC |
| Rated Power | 2000W | |
| Actual Operating Power | 1900W | |
| Max Output Current | 75A | |
| Standard Output Current | 50A | |
| Output Type | Dual | |
| Physical Parameters | Dimension (W×H×D) | 40 × 105 × 325 mm |
| Net Weight | 2.8kg / 3kg | |
| Certifications | CE, RoHS | |
| Trade Terms | MOQ | 1 piece |
| Warranty Period | 12 Months |
Telecom Industry: 24V communication base stations, signal transmission equipment, indoor and outdoor communication cabinets
Marine & Offshore: Shipboard power distribution, offshore platform control equipment, marine auxiliary power systems
Industrial Fields: Factory automation equipment, industrial control cabinets, unattended monitoring stations
Battery Systems: 24V lead-acid battery charging racks, combined battery power supply units
General DC Systems: Rack-mounted 24V power cabinets, emergency DC power supplies
Strong Compatibility: Wide input and adjustable output match global power grids and various 24V battery specifications.
Dual Output Advantage: Dual terminals improve equipment utilization and save internal wiring space.
High Safety Factor: Multiple protection mechanisms effectively resist overcurrent and surge faults.
Easy Operation & Maintenance: Hot-swap and parallel functions reduce maintenance difficulty and expansion costs.
Compact Layout: Miniature size fits most standard power cabinets, saving installation space.
Global Compliance: Authorized certifications support export and application in various regions.
Cost-Effective: Original genuine products with competitive prices, ideal for large-scale engineering procurement.
Durable Performance: Excellent environmental adaptability, suitable for indoor and long-term outdoor deployment.
Q: What is the AC input range of this module?
A: The AC input voltage is 100-250V, and the applicable frequency is 45-65Hz.
Q: Can the DC output voltage be adjusted?
A: Yes, the DC output voltage can be adjusted between 24VDC and 26.7VDC.
Q: What are the power and current parameters?
A: Rated power is 2000W, actual operating power is 1900W, and the maximum output current is 75A.
Q: What kind of output does this module adopt?
A: It adopts dual output design to supply power for multiple loads.
Q: What are the size and weight?
A: Dimensions: 40 × 105 × 325 mm, net weight: 2.8kg to 3kg.
Q: Does it support parallel connection and hot swap?
A: Yes, it supports parallel expansion and hot-swap maintenance.
Q: What certifications does the product have?
A: It has passed CE and RoHS certifications.
