241115.600 / 241115.602
Eltek

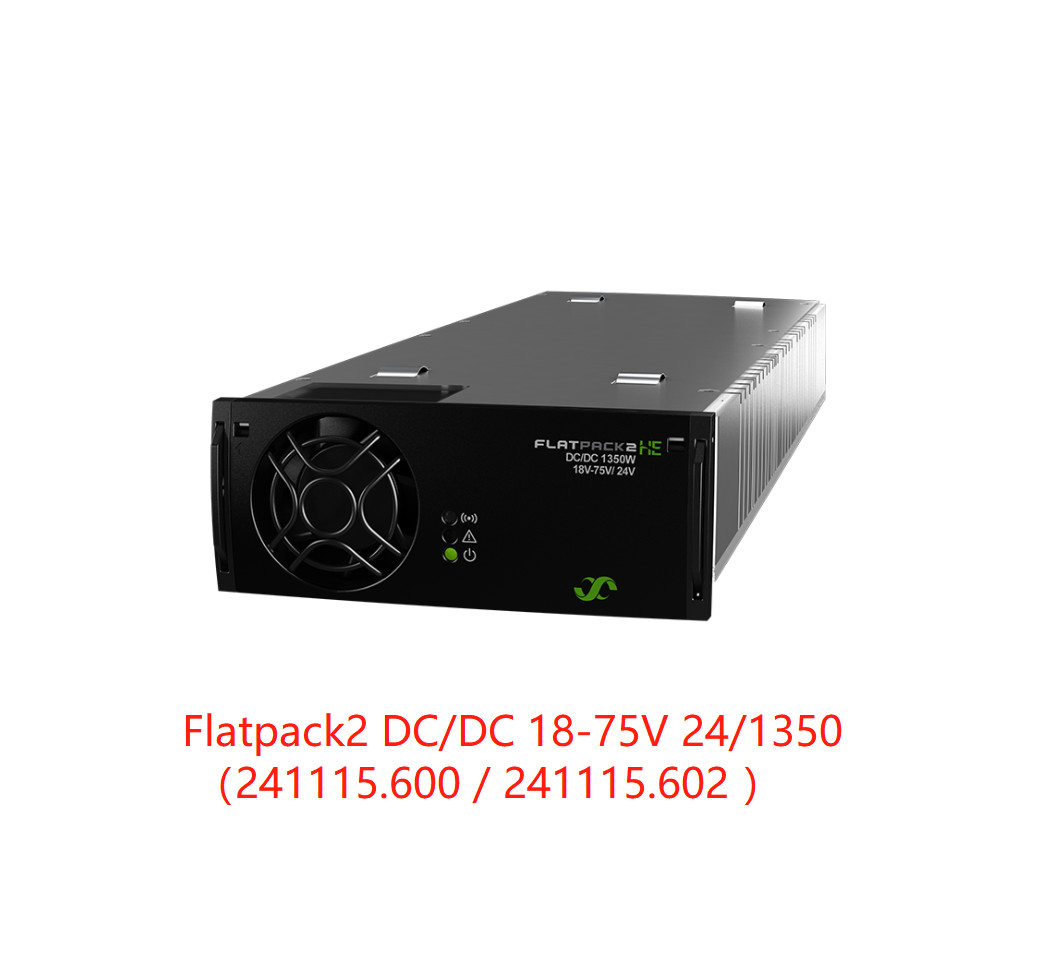

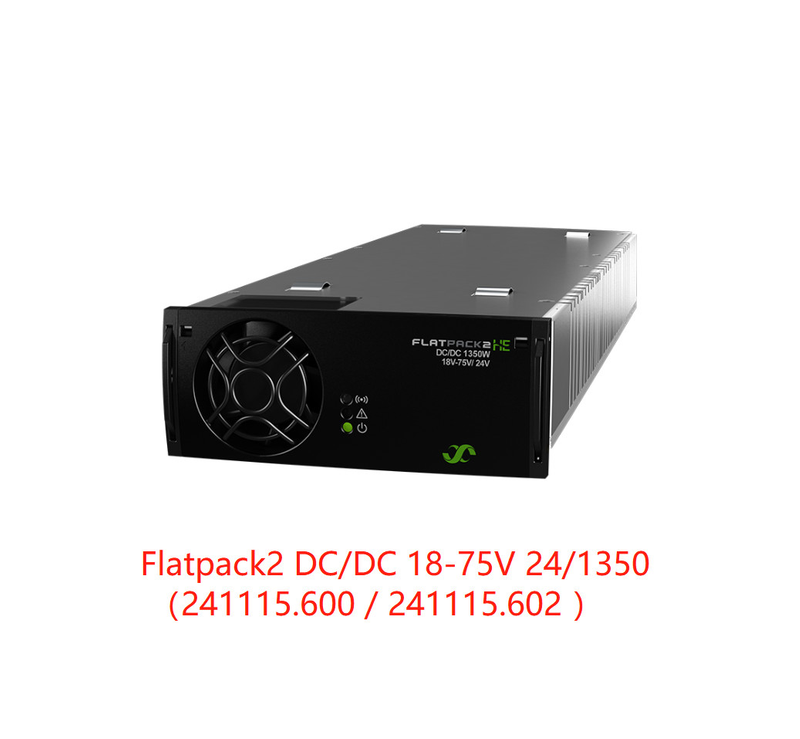

Eltek Flatpack2 DC/DC 18-75V 24V 48V 1350W (Part No.:241115.600 241115.602)
Wide Input Voltage Range: 20–75VDC (shutdown <16.5VDC), compatible with 24V/48V/60V battery systems.
Dual Output Options:
Model 241115.600: 24VDC (24–28V adjustable), 56A max, 1350W continuous.

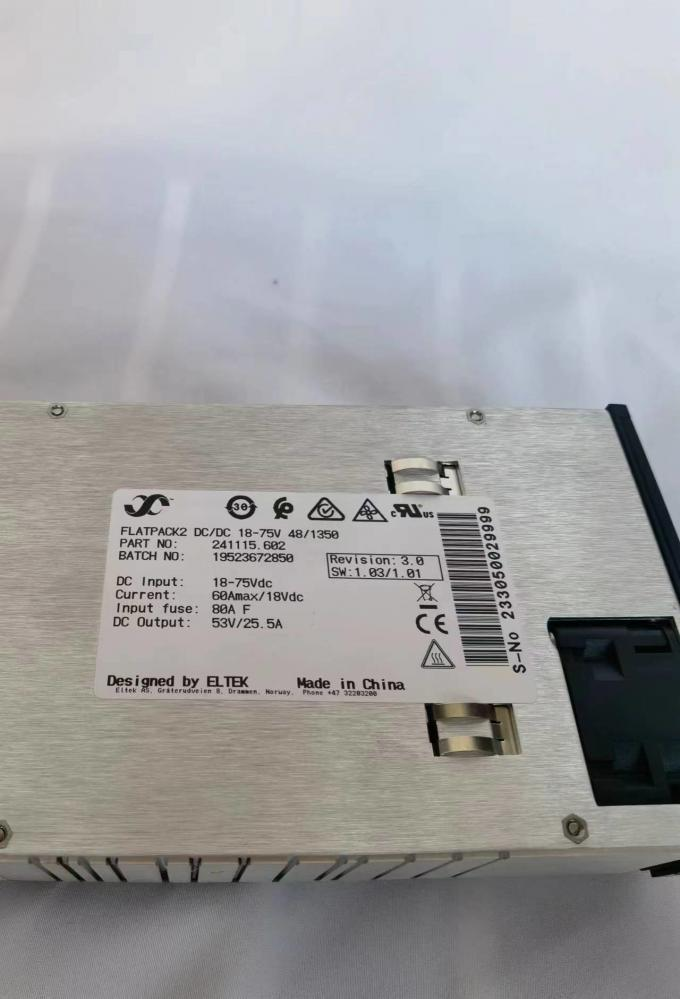

Model 241115.602: 48VDC (48–58.5V adjustable), 28A max, 1350W continuous.
High Efficiency: Up to 91.7% (24V) / 93.8% (48V), reducing energy loss and heat.
Power Boost Mode: 2000W peak (15s / 10min recovery) for short-term high loads.
Galvanic Isolation: 1.9kVDC input-to-output isolation, enhancing system safety and noise immunity.
CAN Bus Integration: Seamlessly connects to Eltek Smartpack controller for remote monitoring, alarms, and configuration.
Hot-Swap & Plug-and-Play: Tool-less installation/removal without system shutdown.
Comprehensive Protection: OVP, OCP, SCP, OTP, reverse polarity, and inrush current limiting.

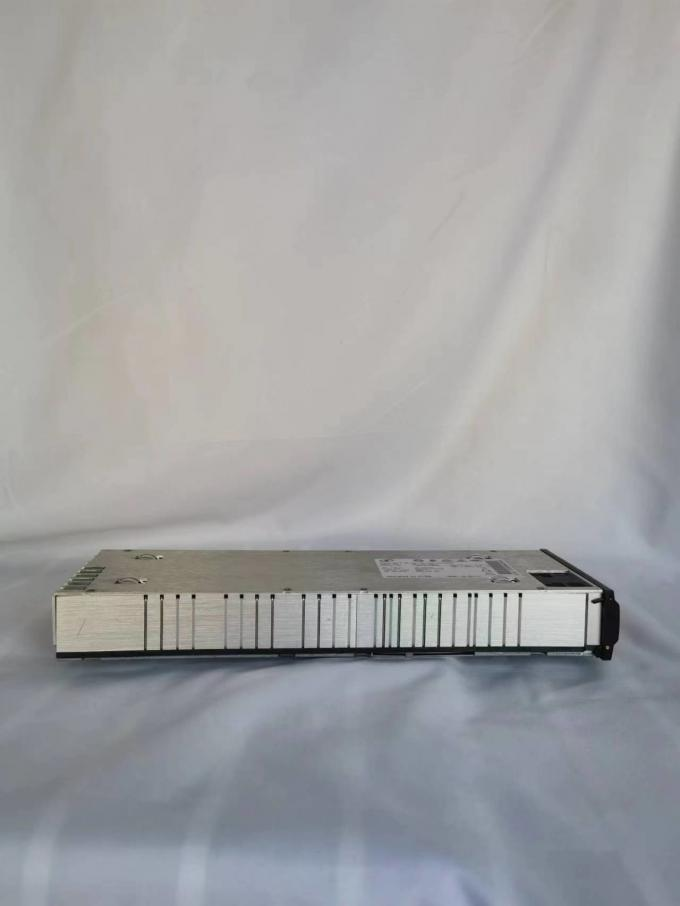

Compact & Rugged: 109×41.5×327mm, <1.95kg, -40°C to +75°C operating temperature.
| Parameter | 241115.600 (24V) | 241115.602 (48V) |
|---|---|---|
| Input Voltage | 20–75VDC (shutdown <16.5VDC) | 20–75VDC (shutdown <16.5VDC) |
| Output Voltage | 24–28VDC (default 26V) | 48–58.5VDC (default 53V) |
| Rated Power | 1350W | 1350W |
| Max Current | 56A | 28A |
| Boost Power | 2000W (15s) | 2000W (15s) |
| Efficiency | Up to 91.7% | Up to 93.8% |
| Isolation | 1.9kVDC input-output | 1.9kVDC input-output |
| Communication | CAN bus (Eltek system) | CAN bus (Eltek system) |
| Dimensions | 109×41.5×327mm | 109×41.5×327mm |
| Weight | <1.95kg | <1.95kg |
| Operating Temp | -40°C to +75°C | -40°C to +75°C |
| Certifications | CE, UL, RoHS, ETSI | CE, UL, RoHS, ETSI |
Telecom Networks: 5G/4G base stations, microwave radios, fixed telephony, fiber optics.
Data Centers: Servers, switches, routers, and auxiliary DC loads.
Industrial Control: PLCs, alarm systems, process control, and safety systems.
Power Utilities: Substation automation, signaling, and backup power.
Transportation: Railway/metro signaling and control systems.
We supply 100% original Eltek Flatpack2 HE DC/DC converters (241115.600 / 241115.602) with full testing, certification, and warranty. Our products are fully compatible with Eltek Smartpack controllers and Flatpack2 power systems, ensuring seamless integration and reliable performance. We offer competitive pricing, fast delivery, and professional technical support for your telecom, industrial, and data center power projects.
