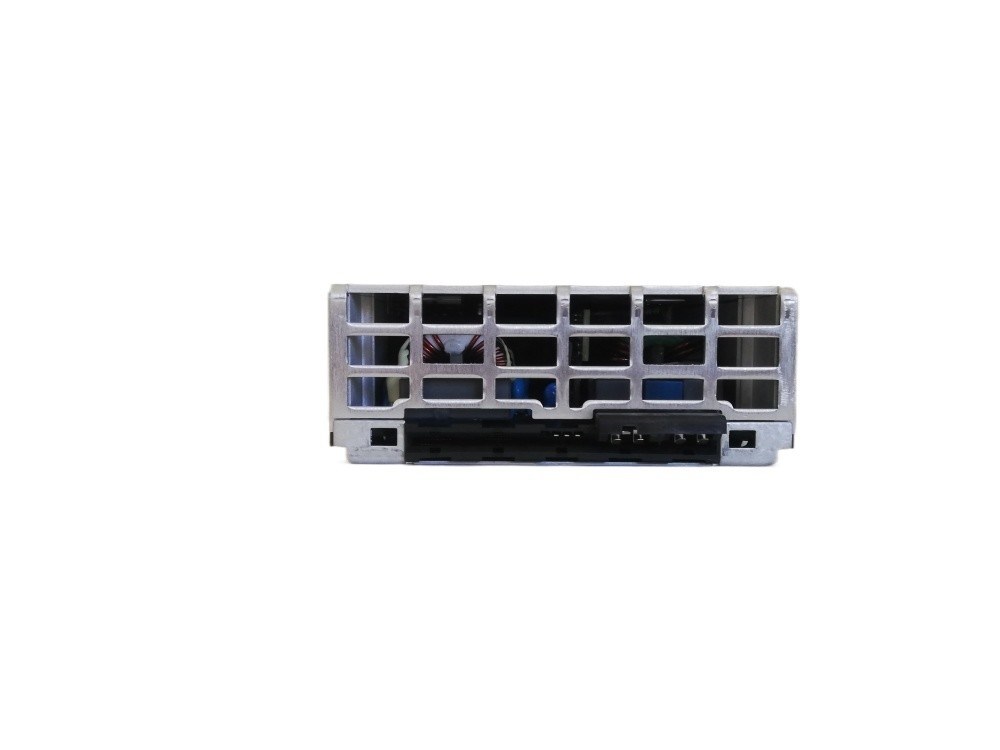

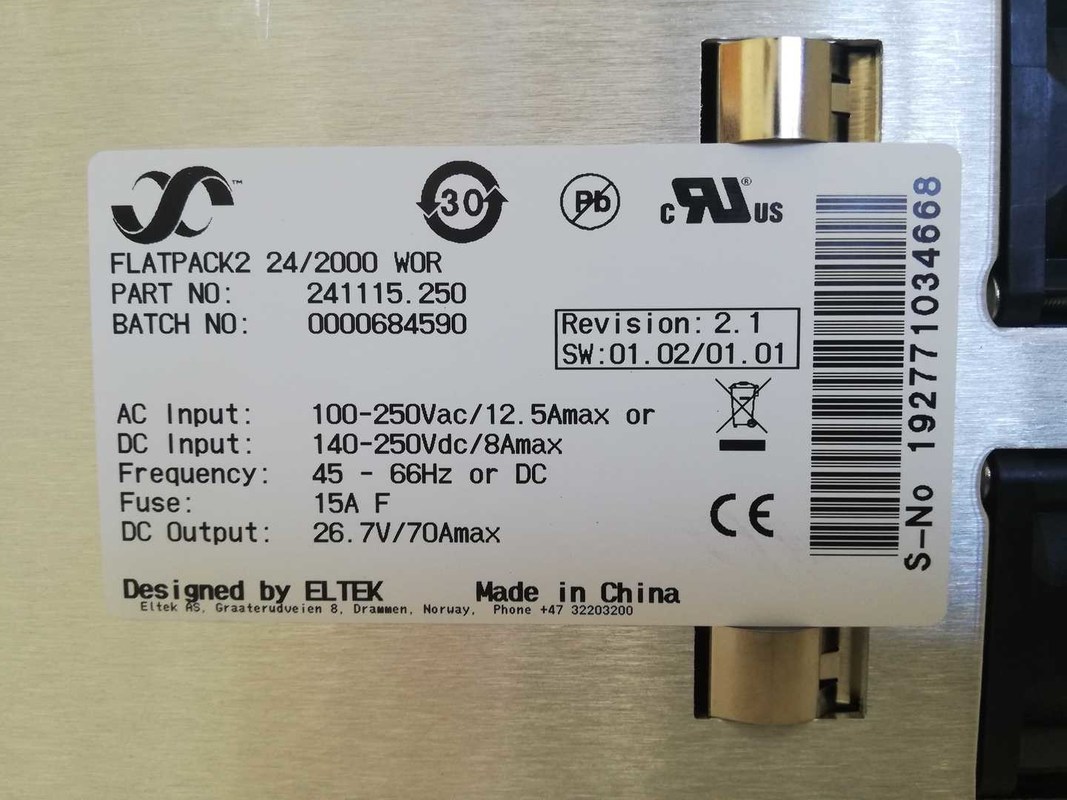

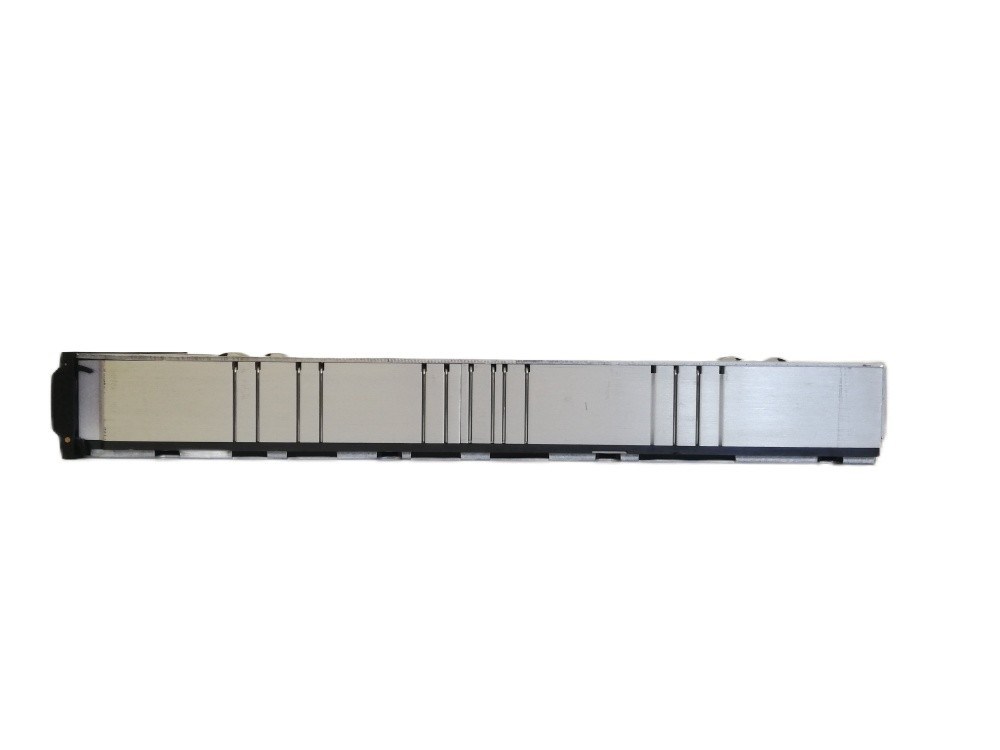

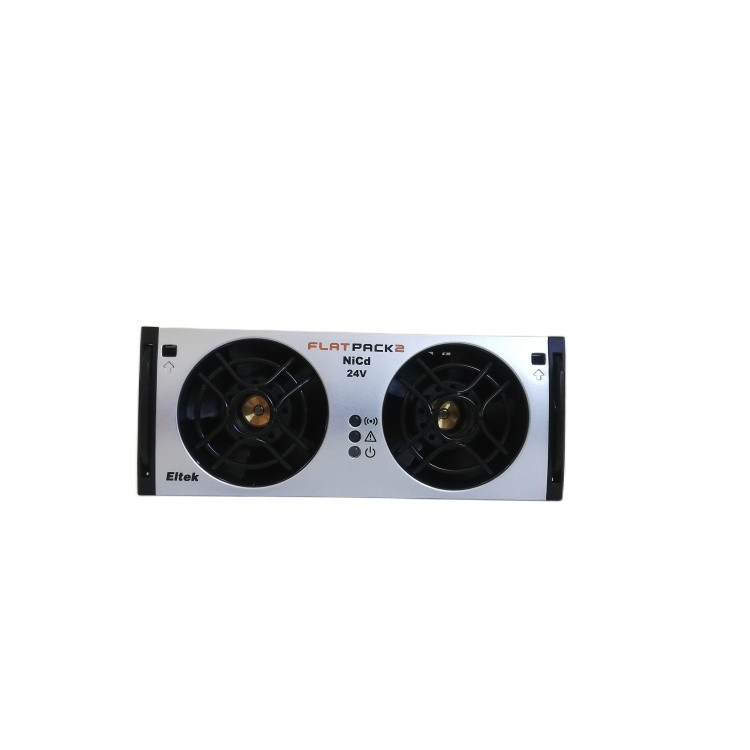

Eltek Flatpack2 24/2000 WOR Rectifier Module (241115.250)
Dual Input Compatibility: Supports 100-250V AC and 140-250V DC dual input, adapting to diverse power supply modes of marine and telecom sites. The maximum input current is 12.5A (AC) / 8A (DC) for stable power access.
Stable High Power Output: Rated power reaches 2000W, with a maximum output current of 18A. The output adopts multi-channel design to meet the power demands of multiple loads simultaneously.
Moderate Energy Efficiency: Up to 91% conversion efficiency, effectively reducing heat generation and long-term operating costs during continuous operation.
Wide Temperature Adaptation: The operating temperature ranges from -40℃ to +75℃, and the storage temperature extends to -40℃ ~ +85℃, suitable for extreme cold and high-temperature working conditions.
Strong Environmental Resistance: Optimized for marine and offshore working environments, with excellent moisture-proof, anti-corrosion and anti-interference capabilities.
Complete Safety Protection: Equipped with built-in fuses, overvoltage, overcurrent, short-circuit and over-temperature protection to prevent equipment damage caused by abnormal power supply.
Standard Specification: Standard size of 109×41.5×327mm and net weight of 2.5kg, compatible with mainstream standard power cabinets for easy assembly.
Wide Frequency Adaptation: Applicable to 45-66Hz input frequency, matching power grid standards of different regions worldwide.
| Category | Item | Parameter |
|---|---|---|
| Basic Info | Product Type | AC/DC Dual Input Rectifier Module |
| Model | Flatpack2 24/2000 WOR | |
| Part Number | 241115.250 | |
| Brand | Eltek | |
| Main Application | Marine, Offshore, Telecommunication Equipment | |
| AC Input | Rated Voltage | 100 ~ 250 VAC |
| Max Input Current | 12.5A | |
| Input Frequency | 45 ~ 66 Hz | |
| DC Input | Rated Voltage | 140 ~ 250 VDC |
| Max Input Current | 8A | |
| DC Output | Nominal Voltage | 24 VDC |
| Rated Power | 2000W (1KW) | |
| Max Output Current | 18A | |
| Output Type | Multiple | |
| Conversion Efficiency | 91% | |
| Physical Parameter | Dimension (H×W×D) | 109 × 41.5 × 327 mm |
| Net Weight | 2.5 kg | |
| Environment | Operating Temperature | -40℃ ~ +75℃ |
| Storage Temperature | -40℃ ~ +85℃ | |
| Protection Configuration | Built-in 15A Fuse, Overvoltage, Overcurrent, Short-circuit, Overtemperature Protection | |
| Service | Warranty Period | 12 Months |
Marine & Offshore: Shipborne power systems, offshore platform equipment, coastal communication facilities
Telecommunications: Outdoor base stations, indoor telecom machine rooms, remote network nodes
Industrial Fields: Offshore industrial control equipment, unattended monitoring systems
Standard Power Cabinets: Supporting power conversion for various rack-mounted integrated power systems
Dual Input Design: AC and DC dual input realizes power switching backup, improving the stability of power supply for key equipment.
Harsh Environment Adaptation: Professionally optimized for marine and offshore scenes, with excellent anti-corrosion and temperature resistance.
Stable Output Performance: Multi-channel output design and strict voltage & current control ensure the normal operation of multiple loads.
Easy Installation & Maintenance: Standard size and moderate weight, compatible with most mainstream cabinets, convenient for daily inspection and module replacement.
Full Safety Protection: Multiple protection mechanisms effectively avoid faults caused by power anomalies and extend the service life of the whole system.
Global Grid Adaptation: Wide input voltage and frequency range, applicable to projects in different countries and regions.
Q: Does this module support both AC and DC input?
A: Yes. It supports 100-250V AC and 140-250V DC dual input to meet different power access requirements.
Q: What are the output power and current parameters?
A: The rated output power is 2000W, and the maximum output current is 18A with 24V nominal voltage.
Q: What is the conversion efficiency of the module?
A: The overall conversion efficiency reaches 91%.
Q: What is the working temperature range?
A: The operating temperature is -40℃ ~ +75℃, and the storage temperature is -40℃ ~ +85℃.
Q: What are the size and weight of the product?
A: The dimension is 109×41.5×327mm and the net weight is 2.5kg.
Q: What main scenarios is this module suitable for?
A: It is specially designed for marine, offshore facilities and various telecommunication equipment.
Q: How about the packaging for transportation?
A: It is packaged with plastic bag, shockproof foam and carton to prevent damage during transit.
