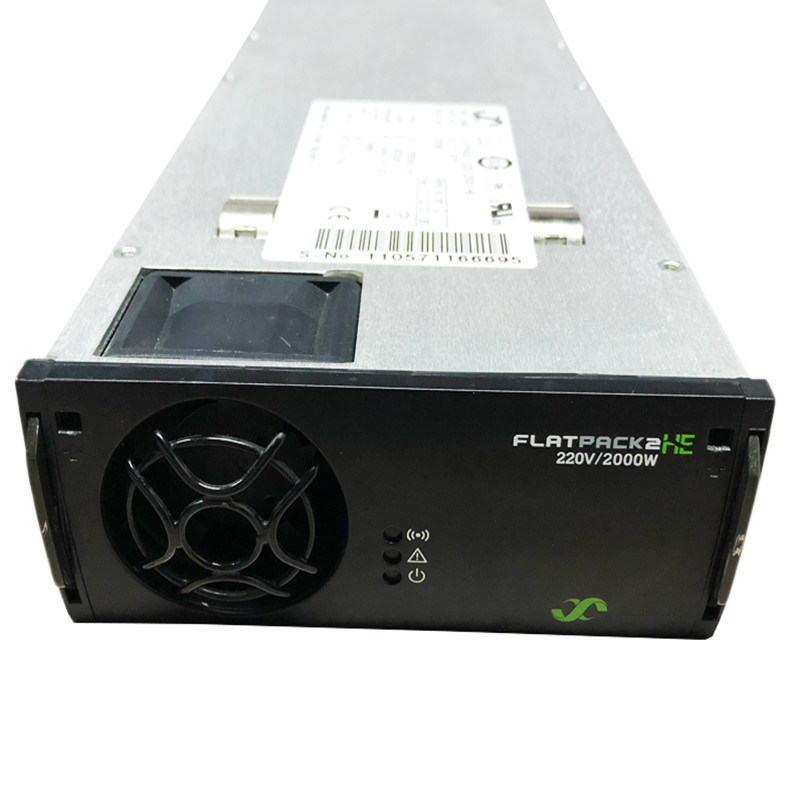

Eltek Flatpack2 220/2000 HE Rectifier Module (241115.815)
AC/DC Dual Universal Input: Compatible with 100-250VAC and 80-300VDC input, suitable for diverse power access scenarios and complex power environments.
Wide Frequency Adaptation: Supports 0-66Hz working frequency, matching power grids in different regions worldwide.
High Power Quality: Power factor ≥0.99 under 20% load and above, THD is controlled at a low level to reduce power grid pollution.
Stable High-Voltage Output: Fixed 245.3VDC output, stable voltage regulation, applicable to 220V-class high-voltage DC loads and battery packs.
Complete Protection System: Built-in dual-line fuse and varistor transient protection, with overvoltage shutdown protection above 300V to avoid equipment damage.
High Isolation Performance: 3kVAC isolation between input and output, enhancing system safety and electromagnetic interference resistance.
Wide Temperature Resistance: Operates normally at -40℃ ~ +75℃, adapting to indoor machine rooms and harsh outdoor environments.
Modular Expandability: Supports parallel connection of multiple modules for flexible capacity expansion, easy for system upgrade.
Hot-Swap Maintenance: No need to shut down for module replacement, reducing operation and maintenance downtime.
Authoritative Certification: CE certified, complying with international electrical safety and EMC standards.
| Category | Item | Parameter |
|---|---|---|
| Basic Info | Product Type | AC/DC Dual Input Rectifier Module |
| Model | Flatpack2 220/2000 HE | |
| Part Number | 241115.815 | |
| Batch Number | 792943 | |
| Hardware Revision | 2.1 | |
| Software Version | SW:01.12/01.00 | |
| AC Input | Input Voltage | 100 ~ 250 VAC |
| DC Input | 80 ~ 300 VDC | |
| Working Frequency | 0 ~ 66 Hz | |
| Max Input Current | 12.5 A | |
| AC Fuse | 16 A | |
| Power Factor | ≥ 0.99 (≥20% Load) | |
| DC Output | Nominal Voltage | 245.3 VDC |
| Rated Power | 2000W | |
| Max Output Current | 8.15 A | |
| Output Type | Single | |
| Output Frequency | 50 / 60 Hz | |
| Isolation Strength | 3 kVAC (Input to Output) | |
| Protection | Main Protection | Dual-line Fuse, Varistor Surge Protection, Overvoltage Shutdown (>300V) |
| Physical Parameters | Net Weight | 3 kg |
| Environment | Operating Temperature | -40℃ ~ +75℃ |
| Storage Temperature | -40℃ ~ +75℃ | |
| Trade Terms | MOQ | 1 piece / 2 sets |
| Warranty Period | 12 Months | |
| Certification | CE |
High-Voltage DC Systems: 220V-class DC power distribution, high-voltage battery charging systems
Telecom Industry: Special high-voltage communication equipment, remote signal transmission stations
Industrial Fields: Industrial control cabinets, factory automation equipment, high-voltage industrial power supply
Power Utilities: Substation auxiliary power, relay protection and monitoring equipment
Off-Grid Projects: Remote unattended stations, mountain and field high-voltage power supply systems
Dual Input Flexibility: AC and DC dual input design meets different power access requirements, with strong environmental adaptability.
Excellent Power Performance: High power factor and low harmonic ensure clean power and reduce line loss.
High Safety Design: Multiple protection and high isolation effectively prevent surge, overvoltage and other faults.
Wide Temperature Adaptation: Stable operation in extreme cold and high temperature environments, suitable for outdoor deployment.
Easy O&M: Hot-swap and parallel design simplify maintenance and later capacity expansion.
Reliable Quality: Strict factory aging and load tests, long service life for 24-hour continuous operation.
Global Compliance: CE certification supports export and application in various countries and regions.
Cost-Effective: Reasonable price for original products, suitable for large-scale engineering procurement.
Q: What input types does this module support?
A: It supports AC and DC dual input. The AC voltage range is 100-250V, and the DC voltage range is 80-300V.
Q: What are the output parameters?
A: The nominal output voltage is 245.3VDC, rated power 2000W, maximum output current 8.15A.
Q: What is the power factor of the module?
A: The power factor is higher than 0.99 when the load is more than 20%.
Q: What protection functions are available?
A: It is equipped with dual-line fuse, varistor surge protection and overvoltage shutdown protection.
Q: What is the working temperature range?
A: The operating and storage temperatures are both -40℃ ~ +75℃.
Q: Does it support parallel use and hot swap?
A: Yes, it supports multi-module parallel expansion and hot-swap maintenance.
Q: What is the minimum order quantity?
A: 1 piece for sample order, 2 sets for bulk order.
