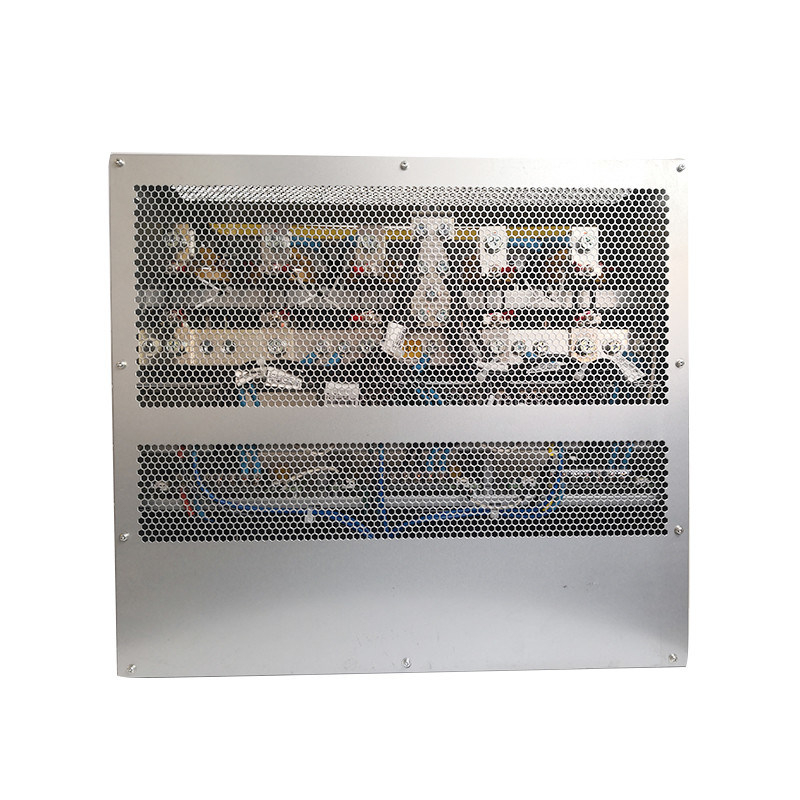

ZXDU68 B301 V5.0 560A Embedded Telecom Rectifier System
Dual AC Input Compatibility: Supports 220-240V single-phase and 380-415V three-phase AC, with a wide working range of 85~295V, adapting to complex power grid environments worldwide.
Super High Power Capacity: Max 560A output current and 30kW total power, perfectly for large-scale telecom equipment clusters and high-load scenarios.
High Efficiency & Energy Saving: Rectifier peak efficiency reaches 96.3%, rated load efficiency above 95%. Intelligent sleep function cuts power consumption of idle modules to below 4W.
Multi-Tenant Management: Supports up to 4 tenants sharing one station, with independent power metering and time-shutdown functions for refined power management.
Rich Interfaces & Remote Control: Equipped with RJ45, RS232, RS485 and dry contact ports; built-in USB port for parameter batch setting, log copying and firmware upgrade.
Hot-Swap & Redundant Design: Rectifier and monitoring modules support hot swap; N+1 redundant configuration ensures non-stop operation during module failure or replacement.
Comprehensive Protection: Integrates overvoltage, overcurrent, short-circuit, overtemperature and two-level lightning protection (15kA DC surge), with primary and secondary load power-off functions.
Professional Battery Management: Real-time charge-discharge control, automatic equalizing and floating charge switching to extend battery service life.
Wide Environmental Adaptation: Works stably from -40℃ to +75℃, suitable for indoor machine rooms and outdoor base stations.
4G/5G large-scale macro base stations and communication hub sites
Central telecom machine rooms and backbone transmission equipment rooms
Standard cabinet frame systems and integrated communication cabinets
FTTX large broadband access network power distribution projects
Data center DC power supply and battery backup systems
Multi-tenant shared communication station power projects
| Category | Item | Parameter |
|---|---|---|
| Basic Info | Product Type | Embedded Telecom Rectifier System |
| Main Model | ZXDU68 B301 V5.0 | |
| Matching Unit | CSU500B Monitoring Unit | |
| Matching Rectifier | ZXD3000 V5.0 / V5.5 / V5.6 | |
| Application | Cabinet Frame, Telecom Equipment | |
| AC Input | Rated Voltage | 220-240V (Single) / 380-415V (Three-phase) |
| Working Range | 85 ~ 295V AC | |
| Input Frequency | 45 ~ 66Hz (Nominal 50/60Hz) | |
| Max Input Current | 72A | |
| AC Lightning Protection | Class C | |
| DC Output | Nominal Voltage | -48V DC |
| Adjustable Range | -42V ~ -58V DC | |
| Max Total Current | 560A | |
| Total Output Power | 30kW | |
| Output Type | Single | |
| DC Surge Protection | 15kA (8/20μs) | |
| Voltage Regulation Accuracy | ≤ 0.5% | |
| Performance | Peak Efficiency | 96.3% |
| Rated Load Efficiency | ≥ 95% | |
| Rectifier Standby Power | ≤ 4W | |
| Physical Size | Overall Dimension (W×D×H) | 360 × 430 × 410 mm |
| Package Dimension | 555 × 475 × 485 mm | |
| Net Weight | 31 kg | |
| Structure | Installation | 19-inch Standard Cabinet |
| Maintenance Mode | Front Operation & Maintenance | |
| Environment | Operating Temperature | -40℃ ~ +75℃ |
| Storage Temperature | -40℃ ~ +70℃ | |
| Relative Humidity | 5% ~ 95% (Non-condensing) | |
| MTBF | ≥ 320000 hours |
Ultra-high Load Capacity: 560A large current and 30kW power cater to high-power telecom equipment deployment.
Dual Grid Adaptation: Single/three-phase dual input fits different regional power standards.
Low O&M Cost: High efficiency + intelligent sleep function greatly reduce long-term power consumption.
Multi-tenant Function: Exclusive metering and timed power-off facilitate shared station management.
Easy Maintenance: Hot-swap modules and front maintenance cut downtime and labor costs.
Powerful Monitoring: Multiple communication + USB ports realize unattended remote management.
Durable & Reliable: Wide temperature range and multi-protection design ensure stable operation in harsh conditions.
