Product Overview

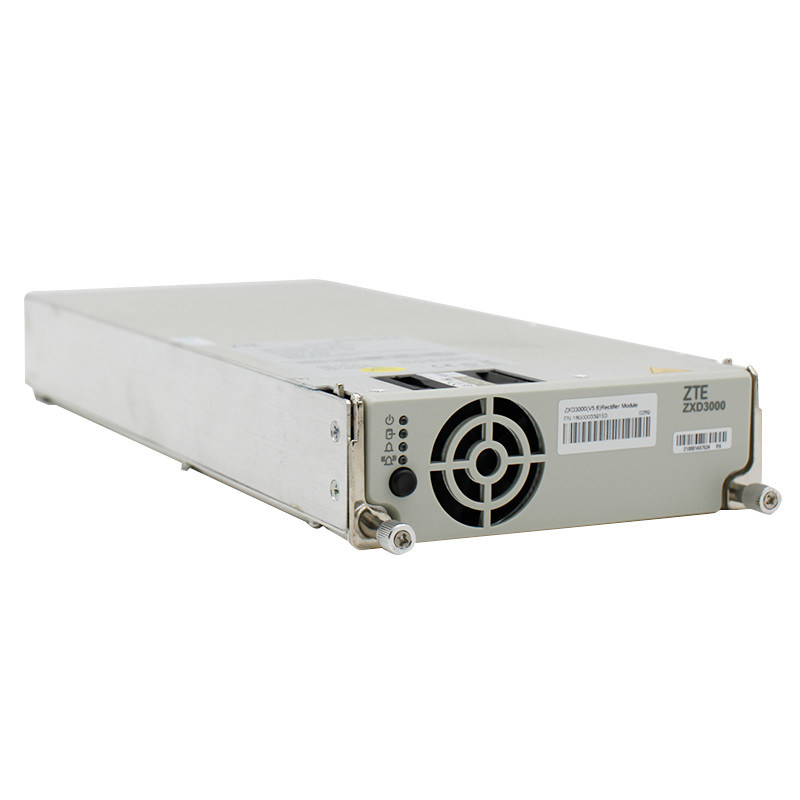

The ZTE ZXD3000(V5.6) is original high-efficiency digital hot-swap rectifier independently developed by ZTE, specially matched for ZTE ZXDU68 series embedded & outdoor integrated telecom power cabinets including ZXDU68T601、ZXDU68W201、ZXDU68H002 etc. Rated 3000W/50A@default53.5VDC, it converts wide-range 85~295VAC single alternating current into adjustable 42~59.5VDC standard telecom DC voltage. Adopts advanced high-frequency switching + full active PFC topology, peak conversion efficiency reaches 96%+, full-load PF up to 0.998, ultra-low THD≤5% to lower long-term station electricity cost. Standard drawer hot-plug design enables online module replacement without cabinet shutdown; built-in CAN bus realizes real-time data interaction with CSU monitoring unit for remote parameter setting and fault alert, widely used in indoor machine room, pole-mounted FTTx OLT and outdoor 4G/5G micro base station power configuration & old cabinet spare replacement.
Key Features
Ultra-wide AC input:85~295VAC(50/60Hz, nominal200~240VAC), strong adaptability for unstable rural grid and diesel generator power supply
Adjustable DC output:42~59.5VDC(default53.5VDC), max50A constant power, automatic derating below 176VAC input
Full-range active PFC, full-load PF≥0.998, peak efficiency≥96%, intelligent dormant design for redundant modules, sleep power＜5W to save idle loss
Full front pull-out hot-swap plug-and-play, rapid maintenance without cutting off the whole system power
Intelligent temperature-controlled variable speed fan, auto rotate speed adjustment based internal temp to reduce noise and extend service life
Comprehensive multi-protection:AC OVP/UVP, DC OVP/OCP/SCP/OTP plus input lightning surge protection, anti-reverse connection function
CAN bus communication interface, one-key fault inquiry function, compatible ZTE original monitoring unit for remote operation management
Wide operating range:-40℃~+75℃ full-power available, stable working under high/low temperature outdoor sealed cabinet
Technical Specifications
| Item | Details |
| Model | ZXD3000(V5.6) |
| Brand | ZTE / XDSD |
| AC Input | 85~295VAC,50/60Hz,Nom200~240VAC,Max18A |
| DC Output | Adjustable42~59.5VDC(Nom53.5V),Max50A/3000W |
| Peak Efficiency | ≥96% |
| Full Load PF | Up to 0.998 |
| THD | ≤5% |
| Dimension | 132×41.5×300mm |
| Net Weight | 2.0kg |
| Cooling | Intelligent Variable Speed Forced Air Cooling |
| Communication | CAN Bus |
| Working Temp | -40℃ ~ +75℃ |
| Certifications | CE |
| MOQ | 1 PCS |
| Unit Price | $129/PCS(1~9pcs) |
| Monthly Supply | 1500PCS |
| Packing | Export Standard Carton |
| Warranty | 12 Months |
Applications
ZXDU68 Series Indoor/Outdoor Cabinet Matching Embedded DC Power Module
Pole-mounted FTTx OLT & DSLAM Outdoor Cabinet Backup Power Supply
Indoor & Outdoor 4G/5G Micro Small Cell Base Station Rectifier Replacement
Old ZTE ZXDU Power Cabinet Capacity Expansion Upgrade Project
Mini Edge Data Room Auxiliary Uninterrupted DC Power Source
Rural Off-Grid Solar Hybrid Telecom Station Matching Power Unit
Why Choose Us
We are a professional manufacturer and one‑stop solution provider for communication DC power systems, boasting mature R&D strength, large‑scale production capacity and flexible service modes. We fully support OEM and OBM cooperation, helping global partners create differentiated power products.
-
Powerful R&D & Customization Ability
We have a professional technical team with years of experience in the power industry. We can provide personalized customized services covering power configuration, external interfaces, functional parameters, appearance design and logo printing, to satisfy diverse demands from telecom operators, system integrators and equipment manufacturers.
-
Comprehensive OEM & OBM Services
We offer full‑cycle cooperation support from product design, prototype testing, certification to mass production. With efficient development process and strict quality management, we help you quickly launch products and build exclusive brand advantages.
-
Large Production Capacity & On-time Delivery
We own standardized production workshops and complete production lines. Relying on a stable supply chain and mature production technology, we maintain sufficient inventory and strong production capacity, ensuring on-time delivery even for bulk orders and long-term cooperative supply.
-
Strict Multi-level Quality Inspection
All products will pass full-load operation test, high-low temperature aging test, safety performance test and simulated on-site operation test before delivery. We adopt high-quality original components and implement strict quality control standards to guarantee long-term stable operation of products in various harsh environments.
-
Full Lifecycle Technical & After-sales Support
We establish a complete service system including pre-sales consultation, in-sales technical guidance and after-sales maintenance. Our technical team responds quickly to provide remote debugging, on-site technical guidance and spare parts supply, protecting the stable operation of your power system all the time.
-
Rich Global Project Experience
Our products have been exported to many countries and regions, widely applied in communication, data center, industrial control, new energy and fields. With rich project experience, we can provide targeted power solutions for different regional standards and application scenarios.
We sincerely look forward to establishing long‑term stable cooperative partnership with you.
