Product Overview

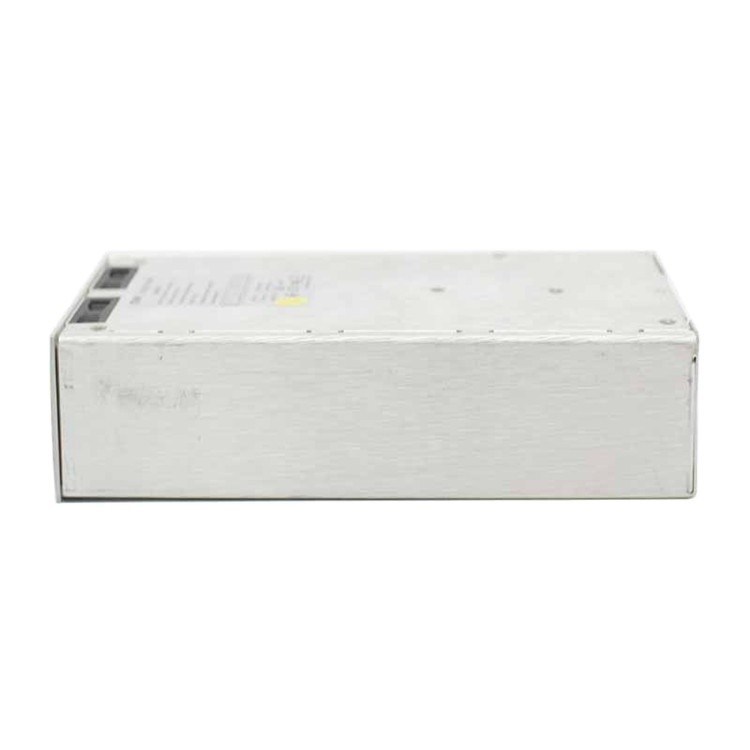

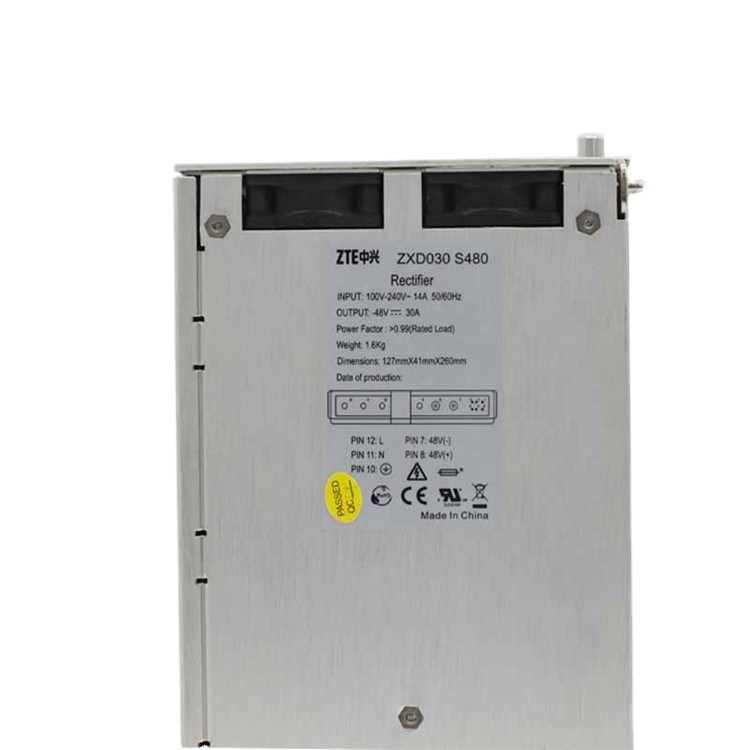

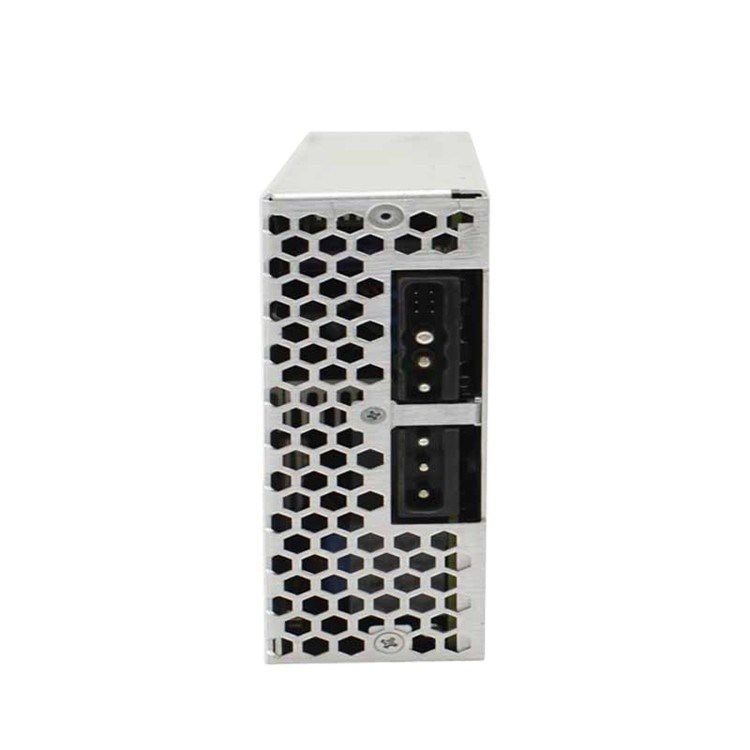

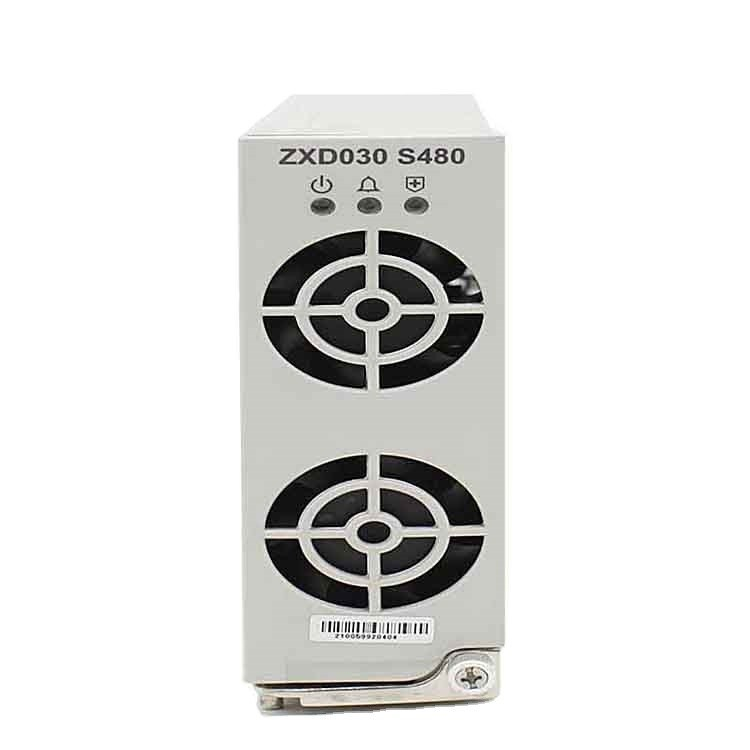

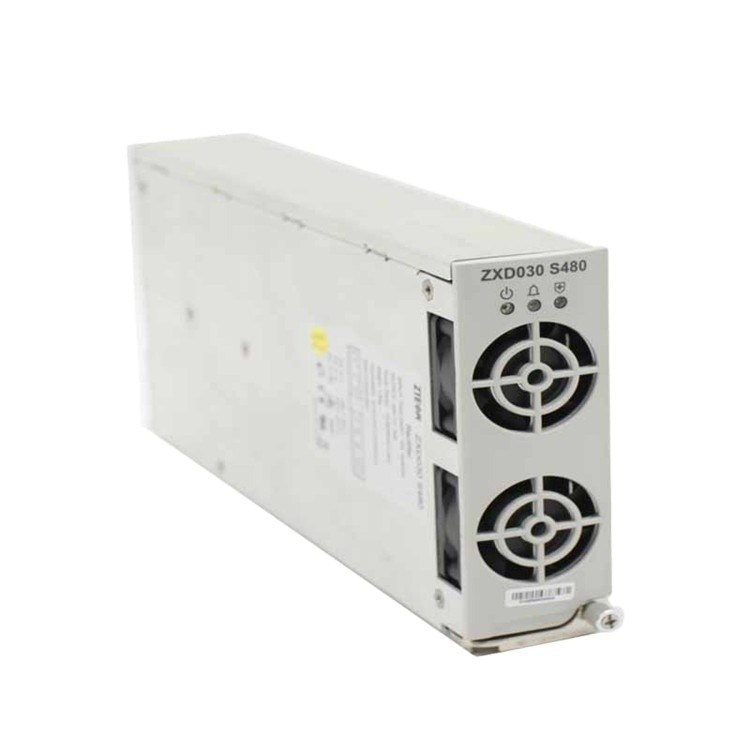

The ZTE ZXD030S480 is original high-frequency switching rectifier module exclusively designed to pair with ZTE ZXDU58 B900 embedded telecom power system, rated 2000W/30A@48VDC output. Adopts advanced LLC soft-switch + active PFC topology, supporting wide 85~264VAC single-phase input, adjustable DC range from 42V to 58V controlled by cabinet master monitor. Standard drawer hot-swap pluggable structure allows on-site replacement without system shutdown, max 3 modules can be installed inside one ZXDU58 B900 shelf to realize N+1 redundant power configuration. Featured intelligent sleep mode and variable speed fan cooling, widely applied in FTTx OLT cabinet, indoor 4G/5G small cell, DSLAM access network and mini unmanned communication sites.
Key Features
Ultra-wide AC input:85~264VAC,45~65Hz, adaptable unstable rural grid and diesel generator power supply
Adjustable DC output:42~58VDC(default53.5V), max continuous 30A, output precision ≤±0.5%
Active PFC design, full-load PF≥0.99, THDi＜5%, peak conversion efficiency reach 94.2% to cut idle power loss
Drawer hot-swap construction, front pull handle for quick maintenance without cutting off whole system power
Built-in intelligent CPU control, auto module sleep under light load to lower standby consumption
Multi-layer full protection:AC OVP/UVP, DC OVP/OCP/SCP, over-temperature shutdown + input lightning surge protection
Intelligent thermostatic fan, auto speed adjustment based inner temperature, reduce running noise and extend lifespan
Strictly comply IEC61000, EN55022 Class A EMC standard, low EMI for sensitive telecom equipment environment
Wide operating temperature from -33℃ up to +55℃, stable performance for sealed pole-mounted outdoor cabinet
Technical Specifications
| Item | Details |
| Model | ZXD030S480 |
| Brand | ZTE |
| AC Input | 85~264VAC,45~65Hz Single Phase |
| Nominal DC | 48VDC(Adjustable:42~58VDC) |
| Rated Output | 30A / 2000W |
| PF | ≥0.99 Full Load |
| Peak Efficiency | Up to 94.2% |
| Cooling | Built-in Variable Speed Forced Fan |
| Dimension | 260×125×40mm(H×W×D) |
| Net Weight | 1.6kg |
| Working Temp | -33℃ ~ +55℃ |
| Storage Temp | -40℃ ~ +70℃ |
| Compatible Cabinet | ZTE ZXDU58 B900 |
| MOQ | 1 PCS |
| Unit Price | $199/PCS(1~99pcs) |
| Monthly Supply | 1000PCS |
| Packing | PE Bag+Foam+Export Carton |
| Warranty | 12 Months |
Applications
FTTx OLT & DSLAM Indoor Cabinet Embedded DC Power Source
4G/5G Indoor Micro Small Cell Base Station Backup Power
Pole-mounted Outdoor Unmanned Mini Communication Cabinet
Railway & Security Monitoring Compact DC Power System
Old ZXDU58 B900 Cabinet Capacity Expansion & Component Replacement
Small Edge Data Room Auxiliary Uninterrupted Power Supply
