Product Overview

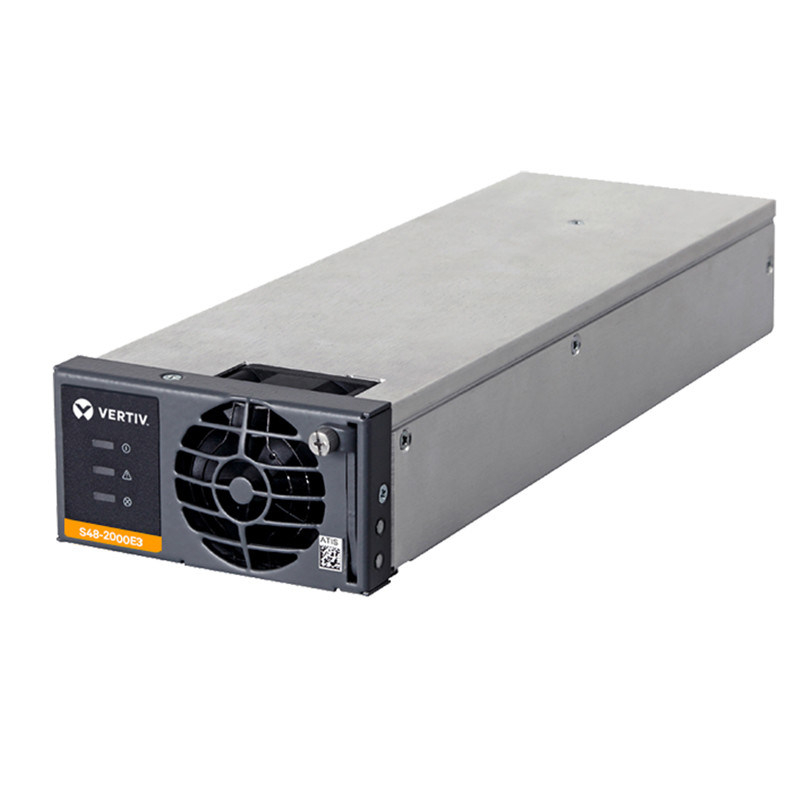

The Vertiv eSure S48-2000e3 (1S482000E3) is professional DSP-controlled MPPT solar DC-DC converter developed by former Emerson Vertiv, specially designed to be hot-plugged into all Vertiv NetSure series embedded power cabinets for hybrid solar telecom sites. It converts wide-range PV DC input (120~420VDC, nominal140~400VDC) into adjustable 42~58VDC standard telecom voltage with max 2000W/42A rated output. Featured ultra-high ≥99% MPPT tracking efficiency above 350W load and peak conversion efficiency up to 96.8%, it can be mixed installed together with R48-2000e3 AC rectifiers in same shelf, realizing priority solar power consumption to cut grid electricity cost for remote unmanned communication stations. Widely used in rural off-grid 4G/5G small cell, pole-mounted FTTx OLT cabinet and old telecom station solar energy-saving renovation projects.
Key Features
Ultra-wide PV input:120~420VDC(Standard 140~400VDC), flexible matching multiple series combinations of solar panels
Adjustable DC output:‑42~‑58VDC(default53.5VDC), constant power design with max 2000W/42A continuous output
MPPT tracking precision＞99% when load＞350W, maximize solar panel energy harvesting efficiency

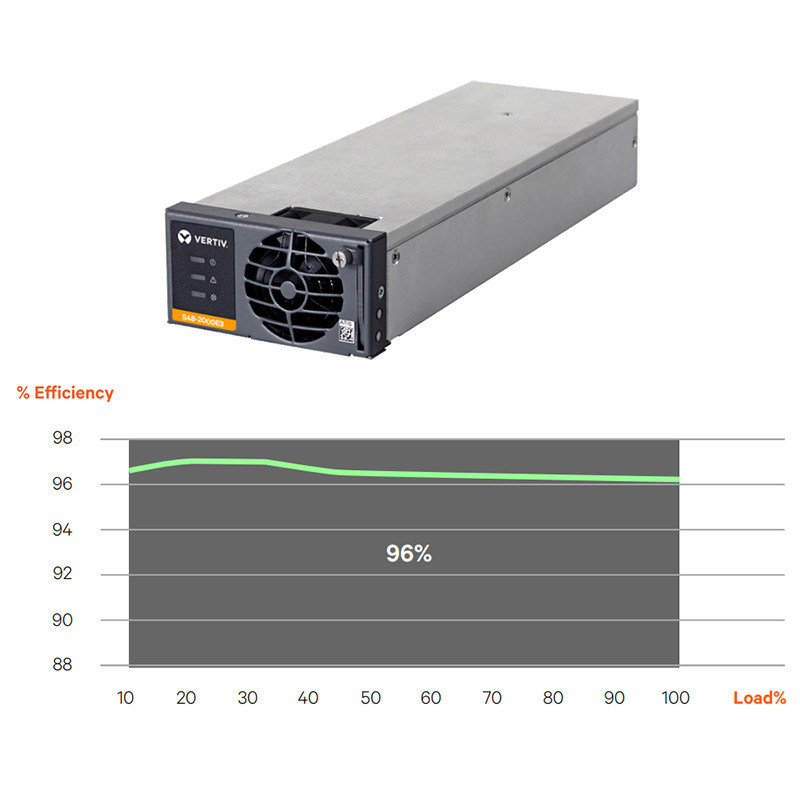

Peak conversion efficiency up to 96.8%, intelligent variable-speed fan reduces idle power consumption and running noise
Fully interchangeable & hot-swap with R48-2000e AC rectifier, no cabinet modification needed for retrofitting existing NetSure power rack
Built-in CAN bus communication, real-time data synchronization with cabinet master monitor for PV generation statistics & remote fault alarm
Full multi-protection: PV overvoltage/undervoltage, output OVP/OCP/SCP/OTP plus PV side lightning surge protection
Wide working range:‑40℃~+65℃ full-power output below 2000m altitude, adapt high-temperature sealed pole cabinet environment
Compliant with GR-1089, CE, EN62477 international safety & EMC standards

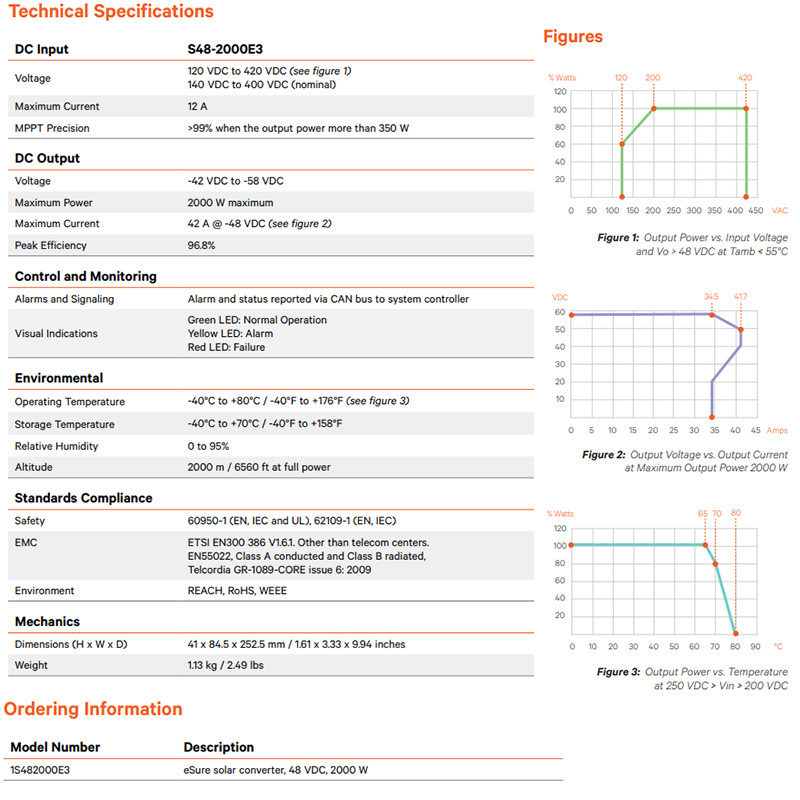

Technical Specifications
| Item | Details |
| Model | S48-2000e3 (1S482000E3,eSure MPPT Series) |
| Brand | Vertiv / Former Emerson |
| PV DC Input | 120~420VDC(Nominal140~400VDC),Max12A |
| Nominal DC Output | 42~58VDC(Default53.5VDC),Max42A/2000W |
| MPPT Efficiency | ≥99%(Output＞350W) |
| Peak Conversion Efficiency | 96.8% |
| Communication | CAN Bus for System Monitoring |
| Dimension | 41×84.5×252.5mm |
| Net Weight | 1.13kg |
| Cooling | Intelligent Thermostatic Forced Fan |
| Full-power Altitude | ≤2000m |
| Working Temp | -40℃ ~ +65℃ |
| Certifications | CE, Telcordia GR-1089, EN62477 |
| MOQ | 1 PCS |
| Unit Price | $685/PCS(1~9pcs) |
| Monthly Supply | 1000PCS |
| Packing | Export Standard Carton |
| Warranty | 12 Months |
Applications
Remote Off-Grid 4G/5G Macro & Micro Base Station Hybrid Solar Power
Pole-mounted FTTx OLT Outdoor Cabinet PV Supplementary Power Supply
Rural Unmanned Communication Site Grid-saving Solar Retrofit Upgrade
Railway & Border Monitoring Equipment Solar-Battery Backup System
Small Industrial Off-Grid DC Load PV Charging Equipment
Old NetSure Cabinet Solar Energy Transformation Project
