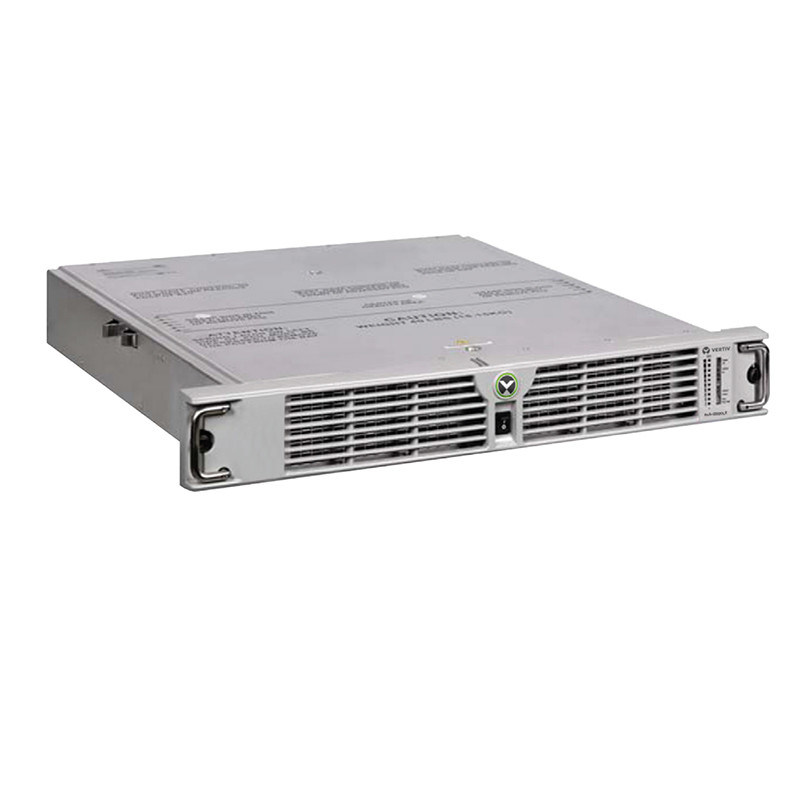

Product Overview

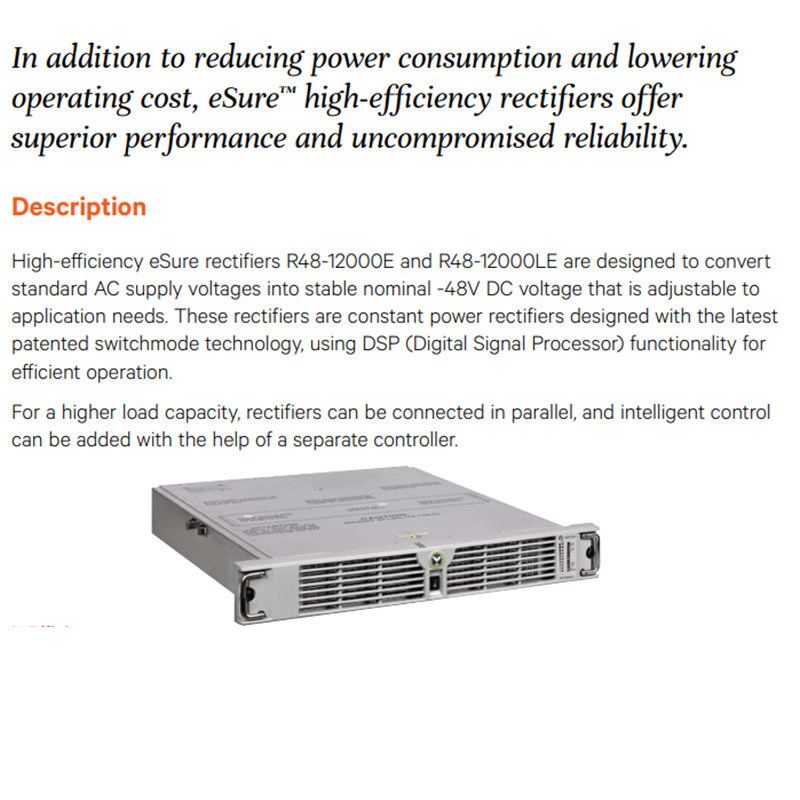

The Vertiv R48-12000E & R48-12000LE belong to flagship eSure high-power series three-phase rectifiers originally developed by former Emerson Vertiv, specially customized for NetSure large-capacity core telecom power cabinets and medium-sized data center DC power systems. Two variants with different AC input specs: R48-12000E for three-phase 340~528V industrial grid; R48-12000LE for single/three-phase 176~264V commercial grid, both rated max 11600W@48VDC adjustable output(48~58VDC). Adopts advanced DSP full digital control + high-frequency soft-switch topology, peak conversion efficiency up to 96.3%, full-load PF≥0.99, excellent energy-saving performance. Features standard hot-swap drawer design, backward compatible with legacy Vertiv rectifier part numbers:486534000/486534001/486532600/486532601/486532602; built-in intelligent parallel control and CAN communication, multi-module automatic load sharing without extra accessories, widely applied in provincial core telecom equipment room, medium data center, large outdoor centralized base station power renovation projects.

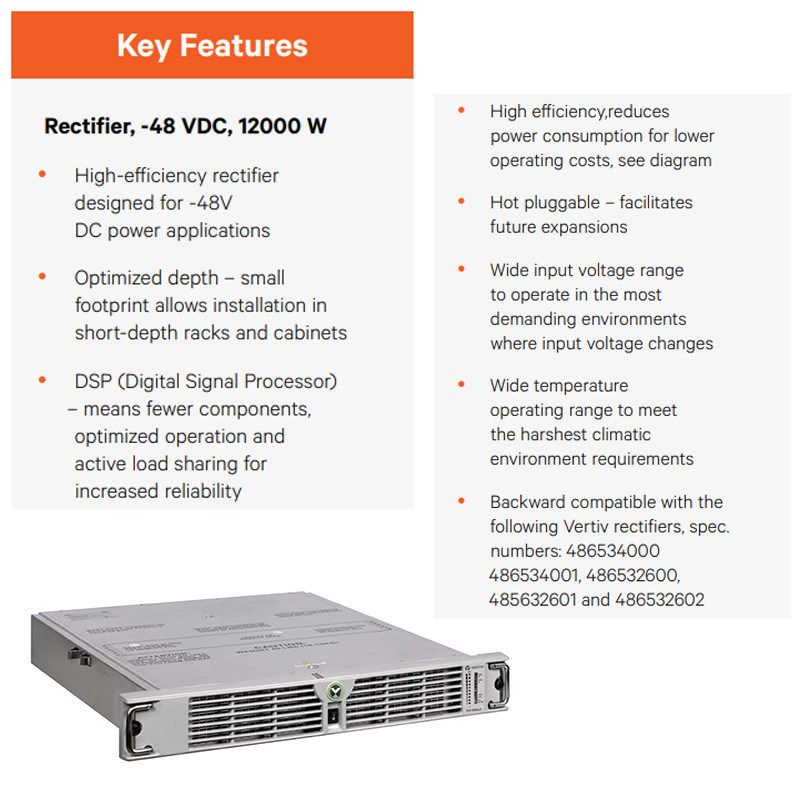

Key Features
Dual model different input design：R48-12000E:340~528VAC three-phase; R48-12000LE:176~264VAC single/three-phase, adapt global industrial and commercial power grid
Adjustable DC output:48~58VDC(default53.5VDC), max11600W constant power, precise voltage regulation ≤±0.5%

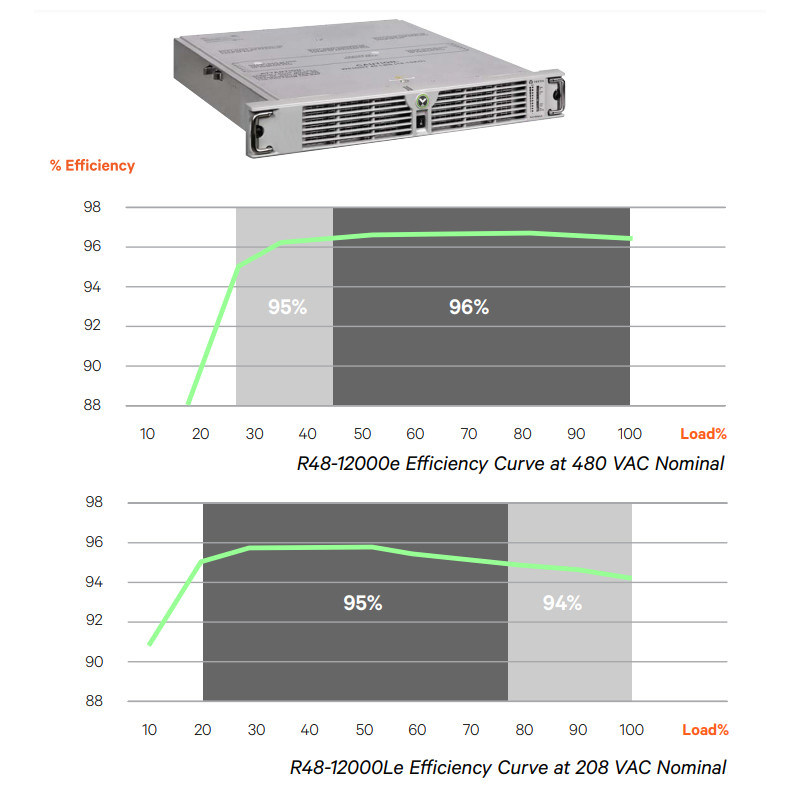

Full active PFC, full-load PF≥0.99, peak efficiency96.3%, wide high-efficiency range(20%~100% load) to cut long-term power expenditure
Full front pull-out hot-swap design, online replacement without entire cabinet power shutdown, convenient on-site maintenance
DSP intelligent digital control, optimized component layout, smaller cabinet depth for short-depth rack installation, high power density design
Intelligent variable-speed forced air cooling, auto fan speed based inner ambient temperature, low noise and extended component lifespan
Complete multi-protection:input OVP/UVP, output OVP/OCP/SCP/OTP + lightning surge protection for harsh industrial environment
Native backward compatibility with multiple legacy Vertiv rectifier specifications, direct replacement without cabinet modification
CAN bus remote communication, support real-time data upload, remote parameter configuration and fault alarm via system monitoring unit
Wide working range:-40℃~+70℃, stable full-power output below 2000m altitude, CE & RoHS compliant certification
Technical Specifications
| Item | Details |
| Model | R48-12000E / R48-12000LE |
| Brand | Vertiv / Former Emerson |
| AC Input | R48-12000E:340~528VAC(Max17.8A); R48-12000LE:176~264VAC(Max34.2A),50/60Hz |
| DC Output | Adjustable48~58VDC,Max11600W |
| Peak Efficiency | 96.3% |
| Full Load PF | ≥0.99 |
| Dimension | 607×87.3×622.6mm |
| Net Weight | 18.14kg |
| Cooling | Intelligent Variable Speed Forced Air Cooling |
| Communication | CAN Bus + DSP Auto Parallel Control |
| Working Temp | -40℃ ~ +70℃(Derate over55℃) |
| Certifications | CE,RoHS |
| MOQ | 1 PCS |
| Unit Price | $569/PCS(1~9pcs) |
| Monthly Supply | 1000PCS |
| Packing | Foam + Export Standard Heavy Carton |
| Warranty | 12 Months |
Applications
Provincial & Municipal Core Telecom Room Main DC Power System Matching Module
Medium & Small Data Center 48V DC Auxiliary Power Cabinet Configuration
Large Outdoor Centralized 5G Base Station High Power Power Supply Upgrade
Old NetSure High Power Cabinet Legacy Rectifier Replacement(Backward Compatible)
Industrial Large-scale Automation Equipment 48V DC Central Power Supply
Off-grid Large Solar Hybrid Telecom Station High-power Charging Equipment
