Product Overview

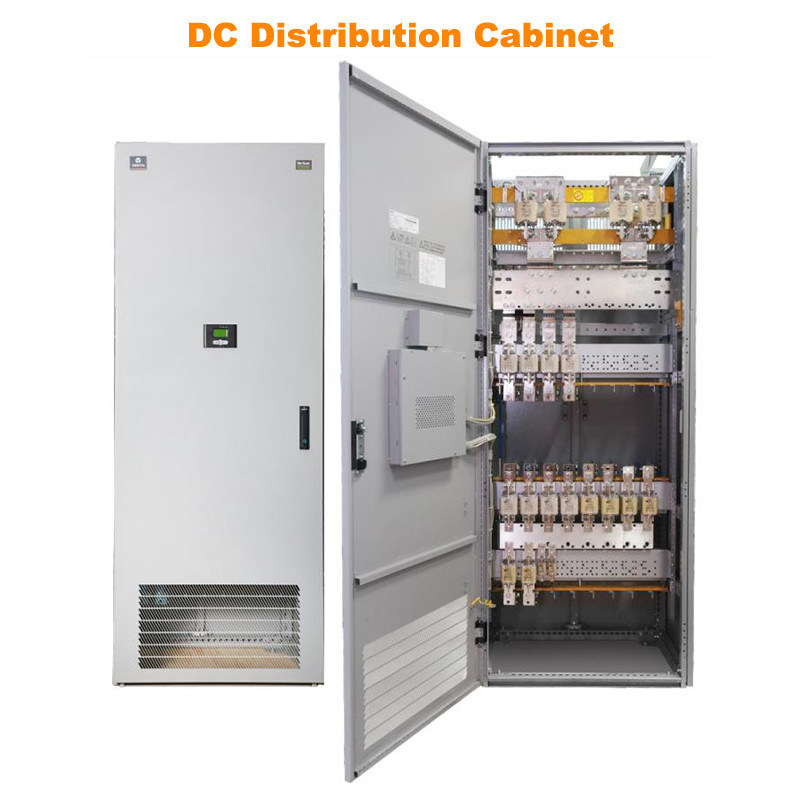

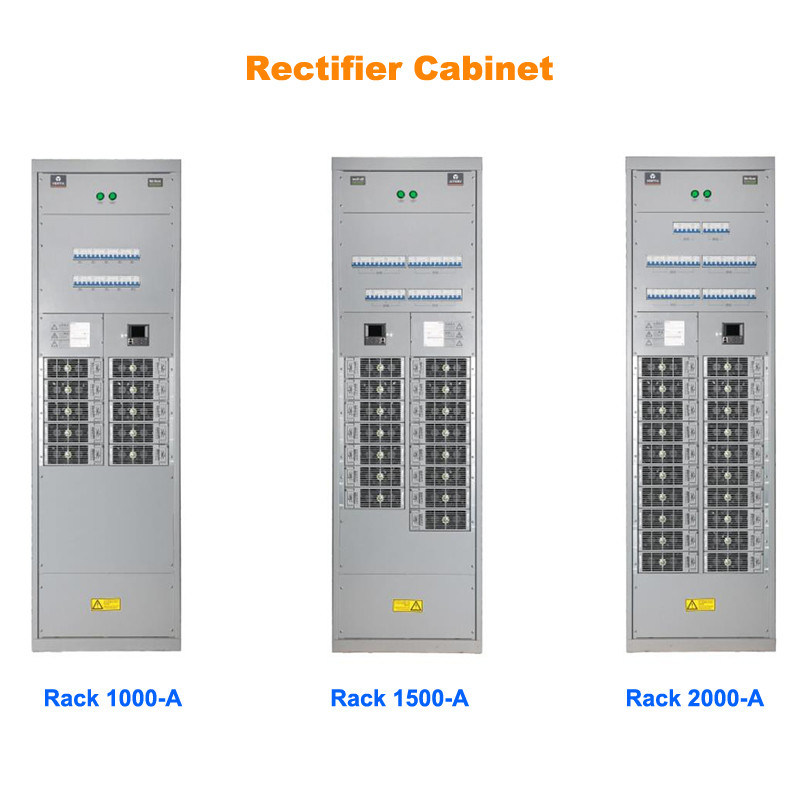

The Vertiv (formerly Emerson) NetSure 801 CAA is a high‑capacity, modular, integrated DC power system designed for core telecom offices, large data centers, IDC rooms, central offices and critical power infrastructure. It combines AC distribution cabinet, rectifier cabinet, DC distribution cabinet and intelligent monitoring in one complete solution, providing highly reliable, high‑efficiency –48V DC power for large‑scale communication equipment, servers and critical DC loads.
Adopting three‑phase high‑power rectifiers, full front maintenance, comprehensive surge protection and advanced digital monitoring, the system supports flexible capacity expansion, high‑efficiency energy saving and 24/7 unattended operation. It is the industry benchmark for mission‑critical core site DC power supplyVertiv.
Key Features
All‑in‑one integrated structure: AC distribution + rectifier + DC distribution + monitoring, fully integrated and customizable
Wide three‑phase AC input: 260–530VAC, 45–65Hz, compatible with global mains and generator power, withstands 600VAC extreme voltageVertiv
High‑power rectifier modules: R48‑5800 / R48‑5800e, 5800W per module, peak efficiency up to 96%, ultra‑low power consumptionVertiv
Stable adjustable DC output: –42V ~ –58VDC, high current capacity for large core sites
Intelligent monitoring: M821D / M831D controller with LCD, Ethernet, SNMP, remote monitoring & fault alarmVertiv
Full protection system: LVBD, OVP, OCP, SCP, OTP, full‑range surge protection for AC, DC and signal linesVertiv
Hot‑swap & plug‑and‑play: Online module replacement, capacity expansion without system shutdownVertiv
Full front maintenance: Front access for operation, wiring and replacement, ideal for narrow equipment rooms
High reliability: NEBS Level 3, CE, UL certified, MTBF > 570,000 hoursVertiv
Strong environmental adaptability: Wide temperature range, high‑altitude operation, suitable for harsh environments
Technical Specifications
| Item | Details |
|---|
| Brand | Vertiv / Emerson |
| Model | NetSure 801 CAA |
| System Type | Integrated AC/DC/rectifier/monitoring system |
| AC Input | 260–530VAC, 3‑phase, 45–65Hz |
| DC Output | –42 ~ –58VDC adjustable; Nominal –48VDC |
| Rectifier Module | R48‑5800 / R48‑5800e; 5800W/module |
| Rectifier Efficiency | Up to 96% |
| Control Unit | M821D / M831D |
| Communication | Ethernet, RS232, RS485, SNMP, HTTP |
| Protection Functions | LVBD, OVP, OCP, SCP, OTP, Surge Protection |
| Certifications | CE, UL, NEBS Level 3, RoHS |
| Operating Temp | –10°C ~ +65°C (derated above +45°C) |
| Applications | Core telecom, data center, IDC, central office |
| Warranty | 12 Months |
Applications
Core telecom central offices and backbone transmission stations
Large IDC data centers and cloud computing equipment rooms
5G core network equipment and critical communication loads
Financial data centers, server rooms and industrial control hubs
Power utilities, transportation and government critical infrastructure
Large‑scale integrated AC/DC power distribution scenarios
