Product Overview

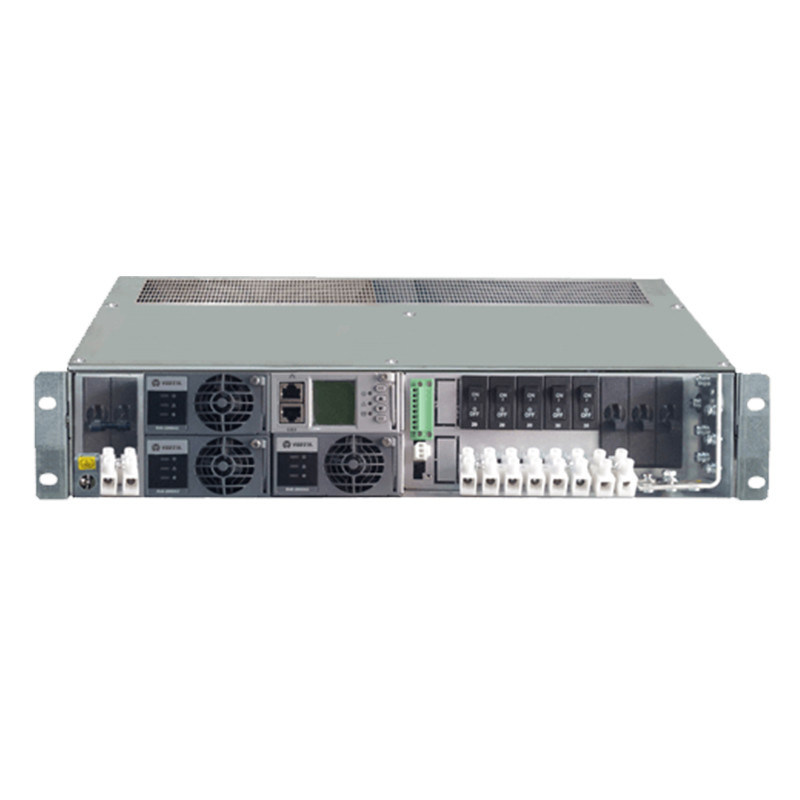

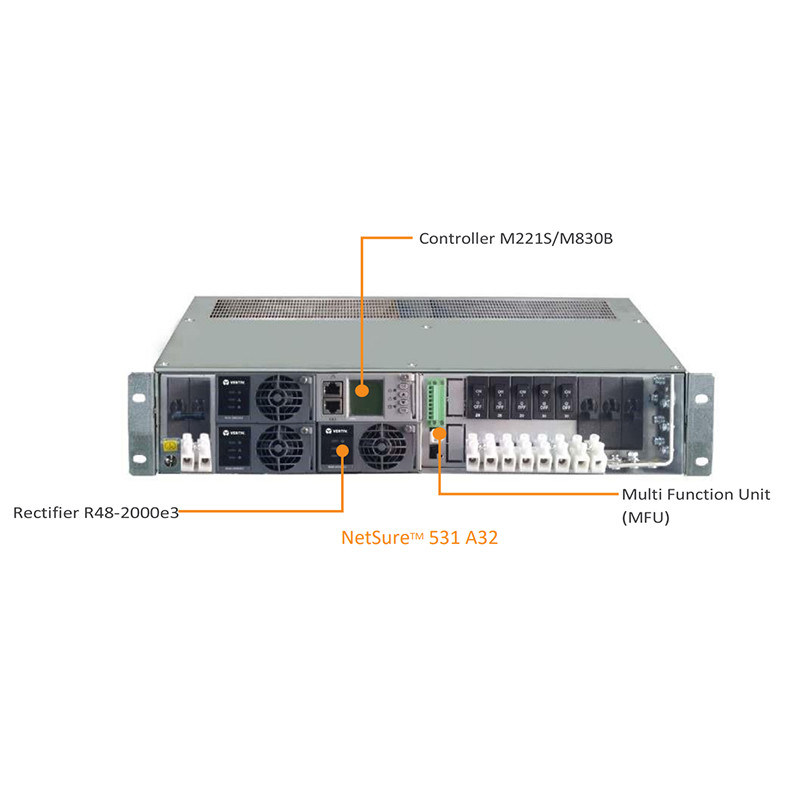

The Vertiv NetSure 531 A32‑S1 (Former Emerson) is compact 2U 19-inch standard embedded telecom DC power subrack, specially designed for FTTx OLT, DSLAM and indoor 4G/5G micro base station. It supports max 3 units of R48‑2000e3/R48‑2000A3 rectifier modules, forming a total system capacity up to 6KW/90A@48VDC, equipped with optional M221S or advanced M830B intelligent monitoring controller. The subrack integrates complete AC input, battery distribution and multi-channel load circuit breakers, built-in AC C-level & DC D-level two-stage lightning protection. Featured mixed high-efficiency & standard rectifier pluggable design plus ECO module sleep function, this all-in-one power shelf realizes energy-saving operation, widely adopted in global access network equipment room and unmanned pole-mounted communication cabinet projects.
Key Features
Standard 2U(88mm) ×483×310mm 19-inch rack dimension, full front wiring layout for easy installation and maintenance
Ultra-wide single-phase AC input:85~300VAC(50/60Hz), strong adaptability for unstable municipal grid and diesel generator power
Adjustable DC output 42~58VDC(default53.5VDC), max 3×2000W rectifier for total 6KW/90A continuous output
High-efficiency R48‑2000e3 rectifier peak efficiency up to 96.2%, PF≥0.99, THDi＜3% to cut long-term power consumption
Mixed configuration available: high-efficiency & normal rectifier mixed insertion + intelligent ECO sleep to reduce idle loss
Full hot-swap rectifier design, replace modules without system power off, lower field maintenance downtime
Complete built-in distribution: 1×40A AC breaker, 2×50A battery breakers, 6-path independent load breakers(1×40A+2×30A+3×20A)

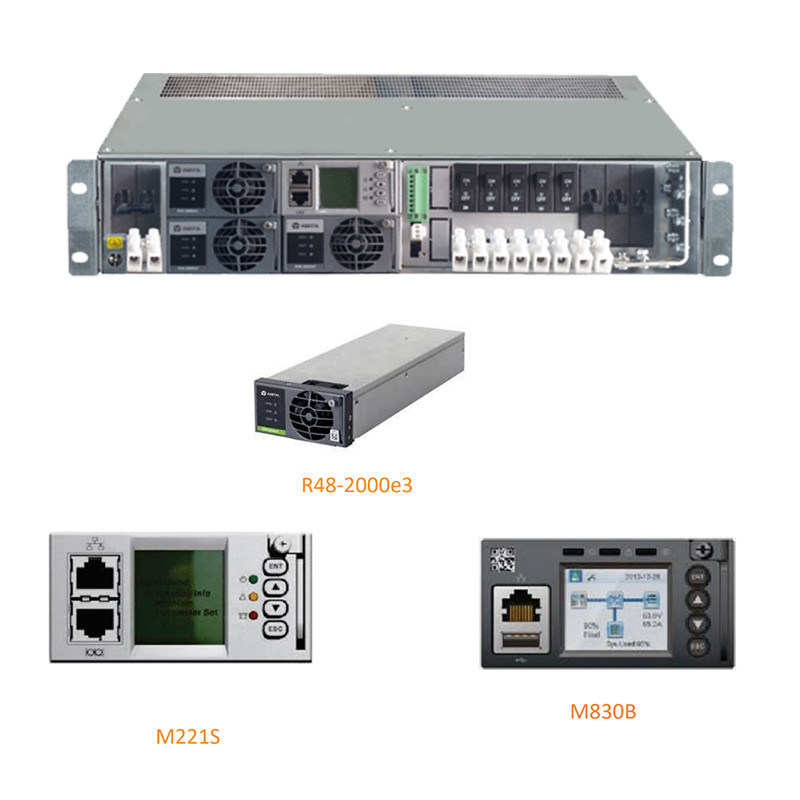

Dual optional controllers: M221S(LCD,RS232+LAN)/M830B(rich I/O,IPv6/SNMP/Modbus multi-protocol remote monitoring)
AC 20kA + DC10kA two-stage surge protection, full OVP/OCP/SCP/OTP multi-layer electrical safety protection
Wide working range:‑40℃~+80℃ for rectifier, stable running inside sealed compact equipment cabinet

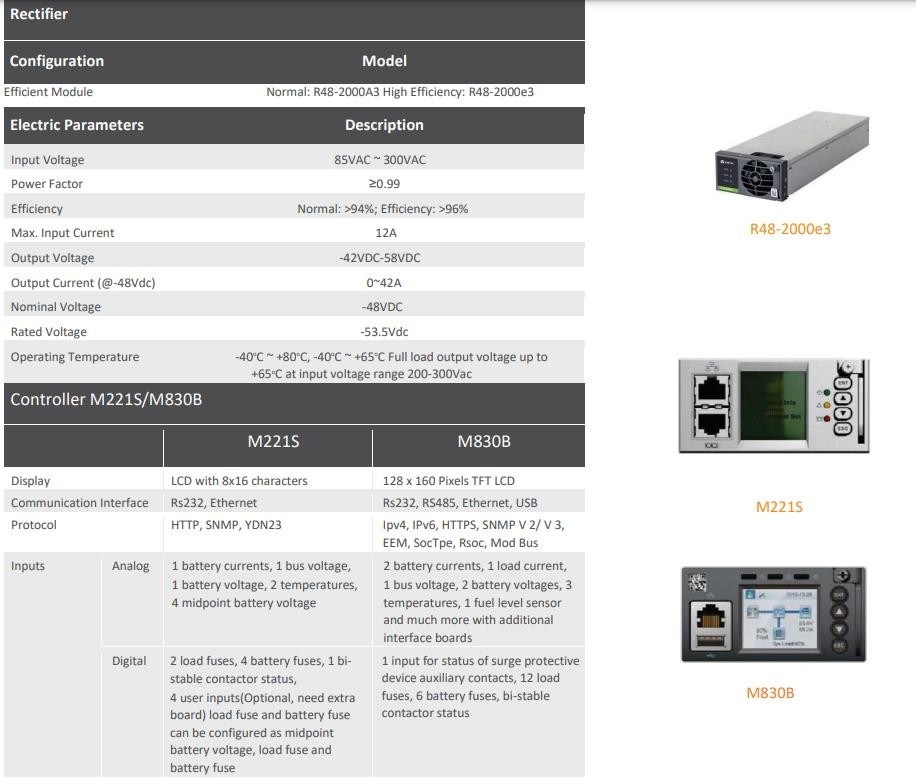

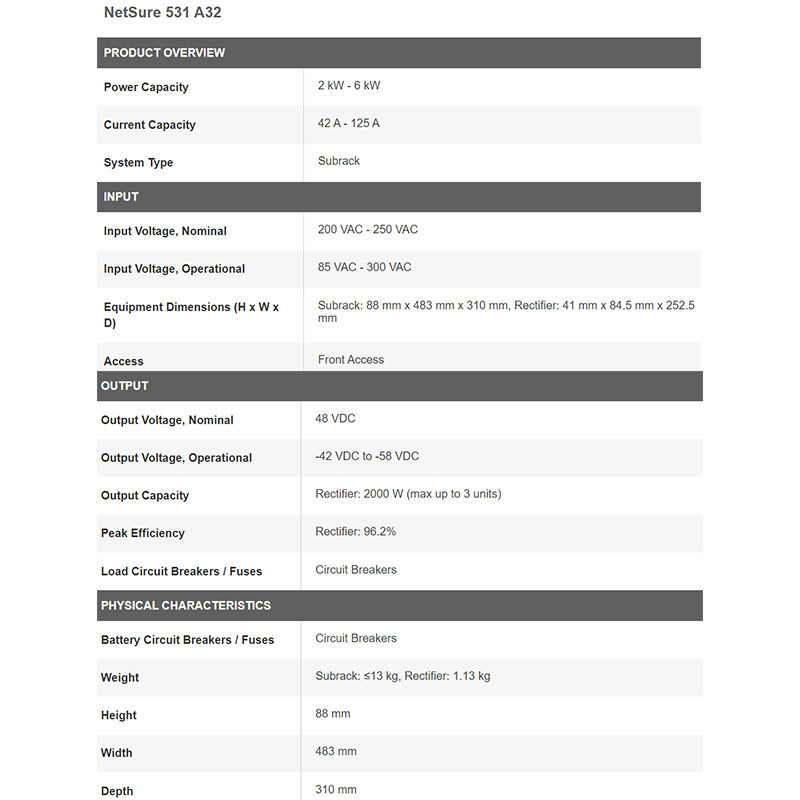

Technical Specifications
| Item | Details |
| Model | NetSure 531 A32‑S1 |
| Brand | Vertiv / Former Emerson |
| Subrack Size | 88(H)×483(W)×310(D)mm,2U 19" |
| Net Weight | 13kg(without rectifiers) |
| AC Input | 85~300VAC,50/60Hz,Nominal220~250VAC |
| DC Output | Adjustable42~58VDC(Nom53.5V),Max90A/6KW |
| Matching Rectifier | R48‑2000e3(High Eff)/R48‑2000A3,Max3pcs |
| Optional Monitor | M221S / M830B |
| Rectifier Peak Efficiency | 96.2% |
| Built-in Distribution | AC:1×40A; Battery:2×50A; Load:1×40A+2×30A+3×20A |
| Lightning Grade | AC:20kA(C),DC:10kA(D) |
| Working Temp | Rectifier:‑40℃~+80℃ |
| MOQ | 1 Set |
| Unit Price | $699/Set(1~9pcs) |
| Monthly Supply | 1000 Sets |
| Packing | Export Carton/Wooden Frame |
| Warranty | 12 Months |
Applications
FTTx OLT & DSLAM Indoor Cabinet Embedded DC Backup Power
Indoor 4G/5G Micro Small Cell Base Station Power Supply
Pole-mounted Outdoor Unmanned Communication Cabinet Power System
Security Monitoring & Compact Industrial Control DC Power Equipment
Old NetSure Cabinet Capacity Expansion & Component Replacement Project
Mini Edge Data Room Auxiliary Uninterrupted Power Source
