Product Overview

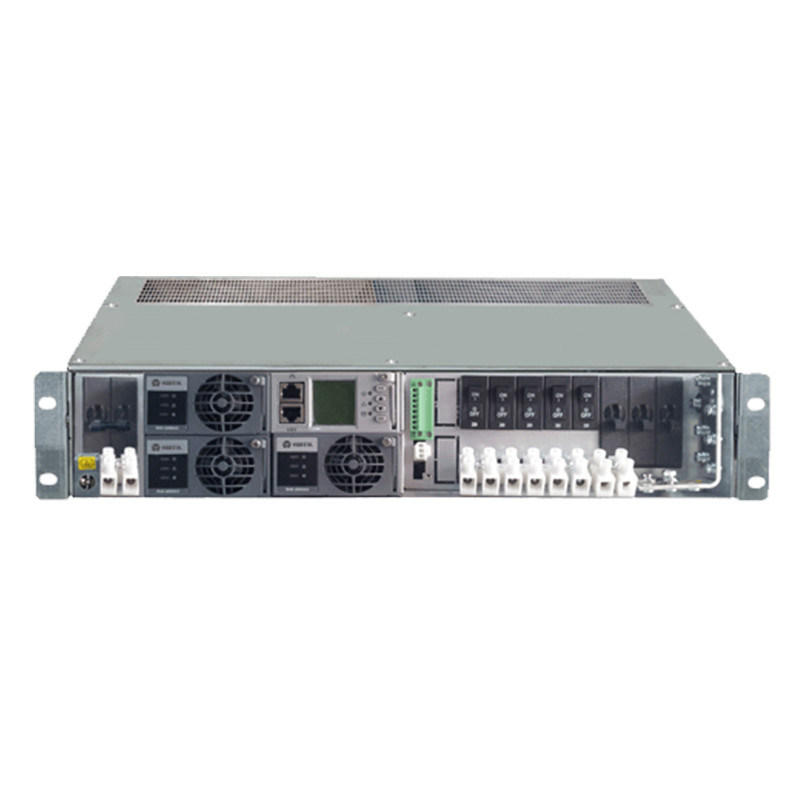

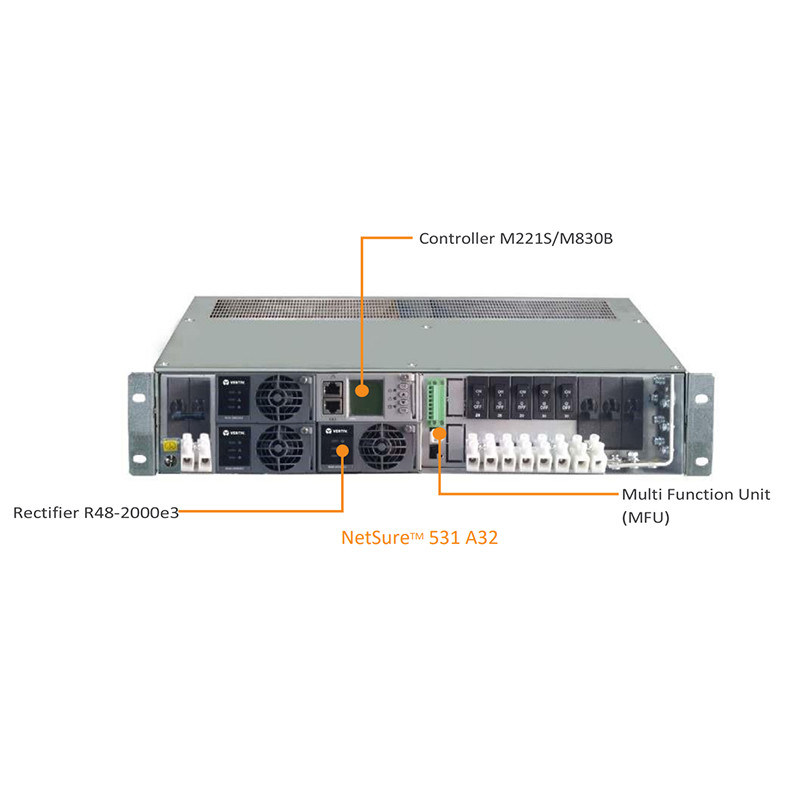

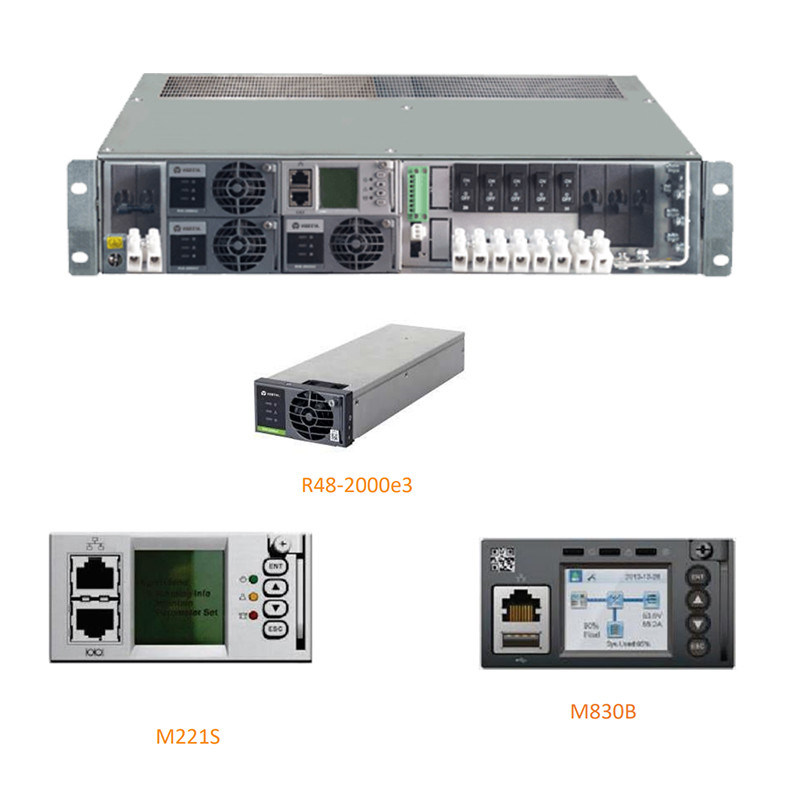

The Vertiv NetSure 531 A32 is a high-performance rack-mounted embedded DC power subrack developed by Vertiv (Former Emerson). It is configured with R48-2000e3 high-efficiency rectifier modules and M221S/M830B monitoring controllers, supporting up to 3 pieces of 2000W rectifiers with a total power of 6KW and maximum output current of 200A. This system features an ultra-wide AC input range of 85~300VAC (nominal 200~250VAC, 50/60Hz), which adapts to unstable municipal grids and diesel generator power sources维谛技术(Vertiv). The rectifier achieves a peak efficiency of 96.2% and the overall system efficiency exceeds 95%. It adopts ECO sleep technology and supports mixed operation of high-efficiency and standard modules for better energy-saving performance. Integrated with multi-level lightning protection, intelligent battery management and complete communication interfaces, this compact subrack saves installation costs and space. It is widely used for new construction, renovation and capacity expansion of LTE, FTTx, macro base stations and various outdoor telecom cabinets.
Key Features
Wide Grid Compatibility: 85~300VAC ultra-wide input (50/60Hz), works steadily under voltage fluctuation and generator power supply, suitable for diverse power environments维谛技术(Vertiv)
High Energy Saving: R48-2000e3 rectifier with 96.2% peak efficiency; system efficiency over 95%. ECO sleep technology further reduces idle power consumption
Flexible Capacity: Max 3 × 2000W rectifier modules, total power up to 6KW and 200A output, flexible to match different load demands
Excellent Temperature Resistance: Operating temperature ranges from -40℃ to +80℃, full-power output within -40℃ ~ +65℃, reliable for high and low temperature outdoor scenarios维谛技术(Vertiv)
Multi-level Lightning Protection: Professional protection design for AC, DC and signal sides, effectively resist lightning surges in complex outdoor environments
Intelligent Battery Management: Real-time monitoring, temperature compensation and over-discharge protection extend the service life of batteries
Rich Communication Ports: Built-in RS232, Ethernet and dry contact interfaces, supports remote monitoring, parameter configuration and fault alarm
Compact Structure: Standard rack-mounted design, small size and light weight (13kg without modules), greatly cuts installation and deployment costs
Walk-in Startup Function: Avoid impact on front-end equipment during startup, improve overall system stability维谛技术(Vertiv)

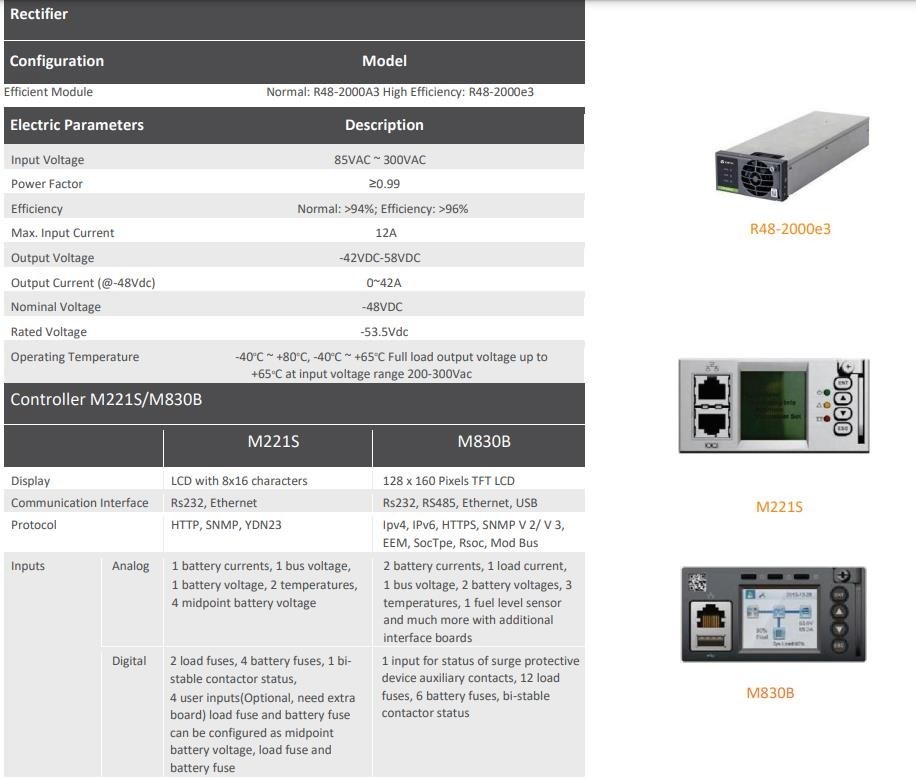

Technical Specifications
| Item | Details |
| Model | NetSure 531 A32 |
| Brand | Vertiv / Former Emerson |
| System Type | Rack-mounted Embedded Subrack |
| Matching Rectifier | R48-2000e3 (Max 3 Units, 2000W per piece) |
| Matching Controller | M221S / M830B |
| AC Input | 85~300VAC, Nominal 200~250VAC, 50/60Hz维谛技术(Vertiv) |
| DC Nominal Output | 48VDC |
| Total Rated Power | 6KW |
| Max Output Current | 200A |
| Rectifier Peak Efficiency | 96.2% |
| System Overall Efficiency | ≥95% |
| Working Temp | -40℃ ~ +80℃ (Full power: -40℃ ~ +65℃)维谛技术(Vertiv) |
| Communication Port | RS232, Ethernet, Dry Contact |
| Dimension (HWD) | 88 × 483 × 310mm |
| Net Weight | 13kg (Without modules and controller) |
| Load Distribution | Equipped with circuit breakers for all branches |
| MOQ | 1 Set |
| Unit Price | $999.00/Set (1~9 Sets) |
| Monthly Supply | 1000 Sets |
| Packing | Carton / Wooden Frame |
| Warranty | 12 Months |
| Port of Shipment | Shenzhen |
Applications
4G/5G Macro Base Station Main DC Power System
LTE Indoor Coverage & FTTx Broadband Access Network
Outdoor Unmanned Telecom Cabinets & Remote Communication Stations
Telecom Equipment Room Integrated Power Distribution
Old Vertiv/Emerson Power Cabinet Renovation & Capacity Expansion
Industrial Communication Monitoring Equipment Power Supply
