Product Overview

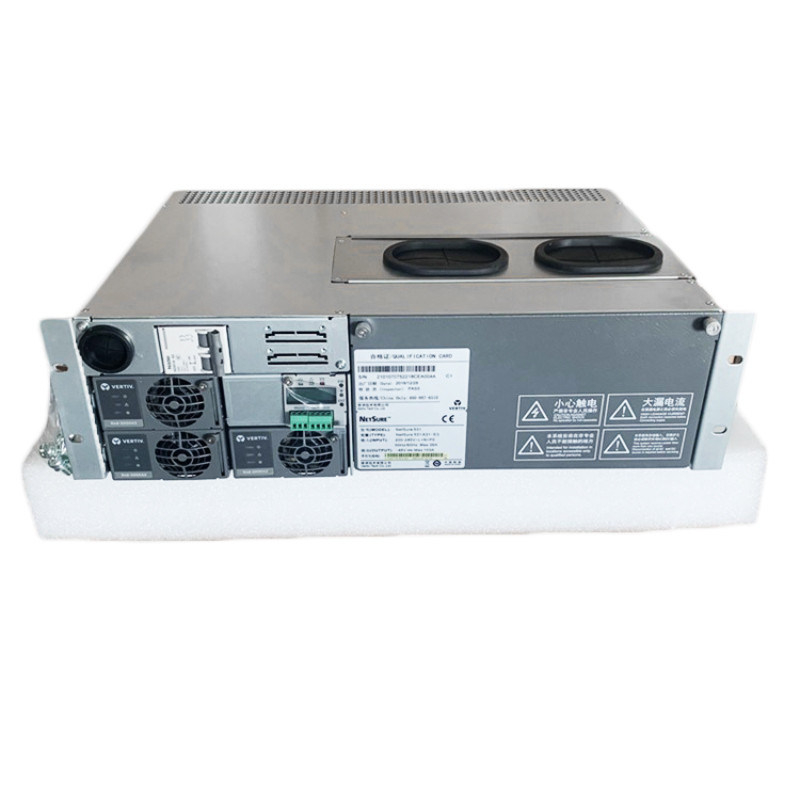

The Vertiv NetSure 531 A31‑S3 (Former Emerson) is 3U standard 19-inch rack embedded DC power system specially developed for FTTx OLT, indoor small 4G/5G base station and compact access equipment room. Equipped with M225S intelligent monitoring controller and max 3pcs R48‑2000e3 high-efficiency rectifier modules, the system delivers rated 48V 90A total DC output, converting wide-range AC into stable adjustable -42~-58VDC with default 53.5VDC nominal voltage. Featuring full front wiring layout, hot-swappable rectifier and intelligent energy-saving sleep function, this compact power cabinet owns excellent grid adaptability and wide ambient tolerance, becoming mainstream compact power solution for global FTTx and small-cell telecom projects.
Key Features
Standard 19-inch 3U cabinet dimension (483×310×132mm), embedded rack installation, top/side dual wiring options
Wide AC input:85~300VAC,50/60Hz, perfectly adapt unstable municipal grid and diesel generator power supply
Adjustable DC output:42~58VDC(default53.5VDC), max continuous 90A, matched with 3×R48‑2000e3 2000W high-efficiency rectifiers
Rectifier peak efficiency up to 96%, intelligent module sleep & mixed high/low efficiency plug design for power saving
Full hot-swap rectifier design, replace modules without system power-off, reduce site maintenance downtime
Built-in M225S monitoring unit: RS232/USB/Ethernet/dry contact multi communication, real-time data & fault storage
Walk-in soft start function to avoid surge impact on front-end transformer and generator equipment
Complete AC/DC dual-stage lightning surge protection + OVP/OCP/SCP/OTP full electrical protection
Wide working range:‑40℃~+65℃ full load, ‑40~+80℃ derated operation for harsh cabinet environment
CE certified, full front maintenance design for convenient field installation and troubleshooting
Technical Specifications
| Item | Details |
| Model | NetSure 531 A31‑S3 |
| Brand | Vertiv / Former Emerson |
| System Height | 3U, 19-inch Standard Rack |
| AC Input | 85~300VAC,50/60Hz Single Phase |
| DC Output | 42~58VDC(Nominal53.5VDC), Max 90A |
| Matching Rectifier | R48‑2000e3 / R48‑2000A3 (2000W/unit, max3pcs) |
| Monitoring Card | M225S |
| Rectifier Efficiency | Up to 96% |
| PF | ≥0.99 |
| Dimension | 483(W)×310(D)×132(H) mm |
| Net Weight | ≤15kg(without rectifiers) |
| Working Temp | -40℃ ~ +65℃ (Full Load) |
| Certifications | CE |
| MOQ | 1 Set |
| Unit Price | $1199/Set (1‑9pcs) |
| Monthly Supply | 1000 Sets |
| Warranty | 12 Months |
Applications
FTTx OLT & ONU Fiber Access Central Equipment Room Power
Indoor Small Cell 4G/5G Base Station Backup Power Supply
Compact Outdoor Integrated Communication Cabinet Built-in Power
Railway & Security Monitoring Small Cabinet DC Power
Industrial Control Compact Equipment Uninterrupted DC Load
Old Access Network Power System Renovation Upgrade
