Product Overview

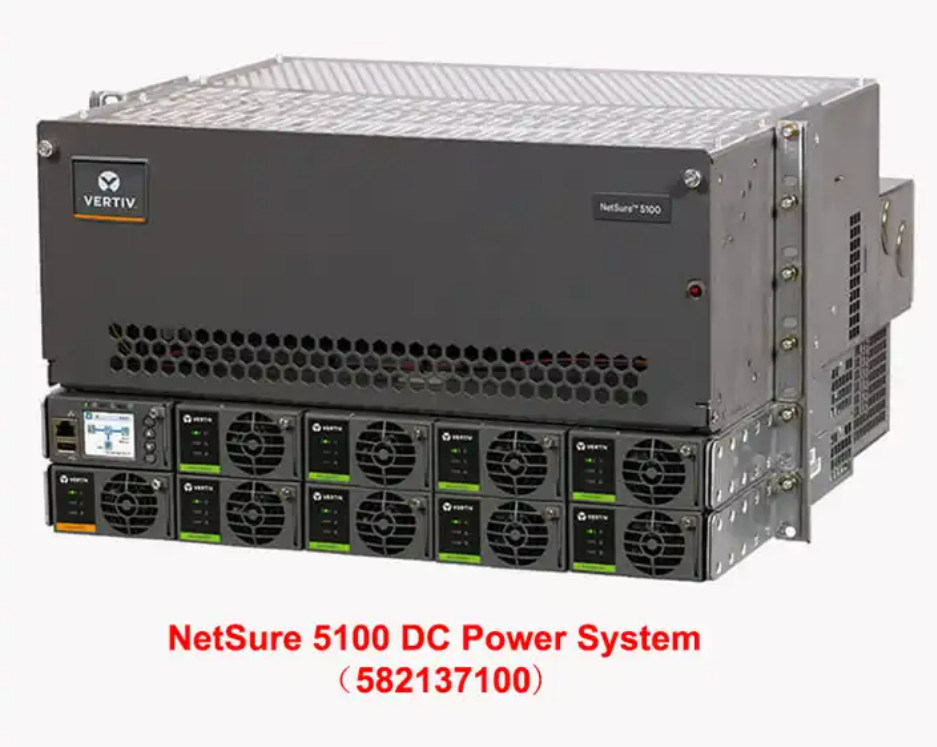

The Vertiv(Former Emerson) NetSure 5100 582137100 is high-performance outdoor-grade 19-inch rack mount DC power system with max rated power up to 18kW at -48VDC, designed for outdoor telecom cabinets, 4G/5G macro base stations, hybrid solar off-grid sites and fixed access network projects. Equipped with high-efficiency R48-2000e3 eSure rectifiers and intelligent NC monitoring unit, this modular power cabinet supports dual voltage (-48VDC/+24VDC) output and multi-stage load shedding, specially optimized for harsh outdoor ambient and unstable mains/generator power environments. Featuring hot-swap modular structure, full remote communication and solar hybrid access function, it is widely adopted for global outdoor communication power renovation and new construction projects.
Key Features
Standard 19-inch rack structure, compact high-density layout customized for outdoor distribution cabinet installation
Selectable single-phase AC input:120/208/240VAC, operational range 85~300VAC for poor grid and generator powerVertiv
Nominal -48VDC adjustable output (42~58VDC), max system capacity 18kW, expandable up to 28.8kW by extra rectifier slotsVertiv
Matched R48-2000e3 high-efficiency rectifier, peak efficiency up to 96.2%, ECO low-load energy saving mode availableVertiv
Wide rectifier working range -40℃~+80℃, no power derating below +65℃, perfect for outdoor high temp sites
Hot-swappable rectifier & controller, replace spare parts without full system power off
Intelligent NCU controller: Ethernet/SNMP V2/V3/ModBus/RS485 multi-protocol remote monitoring + real-time fault alert
Dual-stage LVD load disconnection, intelligent battery temperature compensation & capacity calculation to extend battery lifespanVertiv
Built-in solar/hybrid power access interface, reduce utility grid consumption for off-grid communication stations
NEBS Level3, UL & CE certified, complete surge, OVP/OCP/SCP/OTP full circuit protection
Technical Specifications
| Item | Details |
| Model | NetSure 5100 582137100 |
| Brand | Vertiv / Emerson |
| System Size | 19-inch standard rack |
| AC Nominal Input | 120VAC / 208~240VAC; Oper:85~300VAC 50/60Hz |
| DC Output | Adjustable -42~-58VDC, Nom -48VDC; Optional +24VDC |
| Rated Power | 18kW, Max expandable 28.8kW |
| Matching Rectifier | R48-2000e3 (2000W per piece) |
| Monitoring Unit | NCU Intelligent Controller |
| Rectifier Efficiency | Up to 96.2% |
| Working Temp | -40℃ ~ +80℃ (≤65℃ no derating) |
| Certifications | NEBS Level3, UL, CE, Saber |
| Warranty | 12 Months |
Applications
Outdoor integrated 5G macro base station & pole-mounted communication cabinets
FTTx fiber access outdoor distribution nodes & street cabinet power supply
Off-grid solar hybrid telecom sites & remote mountain communication stations
Fixed-line transmission & microwave repeater equipment power
Industrial outdoor automation & critical DC load projects
Old communication station capacity upgrade & power retrofit
