Product Overview

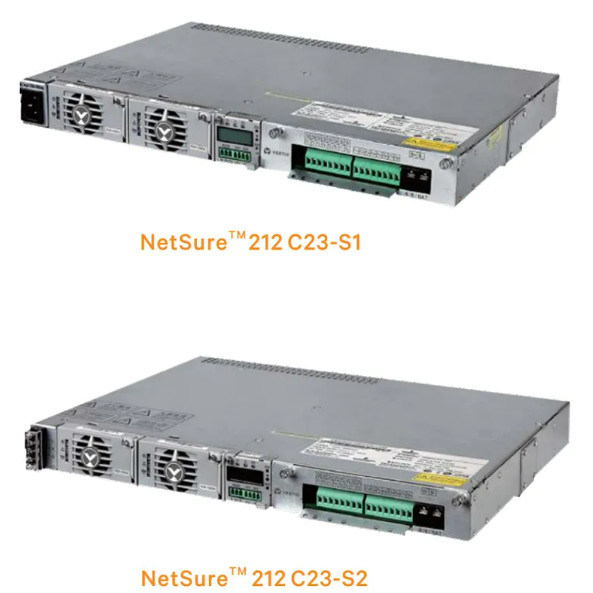

The Vertiv (Former Emerson) NetSure 212 C23‑S1/S2 is compact 1U 19-inch subrack embedded switching DC power system, designed for FTTx OLT equipment, small access cabinets, indoor micro base stations and compact communication equipment rooms. Configurable with max 2pcs R48‑1000A (20A) or R48‑500A rectifier modules to reach total max 40A/2000W output under nominal -48VDC.
With high efficiency rectifier, intelligent monitoring, full front maintenance and integrated distribution breaker design, this lightweight power subrack features small footprint and easy on-site replacement, widely used in global fiber access and compact telecom power renovation projects.
Key Features
Standard 1U 19-inch subrack dimension, compact lightweight structure for narrow cabinet embedded installation
Wide single-phase AC input:90~290VAC,45~65Hz, fits mains and portable generator power supply
Adjustable DC output: -42.3~-57.6VDC, factory default 53.5VDC, max total 40A/2000W
Compatible with R48‑1000A(20A/1000W) / R48‑500A rectifier modules, single rectifier efficiency ≥92%
Hot-swappable rectifier design, replace modules without system power-off, zero site downtime
Full front wiring & front maintenance design, convenient daily inspection and spare replacement
Built-in intelligent monitoring unit, supports RS232 & dry contact remote alarm & parameter setup
Complete battery management: temperature compensation + multi-stage LVD load shedding to extend battery lifespan
Full protection: OVP/OCP/SCP/OTP/anti-surge lightning protection for AC & DC port
High PF≥0.99, low THD, energy-saving and compliant with global telecom grid standard
Wide operating temperature -5℃~+40, storage -40~+70℃, CE & Saber certified
Technical Specifications
| Item | Details |
| Model | NetSure 212 C23‑S1/S2 |
| Brand | Vertiv / Emerson |
| System Size | 1U 19-inch Subrack |
| AC Input | 90~290VAC,45~65Hz Single Phase |
| Nominal DC | -53.5VDC, Adjustable -42.3~-57.6VDC |
| Max Output | 40A / 2000W (2×R48‑1000A) |
| Matching Rectifier | R48‑1000A(1000W/20A), R48‑500A |
| Rectifier Efficiency | ≥92% |
| Power Factor | ≥0.99 |
| Subrack Dimension | 40×482.6×290mm |
| Rectifier Size | 40.8×86.5×241mm |
| Subrack Weight | ≤10kg |
| Single Rectifier Weight | ≤1.2kg |
| Working Temp | -5℃ ~ +40℃ |
| Storage Temp | -40℃ ~ +70℃ |
| Certifications | CE, Saber |
| Warranty | 12 Months |
Applications
FTTx OLT & ONU fiber optical access equipment
4G/5G micro indoor base station & coverage cabinet
Pole-mounted / wall-mounted small telecom street cabinets
Compact enterprise communication & industrial control power loads
Old telecom station power retrofit & capacity upgrade projects
