Product Overview
The Vertiv (formerly Emerson) NetSure 212 C23‑S1/S2 is an ultra‑compact, highly reliable 1U 19‑inch embedded DC power system designed for space‑constrained telecom access scenarios, including FTTx, OLT equipment, small base stations, fiber access nodes and industrial control applications. It integrates AC distribution, rectification, DC distribution, intelligent monitoring and surge protection in an ultra‑thin 1U subrack, delivering stable –48V DC output with a maximum capacity of 40A / 2kW.
Adopting a fully modular, hot‑swappable design and front‑access maintenance, this system ensures high efficiency, easy deployment and low operational cost. It is the preferred compact power solution for modern access network infrastructureVertiv.
Key Features
Ultra‑compact 1U design: Only 44mm height, 19‑inch standard rack mount, shallow depth 290mm, ideal for narrow cabinets
Wide AC input range 80–300VAC, 45–65Hz, strong adaptability to unstable grids and generator powerVertiv

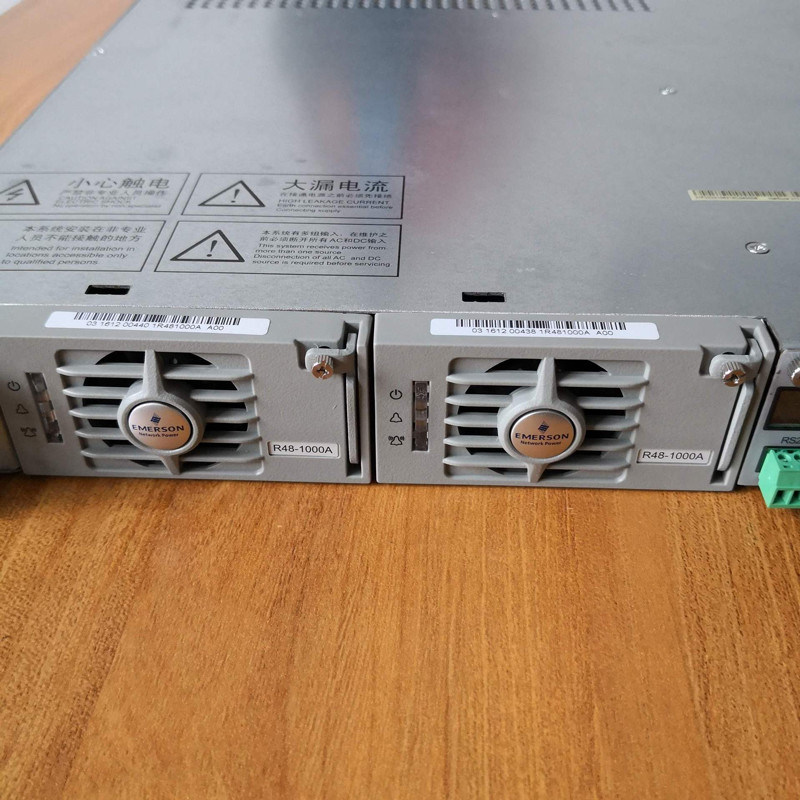

Supports up to 2 rectifier modules (R48‑1000A / R48‑500A), system power up to 2kW, max output current 40AVertiv
Peak rectifier efficiency >92%, low power consumption and heat generation

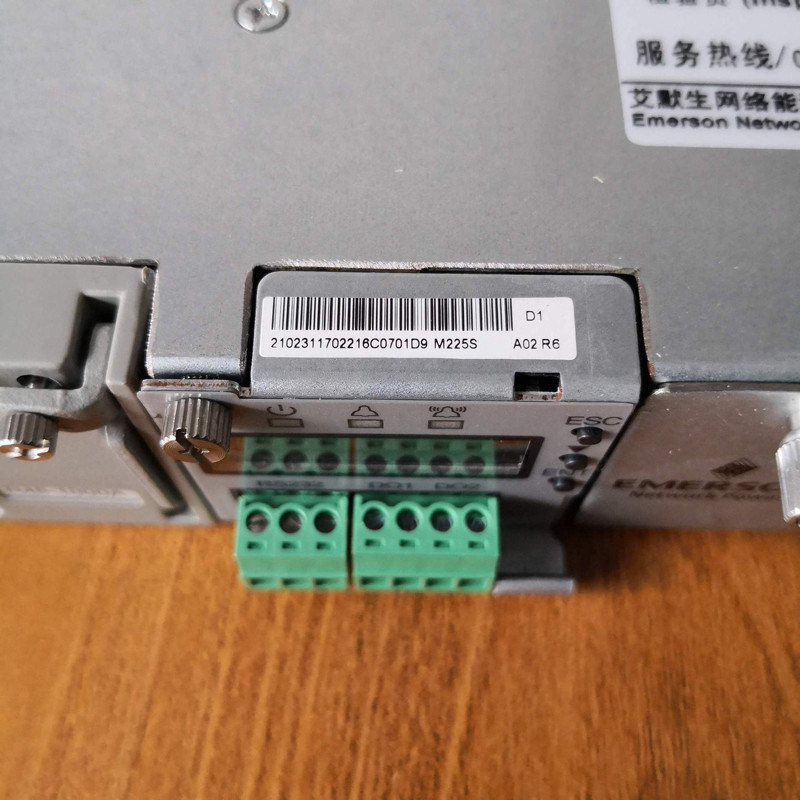

Intelligent M225S controller: LCD display, RS232, dry contact, supports remote monitoring & fault alarmVertiv
Hot‑swappable modules: Online replacement without system shutdown, high availability
Full front operation & maintenance: No rear space required, easy installation and repair
Comprehensive surge protection: AC/DC/Signal multi‑stage lightning protectionVertiv
Wide operating temperature –40°C ~ +65°C, strong environmental adaptability
Complete protection: LVBD, OVP, OCP, SCP, OTP to ensure safe operation
Dual input versions: S1 (IEC C14 socket) / S2 (3P terminal block) for flexible wiring
RoHS compliant & certified: CE, UL, ETSI, global safety compliance
Technical Specifications
| Item | Details |
|---|
| Brand | Vertiv / Emerson |
| Model | NetSure 212 C23‑S1 / C23‑S2 |
| System Type | 19‑inch 1U embedded subrack |
| AC Input | 80–300VAC, 45–65Hz; single‑phase |
| DC Output | Nominal –48VDC; Adjustable –42V ~ –58VDC |
| Max Output Current | 40A |
| System Power | Up to 2kW (2×1000W modules) |
| Matching Rectifier | R48‑1000A / R48‑500A |
| Monitoring Unit | M225S |
| Communication | RS232, dry contact |
| Protection Functions | LVBD, OVP, OCP, SCP, OTP, SPD surge protection |
| Dimensions (W×D×H) | 482.6 × 290 × 44 mm |
| Weight | ≤10 kg (subrack only); ≤1.2 kg (per rectifier) |
| Operating Temp | –40°C ~ +65°C |
| Warranty | 12 Months |
| Certifications | CE, UL, ETSI, RoHS |
| Application | FTTx, OLT, small base station, access node |
Applications
FTTx & fiber optical access network equipment
Telecom OLT, ONU and edge access devices
Small 4G/5G base stations and wireless access sites
Indoor coverage, street cabinets and compact equipment rooms
Industrial control, automation and critical DC power loads
Security monitoring, transmission equipment and intelligent terminals
