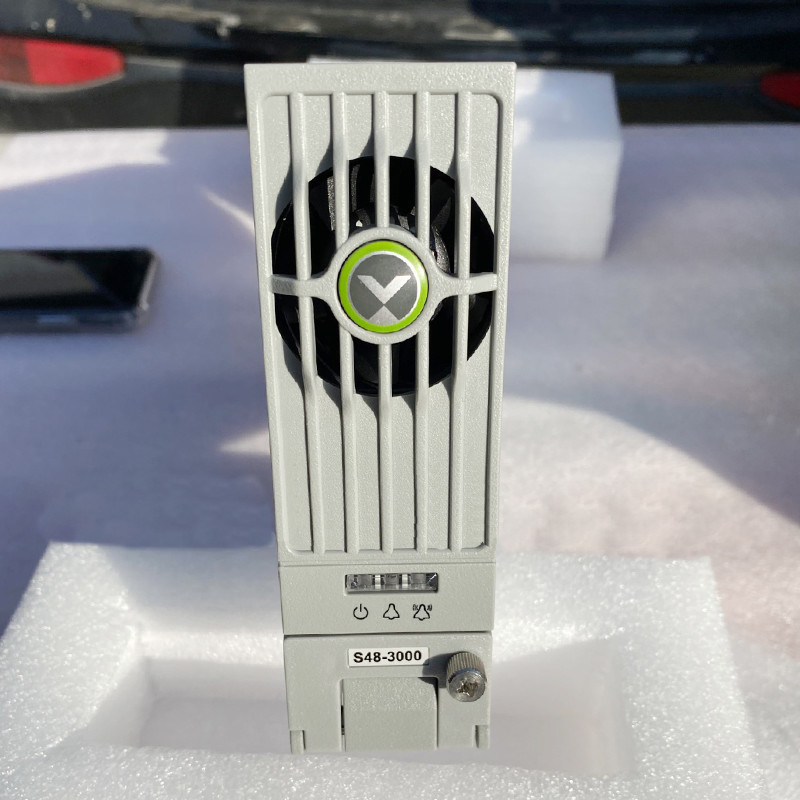

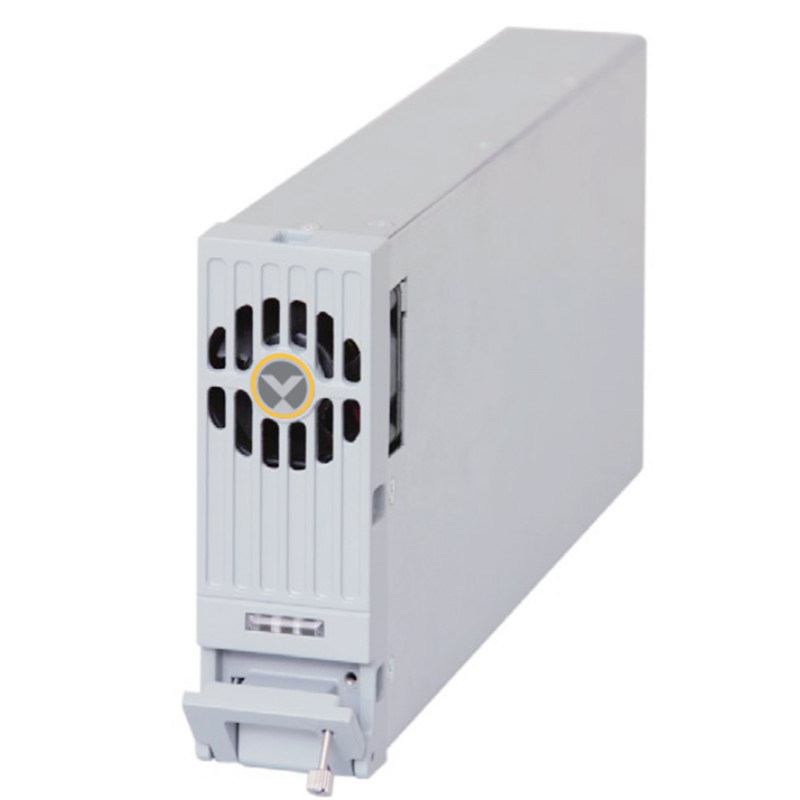

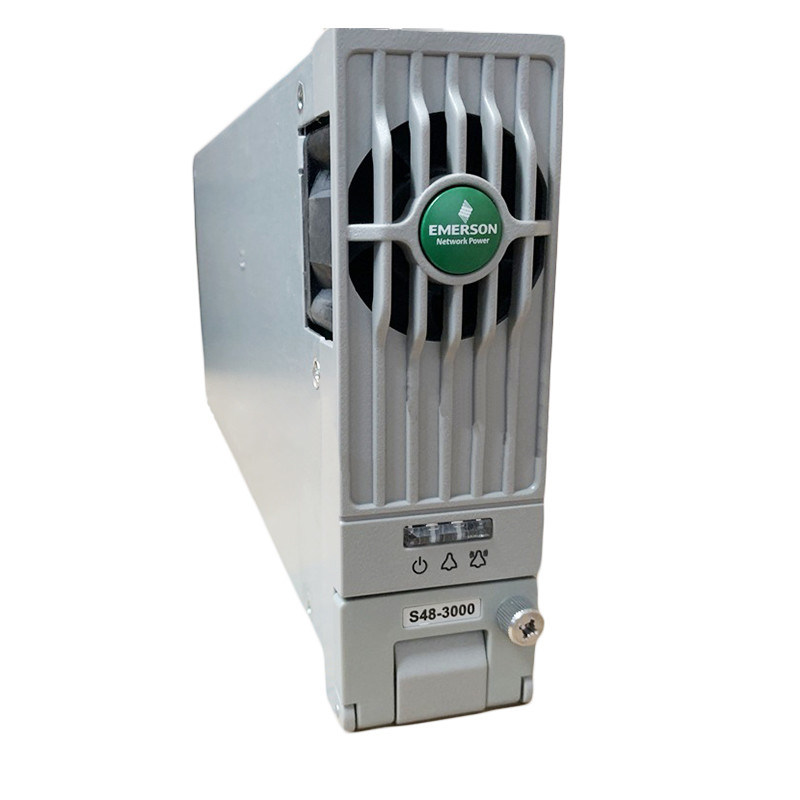

Product Overview
The Vertiv S48-3000 (Model 1S483000) belongs to eSure series professional MPPT solar DC-DC converter developed by former Emerson Vertiv, specially designed for NetSure series hybrid DC power cabinets in off-grid telecom sites. It converts 58~150VDC solar panel voltage into standard adjustable 42~58VDC telecom voltage with max rated 3000W/61A output power. Equipped advanced DSP digital control technology, it features ultra-high MPPT tracking precision over 99.5% and peak conversion efficiency above 98%, realizing preferential solar power supply to cut grid and diesel fuel cost. Standard hot-swap plug-in structure can be mixed installed together with AC rectifiers inside same power shelf without cabinet modification, widely applied in remote 4G/5G base station, pole-mounted FTTx OLT cabinet and rural off-grid solar transformation projects.
Key Features
Wide PV input range:58~150VDC(nominal68VDC), withstand max 165VDC static open-circuit PV voltage, match multiple series solar panel combinations
Adjustable DC output:42~58VDC(default53.5VDC), max61A/3000W constant power output, precise voltage regulation≤±0.6%
Ultra-high MPPT tracking efficiency ≥99.5% under rated load, maximize solar panel power harvest to reduce energy waste
Peak conversion efficiency＞98%, intelligent variable speed fan cooling to lower idle power consumption and operating noise
Full hot-swap drawer design, online replace module without whole cabinet power shutdown for easy maintenance
Complete multi-protection:PV reverse connection prevention, OVP/UVP/OCP/SCP/OTP + PV side lightning surge protection
Built-in CAN bus communication, real-time data sync with cabinet monitor for PV generation statistics and remote fault alert
Stable full-power output from -20℃~+55℃, power derating above 55℃, adapt high-temperature outdoor sealed pole cabinet

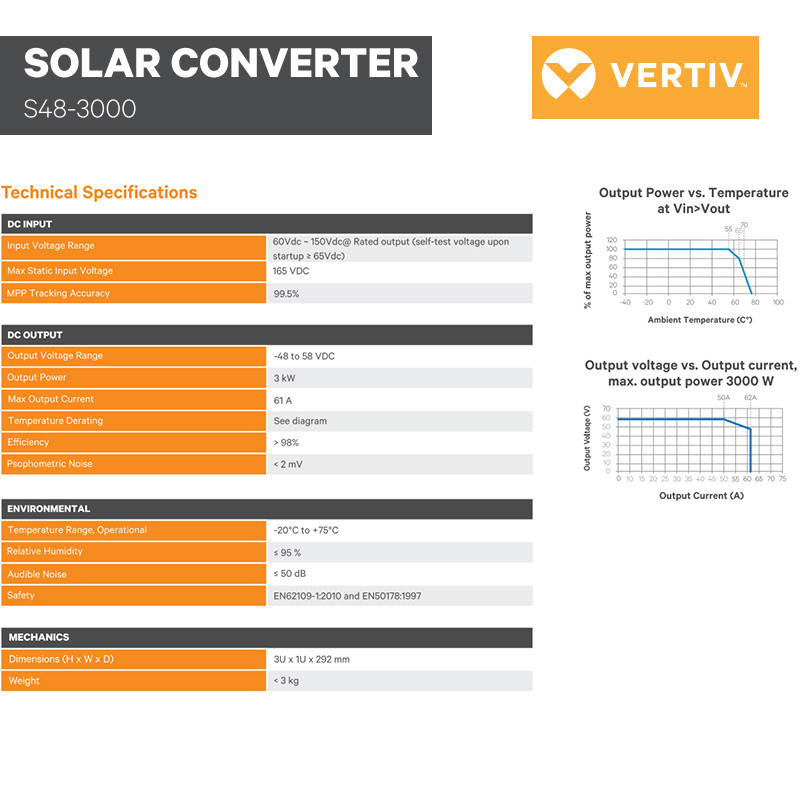

Technical Specifications
| Item | Details |
| Model | S48-3000 / 1S483000 |
| Brand | Vertiv / Former Emerson |
| PV DC Input | 58~150VDC(Nominal68VDC), Max static 165VDC |
| DC Output | Adjustable42~58VDC(Nom53.5V),Max61A/3000W |
| MPPT Efficiency | ≥99.5% |
| Peak Conversion Efficiency | ＞98% |
| Dimension | Standard 1U:45×85×292mm |
| Net Weight | ＜3kg |
| Cooling | Intelligent Thermostatic Forced Air Cooling |
| Full Power Temp | -20℃ ~ +55℃(Derate over55℃) |
| Max Full-power Altitude | ≤2000m |
| Certifications | CE |
| MOQ | 1 PCS |
| Unit Price | $299/PCS(1~9pcs) |
| Monthly Supply | 1000PCS |
| Packing | Export Standard Carton |
| Warranty | 12 Months |
Applications
Remote Off-Grid 4G/5G Macro & Micro Base Hybrid Solar Power System
Pole-mounted FTTx OLT Outdoor Cabinet PV Supplementary Power Supply
Rural Unmanned Communication Station Energy-saving Solar Retrofit Project
Railway & Border Monitoring Off-grid Solar-Battery Backup Equipment
Small Industrial Off-grid DC Load PV Charging Solution
Old NetSure Cabinet Solar Energy Upgrade Transformation
