Product Overview

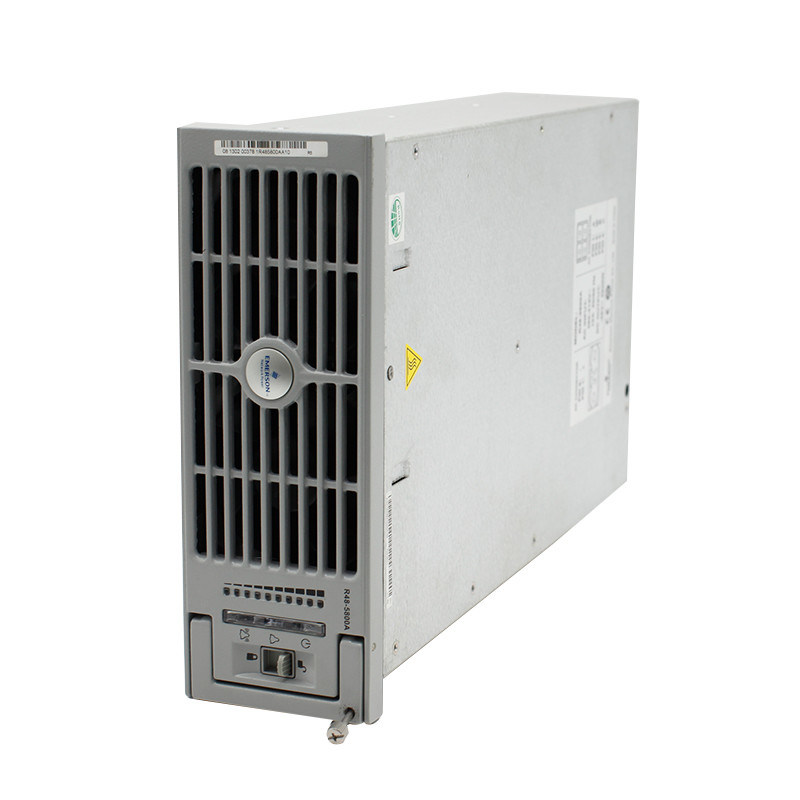

The Vertiv R48-5800A rectifier matched with M810G supervisory monitoring module is original full-set power combination exclusively designed for Vertiv NetSure801 large-capacity three-phase embedded telecom power cabinet. The R48-5800A is high-power three-phase digital rectifier rated 5800W/120A@default53.5VDC, converting 260~530VAC three-phase industrial AC into adjustable 42~58VDC standard telecom DC voltage; the supporting M810G master monitoring module serves as core control unit of NetSure801 system, responsible for system voltage/current collection, rectifier parallel management, battery management, remote communication and fault alarm upload. The combo set adopts full DSP soft-switch + full-range active PFC technology, rectifier peak efficiency reaches 96.2%, full-load PF≥0.99, both rectifier and monitor support front hot-swap maintenance without cabinet shutdown, widely used for new NetSure801 cabinet configuration and old core machine room power system renovation & spare replacement projects.
Key Features
R48-5800A Rectifier Features
Three-phase wide AC input:260~530VAC(45~65Hz,Nom380~480VAC), stable against industrial grid fluctuation and diesel generator unstable voltage
Adjustable DC output:42~58VDC(default53.5V), max120A constant power, automatic derating below 304VAC input voltage
Full active PFC, full-load PF≥0.99, THD＜5%, peak efficiency up to96.2%, greatly reduce long-term running power cost

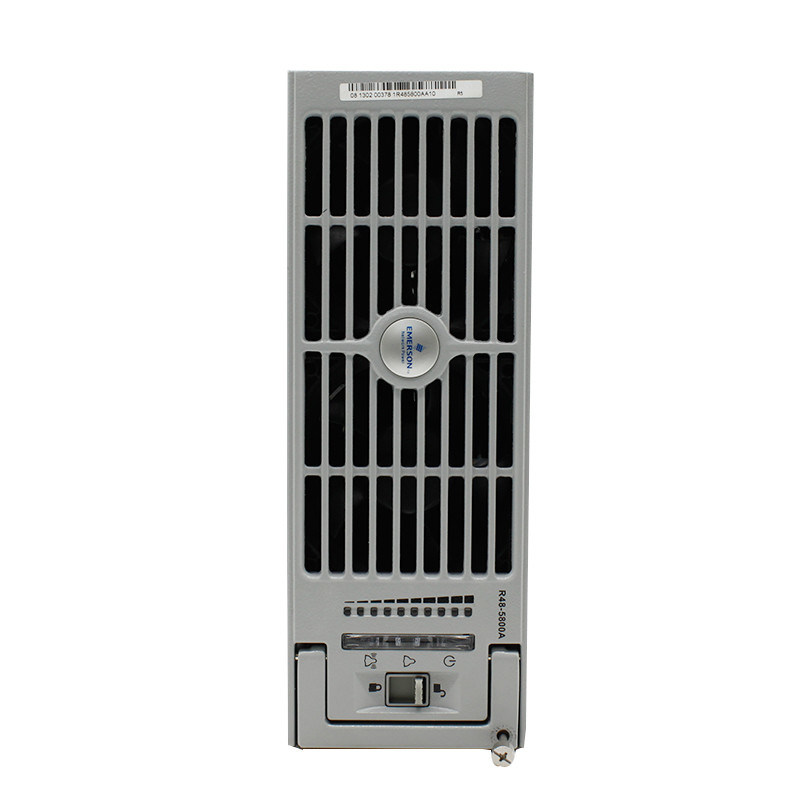

Front pull-out hot-swap design, online replacement without whole cabinet power cut-off
Intelligent variable speed fan, auto speed based inner temperature to reduce noise and extend service life
Complete multi-protection:3-phase input OVP/UVP, DC OCP/OVP/SCP/OTP plus lightning surge protection
CAN bus communication for data linkage with M810G monitor, automatic multi-module current sharing
M810G Supervisory Module Features
Full system monitoring: collect rectifier working status, battery voltage, load current and cabinet ambient data in real time
Multi-protocol remote access: support SNMP/TL1/Ethernet, realize remote parameter setting and fault alert via upper management platformVertiv
Battery intelligent management: automatic float/boost charge switching, over-discharge protection to prolong battery service life
Fault log storage, local LCD display + remote web monitoring, convenient daily operation maintenance
Hot-swap plug structure, quick replacement without system power interruption
Technical Specifications
| Item | Details |
| Combo Model | R48-5800A Rectifier + M810G Supervisory Module |
| Brand | Vertiv / Former Emerson |
| Rectifier AC Input | 3Ph 260~530VAC,45~65Hz,Nom380~480VAC,Max12A |
| Rectifier DC Output | Adjustable42~58VDC(Nom53.5V),Max120A/5800W |
| Rectifier Peak Efficiency | 96.2% |
| Full Load PF | ≥0.99 |
| Rectifier Dimension | 88×244×380mm |
| Rectifier Net Weight | ＜10kg |
| M810G Interface | CAN+RJ45+RS232 |
| Communication Protocol | CAN/SNMP/TL1 |
| Working Temp | -40℃ ~ +65℃(Full Power:-40~+45℃,derate＞45℃) |
| Certifications | CE,NEBS Level3 |
| MOQ | 1 Set |
| Unit Price | $800/Set(1~9Sets) |
| Monthly Supply | 1000Sets |
| Packing | Foam+Export Standard Carton |
| Warranty | 12 Months |
Applications
NetSure801 Core Telecom Cabinet Original Matching Rectifier+Monitor Full Set
Provincial & Municipal Core Telecom Room Main DC Power Configuration Upgrade
Medium & Small Data Center 48V DC Power System Transformation
Large Outdoor Centralized Base Station Power Cabinet Refit Project
Old NetSure80 Series Cabinet Spare Part Full-kit Replacement
Industrial Three-phase Input Large-scale DC Power Supply Renovation
