Product Overview

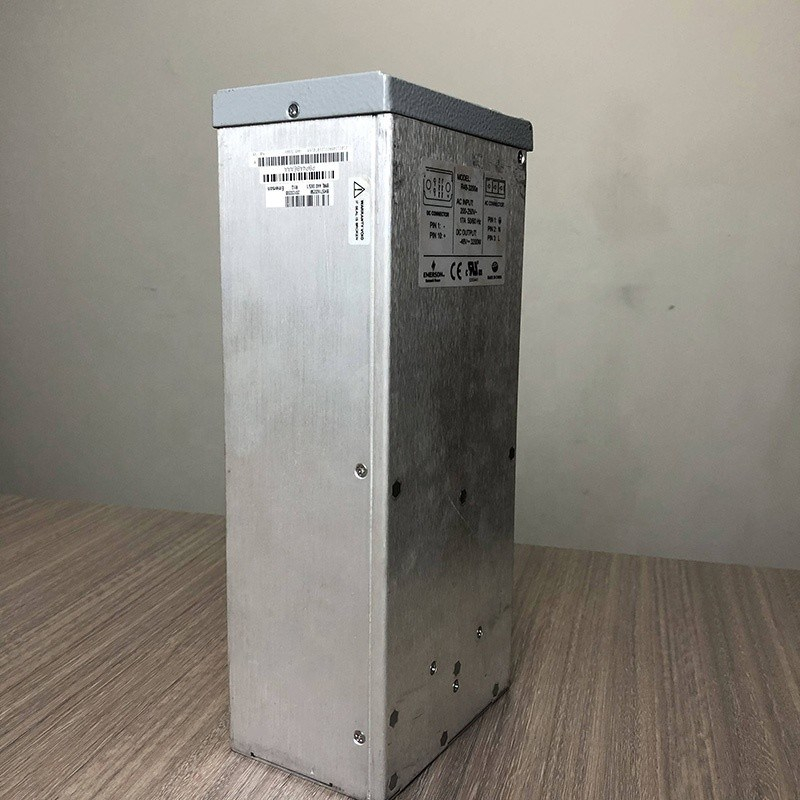

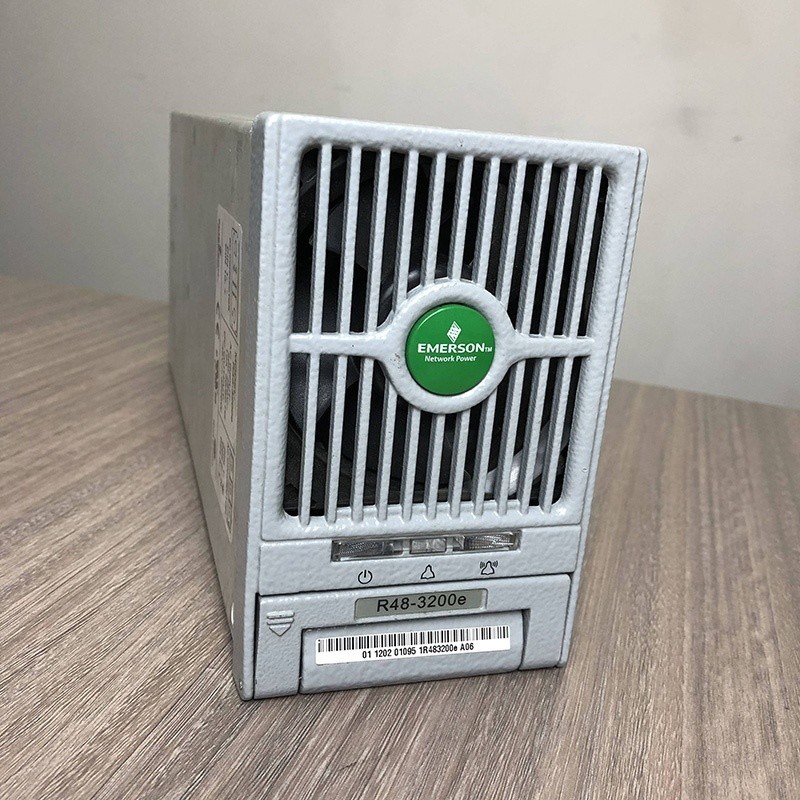

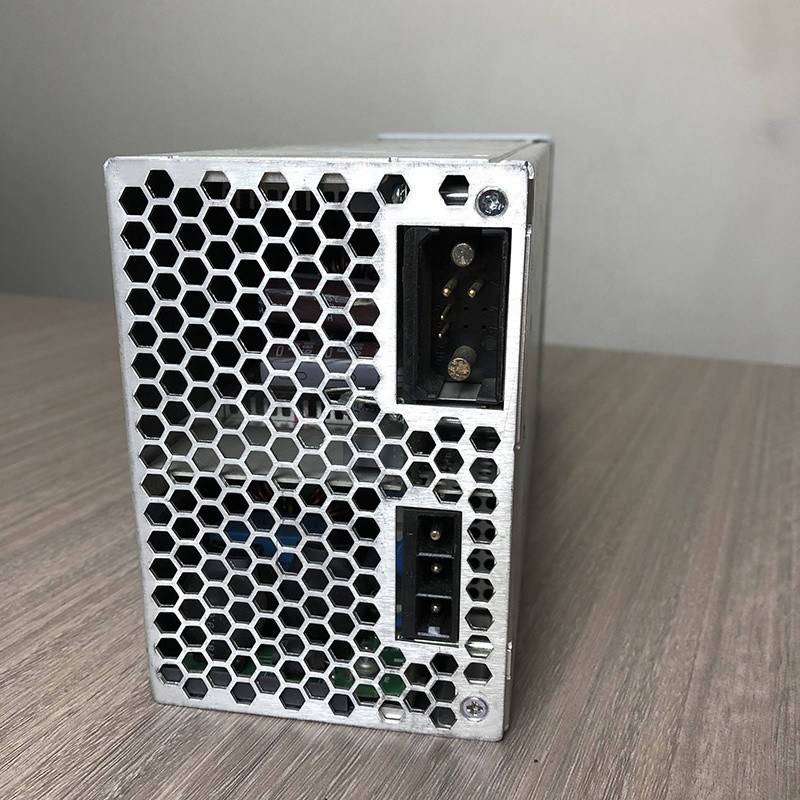

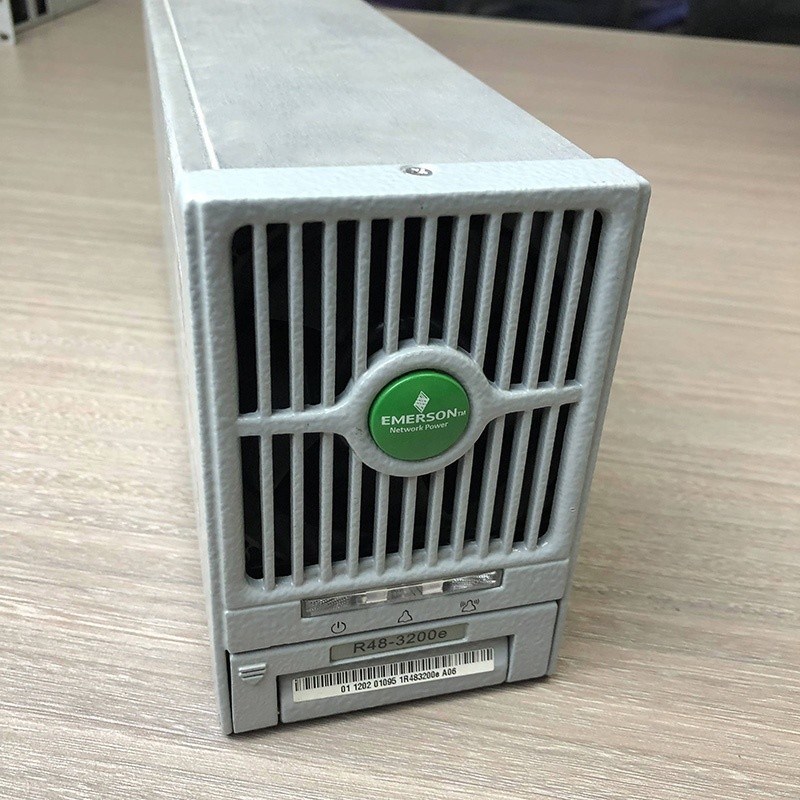

The Vertiv R48-3200E (Former Emerson eSure Series) is high-performance digital-controlled hot-swap rectifier developed for Vertiv NetSure embedded power systems. Rated 3200W max output power and 62.5A@48VDC, it converts wide-range single AC into adjustable 42~58VDC standard telecom voltage. Equipped advanced active PFC and high-frequency switching topology, peak conversion efficiency hits up to 96.8% with full-load PF≥0.99. Standard drawer hot-plug design allows maintenance without cabinet power cut; CAN bus communication enables real-time data linkage with shelf monitor for remote management. Widely used for 4G/5G small cell, FTTx OLT pole cabinet and old telecom power capacity expansion projects globally.
Key Features
Ultra-wide AC input:85~300VAC(45~65Hz, nominal200~250VAC), stable for unstable municipal power and diesel generator supply
Adjustable DC output:42~58VDC(default53.5VDC), max62.5A constant power, precise voltage regulation ≤0.5%
Active PFC design, full-load PF≥0.99, THD＜5%, peak efficiency ≥96.8% to reduce long-term electricity cost
Full hot-swap plug-and-play structure, front pull handle for quick module replacement without system shutdown
Multi-color LED indicator:Green(Normal)/Yellow(Warning)/Red(Fault)/Flash Red(Fan Error) for onsite quick troubleshooting
Intelligent variable-speed forced air cooling, auto fan speed per internal temperature to lower noise and extend lifespan
Comprehensive protection:OVP/UVP/OCP/SCP/OTP plus AC lightning surge protection for harsh outdoor sealed cabinets
CAN bus communication for remote parameter setting, real-time status upload and fault alarm via cabinet controller
Pass UL/CE/FCC/GR-1089 certifications, full power below 2000m altitude, stable -40℃~+75℃ operating environment
Technical Specifications
| Item | Details |
| Model | R48-3200E |
| Brand | Vertiv / Former Emerson |
| AC Input | 85~300VAC,45~65Hz,Nominal200~250VAC,Max17A |
| DC Output | 42~58VDC(Default53.5V),Max62.5A/3200W |
| Peak Efficiency | ≥96.8% |
| Full Load PF | ≥0.99 |
| Cooling | Intelligent Thermostatic Forced Air Cooling |
| Communication | CAN Bus |
| Dimension | 86×126×292mm |
| Net Weight | ≈3kg |
| Working Temp | -40℃ ~ +75℃(Derate over45℃) |
| Max Full-power Altitude | ≤2000m |
| Certifications | CE,UL,FCC,Telcordia GR-1089 |
| MOQ | 1 PCS |
| Unit Price | $227/PCS(1~9pcs) |
| Monthly Supply | 1000PCS |
| Packing | PE+Foam+Export Standard Carton |
| Warranty | 12 Months |
Applications
Indoor & Outdoor 4G/5G Macro/Micro Small Cell DC Backup Power Module
FTTx OLT & DSLAM Fiber Access Cabinet Embedded Rectifier
Pole-mounted Unmanned Outdoor Communication Cabinet Power Supply
Old NetSure Power Cabinet Upgrade & Spare Part Replacement
Off-grid Solar Hybrid Telecom Site PV Matching Rectifier
Mini Edge Data Center Auxiliary DC Power Equipment
