Product Overview

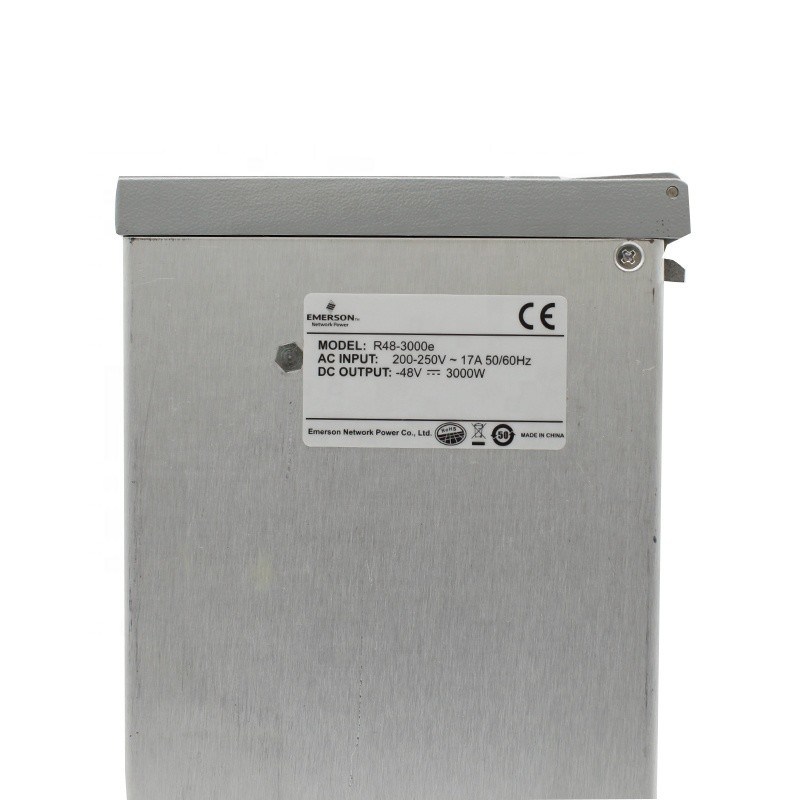

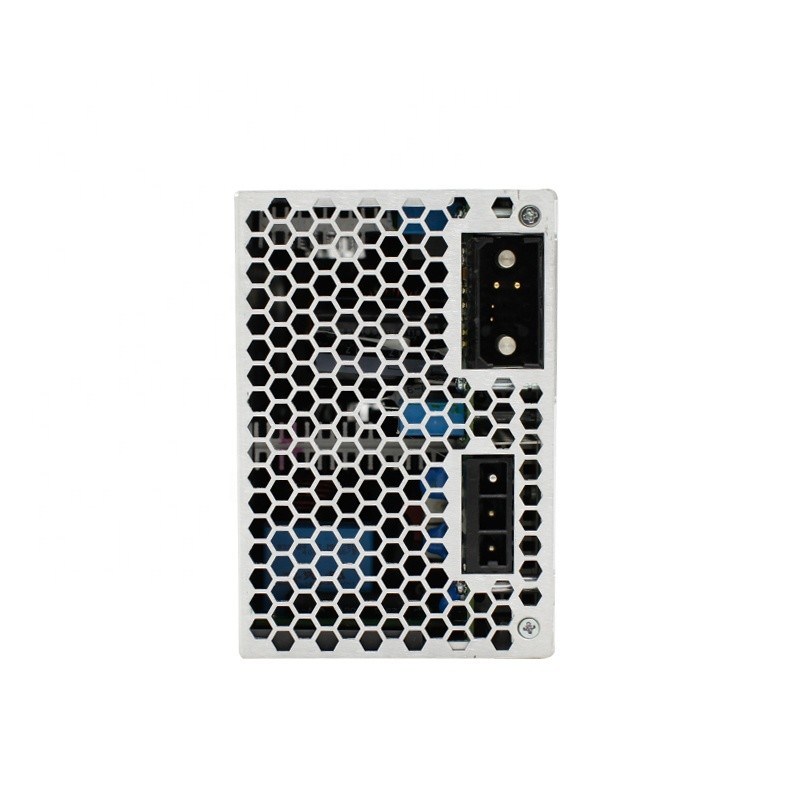

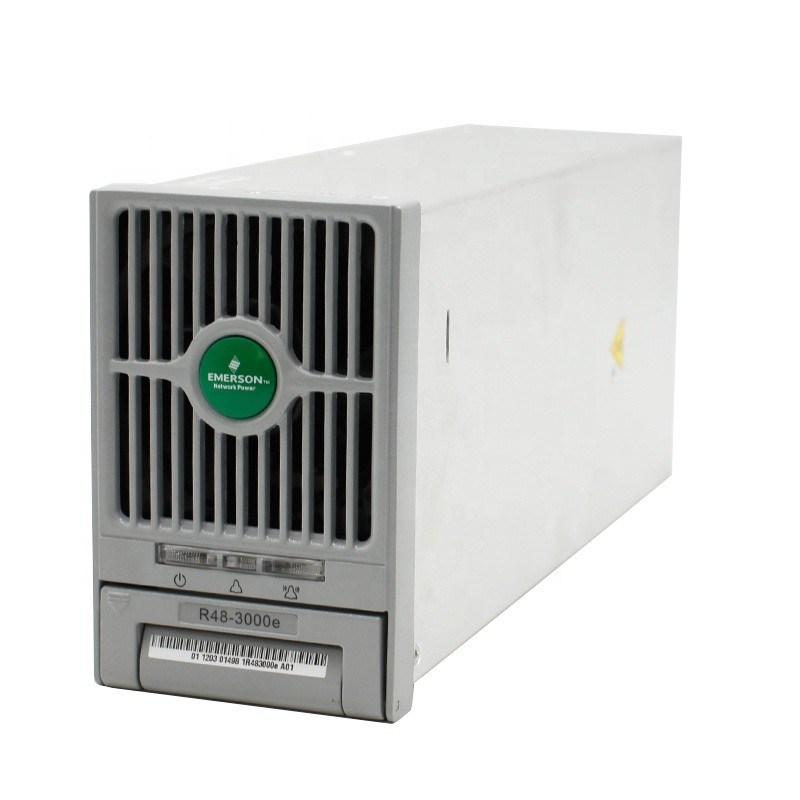

The Vertiv R48-3000e (Former Emerson eSure series) is high-density high-efficiency hot-swap rectifier module exclusively designed to match Vertiv NetSure series embedded telecom power cabinets. Rated 3000W/62.5A@48VDC, it converts wide-range single-phase alternating current into adjustable 42~58VDC standard telecom DC voltage. Adopts DSP full digital control + active PFC topology, peak conversion efficiency reaches 96%, full-load power factor ≥0.99, low input harmonic distortion. Standard drawer hot plug structure allows field replacement without cabinet power off, multi-modules free parallel current sharing for flexible capacity expansion, widely used in indoor/outdoor 4G/5G small cell, FTTx OLT pole cabinet and old telecom power capacity upgrade projects.
Key Features
Ultra-wide AC input:85~300VAC(45~65Hz, nominal200~250VAC), excellent adaptability for unstable rural grid and diesel generator power
Adjustable DC output:42~58VDC(default53.5VDC), max 62.5A constant power output, accurate voltage regulation
Active PFC design, PF≥0.99 under full load, THD≤5%, peak efficiency up to 96% to cut long-term running power consumption
Standard hot-swap pluggable construction, front pull handle for quick module replacement without whole system shutdown
Intelligent thermostatic variable speed fan cooling, auto adjust fan speed based inner temperature to reduce idle noise and extend service life
Built-in multi-layer protection circuit:OVP/UVP/OCP/SCP/OTP plus AC input lightning surge protection for harsh outdoor sealed cabinet
CAN bus communication interface, realize real-time data interaction with cabinet monitor for remote parameter setting and fault alarm
CE & ISO certified, stable operation below 3000m altitude, wide ambient adaptability from -33℃ to +55℃
Technical Specifications
| Item | Details |
| Model | R48-3000e |
| Brand | Vertiv / Former Emerson |
| AC Input | 85~300VAC,45~65Hz(Nominal 200~250VAC,Max22A) |
| DC Output | Adjustable42~58VDC(Nom53.5V),Max62.5A/3000W |
| Peak Efficiency | Up to 96% |
| Full Load PF | ≥0.99 |
| Dimension | 85×125×290mm |
| Net Weight | ＜2.7kg |
| Cooling | Built-in Intelligent Forced Fan Cooling |
| Working Temp | -33℃ ~ +55℃ |
| Storage Temp | -40℃ ~ +70℃ |
| Max Working Altitude | ＜3000m |
| Certification | CE, ISO |
| MOQ | 1 PCS |
| Unit Price | $88/PCS (1~19pcs) |
| Monthly Supply | 1000PCS |
| Packing | PE Bag+Foam+Export Standard Carton |
| Warranty | 12 Months |
Applications
Indoor & Outdoor 4G/5G Micro Small Cell DC Backup Rectifier
FTTx OLT & DSLAM Cabinet Embedded Power Module
Pole-mounted Unmanned Outdoor Communication Cabinet Power Supply
Old NetSure Power Cabinet Capacity Expansion & Spare Replacement
Off-grid Solar Hybrid Telecom Station PV Matching Power Unit
Compact Security Monitoring Cabinet DC Power Source
Why Choose Us
We are a professional manufacturer and one‑stop solution provider for communication DC power systems, boasting mature R&D strength, large‑scale production capacity and flexible service modes. We fully support OEM and OBM cooperation, helping global partners create differentiated power products.
-
Powerful R&D & Customization Ability
We have a professional technical team with years of experience in the power industry. We can provide personalized customized services covering power configuration, external interfaces, functional parameters, appearance design and logo printing, to satisfy diverse demands from telecom operators, system integrators and equipment manufacturers.
-
Comprehensive OEM & OBM Services
We offer full‑cycle cooperation support from product design, prototype testing, certification to mass production. With efficient development process and strict quality management, we help you quickly launch products and build exclusive brand advantages.
-
Large Production Capacity & On-time Delivery
We own standardized production workshops and complete production lines. Relying on a stable supply chain and mature production technology, we maintain sufficient inventory and strong production capacity, ensuring on-time delivery even for bulk orders and long-term cooperative supply.
-
Strict Multi-level Quality Inspection
All products will pass full-load operation test, high-low temperature aging test, safety performance test and simulated on-site operation test before delivery. We adopt high-quality original components and implement strict quality control standards to guarantee long-term stable operation of products in various harsh environments.
-
Full Lifecycle Technical & After-sales Support
We establish a complete service system including pre-sales consultation, in-sales technical guidance and after-sales maintenance. Our technical team responds quickly to provide remote debugging, on-site technical guidance and spare parts supply, protecting the stable operation of your power system all the time.
-
Rich Global Project Experience
Our products have been exported to many countries and regions, widely applied in communication, data center, industrial control, new energy and fields. With rich project experience, we can provide targeted power solutions for different regional standards and application scenarios.
We sincerely look forward to establishing long‑term stable cooperative partnership with you.
