Product Overview

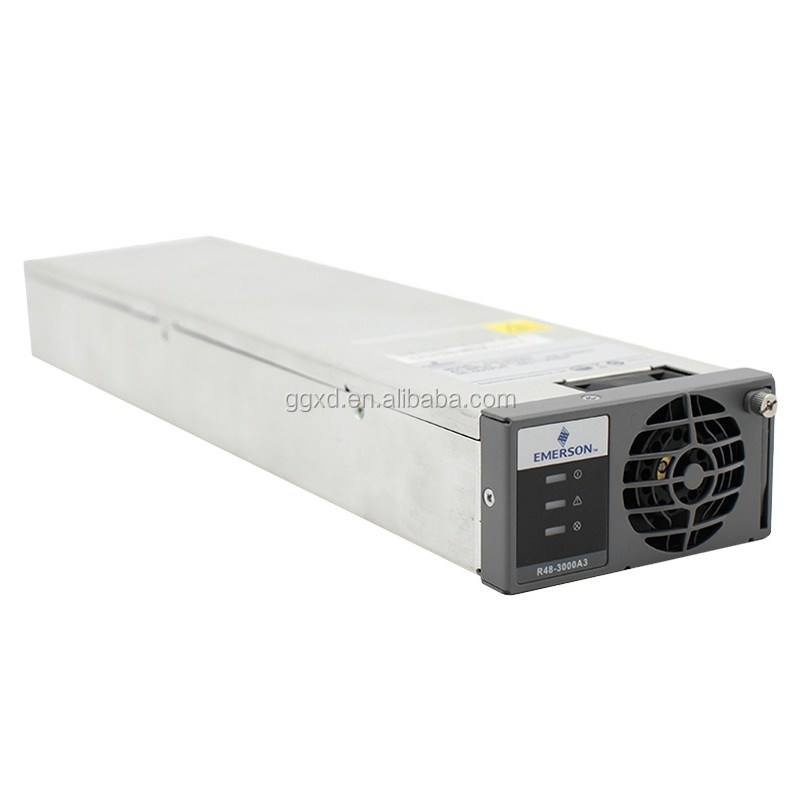

The Vertiv R48-3000A3 (Former Emerson eSure Standard Series) is cost-effective full digital AC-DC rectifier module, specially developed to match Vertiv NetSure series embedded telecom power systems. Rated 3000W/50A nominal output(max62.5A peak) at 48VDC, it converts wide-range single-phase 85~300VAC mains into adjustable 42~58VDC standard telecom voltage(default53.5VDC). Adopts mature soft-switch and active PFC technology, full-load PF≥0.99 and nominal conversion efficiency over 95.5%, designed for cost-sensitive conventional telecom sites. Standard drawer hot-swap plug structure enables online replacement without shutting down the whole cabinet; built-in CAN bus communicates with shelf master controller for remote parameter configuration and fault warning, widely used for FTTx OLT, DSLAM cabinet and indoor/outdoor 4G/5G micro base station power upgrade & spare replacement projects.
Key Features
Ultra-wide AC input:85~300VAC(45~65Hz, nominal200~250VAC), perfectly adapt unstable rural grid and diesel generator power supply
Adjustable DC output:42~58VDC(default53.5V), max62.5A constant power, accurate voltage regulation ≤±0.1V via cabinet monitor
Active PFC design, full-load PF≥0.99, input THD≤5%, reduce grid reactive power loss and operating expense
Full hot-swap plug-and-play construction, front pull-out handle for quick maintenance without system power off
Intelligent thermostatic variable speed fan, auto adjust rotating speed by internal temperature to cut idle noise and extend service life
Comprehensive multi-protection:OVP/UVP/OCP/SCP/OTP + AC input lightning surge protection for sealed outdoor pole cabinet
CAN bus communication interface for real-time data upload, remote alarm and parameter setting with NetSure monitoring unit
Pass CE, ISO certification, stable running from -33℃~+55℃, max3000m full-power operating altitude
Technical Specifications
| Item | Details |
| Model | R48-3000A3 |
| Brand | Vertiv / Former Emerson |
| AC Input | 85~300VAC,45~65Hz,Nominal200~250VAC,Max22A |
| DC Output | Adjustable42~58VDC(Nom53.5V),Nom50A/Max62.5A/3000W |
| Rated Efficiency | ≥95.5% |
| Full Load PF | ≥0.99 |
| Dimension | 45×85×330mm |
| Net Weight | ＜2kg |
| Cooling | Intelligent Variable Speed Forced Air Cooling |
| Communication | CAN Bus |
| Working Temp | -33℃ ~ +55℃(Derate above45℃) |
| Storage Temp | -40℃ ~ +70℃ |
| Max Full-power Altitude | ≤3000m |
| Certifications | CE,ISO |
| MOQ | 1 PCS |
| Unit Price | $123.07/PCS(2~9pcs) |
| Monthly Supply | ≥1000PCS |
| Packing | PE Bag+Foam+Export Standard Carton |
| Warranty | 12 Months |
Applications
Indoor & Outdoor 4G/5G Micro Small Cell DC Backup Power Supply
FTTx OLT & DSLAM Cabinet Embedded Rectifier Replacement
Pole-mounted Unmanned Outdoor Communication Cabinet Power Retrofit
Old NetSure Power Cabinet Capacity Expansion Project
Mini Edge Data Room Auxiliary DC Power Source
Conventional Fixed Telecom Station Power Renovation
