Product Overview

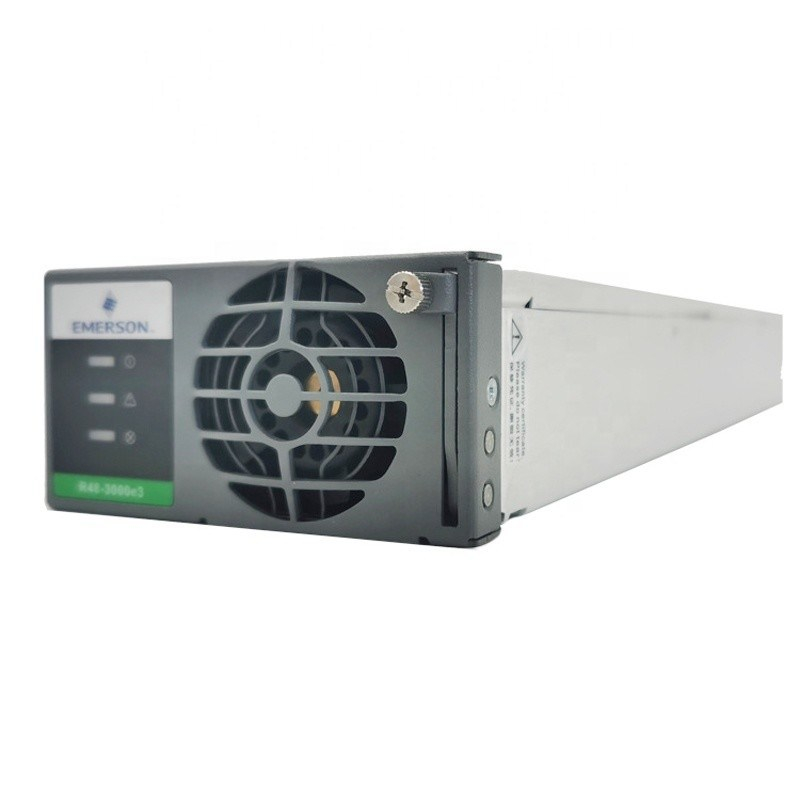

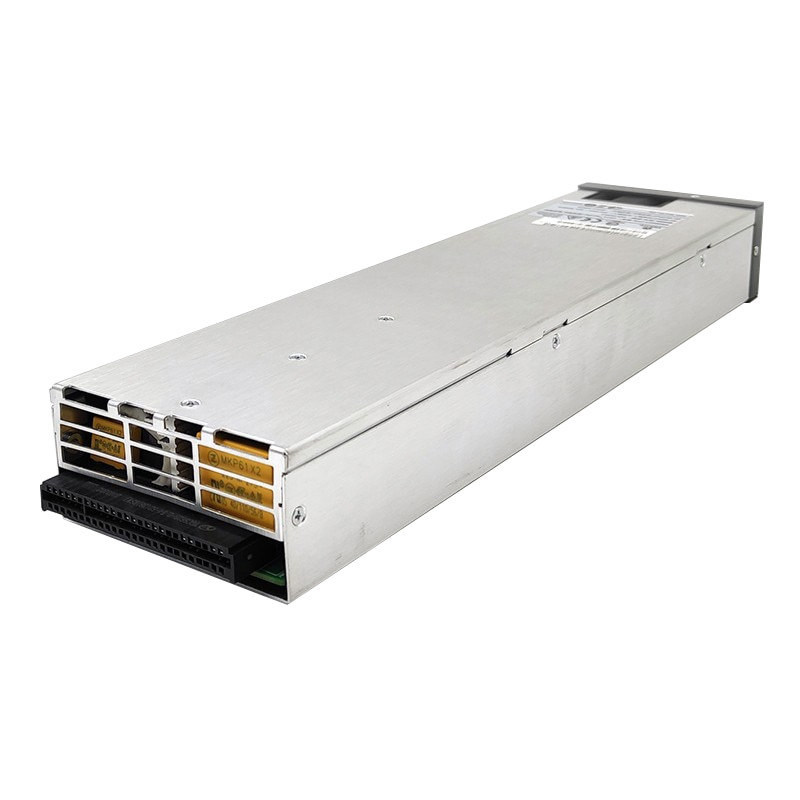

The Vertiv R48-3000 and R48-3000E3 belong to the classic eSure series rectifiers developed by former Emerson (now Vertiv). This 3000W high-performance digital rectifier is widely matched with Vertiv NetSure embedded telecom power systems. It features a wide AC input range of 85~300VAC, and converts alternating current into adjustable 42~58VDC standard telecom voltage (default 53.5VDC) with a maximum output of 62.5A/3000W. Adopts advanced DSP digital control and patented switching technology, achieving peak efficiency of 96.5% and full-load power factor over 0.99, which effectively reduces operational power consumption. Equipped with standard hot-swap structure, the module supports online replacement without shutting down the entire cabinet. It also realizes intelligent parallel operation and remote monitoring via built-in communication interface. Compact size suits short-depth racks, making it an ideal choice for new deployment, capacity expansion and spare replacement of FTTx OLT, DSLAM and 4G/5G base station power cabinets.
Key Features
Ultra-wide AC input: 85~300VAC (45~65Hz), nominal 200~250VAC, adaptable to unstable municipal power and diesel generator power supply
Adjustable DC output: 42~58VDC (default 53.5V), max 62.5A constant power output, output current can be adjusted within 0~62.5A
High energy performance: Peak efficiency reaches 96.5%, full-load PF≥0.99, THD≤5%, saving long-term electricity costs
Hot-swap design: Front pull-out structure allows quick maintenance and system expansion without power interruption
Optimized size: Slim body fits short-depth racks and various standard telecom cabinets, high space utilization
Intelligent cooling & protection: Intelligent variable speed fan; comprehensive OVP, UVP, OCP, SCP, OTP and lightning surge protection
DSP digital control: Fewer internal components, higher stability, supports automatic current sharing for parallel modules
Wide temperature adaptability: Full power output at -40℃ ~ +45℃, operating range -40℃ ~ +80℃, storage temperature -40℃ ~ +70℃
Technical Specifications
| Item | Details |
| Model | R48-3000 / R48-3000E3 |
| Brand | Vertiv / Former Emerson |
| AC Input | 85~300VAC, 45~65Hz, Nom 200~250VAC, Max 19A |
| DC Output | Adjustable 42~58VDC(Nom53.5V), Max 62.5A/3000W |
| Peak Efficiency | 96.5% |
| Full Load PF | ≥0.99 |
| Dimension | 45×85×335mm |
| Net Weight | ＜3kg |
| Cooling | Intelligent Variable Speed Forced Air Cooling |
| Control Mode | DSP Digital Control |
| Working Temp | -40℃ ~ +80℃ (Full Power: -40℃ ~ +45℃) |
| Storage Temp | -40℃ ~ +70℃ |
| MOQ | 1 PCS |
| Unit Price | $149/PCS(1~9pcs) |
| Monthly Supply | 1500PCS |
| Packing | PE Bag + Foam + Export Standard Carton |
| Warranty | 12 Months |
| OEM | Support Logo Customization |
Applications
NetSure Series Embedded Telecom Power Cabinet Matching Rectifier
Indoor & Outdoor 4G/5G Micro Base Station DC Backup Power
FTTx OLT & DSLAM Fiber Access Cabinet Power Supply
Pole-mounted Unmanned Outdoor Communication Cabinet Retrofit
Old Telecom Power Cabinet Capacity Expansion & Spare Replacement
Industrial Low-voltage DC Power Distribution System
