Product Overview

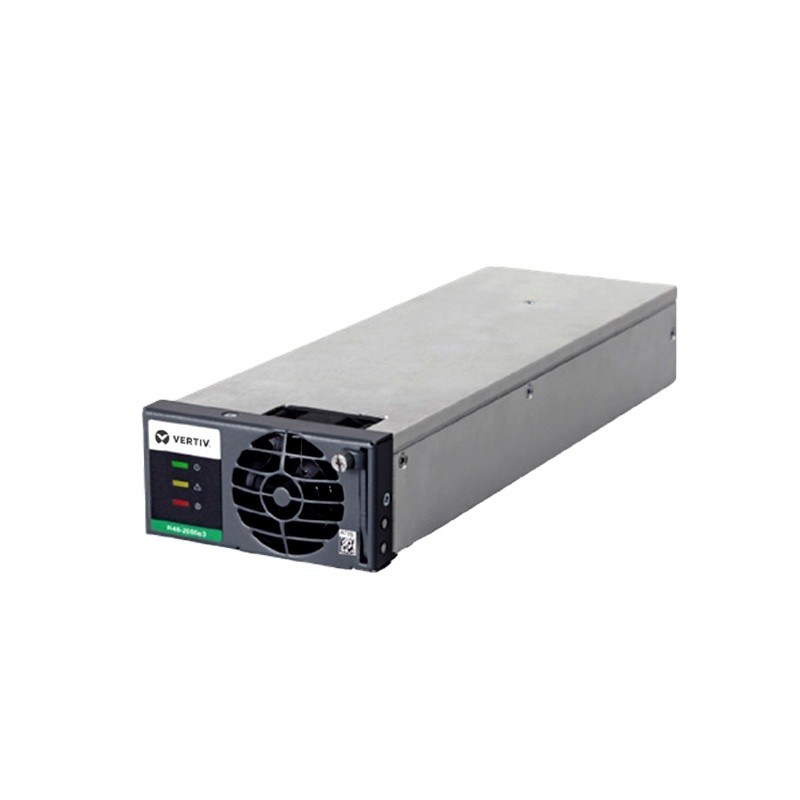

The Vertiv R48-2000A3 (Former Emerson eSure Standard Series) is cost-effective digital hot-swap rectifier, designed to match all Vertiv NetSure embedded telecom power systems. Rated max 37A/2000W@48VDC, it converts wide-range single-phase 85~300VAC mains into adjustable 42~58VDC standard telecom voltage(default53.5VDC). Adopts mature switching power & active PFC technology, full-load PF≥0.99 and nominal efficiency ≥94%. Standard drawer hot-plug structure enables online replacement without shutting down cabinet power; built-in CAN bus links with shelf controller for remote parameter setup and fault reporting. Cost-efficient choice for regular indoor 4G/5G small cell, FTTx OLT and old telecom cabinet spare replacement projects globally。
Key Features
Ultra-wide AC input:85~300VAC(45~65Hz, nominal200~250VAC), fit global unstable grid and diesel generator supply
Adjustable DC output:42~58VDC(default53.5V), max37A constant power output, precise voltage regulation
Active PFC design, full-load PF≥0.99, low input harmonic, peak efficiency ≥94% to control running electricity cost
Full hot-swap plug-and-play construction, front pull-out design for rapid field maintenance without system power-off
Intelligent thermostatic fan cooling, auto speed adjustment by inner temperature for low noise and long service life
Complete multi-layer protection:OVP/UVP/OCP/SCP/OTP plus input lightning surge protection
CAN bus communication, realize real-time data sync with cabinet monitoring unit for remote management
Wide operating range:-40℃~+65℃(derate above 45℃), stable below 4000m altitude, CE compliant certification
Technical Specifications
| Item | Details |
| Model | R48-2000A3 |
| Brand | Vertiv / Former Emerson |
| AC Input | 85~300VAC,45~65Hz,Nominal200~250VAC,Max13A |
| DC Output | Adjustable42~58VDC(Nom53.5V),Max37A/2000W |
| Rated Efficiency | ≥94% |
| Full Load PF | ≥0.99 |
| Dimension | 320×100×150mm |
| Net Weight | 4kg |
| Cooling | Intelligent Variable Speed Forced Air Cooling |
| Communication | CAN Bus |
| Working Temp | -40℃ ~ +65℃(Derate＞45℃) |
| Storage Temp | -40℃ ~ +70℃ |
| Max Full-power Altitude | ≤4000m |
| Certifications | CE,GR-1089 |
| MOQ | 1 PCS |
| Unit Price | $198/PCS(1~9pcs) |
| Weekly Supply | 100PCS |
| Packing | Export Standard Carton |
| Warranty | 12 Months |
Applications
Indoor & Outdoor 4G/5G Micro Small Cell DC Backup Power
FTTx OLT & DSLAM Cabinet Embedded Rectifier Replacement
Pole-mounted Unmanned Outdoor Communication Cabinet Power Upgrade
Old NetSure Power Cabinet Capacity Expansion Project
Mini Edge Data Room Auxiliary DC Power Source
Conventional Telecom Station Power Renovation
