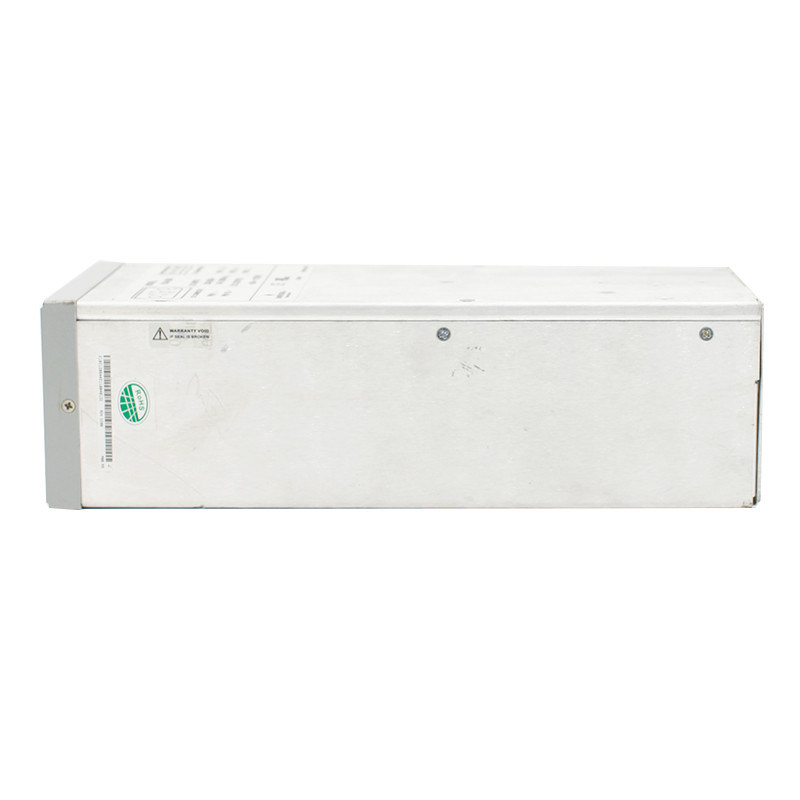

Product Overview
The Vertiv R24-2200 (Former Emerson eSure Series) is professional high-density digital switching rectifier specially designed for 24VDC telecom, railway and industrial embedded power systems. Rated max 75A/2200W(2175W nominal) output at adjustable 21.6~28.8VDC, it converts wide-range 85~290VAC single-phase alternating current into stable 24V standard industrial & telecom voltage. Adopts advanced DSP full digital control and active PFC topology, full-load PF≥0.99 and rated efficiency ≥92%. Standard drawer hot-swap plug structure supports live maintenance without system power cut; intelligent automatic current sharing for multi-module parallel expansion, built-in monitoring communication interface for remote parameter setup, ideal for railway signal cabinet, industrial automation and 24V telecom station power renovation projects.
Key Features
Ultra-wide AC input:85~290VAC(45~65Hz, nominal200~250VAC), stable for unstable grid and diesel generator power supply
Adjustable DC output:21.6~28.8VDC(default26.75V), max75A constant power, automatic power derating below176VAC input
Active full-range PFC design, full-load PF≥0.99, low input harmonic THD＜5%, reduce grid reactive loss
Full hot-swap plug-and-play, front pull-out design, replace module within 1 minute without cabinet shutdown
Intelligent variable speed cooling fan, auto speed regulation based internal temperature, lower noise & extend service life
Comprehensive multi-protection:OVP/UVP/OCP/SCP/OTP + AC input lightning surge protection
Automatic current sharing function for multi-module parallel, unbalance ≤3% to guarantee stable parallel operation
CE safety certified, wide working range -33℃~+60℃, adapt harsh industrial and onboard environment
Technical Specifications
| Item | Details |
| Model | R24-2200 |
| Brand | Vertiv / Former Emerson |
| AC Input | 85~290VAC,45~65Hz,Nominal200~250VAC,Max14A |
| DC Output | Adjustable21.6~28.8VDC(Nom26.75V),Max75A/2200W(Nom2175W) |
| Rated Efficiency | ≥92% |
| Full Load PF | ≥0.99 |
| Dimension | 130×85×320mm |
| Net Weight | 3.4kg |
| Cooling | Intelligent Thermostatic Forced Air Cooling |
| Working Temp | -33℃ ~ +60℃ |
| Certifications | CE |
| MOQ | 1 PCS |
| Unit Price | $265/PCS(1~9pcs) |
| Monthly Supply | 1000PCS |
| Packing | Foam + Export Standard Carton |
| Warranty | 12 Months |
Applications
Railway Signal & Locomotive Onboard 24V DC Backup Power Supply
Industrial Automation Control Cabinet Embedded Rectifier Module
24V Special Telecom Station & Microwave Equipment Power System
Marine On-board Low Voltage DC Power Cabinet Replacement
Off-grid Small Wind & Solar Hybrid 24V Charging Equipment
Old 24V Industrial Power Cabinet Capacity Expansion Project
