Product Overview

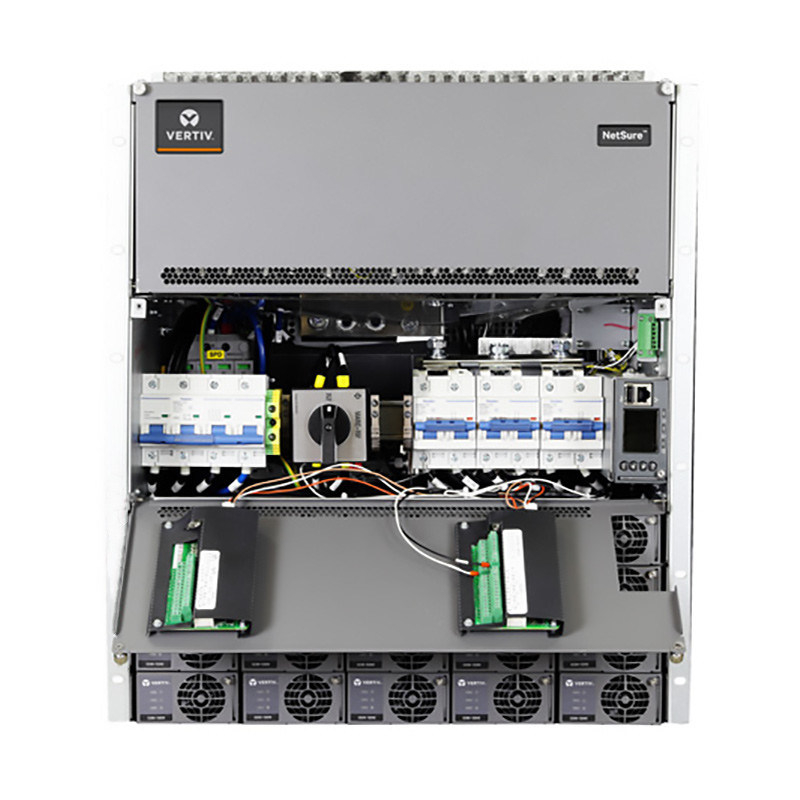

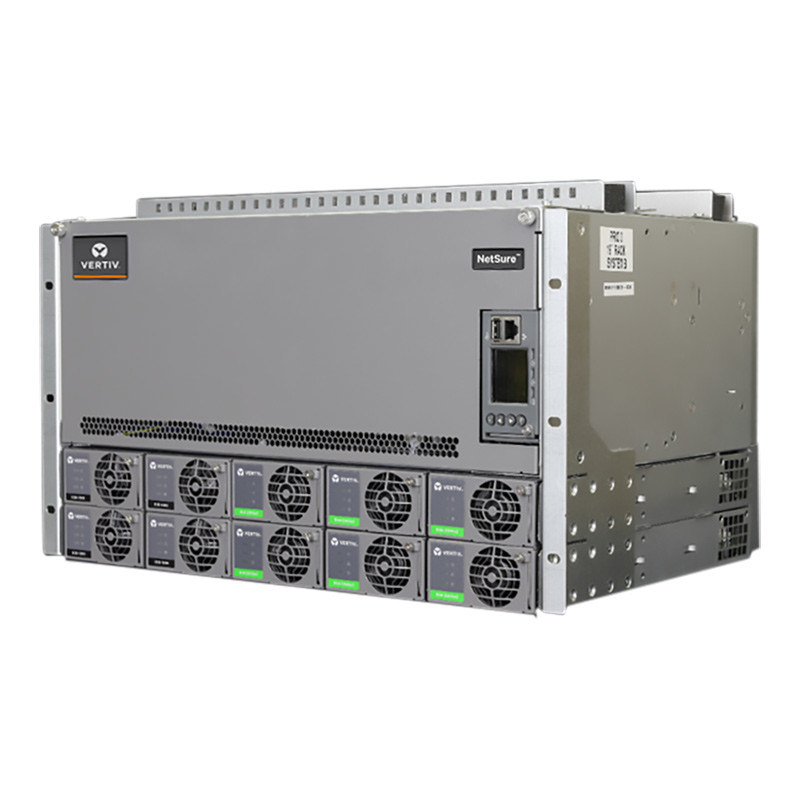

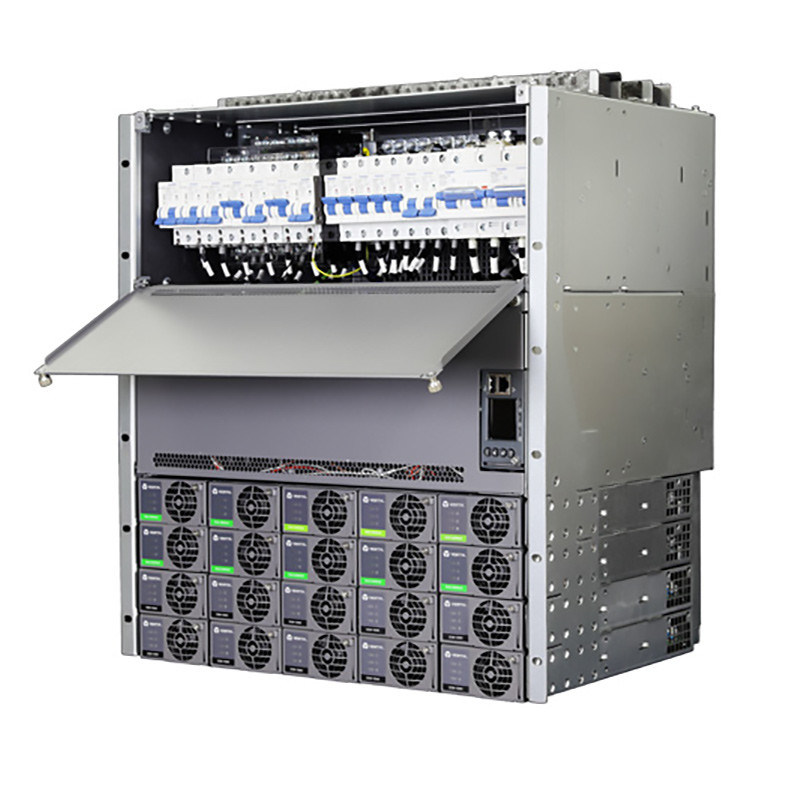

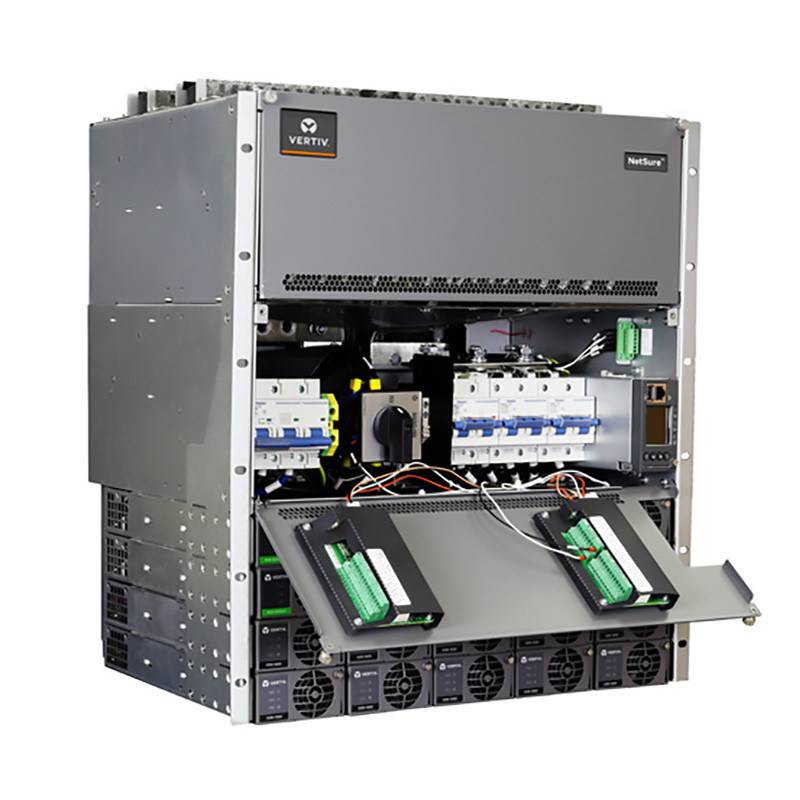

The Vertiv NetSure Inverter Series 19 Inch DC-AC Hybrid Power Supply System is a fully integrated rack-mounted power solution developed by Vertiv (Former Emerson). This converged system combines rectifier, inverter, distribution unit and battery management into one compact 19-inch cabinet, which can supply both -48VDC and 230VAC power simultaneously with a single battery bank, saving rack space and reducing overall investment costs. Equipped with high-performance eSure rectifier modules and advanced inverter units, the DC power capacity reaches up to 12kW while the AC output capacity is up to 5kVA. It achieves 0ms seamless power transfer during mains failure, ensuring uninterrupted power for critical loads. Featuring modular design, hot-swap capability and intelligent monitoring, this system is easy for expansion and on-site maintenance. It is widely deployed in telecom base stations, FTTx rooms, data centers, colocation facilities and industrial control sites that require both AC and DC stable power supply.
Key Features
Dual Power Output: Supports simultaneous -48VDC (max 12kW) and 230VAC (max 5kVA) output, meets dual power demands of most communication and IT equipment
Ultra-high Efficiency: Rectifier peak efficiency up to 96.3%, inverter efficiency over 95.2%, effectively cut long-term power consumption and operation costs
Zero Transfer Time: Seamless switch between mains and battery power (0ms transfer), no power interruption for critical loads during grid outage
Integrated Structure: Standard 19-inch rack size, compact layout, all power units integrated in one cabinet, greatly save installation space
Modular & Hot-swap Design: Rectifier and inverter modules support hot swap, allowing maintenance and capacity expansion without system shutdown
Wide Input Range: AC input 200~277VAC (50/60Hz), compatible with global commercial power grids and diesel generators
Reliable Battery Management: Matches standard battery bank, supports long-duration backup power, perfect for off-grid and unstable grid areas
Intelligent Monitoring: Built-in monitoring unit, supports real-time data collection, remote parameter configuration and fault alarm
Complete Protection: Integrated over-voltage, under-voltage, over-current, short-circuit and surge protection for full system safety
Flexible Expansion: Modular combination design, users can add rectifier and inverter modules step by step according to load growth

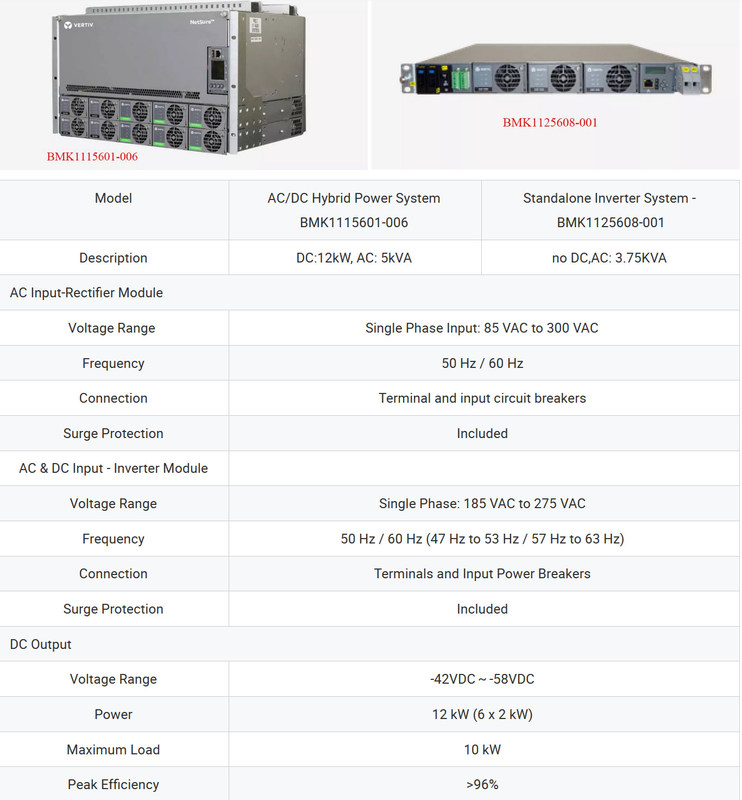

Technical Specifications
| Item | Details |
| Model | NetSure Inverter Series |
| Brand | Vertiv / Former Emerson |
| Cabinet Size | 19 Inch Standard Rack |
| Overall Dimension | 44~554(H) × 482(W) × 367(D)mm |
| AC Input | 200~277VAC, 50/60Hz |
| DC Output | -48VDC, Max 12kW |
| AC Output | 230VAC, Max 5kVA (4.8kW) |
| Peak Efficiency | Rectifier: 96.3% ; Inverter: ≥95.2% |
| Power Transfer | 0ms seamless transfer |
| Matching Module | Rectifier: R48-2000E3 ; Inverter: I230-1200 |
| Distribution Unit | Standard MCB distribution circuit |
| Weight | 4kg ~ 45kg (Depends on configuration) |
| Working Temp | -20℃ ~ +60℃ |
| Certifications | CE, RoHS, ISO |
| MOQ | 1 Set |
| Unit Price | $1999.00/Set (1~9 Sets) |
| Packing | Carton / Wooden Frame |
| Warranty | 12 Months |
Applications
Telecom Base Station & FTTx OLT Room Dual Power Supply
Data Center and Colocation Facility AC & DC Integrated Power System
Industrial Automation Control Room Backup Power
Outdoor Unmanned Communication Cabinet Hybrid Power Supply
Remote Monitoring Station Off-grid Power Solution
Enterprise Computer Room Critical Load Backup Power
