Product Overview

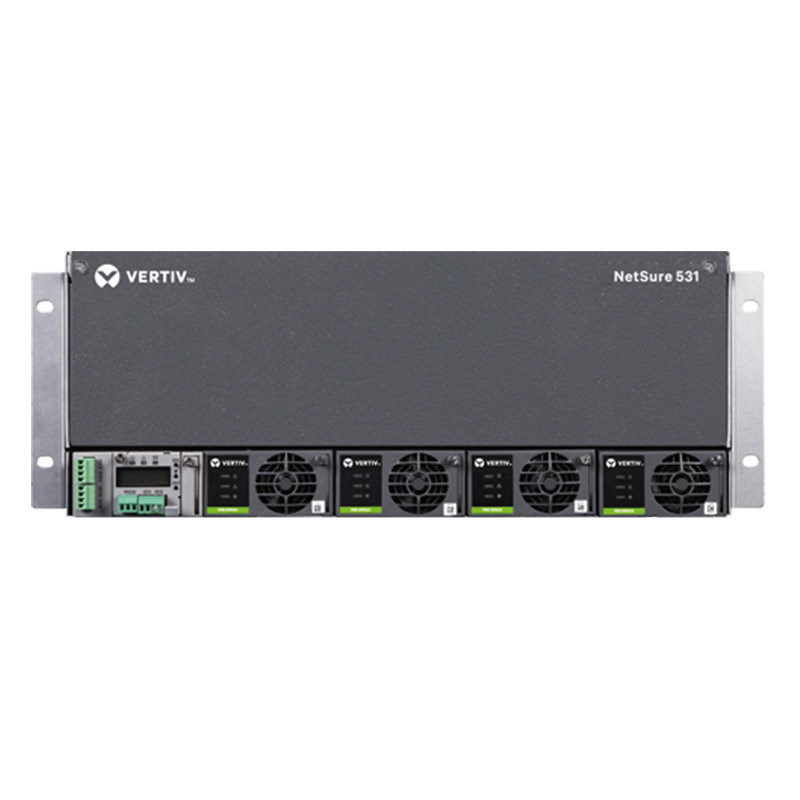

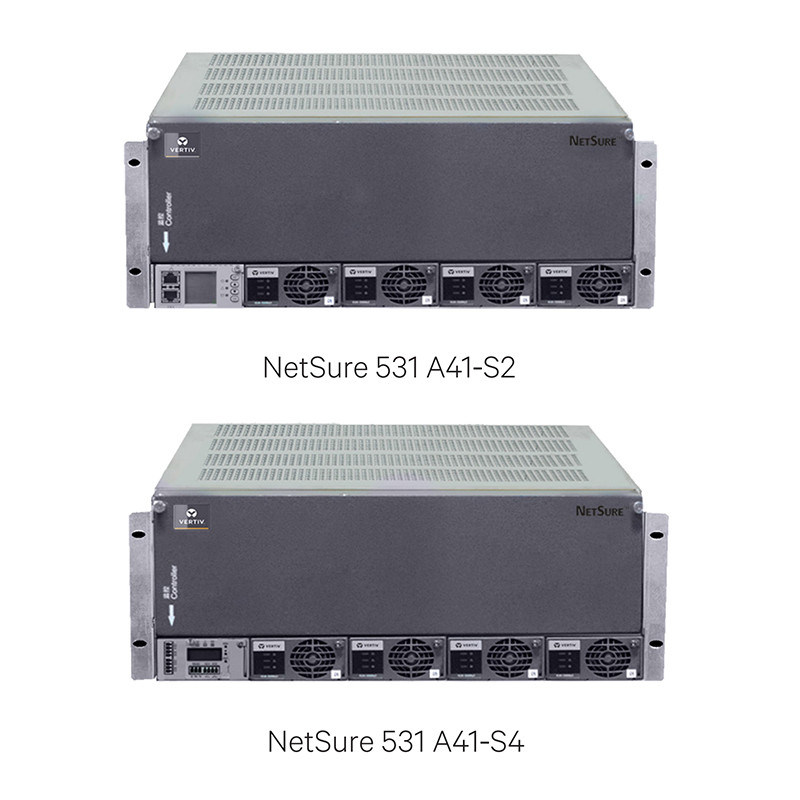

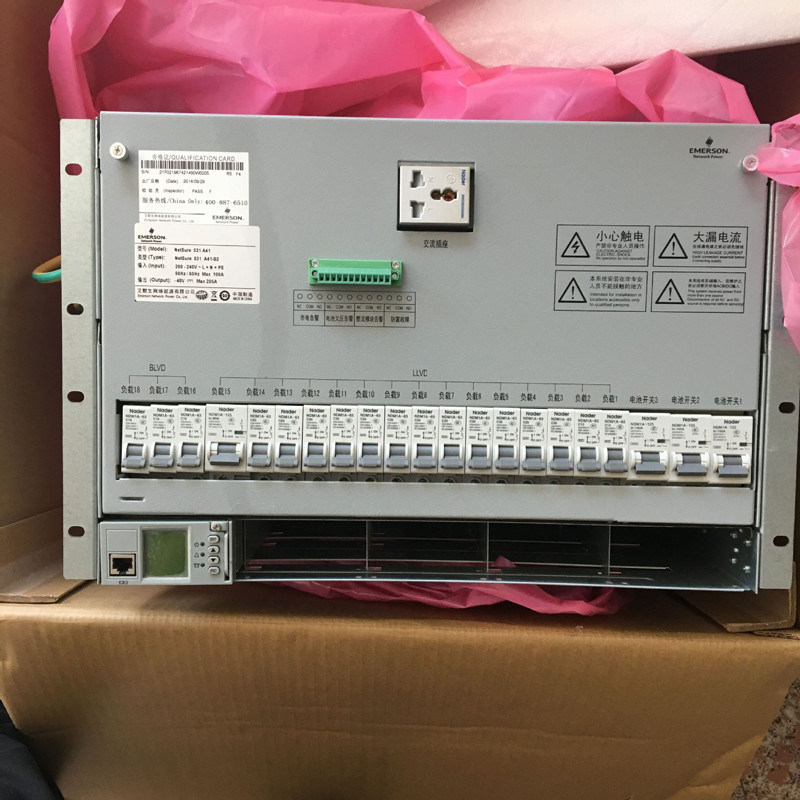

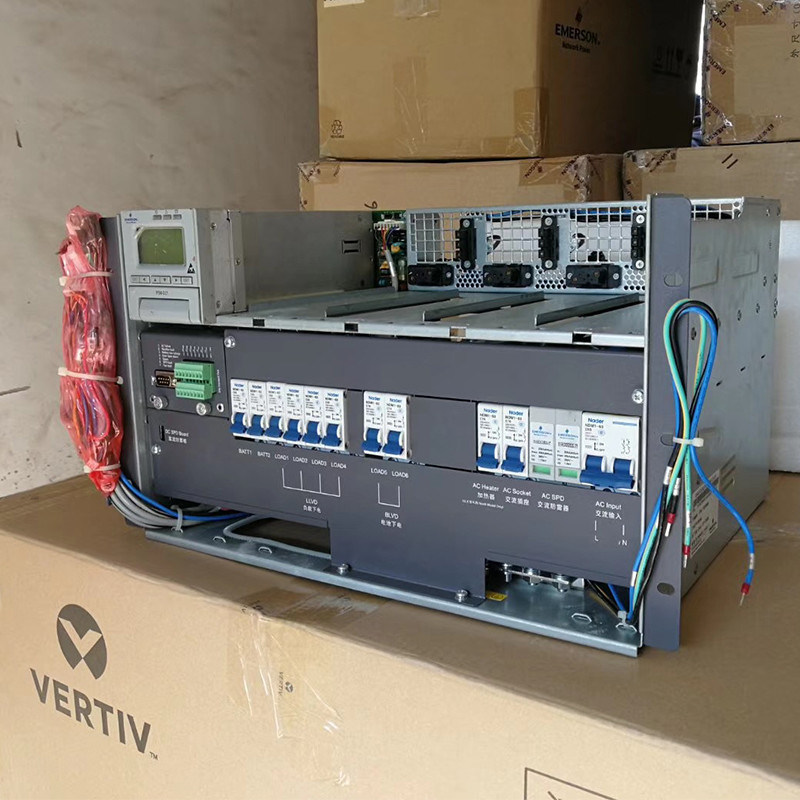

The Vertiv NetSure 531A41 is a high-performance embedded DC power subrack developed by Vertiv (Former Emerson), specially designed for LTE, FTTx and all kinds of telecom equipment. This complete power system is fully matched with R48-2000e3 high efficiency rectifier modules, supporting up to 4 rectifier units with a total power range of 2kW to 8kW and maximum output current of 120A. It adopts 85~300VAC ultra-wide single-phase input, adapting to complex municipal power and diesel generator power environments. Equipped with advanced full digital control and active PFC technology, the rectifier peak efficiency reaches 96.2% and system efficiency exceeds 95%, effectively cutting long-term operating costs. This subrack features hot-swap rectifier design, comprehensive lightning protection, intelligent battery management and rich communication interfaces. Compact structure and embedded installation mode save cabinet space, which is widely used for new deployment, capacity expansion and old equipment replacement of indoor and outdoor telecom base stations, FTTx access cabinets and communication equipment rooms.
Key Features
Wide Voltage Adaptation: AC input covers 85~300VAC (nominal 200~277VAC, 50/60Hz), stable operation under unstable power grids and generator power supply
High Energy Saving Performance: Matched with R48-2000e3 rectifier, peak efficiency up to 96.2%, system efficiency over 95%, full load PF≥0.99, low harmonic loss
Flexible Capacity Expansion: Support max 4 pieces of 2000W R48-2000e3 rectifier modules, total power 2kW~8kW, max output current 120A for flexible load matching
Hot Swap Maintenance: Rectifier modules support hot plug and play, replacement within 1 minute without system power off, greatly improve on-site maintenance efficiency
Excellent Temperature Resistance: Rectifier working range -40℃ ~ +80℃, full load output at -40℃ ~ +55℃, automatic derating above 55℃ for harsh working conditions
Multi-layer Lightning Protection: Professional lightning protection design for AC side, DC side and signal side, enhance system safety in outdoor and complex environments
Intelligent Battery Management: Real-time battery monitoring, temperature compensation and over-discharge protection to extend battery service life
Rich Communication Interfaces: Built-in RS232, Ethernet and dry contact ports, compatible with M221S/M222S/M830B controllers, support remote monitoring and parameter configuration
Standard Configuration: Equipped with reliable circuit breakers for load distribution, stable and safe power distribution for multiple loads
Technical Specifications
| Item | Details |
| Model | NetSure 531A41 |
| Brand | Vertiv / Former Emerson |
| Matching Rectifier | R48-2000e3 (2000W per unit, max 4 units) |
| AC Input | 85~300VAC, Nominal 200~277VAC, 50/60Hz |
| DC Output | -42~-58VDC (Nominal -48VDC) |
| Total Power | 2kW ~ 8kW |
| Max Output Current | 120A |
| Rectifier Peak Efficiency | 96.2% |
| System Efficiency | ≥95% |
| Full Load Power Factor | ≥0.99 |
| System Type | Embedded Subrack |
| Dimension (WDH) | 483 × 310 × 178mm |
| Net Weight | ≤25kg (Exclude rectifier & controller) |
| Distribution | Load Circuit Breakers |

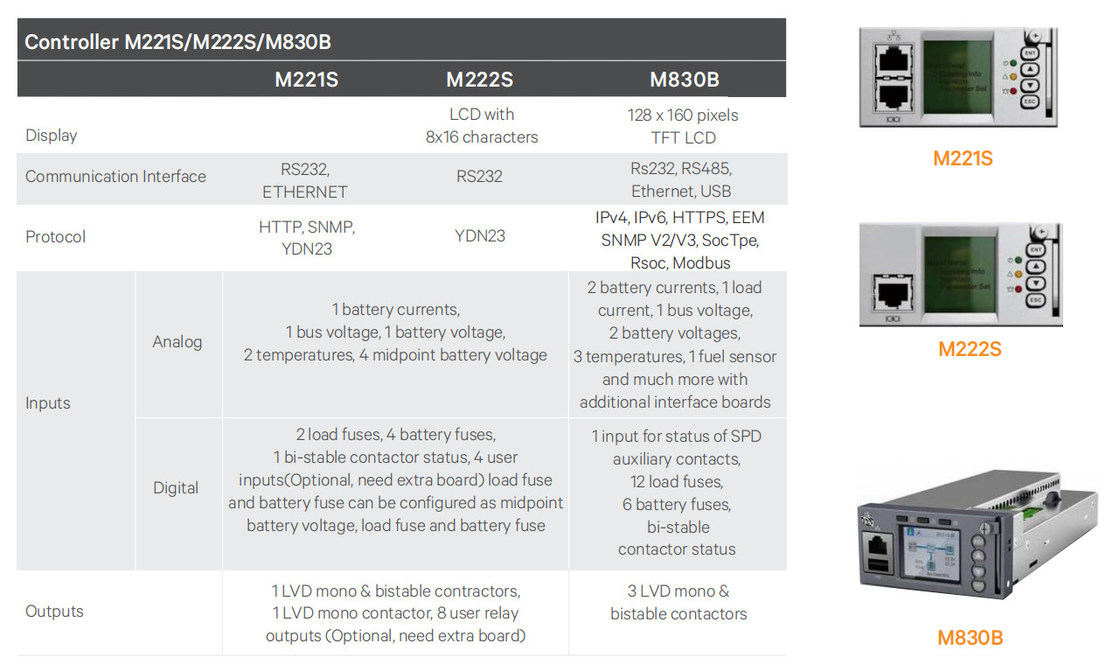

| Controller Model | M221S / M222S / M830B |
| Communication Port | RS232, Ethernet, Dry Contact |
| Working Temp | -40℃ ~ +80℃ (Full load: -40℃ ~ +55℃) |
| Certifications | CE, RoHS, NEBS |
| MOQ | 1 Set |
| Unit Price | $780/Set (1~9 Sets) |
| Monthly Supply | 2000 Sets |
| Packing | Carton / Wooden Frame |
| Warranty | 12 Months |
| Port of Shipment | Shenzhen |
Applications
4G / 5G Macro & Micro Base Station Embedded DC Power System
FTTx & DSLAM Fiber Access Network Power Cabinet
Indoor & Outdoor Telecom Communication Equipment Power Supply
Unmanned Remote Communication Station Power Distribution System
Old Emerson/Vertiv Power Cabinet Renovation & Capacity Expansion
Industrial Communication and Monitoring Equipment DC Power Unit
