Product Overview

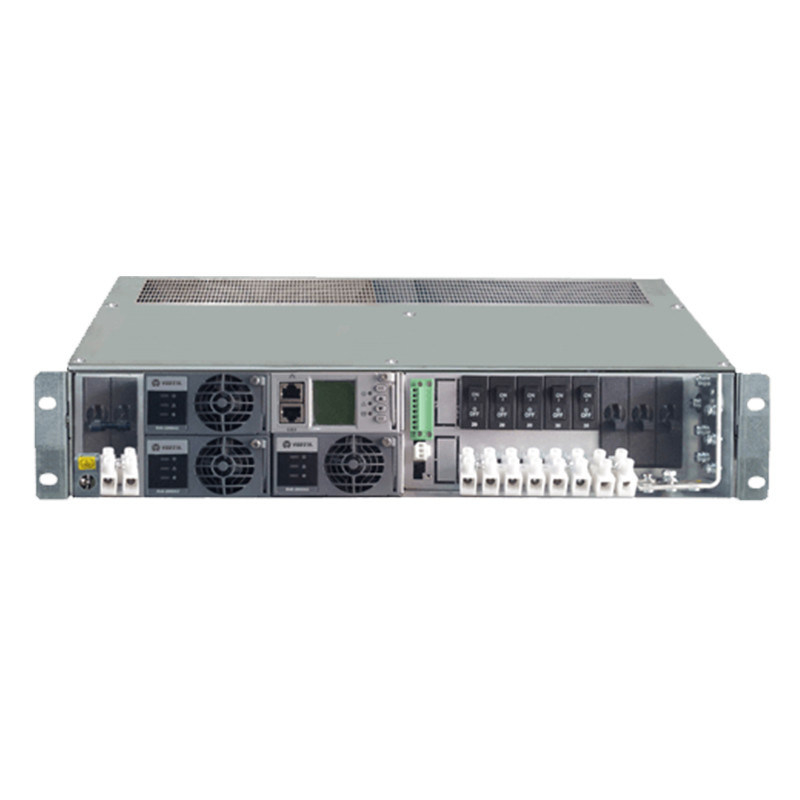

The Vertiv NetSure 531A32 is a fully integrated embedded DC power system launched by Vertiv (Former Emerson), specially optimized for LTE, 4G/5G macro base stations and FTTx communication scenarios. This compact subrack supports a maximum total power of 6KW and 200A output current, and can be equipped with up to 3 pieces of R48-2000e3 / R48-2000A3 high-efficiency rectifier modules. It features an ultra-wide AC input range of 85~300VAC (nominal 200~250VAC), which adapts to unstable municipal power and diesel generator power supply. With peak rectifier efficiency reaching 96.2% and overall system efficiency over 95%, plus built-in ECO sleep technology and mixed operation of high-efficiency and standard modules, it achieves excellent energy-saving effects. The system integrates AC distribution, battery distribution, multi-channel DC distribution and multi-stage lightning protection, and is equipped with M221S / M830B monitoring controllers. Rich communication ports support remote monitoring and parameter management. Small size and embedded design greatly reduce installation costs, widely used for new construction, renovation and capacity expansion of various indoor and outdoor telecom power cabinets.
Key Features
Ultra-wide Input Adaptation: AC input ranges from 85VAC to 300VAC (50/60Hz), compatible with global mains and generator power, stable under severe voltage fluctuation
High Energy Efficiency: Matched with R48-2000e3 rectifiers with 96.2% peak efficiency; system efficiency exceeds 95%. ECO sleep technology and mixed module operation further cut power consumption
Flexible Capacity Configuration: Max 3 × 2000W rectifier modules, total power up to 6KW, maximum output current 200A, flexible to match different load requirements
Comprehensive Distribution Design: Standard AC distribution (1×40A/2P), battery distribution (2×50A/1P) and 6-way DC distribution, reasonable circuit layout for multi-load power supply
Multi-level Lightning Protection: C-level 20kA protection on AC side and D-level 10kA protection on DC side, effectively resist lightning surge for outdoor and complex environments
Wide Temperature Resistance: Rectifier operating temperature -40℃ ~ +80℃, full-power output within -40℃ ~ +65℃, reliable operation in high and low temperature areas
Intelligent Battery Management: Professional battery monitoring, temperature compensation and over-discharge protection, effectively extend battery service life
Diversified Communication & Alarm: Equipped with RS232, Ethernet and dry contact interfaces; supports multiple alarm output modes, convenient for remote networking and fault warning
Compact Embedded Structure: 19-inch standard rack size, light weight and small footprint, lower installation and maintenance costs

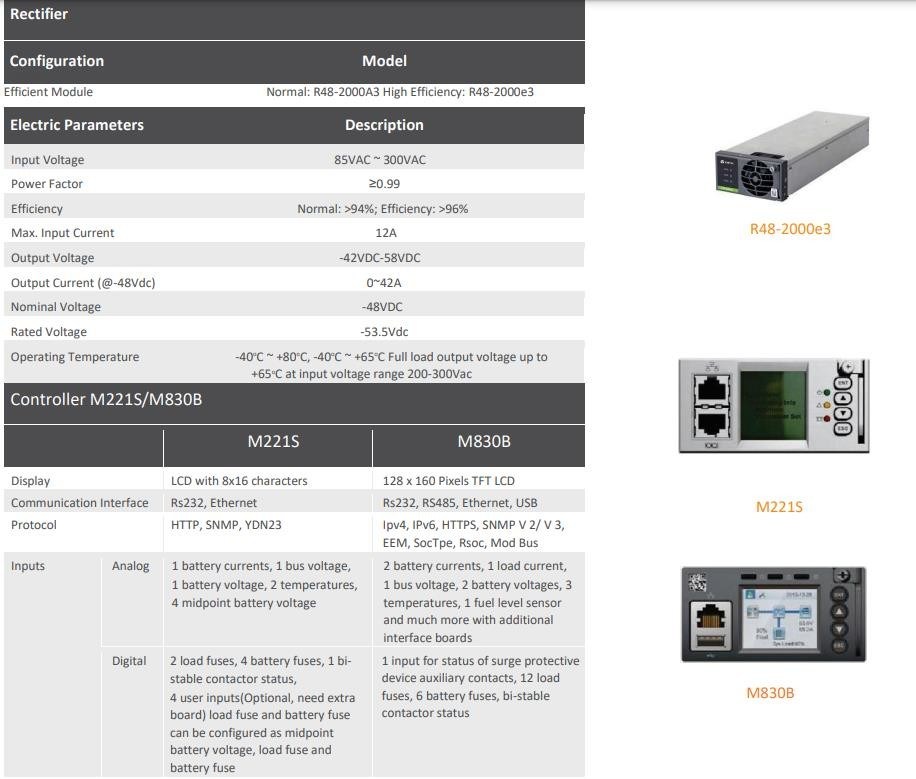

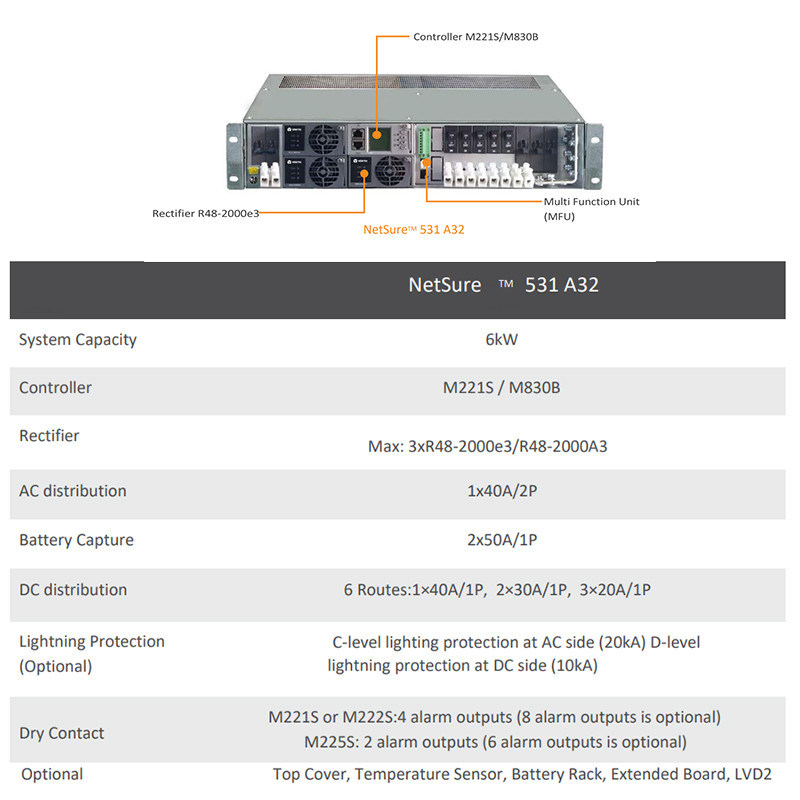

Technical Specifications
| Item | Details |
| Model | NetSure 531A32 |
| Brand | Vertiv / Former Emerson |
| System Type | Fully Integrated Embedded Subrack |
| Matching Rectifier | R48-2000e3 / R48-2000A3 (Max 3 Units, 2000W per piece) |
| AC Input | 85~300VAC, Nominal 200~250VAC, 50/60Hz |
| DC Nominal Output | 48VDC |
| Total Rated Power | 6KW |
| Max Output Current | 200A |
| Rectifier Peak Efficiency | 96.2% |
| System Overall Efficiency | ≥95% |
| AC Distribution | 1 × 40A / 2P Circuit Breaker |
| Battery Distribution | 2 × 50A / 1P Circuit Breaker |
| DC Distribution | 6 Routes: 1×40A, 2×30A, 3×20A (1P each) |
| Lightning Protection | AC side: C-level 20kA; DC side: D-level 10kA |
| Matching Controller | M221S / M830B |
| Communication Interface | RS232, Ethernet, Dry Contact |
| Dimension (HWD) | 88 × 483 × 310mm |
| Net Weight | 13kg (Without modules and controller) |
| Working Temp | -40℃ ~ +80℃ (Full power: -40℃ ~ +65℃) |
| MOQ | 1 Set |
| Unit Price | $999.00/Set (1~9 Sets) |
| Monthly Supply | 1000 Sets |
| Packing | Carton / Wooden Frame |
| Warranty | 12 Months |
| Port of Shipment | Shenzhen |
Applications
4G/5G Macro Base Station Main DC Power System
LTE & FTTx Fiber Access Network Power Cabinet
Indoor & Outdoor Integrated Telecom Equipment Power Supply
Unmanned Remote Communication Station Power Distribution System
Old Emerson/Vertiv Power Cabinet Renovation & Capacity Expansion
Industrial Communication & Monitoring Equipment DC Power Unit
Why Choose Us
We are a professional manufacturer and one‑stop solution provider for communication DC power systems, boasting mature R&D strength, large‑scale production capacity and flexible service modes. We fully support OEM and OBM cooperation, helping global partners create differentiated power products.
-
Powerful R&D & Customization Ability
We have a professional technical team with years of experience in the power industry. We can provide personalized customized services covering power configuration, external interfaces, functional parameters, appearance design and logo printing, to satisfy diverse demands from telecom operators, system integrators and equipment manufacturers.
-
Comprehensive OEM & OBM Services
We offer full‑cycle cooperation support from product design, prototype testing, certification to mass production. With efficient development process and strict quality management, we help you quickly launch products and build exclusive brand advantages.
-
Large Production Capacity & On-time Delivery
We own standardized production workshops and complete production lines. Relying on a stable supply chain and mature production technology, we maintain sufficient inventory and strong production capacity, ensuring on-time delivery even for bulk orders and long-term cooperative supply.
-
Strict Multi-level Quality Inspection
All products will pass full-load operation test, high-low temperature aging test, safety performance test and simulated on-site operation test before delivery. We adopt high-quality original components and implement strict quality control standards to guarantee long-term stable operation of products in various harsh environments.
-
Full Lifecycle Technical & After-sales Support
We establish a complete service system including pre-sales consultation, in-sales technical guidance and after-sales maintenance. Our technical team responds quickly to provide remote debugging, on-site technical guidance and spare parts supply, protecting the stable operation of your power system all the time.
-
Rich Global Project Experience
Our products have been exported to many countries and regions, widely applied in communication, data center, industrial control, new energy and fields. With rich project experience, we can provide targeted power solutions for different regional standards and application scenarios.
We sincerely look forward to establishing long‑term stable cooperative partnership with you.
