Product Overview

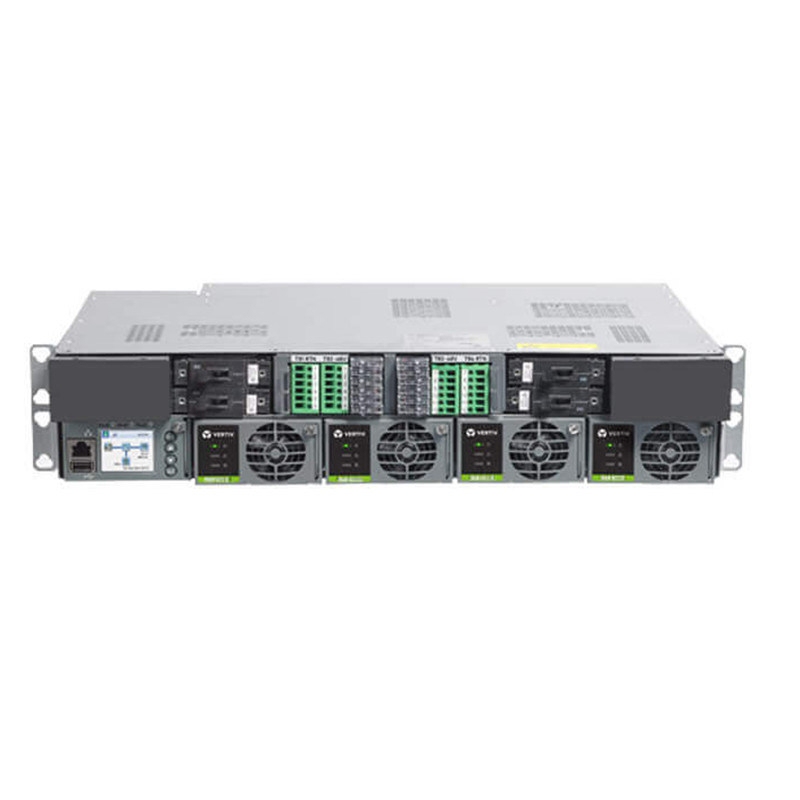

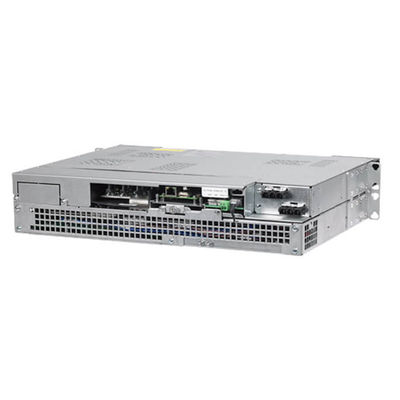

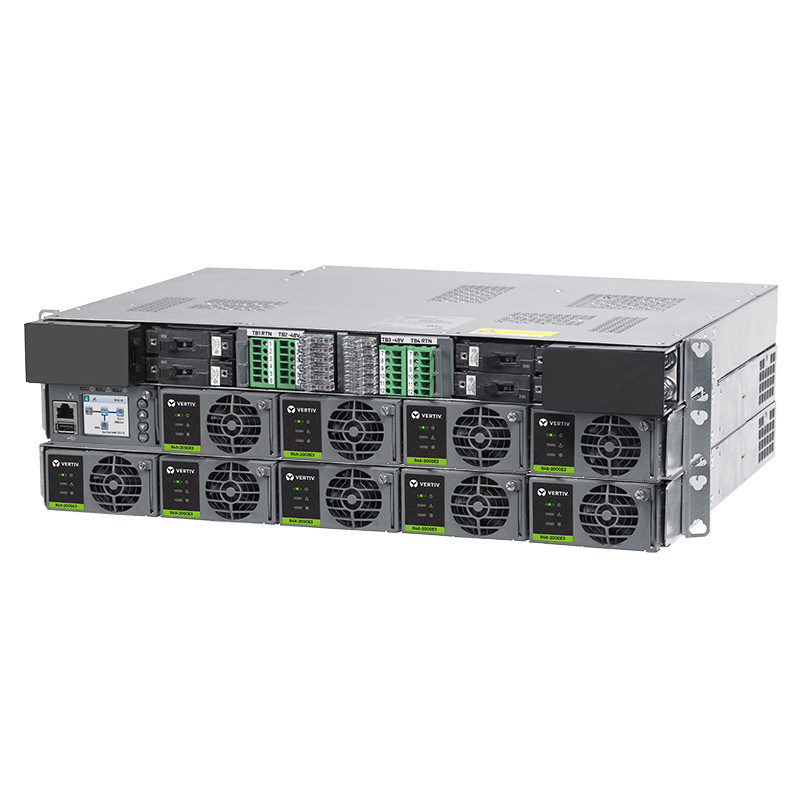

The Vertiv NetSure 5100 (Model 58213720) is a compact, high-reliability 19/23-inch rack-mounted integrated DC power system launched by Vertiv (Former Emerson). Designed specifically for telecom access networks and communication equipment, it supports a total power range from 2kW to 7.2kW and output current from 40A to 150A with standard -48VDC outputVertiv. This integrated system is pre-installed with advanced control unit and compatible with up to four 2000W eSure high-efficiency rectifier modules, combining power conversion, power distribution and battery management into one compact unit. It features 85~300VAC ultra-wide single-phase input, outstanding high-temperature resistance, built-in ECO energy-saving mode and solar hybrid access capability, effectively reducing grid dependence and overall operating costs. With complete communication protocols and load shedding functions, it is fully compliant with UL and NEBS Level 3 standards, widely deployed in indoor and outdoor base stations, FTTx access rooms, unmanned remote communication sites and other scenarios that require stable DC power supplyVertiv.
Key Features
Wide AC Input Adaptation: Supports 120VAC, 208~240VAC nominal input, operational voltage covers 85~300VAC, fits various global power grids and diesel generator power sourcesVertiv

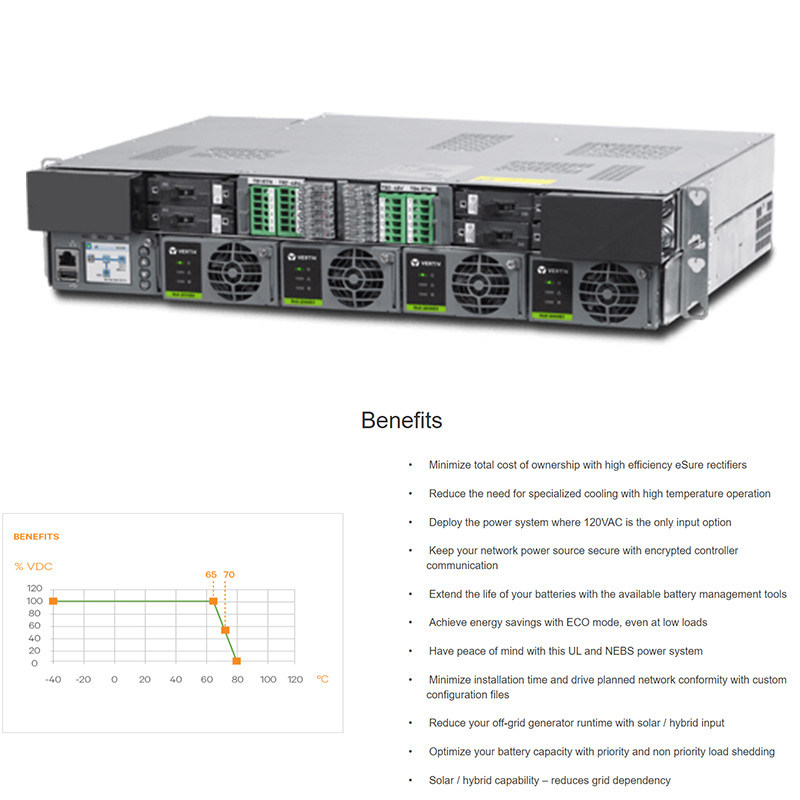

High Energy Efficiency: Equipped with eSure rectifier modules, peak efficiency reaches 96.2%; exclusive ECO mode realizes energy saving even under low load, greatly cutting long-term power consumption
Extreme Temperature Resistance: Normal operation from -40℃ to +80℃, full power output up to +65℃ without derating, no need for extra cooling equipment for harsh environmentsVertiv
Powerful Battery Management: Professional battery monitoring and protection functions, dual-level load shedding (LVD) design, reasonably prioritizes loads to extend battery service life
Solar & Hybrid Compatibility: Reserved interface for solar power access, builds off-grid hybrid power system and reduces generator running timeVertiv
Rich Communication Protocols: Supports Ethernet, SNMP V2/V3, ModBus and RS485, encrypted communication ensures network security, realizes remote monitoring and parameter configuration
Modular Expandable Structure: Up to 4 slots for 2000W rectifier modules, flexible capacity expansion according to actual load demands
Convenient Installation & Maintenance: 19/23-inch standard rack size, front and rear dual access design, supports custom configuration files to shorten deployment timeVertiv
Strict Safety Certification: Passes UL, NEBS Level 3 and multiple international safety standards, stable and reliable for long-term operation
Technical Specifications
| Item | Details |
| Model | NetSure 5100 (58213720) |
| Brand | Vertiv / Former Emerson |
| System Type | Integrated Telecom DC Power System |
| AC Nominal Input | 120VAC, 208~240VAC (50/60Hz) |
| AC Operational Input | 85~300VAC |
| DC Nominal Output | -48VDC |
| Total Power Range | 2kW ~ 7.2kW |
| Output Current Range | 40A ~ 150A |
| Peak Efficiency | 96.2% |
| Rectifier Configuration | Max 4 × 2000W eSure Rectifier Slots |
| Communication Interface | Ethernet, SNMP V2/V3, ModBus, RS485 |
| Core Function | ECO Energy-saving Mode, Solar Hybrid Access, Dual LVD Load Shedding |
| Dimension (WDH) | 483 × 310 × 178mm (Up to 3U) |
| Rack Standard | 19" / 23" Rack Mount |
| Access Mode | Front & Rear Access |
| Working Temp | -40℃ ~ +80℃ (Full power below +65℃) |
| Storage Temp | -45℃ ~ +85℃ |
| Certifications | UL, NEBS Level 3 |
| MOQ | 1 Set |
| Unit Price | $780.00/Set (1~9 Sets) |
| Monthly Supply | 2000 Sets |
| Packing | Carton / Wooden Frame |
| Warranty | 12 Months |
| Port of Shipment | Shenzhen |
Applications
4G/5G Macro & Micro Base Station Integrated DC Power Supply
FTTx & DSLAM Telecom Access Network Power Cabinet
Unmanned Remote Communication Sites & Off-grid Hybrid Power Stations
Pole-mounted Outdoor Communication Equipment Power System
Industrial Control & Monitoring Equipment -48VDC Power Supply
Old Telecom Power Cabinet Renovation & Capacity Expansion Projects
