Product Overview

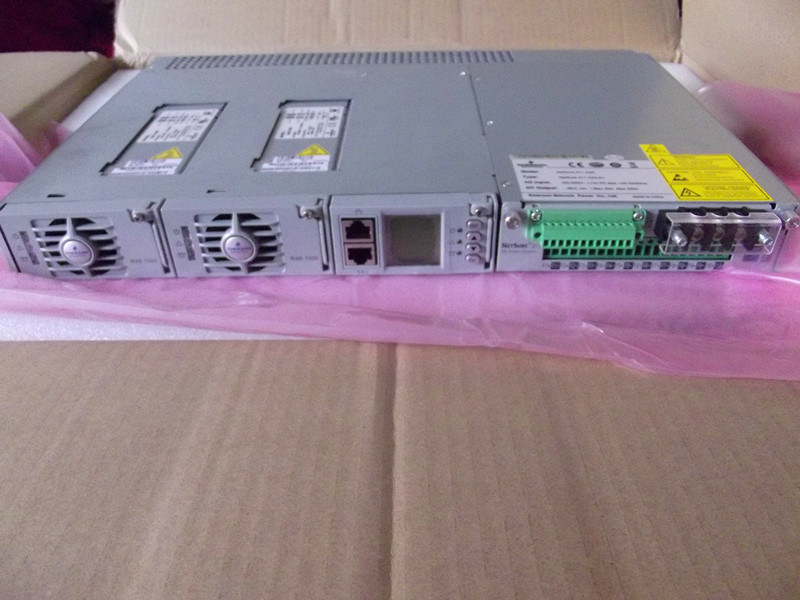

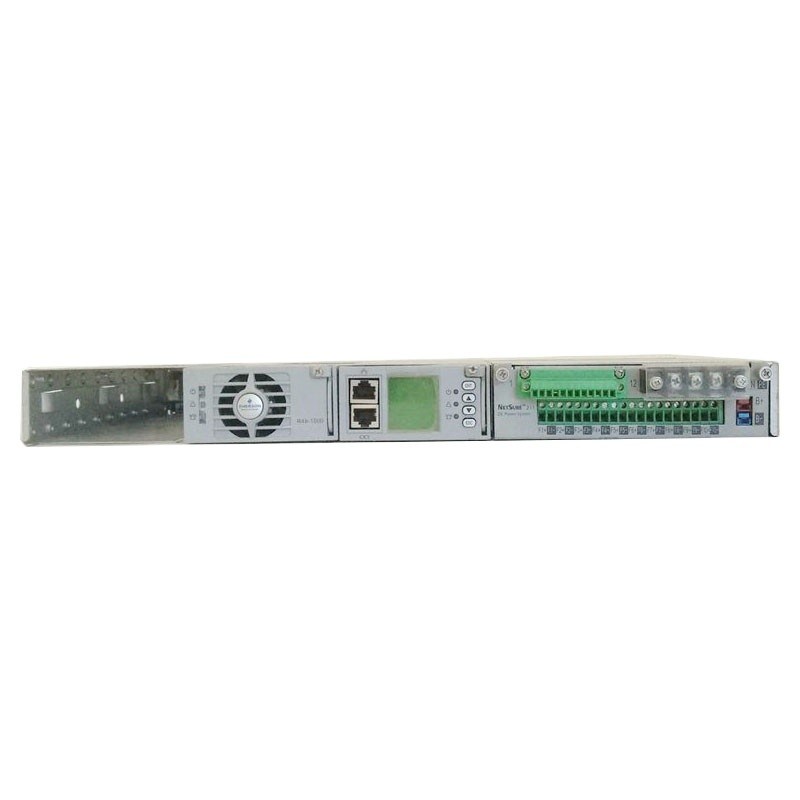

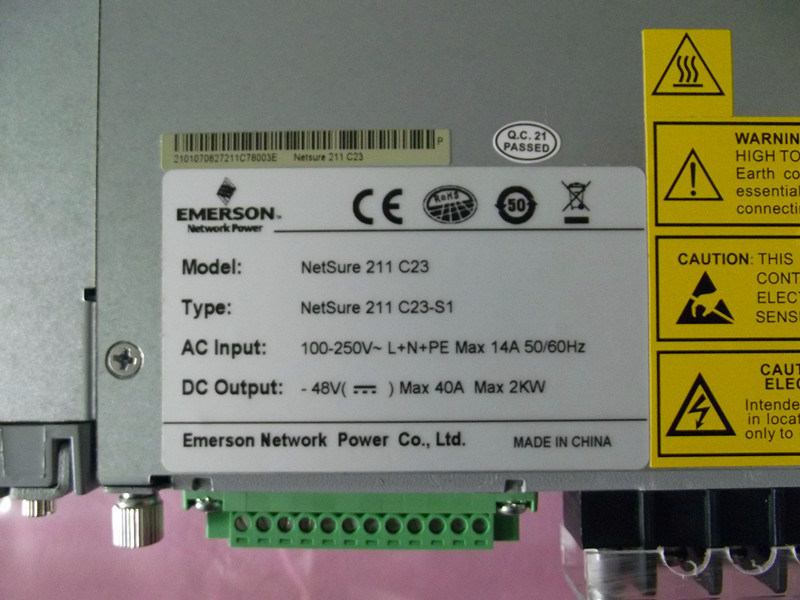

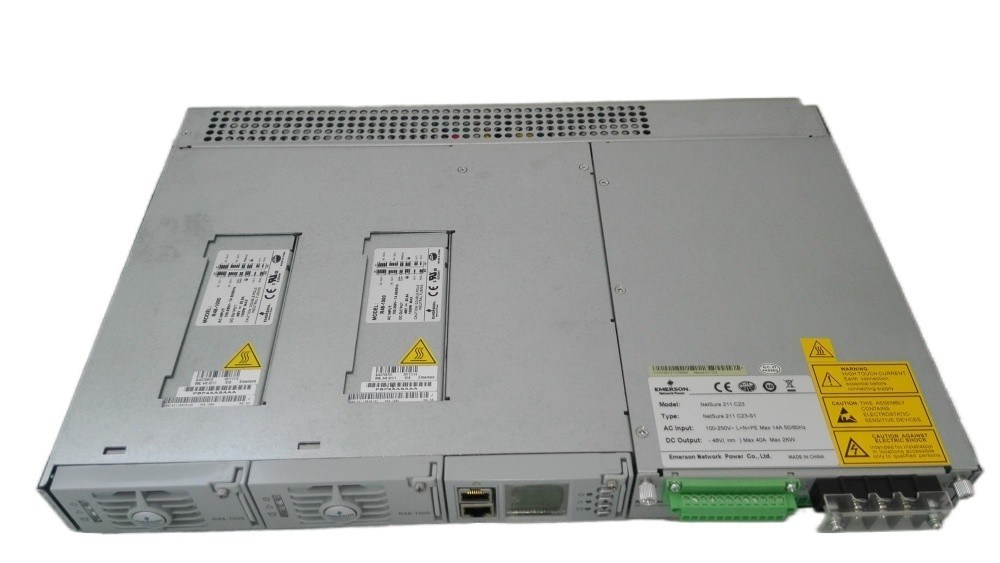

The Vertiv (formerly Emerson) NetSure 211 C23 is a compact, highly reliable embedded DC power system designed for telecom access networks, OLT equipment, small base stations, street cabinets, fiber access nodes and space‑limited equipment rooms. It converts wide‑range AC input into stable adjustable –48V DC output, with a maximum output current of 40A to provide stable power for small and medium‑sized communication equipment.
Adopting a highly integrated, compact chassis design, hot‑swappable modules, intelligent monitoring and comprehensive protection, this system ensures high efficiency, stable operation and easy maintenance. It is the preferred compact embedded power solution for access network and small communication sitesVertiv.
Key Features
Ultra‑compact structure, supports 1U/2U 19‑inch rack or embedded cabinet installation, saves space significantly
Wide AC input range 90–290VAC, 45–65Hz, strong adaptability to unstable grids and generator power
Stable adjustable DC output –42.3V ~ –57.6VDC, nominal –53.5VDC, max output current 40A
High efficiency up to 91%, active PFC design with power factor ≥0.99, low energy consumption

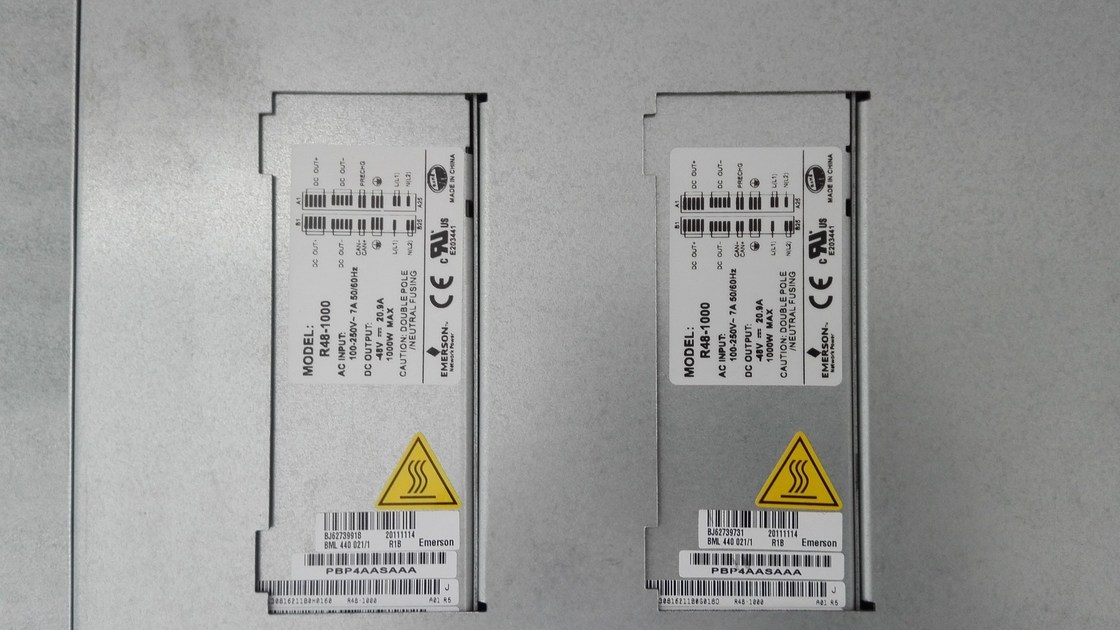

Hot‑swappable rectifier modules, plug‑and‑play replacement without system shutdown
Intelligent monitoring unit: real‑time data display, fault alarm, remote communication (RS232/Ethernet optional)
Complete battery management: BLVD, temperature compensation, auto voltage regulation, prolong battery life
Full electrical protection: OVP, OCP, SCP, OTP, input undervoltage, surge & lightning protection
Wide operating temperature –33°C ~ +55°C, strong environmental adaptability
Forced air cooling by built‑in fan, reliable heat dissipation
Front access & front maintenance design, easy installation and operation
Certified with CE, UL, NEBS and global telecom safety standards
Technical Specifications
| Item | Details |
| Brand | Vertiv / Emerson |
| Model | NetSure 211 C23 |
| System Type | Compact embedded DC power system |
| AC Input | 90–290VAC, 45–65Hz; single‑phase |
| DC Output | –42.3V ~ –57.6VDC; Nominal –53.5VDC |
| Max Output Current | 40A |
| Peak Efficiency | Up to 91% |
| Power Factor | ≥0.99 |
| Cooling | Built‑in fan, forced convection |
| Protection | OVP, OCP, SCP, OTP, LVBD, surge protection |
| Communication | RS232, Ethernet (optional), dry contact |
| Operating Temp | –33°C ~ +55°C |
| Storage Temp | –40°C ~ +70°C |
| Humidity | 5%–95% RH (non‑condensing) |
| Altitude | ≤3000 m |
| Dimensions | Approx. 440 × 300 × 140 mm |
| Weight | Approx. 13 kg |
| Certifications | CE, UL, NEBS, YD/T983 |
| Warranty | 12 Months |
| Application | Telecom access, OLT, small base station, cabinet |
Applications
Telecom OLT and fiber optical access equipment
Small 4G/5G base stations, micro cells and indoor coverage sites
Street cabinets, pole‑mounted and wall‑mounted communication equipment
FTTx & ONU/ODN network devices
Industrial control, automation and compact DC power loads
Space‑limited equipment rooms and embedded cabinet scenarios
