Product Overview

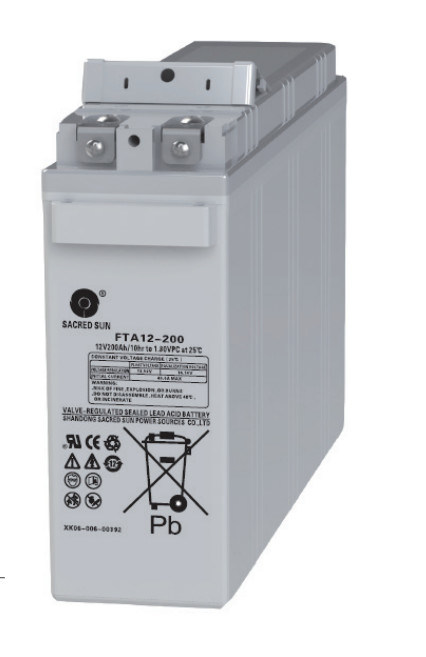

The Sacred Sun FTA12-200 (FT Series) is front terminal AGM VRLA sealed lead-acid battery specially developed for global telecom, UPS and data center backup power applications. Adopts narrow elongated cabinet-friendly structure with front-mounted terminals, perfectly matching standard 19-inch and 23-inch communication power cabinets. Designed per EUROBAT industrial standard, rated 12V nominal voltage & 200Ah(C10) capacity, featuring advanced AGM separator and thickened positive/negative plates, with up to 12 years floating service life under 25℃ normal ambient. Equipped exclusive centralized vent exhaust system, low monthly self-discharge, high gas recombination efficiency ≥98%, widely deployed in indoor/outdoor telecom base station, power grid system, industrial UPS and emergency power projects worldwide.
Key Features
Unique front terminal narrow cabinet design, terminals on front panel, convenient wiring & maintenance inside 19/23” power cabinet
Premium AGM glass fiber separator with high acid absorption, outstanding high-temperature resistance for harsh cabinet environment
Radiation-type cast grid + thickened electrode plates, strong high-current discharge performance and long service lifespan (12 years@25℃)山东圣阳电源股份有限公司
High gas recombination efficiency＞98%, valve-regulated fully sealed structure, no acid leakage, maintenance-free operation
Ultra-low self-discharge ≤1.5% per month (@25℃), long-term standby without frequent supplementary charging
Built-in centralized venting system, intensive gas collection and discharge to improve cabinet safety
Wide working temperature: -15℃~+50℃, stable performance for outdoor unmanned telecom cabinet sites
Strictly compliant with IEC60896-21/22, BS6290-4 and EUROBAT international industry standards
Technical Specifications
| Item | Details |
| Model | FTA12-200 (FT Series) |
| Brand | Sacred Sun |
| Nominal Voltage | 12VDC |
| Rated Capacity | 200Ah (C10, 25℃, 1.8V/cell end voltage) |
| Dimension(L×W×H) | 558×125×324mm |
| Net Weight | Approx 59kg |
| Internal Resistance | ≤4.0mΩ (25℃ full charged) |
| Short Circuit Current | 3900A |
| Monthly Self-discharge | ≤1.5% @25℃ |
| Design Floating Life | 12 Years (25℃ Standard Ambient)山东圣阳电源股份有限公司 |
| Working Temp Range | -15℃ ~ +50℃ |
| Compliance Standard | IEC60896-21/22, BS6290-4, EUROBAT Guide |
| MOQ | 50 PCS |
| Monthly Supply | 200 Sets |
| Lead Time | 5~6 Weeks |
| Packing | Export Standard Carton |
| Warranty | 12 Months |
Applications
4G/5G Indoor & Outdoor Macro/Micro Telecom Base Station Backup Power
ISP Data Center & Server Room Emergency UPS Storage Battery
Municipal Power Station & Distribution Cabinet Backup Power System
Railway, Security Monitoring Uninterrupted DC Power Supply
Industrial Equipment & Medical Instrument Emergency UPS Projects
Off-grid Solar/Wind Hybrid Energy Storage Cabinet
