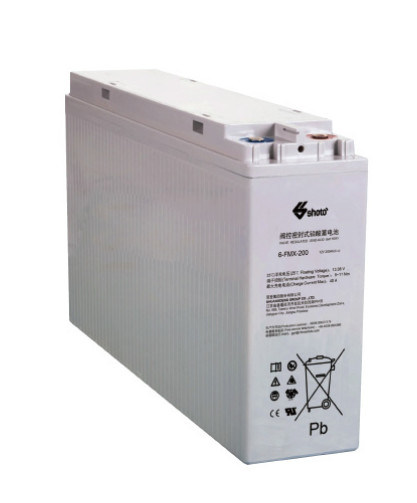

Product Overview
The SHOTO 6-FMX-200 belongs to FMX front terminal narrow-size VRLA AGM series developed by Shuangdeng(Shoto), designed specially for global standard 19-inch and 23-inch integrated telecom power cabinets. Rated 12VDC nominal voltage, 200Ah @C10 capacity, unique front-mounted terminal layout enables wiring and routine maintenance without pulling batteries out from tight cabinet space. Adopts high-purity lead-calcium grid + premium AGM glass fiber separator, high gas recombination efficiency over 98%, 12-year floating design lifespan under 25℃ ambient, available in AGM lead-acid and optional LiFePO4 lithium two versions for diversified project demands, widely used in indoor/outdoor 4G/5G base station, FTTx pole cabinet, IDC room and off-grid solar energy storage projects.
Key Features
Exclusive narrow elongated cabinet design with front M6 terminals, front-side wiring only, save cabinet maintenance space greatly
High-efficiency AGM absorption technology, gas recombination rate ≥98%, fully sealed valve-regulated structure, zero acid leakage & maintenance-free operation
Advanced lead-calcium alloy grid, outstanding deep discharge recovery performance, stable long-term floating operation for telecom standby scene
Ultra-low monthly self-discharge ≤4% @25℃, long-term idle storage without frequent supplementary charging
Wide working temperature: Discharge -40℃~+50℃, Charge -20℃~+45℃, adapt harsh unmanned outdoor pole-mounted cabinet environment
Standard dimension perfectly matches mainstream global 19/23 inch communication power rack, flexible series & parallel capacity expansion
Strictly produced complying with IEC60896, ISO9001, ISO14001 international quality standards
Technical Specifications
| Item | Details |
| Model | 6-FMX-200 (FMX Front Terminal Series) |
| Brand | SHOTO(Shuangdeng) |
| Nominal Voltage | 12VDC |
| Rated Capacity | 200Ah(C10, 25℃, 1.8V/cell end voltage) |
| Dimension(L×W×H) | 559×125×315mm |
| Net Weight | 56.5kg |
| Internal Resistance | ≤3.2mΩ(Fully Charged @25℃) |
| Short Circuit Current | 2852A |
| Monthly Self-discharge | ≤4% @25℃ |
| Design Floating Life | 12 Years (25℃ Standard Ambient) |
| Recommended Charging Current | 40A |
| Floating Voltage | 2.25V/cell, -3mV/℃ Temperature Compensation |
| Equalizing Voltage | 2.35V/cell |
| Working Temp | Discharge:-40~+50℃ / Charge:-20~+45℃ |
| Certifications | CE, ISO9001, ISO14001 |
| MOQ | 50 PCS |
| Monthly Supply | 200 Sets |
| Lead Time | 5~6 Weeks |
| Packing | Export Standard Carton |
| Warranty | 12 Months |
Applications
Indoor & Outdoor 4G/5G Macro/Micro Base Station DC Backup Power
FTTx Pole-mounted OLT Outdoor Cabinet Emergency Storage Battery
Edge Data Center & Server Room UPS Uninterrupted Power Supply
Off-grid Solar & Wind Hybrid Energy Storage System
Railway, Security Monitoring Centralized DC Power Equipment
Industrial Automation & Medical Instrument Emergency UPS Projects
