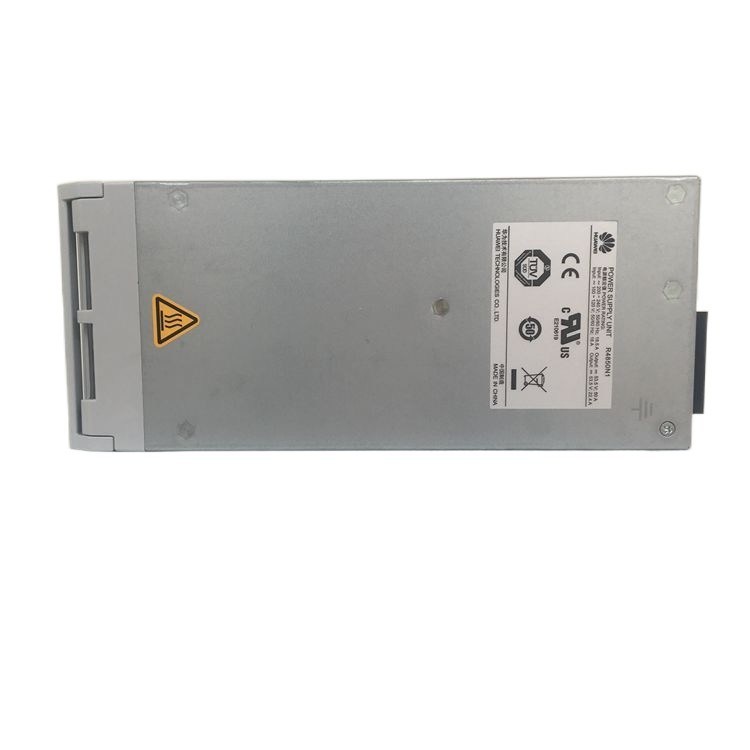

Product Overview
The R4850 / R4850N / R4850N1 is a high-efficiency, high-power-density 48V 50A DC rectifier module designed for telecom access networks, 4G/5G base stations, OLT equipment, edge data centers and industrial DC power systems. It converts wide-range AC input into stable -48V DC output, supporting battery charging and load power supply with rated power up to 3000W.
Adopting advanced digital control and high-frequency switching technology, this module delivers up to 94% efficiency, with features including hot-swap capability, active current sharing, comprehensive protection and strong environmental adaptability. It is an ideal core component for compact embedded power systems and rack-mounted power solutions.
Key Features
Ultra-high efficiency up to 94%, low power consumption and heat generation
Wide AC input range 85–300VAC, 45–65Hz, compatible with unstable power grids
Stable adjustable DC output -42V ~ -58VDC, max output current 50A, rated power 3000W
Power factor ≥0.99, low harmonic distortion, green and energy-saving
Hot-swappable design, supports online plug-and-play replacement
Active current sharing, supports parallel capacity expansion
Full protection: overvoltage, overcurrent, short circuit, overheating, input undervoltage

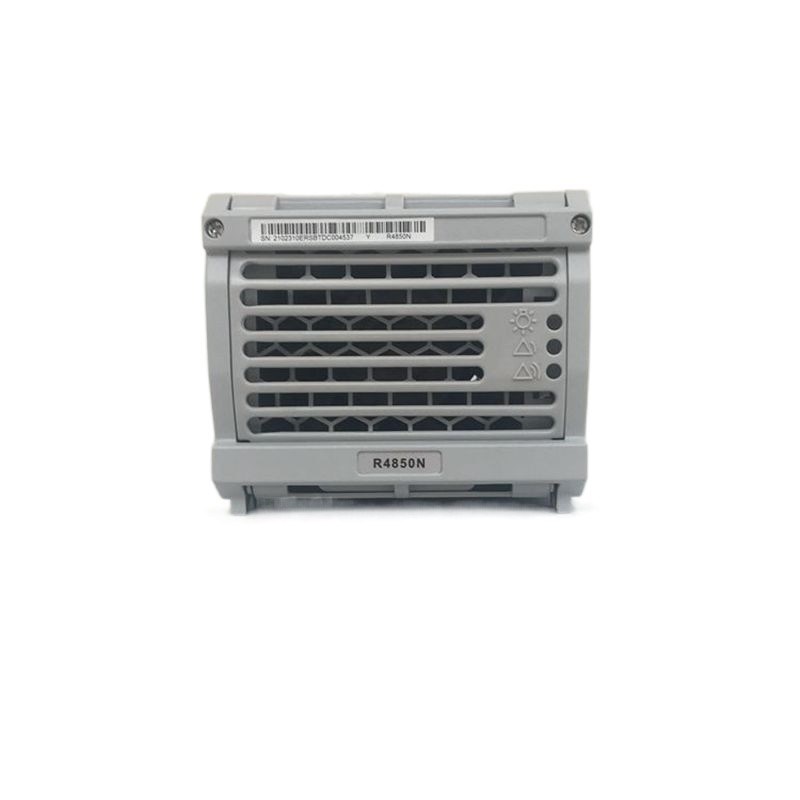

LED status indicators for real-time operation and fault visualization
Compact and lightweight, easy for rack integration and maintenance
CE certified, RoHS compliant, global safety and environmental standards
Technical Specifications
| Item | Details |
| Model | R4850, R4850N, R4850N1 |
| Type | DC Power Rectifier Module |
| AC Input | 85–300VAC, 45–65Hz |
| DC Output | -42 ~ -58VDC adjustable; Nominal -48VDC |
| Max Output Current | 50A |
| Rated Output Power | 3000W |
| Peak Efficiency | 94% |
| Power Factor | ≥0.99 (≥50% load) |
| Current Sharing | ≤±3% |
| Protection Functions | OVP, OCP, SCP, OTP, Input Undervoltage |
| Weight | <3kg |

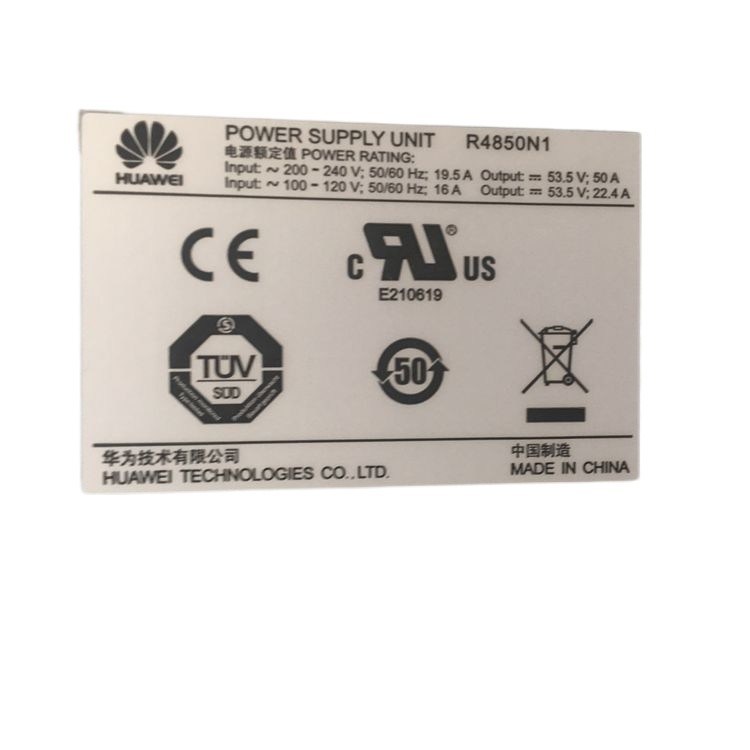

| Certifications | CE, RoHS |
| Warranty | 3 Years |
| Application | Telecom, Base Station, OLT, Data Center |
Applications
4G / 5G mobile base stations and wireless access sites
Telecom OLT and fiber optical access network equipment
Edge data centers and IDC equipment rooms
Microwave transmission and fixed communication systems
Industrial control, automation and critical DC power loads
Embedded power systems and compact power cabinets
Why Choose Us
We are a professional manufacturer and one‑stop solution provider for communication DC power systems, boasting mature R&D strength, large-scale production capacity and flexible service modes. We fully support OEM and OBM cooperation, helping global partners create differentiated power products and brands.
-
Powerful R&D & Customization Ability
We have a professional technical team with years of experience in the power industry. We can provide personalized customized services covering power configuration, external interfaces, functional parameters, appearance design and logo printing, to satisfy diverse demands from telecom operators, system integrators and equipment manufacturers.
-
Comprehensive OEM & OBM Services
We offer full‑cycle cooperation support from product design, prototype testing, certification to mass production. With efficient development process and strict quality management, we help you quickly launch products and build exclusive brand advantages.
-
Large Production Capacity & On-time Delivery
We own standardized production workshops and complete production lines. Relying on a stable supply chain and mature production technology, we maintain sufficient inventory and strong production capacity, ensuring on-time delivery even for bulk orders and long-term cooperative supply.
-
Strict Multi-level Quality Inspection
All products will pass full-load operation test, high-low temperature aging test, safety performance test and simulated on-site operation test before delivery. We adopt high-quality original components and implement strict quality control standards to guarantee long-term stable operation of products in various harsh environments.
-
Full Lifecycle Technical & After-sales Support
We establish a complete service system including pre-sales consultation, in-sales technical guidance and after-sales maintenance. Our technical team responds quickly to provide remote debugging, on-site technical guidance, equipment maintenance training and spare parts supply, protecting the stable operation of your power system all the time.
-
Rich Global Project Experience
Our products have been exported to many countries and regions, widely applied in communication, data center, industrial control, new energy and other fields. With rich global project experience, we can provide targeted power solutions for different regional standards and application scenarios.
We sincerely look forward to establishing long-term stable cooperative partnership with you.
