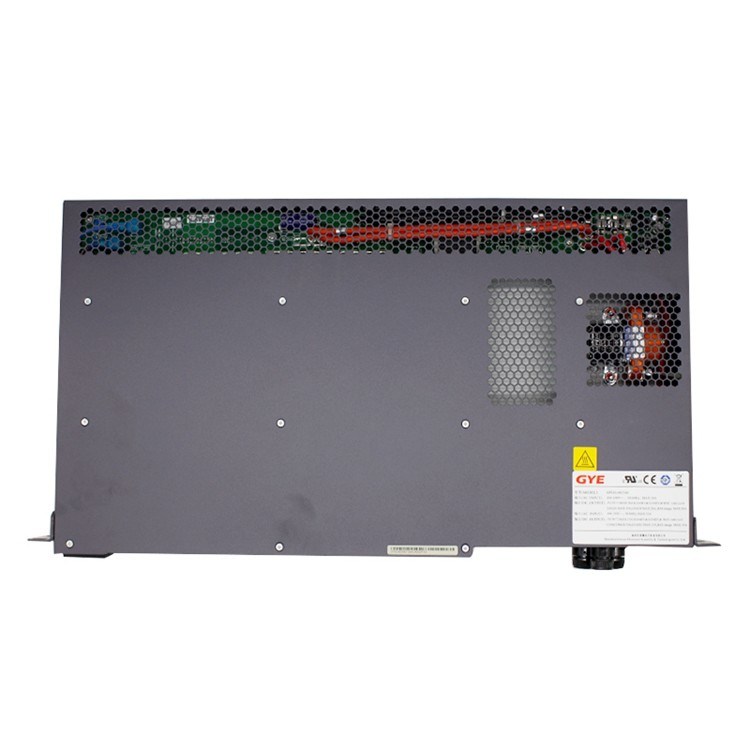

Original EPS30-4815AF OLT DC Power Converter System
Dual Wide Voltage Input: Compatible with 110V and 220V global AC grids, the working range reaches 90-290V AC. It operates stably even under unstable power grid, and realizes linear current limiting when the voltage is between 90V and 176V AC.

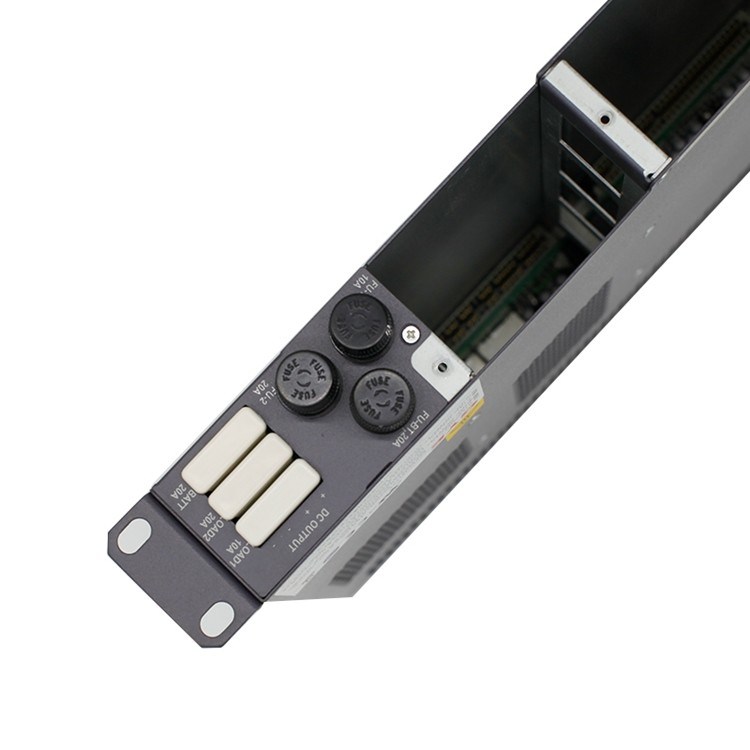

Dual Current Output Modes: Equipped with 15A and 30A two output specifications. The dual-circuit distribution design (10A + 15A/20A) realizes flexible power supply for multiple loads, adapting to diverse equipment configurations.
High Energy Efficiency & Low Interference: The conversion efficiency is higher than 81% under 110V AC input and over 89% under 220V AC input. The output ripple is less than 200mV, which will not interfere with signal transmission of communication devices.

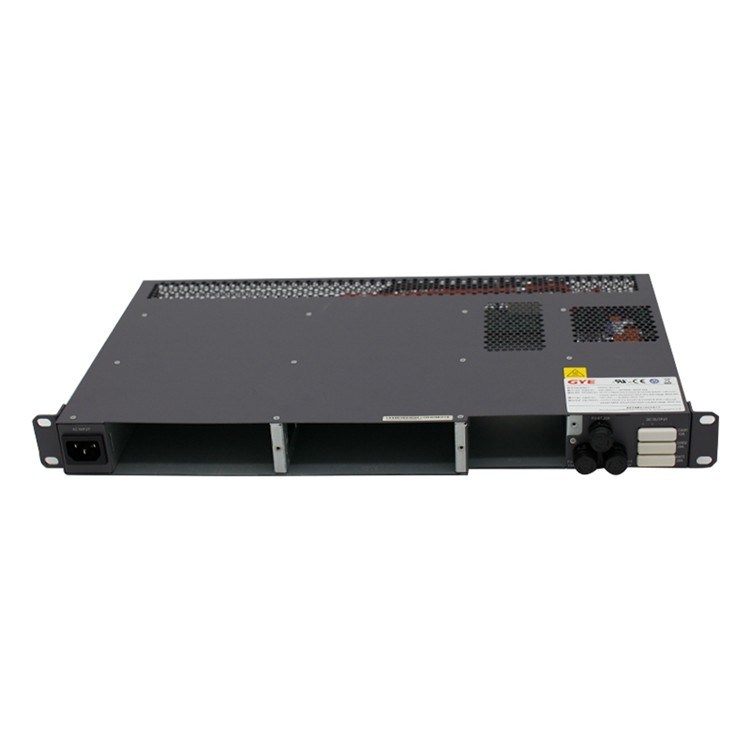

1U Compact Structure: Standard 1U cabinet size, perfectly matching 19-inch standard cabinets. It occupies little space and is suitable for dense layout of indoor machine rooms and compact equipment cabinets.
Hot-swap & Modular Maintenance: The rectifier module supports hot swap. Modules can be replaced directly without shutting down the system, greatly reducing maintenance downtime and operational risks.
Intelligent Monitoring & Battery Management: Built-in professional monitoring module to real-timely collect operating data. It can be connected with storage batteries and realizes automatic monitoring, charging and protection of battery packs to ensure uninterrupted power supply.
Full-range Safety Protection: Integrated overvoltage, overcurrent, short-circuit and overtemperature protection, as well as excellent lightning protection performance, effectively protecting the power converter and rear-end communication equipment.
Reliable Heat Dissipation: Built-in fan forced air cooling system, stable heat dissipation performance, supporting 24-hour long-term continuous operation.
GPON & EPON OLT devices like Huawei MA5680T, ZTE C320 and other mainstream models
Optical fiber communication transmission equipment and network access terminals
Indoor communication base stations and small & medium-sized telecom machine rooms
FTTX broadband access network supporting power distribution system
Embedded DC power supply and battery backup power projects
| Category | Item | Parameter |
|---|---|---|
| Basic Information | Product Type | OLT DC Power Converter / Embedded Telecom Power System |
| Brand | xdsd, E.M.S | |
| Model | EPS30-4815AF | |
| AC Input | Rated Voltage | 110V AC / 220V AC |
| Working Voltage Range | 90V ~ 290V AC | |
| Input Frequency | 45Hz ~ 65Hz (Nominal 50/60Hz) | |
| Max Input Current | 10A | |
| DC Output | Nominal Voltage | 48V DC (Typical 53.5V DC, Range: 42V ~ 58V DC) |
| Output Current | 15A / 30A | |
| Max Output Power | 1600W | |
| Output Type | Multiple Circuits | |
| Performance Parameter | Conversion Efficiency | ≥81% (110VAC); ≥89% (220VAC) |
| Output Ripple | ＜ 200mVpp | |
| Cooling Mode | Forced Air Cooling (Built-in Fan) | |
| Matching Modules | Rectifier Module | GERM4815T |
| Monitoring Module | EPMU03 | |
| Physical Size | Dimension (W×D×H) | 442mm × 250mm × 43.6mm (1U) |
| Product Weight | 7kg | |
| Package Size | 95mm × 325mm × 610mm | |
| Protection Function | Protection Items | Overvoltage, Overcurrent, Short-circuit, Overtemperature, Lightning Protection |
| After-sales | Warranty Period | 12 Months |
| MOQ | 1 piece |
Global dual voltage design, compatible with 110V/220V power grids, suitable for overseas multi-region project deployment
High-efficiency power conversion reduces long-term power consumption and operating costs
1U slim design saves cabinet space, ideal for space-limited machine room scenarios
Hot-swap modular structure simplifies maintenance work and guarantees continuous system operation
Complete protection mechanisms and strict factory testing ensure stable operation in complex environments
Excellent compatibility with mainstream OLT and optical communication equipment, plug and play
