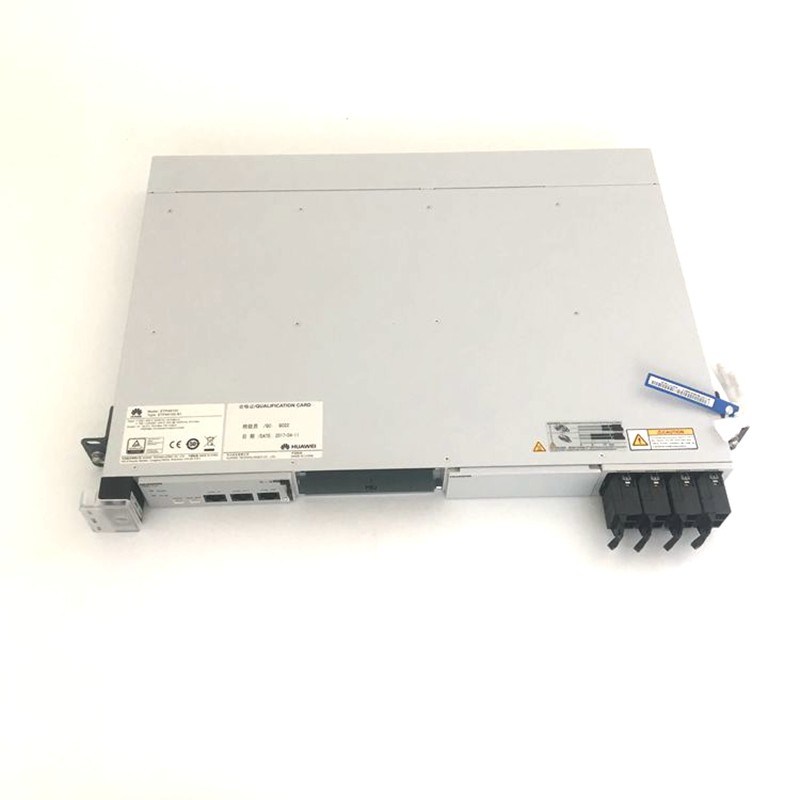

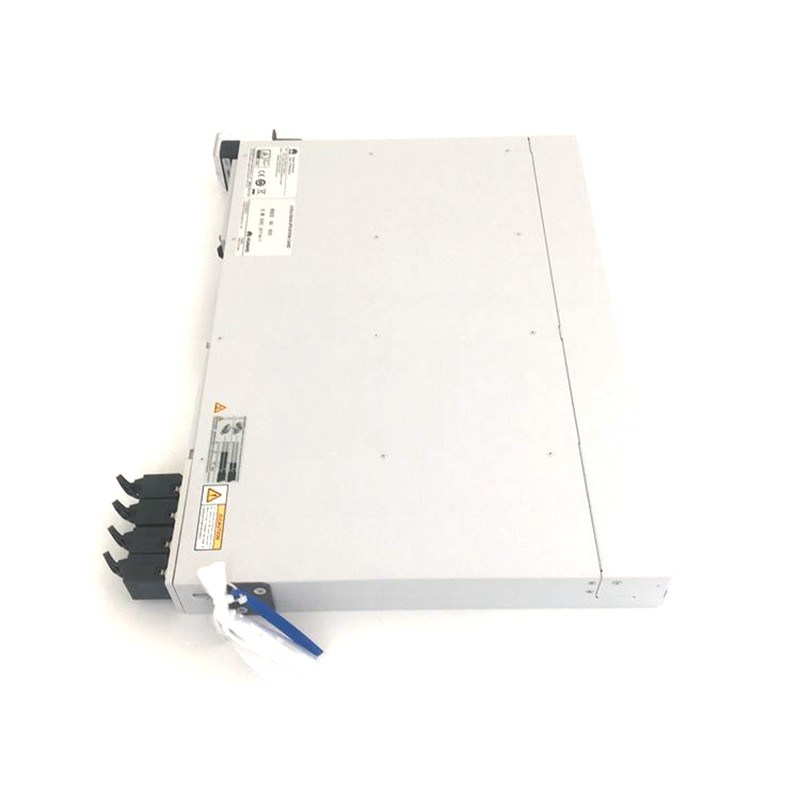

OEM ETP48100-B1 Embedded Telecom DC Power System
Dual Wide AC Input: Compatible with 100-120V and 200-240V global AC grids, adapting to different regional power supply standards and complex grid environments.
Multiple DC Output Options: Provides 25A conventional output and 100A high-current output, with multi-channel distribution design to meet the power demands of multiple communication devices simultaneously.
High Energy Efficiency: The overall conversion efficiency reaches up to 96%, effectively reducing power loss and heat generation during long-term 24-hour operation, and lowering operating costs.

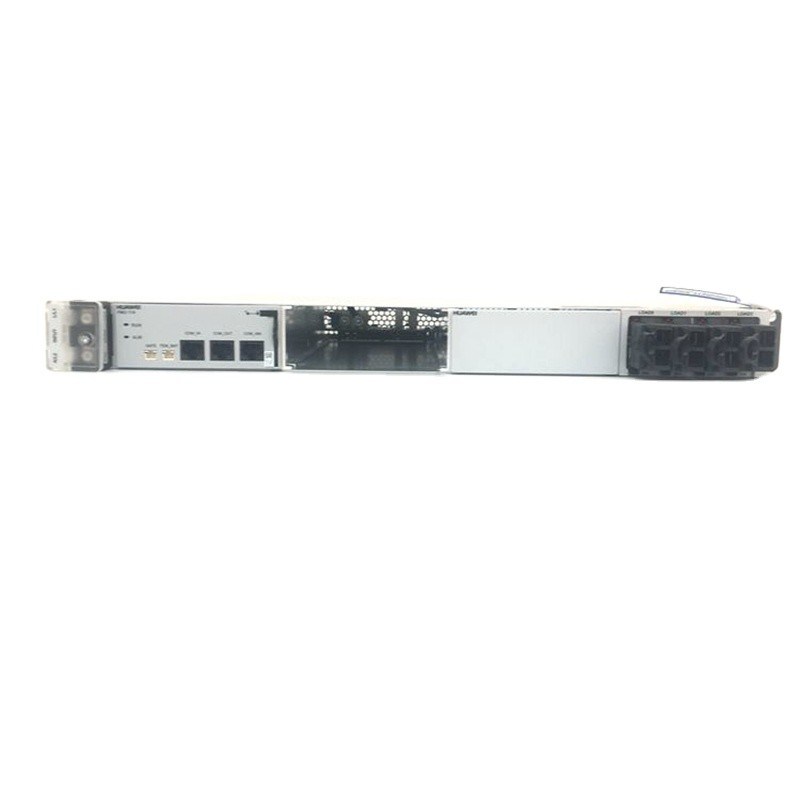

Compact 1U Structure: Standard 19-inch 1U rack size, small footprint, easy to install in various standard communication cabinets and OLT frames, saving cabinet space.

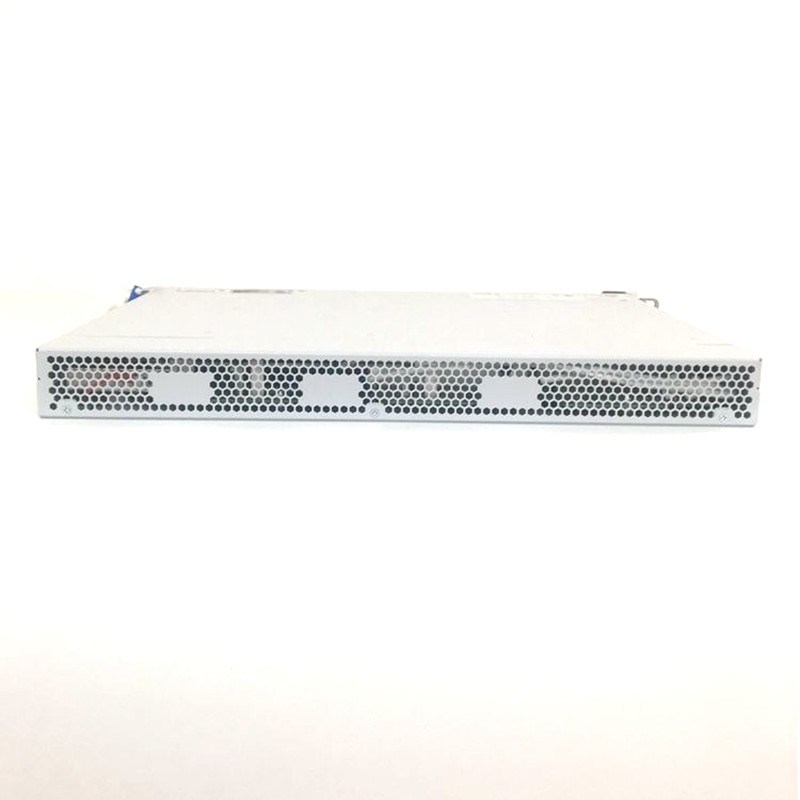

Reliable Heat Dissipation: Built-in fan forced convection cooling system, stable heat dissipation performance, ensuring continuous and stable operation under full load conditions.
Full-range Safety Protection: Integrated overvoltage, overcurrent, short-circuit and overtemperature protection functions to effectively protect the power supply and rear-end communication equipment.
Strong Environmental Adaptation: Works stably at the temperature of -33°C to 55°C, and the storage temperature ranges from -40°C to 70°C. It can work normally in the altitude below 3000m, suitable for various harsh deployment environments.
Certified Quality: Passed CE and ISO international certifications, complying with global telecom equipment safety and quality standards. Custom logo service is supported to meet personalized demands.
Huawei MA5680T, MA5683T and other mainstream OLT equipment
Fiber-optic communication transmission equipment and network access terminals
Indoor communication base stations, remote machine rooms and unattended communication sites
BBU, RRU and wireless communication supporting power supply systems
FTTX broadband access network and embedded DC power distribution projects
| Category | Item | Parameter |
|---|---|---|
| Basic Information | Product Type | Embedded Telecom DC Power System |
| Brand | XDSD | |
| Model | ETP48100-B1 | |
| Output Type | Multiple Channels | |
| AC Input | Rated Input Voltage | 100~120VAC / 200~240VAC |
| Rated Input Current | 32A | |
| Input Frequency | 50/60Hz | |
| DC Output | Nominal Output Voltage | 48VDC (53.5VDC) |
| Rated Output Current | 25A | |
| Max Output Current | 100A | |
| Conversion Efficiency | Up to 96% | |
| Physical Parameter | Dimension (HWD) | 45mm × 315mm × 415mm |
| Net Weight | 7kg | |
| Environmental Parameter | Operating Temperature | -33°C ~ 55°C |
| Storage Temperature | -40°C ~ 70°C | |
| Max Working Altitude | ＜ 3000m | |
| Cooling System | Cooling Mode | Built-in Fan, Forced Convection |
| Certification & Service | Certifications | CE, ISO |
| MOQ | 2 pieces | |
| Customization | Support OEM logo | |
| Loading Port | Shenzhen |
Wide Compatibility: Specially designed for mainstream OLT and wireless communication equipment, plug and play without complex debugging.
Dual Voltage & Multi-current Design: Adapts to global power grids and different load requirements, one product for multiple usage scenarios.
High Efficiency & Energy Saving: 96% high conversion efficiency reduces long-term power consumption and equipment heat.
Compact & Space-saving: 1U slim cabinet design, perfect for dense layout of machine rooms and limited space scenarios.
Durable & Stable: Excellent temperature and altitude resistance, suitable for indoor and outdoor communication sites for long-term continuous operation.
Complete Protection Mechanism: Multiple safety protection functions prevent equipment damage caused by abnormal power supply, improving operational safety.
