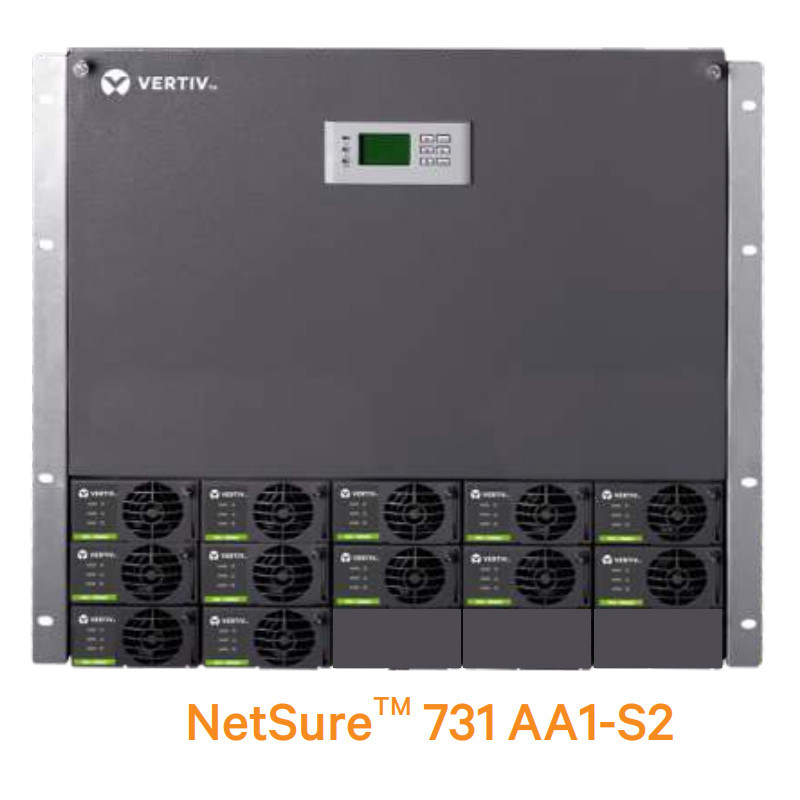

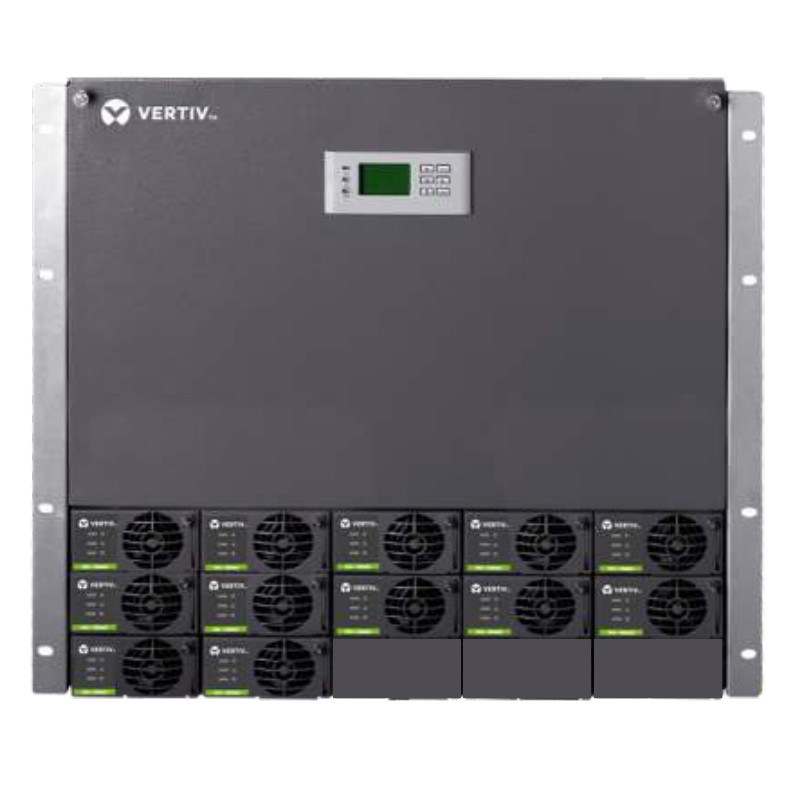

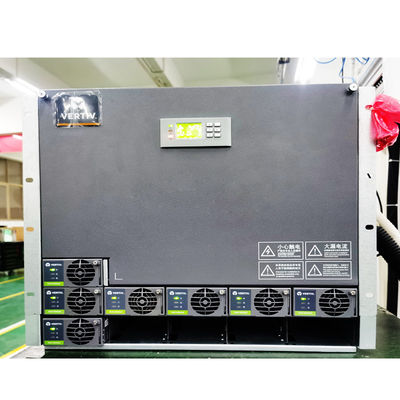

NetSure 731 AA1-S2 Embedded Telecom DC Power System
Ultra-Wide Grid Adaptation: 85~300V AC wide input range, compatible with mains and generator power; output derating is automatically triggered when voltage is lower than 176V to ensure system safety.
High Power Capacity: Maximum 600A DC output, suitable for large equipment clusters and multi-tenant shared communication sites.
Superior Energy Efficiency: Normal efficiency ≥95%, peak efficiency up to 96%; supports module sleep and ECO energy-saving mode to reduce idle power consumption.
Professional Module Configuration: Matches R48-3000 rectifier modules and M5306 controller, with standard 125A AC/DC circuit breakers for reliable power distribution.
Multi-Tenant Management: Supports up to 4 independent users, equipped with separate power distribution circuits and power metering functions for refined management.
Comprehensive Lightning Protection: AC SPD (Class C) and DC 10kA surge protection, effectively resisting outdoor lightning and transient surges.
Intelligent Battery Management: Built-in BLVD protection, temperature compensation, automatic charge switching and online battery testing to extend battery service life.
Modular Hot-Swap: Rectifier and controller modules support hot plugging. Maintenance and replacement can be done without system shutdown.
Walk-In Soft Start: Avoids current impact on front-end transformers and generators during startup, protecting the entire power grid.
Rich Interfaces: Equipped with RS232, Ethernet and dry contact ports to realize remote monitoring, parameter configuration and fault alarm.
Large 4G/5G multi-tenant shared macro base stations
Telecom central machine rooms and backbone transmission equipment rooms
Large-scale FTTX broadband access power distribution systems
Data center DC power supply and battery backup projects
Industrial communication equipment and high-load network frame systems

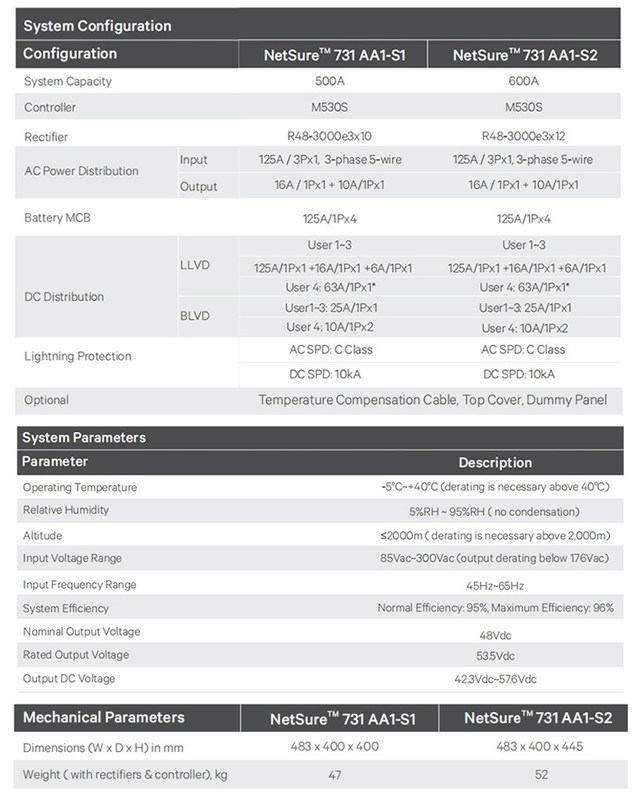

| Category | Item | Parameter |
|---|---|---|
| Basic Info | Product Type | Subrack Embedded Telecom DC Power System |
| Model | NetSure 731 AA1-S2 | |
| Comparative Model | NetSure 731 AA1-S1 (Max 500A) | |
| Application | Multi-tenant telecom stations, large network equipment | |
| AC Input | Input Mode | 3-phase 5-wire |
| Operating Voltage | 85 ~ 300V AC (Derating below 176V) | |
| Input Frequency | 45 ~ 65Hz | |
| AC Distribution Breaker | 125A/3P | |
| AC Lightning Protection | Class C SPD | |
| DC Output | Nominal Voltage | 48V DC (Adjustable: 42 ~ 58.5V DC) |
| Max Output Current | 600A | |
| Current Range | 62.5A ~ 750A | |
| System Efficiency | Normal: 95%, Peak: 96% | |
| DC Lightning Protection | 10kA SPD | |
| Battery Breaker | 125A/1P × 4 | |
| Load Protection | Multiple 16A / 25A / 10A circuit breakers | |
| Matching Parts | Rectifier Module | R48-3000 series |
| Controller | M5306 | |
| Physical Parameter | Dimension (W×D×H) | 483 × 400 × 445 mm |
| Total Weight (With Modules) | 52 kg | |
| AA1-S1 Dimension | 483 × 400 × 400 mm | |
| AA1-S1 Weight | 47 kg | |
| Environment | Operating Temperature | -5℃ ~ +40℃ |
| Storage Temperature | -40℃ ~ +70℃ | |
| Relative Humidity | 5% ~ 95% (Non-condensing) | |
| Max Altitude | ≤2000m (Derate above 2000m) | |
| Service | Warranty Period | 12 Months |
Large Load Capacity: 600A high current design perfectly meets the power demand of multi-tenant large base stations.
Strong Grid Compatibility: 85-300V ultra-wide input adapts to complex power grids and generator power supply.
Energy-Saving Design: Over 95% high efficiency and ECO mode effectively reduce long-term electricity costs.
Multi-User Management: Independent distribution and metering for 4 tenants, convenient for shared site operation.
Easy O&M: Hot-swap modules and front maintenance cut maintenance time and service downtime.
Full Protection: Dual lightning protection + multi-circuit breakers + battery protection ensure overall system safety.
Remote Control: Multiple communication ports support unattended centralized management.
